GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1902- )

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62117C 62117C 62170B 62170B 62170B 62170C 62170D 62180D 62211 62211D 62211T 62212 62311B 62312B 62489A 67923G 67923G
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09245

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
90467-09240

GDH30#,32#,GRH30#,32#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09245

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
90467-09240

GDH30#,32#,GRH30#,32#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-26040C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-26040C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62211 - GARNISH, FRONT PILLAR, RH
62210-26140B0

GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10167

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26140B0

GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

LT.GRAY,TRIM1#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-26110

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH)

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-26110

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH)

 1
67923G - CLAMP, COWL SIDE TRIM BOARD
67923-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67923G - CLAMP, COWL SIDE TRIM BOARD
67923-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2

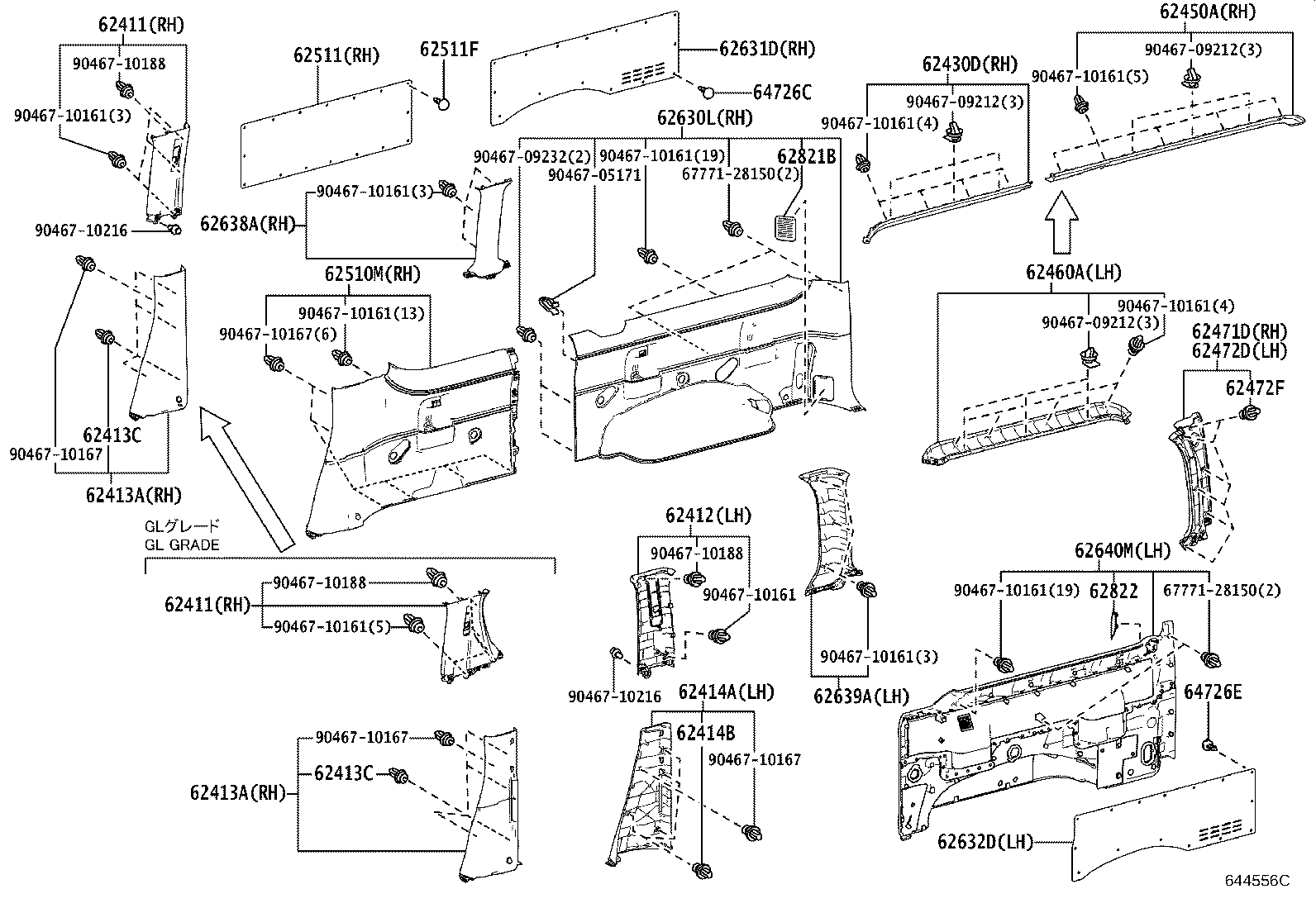

ILLUST NO. 2 OF 4(1902- )GDH300,301,GRH300,301..RHD..4D

Click highlighted areas on diagram

diagram 62411 62411 62412 62413A 62413A 62413C 62413C 62414A 62414B 62430D 62450A 62460A 62471D 62472D 62472F 62510M 62511 62511F 62630L 62631D 62632D 62638A 62639A 62640M 62821B 62822 64726C 64726E 6777128150 6777128150 9046705171 9046709212 9046709212 9046709212 9046709232 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710161 9046710167 9046710167 9046710167 9046710167 9046710188 9046710188 9046710188 9046710216 9046710216
Part # Description Qty Price
62411 - GARNISH, CENTER PILLAR, RH
62410-26150B0

GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..D..(GEN,NZ,TH)

LT.GRAY,TRIM1#

 1
62411 - GARNISH, CENTER PILLAR, RH
62410-26150B0

GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..D..(GEN,NZ,TH)

LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26150B0

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..RHD..4D..D..(GEN,NZ,TH)

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26320C0

GDH322..RHD..D..GEN;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,320,322..RHD..4D..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26320C0

GDH322..RHD..D..GEN;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,320,322..RHD..4D..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GRH303,322..LHD..(J,N);GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,306,322,GRH301,321..LHD..(G,J,N,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P,Q)..(GCC,GEN,IDN,NZ,TH)

 4
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GRH303,322..LHD..(J,N);GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,306,322,GRH301,321..LHD..(G,J,N,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P,Q)..(GCC,GEN,IDN,NZ,TH)

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26480C0

GDH300..5D;GRH300..GCC;GRH320..LHD..SP;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320..SP..(GCC,GEN);GDH301,GRH320..RHD..D..GEN;GDH300,320,GRH300,301..RHD..4D..D..(GEN,TH)

BLACK,TRIM1#

 1
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH322..RHD..N;GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..RHD..(D,N)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH300,322..4D..6FC..(ARL,NZ);GDH301,GRH301,303..RHD..(GEN,NZ,TH);GDH303,304,321,GRH304,322..D,G,H,J,P;GDH301,306,322,GRH301..LHD..(D,G,J,P)

 4
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-26460

GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH)

 1
62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD)
67771-26250E1

GDH300..4D..6FC;GRH300..4D..GEN;GDH300..4D..6F..(GEN,TH)

OCHER,TRIM1#

 16
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26A60

GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH)

 1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26B50

GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH300,GRH300..RHD..4D..(GEN,TH)

 1
64726C - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
64726E - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
Common parts
67771-28150
90467-05171
90467-09212
90467-09232
90467-10161
90467-10167
90467-10188
90467-10216

ILLUST NO. 3 OF 4(1902- )

Click highlighted areas on diagram

FRONT

diagram 51794D 51794D 51794D 51798C 51798C 51798C 58445K 58445K 58458H 58458H 67911B 67911B 67911B 67912A 67912A 67912A 67913B 67913B 67914B 67914B 67923C 67923C 67924A 67924A 67925D 67925D 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 90119T0141 90119T0141 90119T0141 90119T0141 90119T0141 90119T0262 90119T0262 90119T0262 90119T0262 9018306030 9018306030 9018306030 91673A0620 91673A0620 91673A0620 91673A0620 91673A0620 91673A0620 9354054008 9354054008 9354054008 9354055010 9354055010
Part # Description Qty Price
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
58445K - LOCK, BATTERY SERVICE HOLE COVER
58445-26040

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 2
58445K - LOCK, BATTERY SERVICE HOLE COVER
58445-26040

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 2
58458H - KNOB, BATTERY SERVICE HOLE COVER
58458-26030C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
58458H - KNOB, BATTERY SERVICE HOLE COVER
58458-26030C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67913B - PLATE, FRONT DOOR SCUFF, RH
67910-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67910-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67920-26060C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67920-26060C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67925D - COVER, DOOR SCUFF PLATE
67925-26080C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67925D - COVER, DOOR SCUFF PLATE
67925-26080C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
Common parts
90119-06983
90119-T0141
90119-T0262
90183-06030
91673-A0620
93540-54008
93540-55010

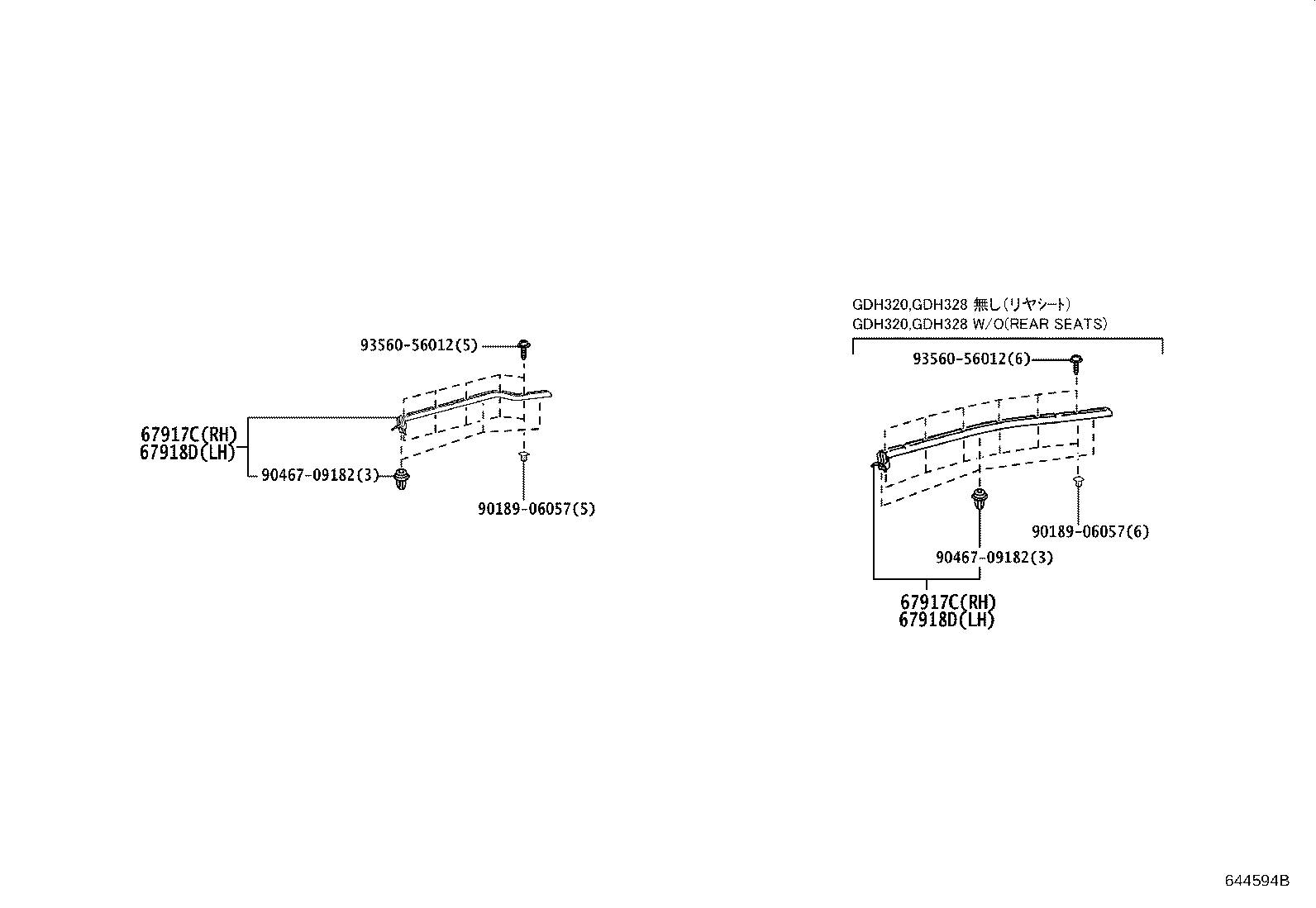

ILLUST NO. 4 OF 4(1902- )GDH301,GRH300,301..D..ARL,GCC,GEN ; (1902- )GDH300,320,328,GRH320..SG

Click highlighted areas on diagram

REAR

diagram 67917C 67917C 67918D 67918D 9018906057 9018906057 9046709182 9046709182 9356056012 9356056012
Part # Description Qty Price
67918D - PLATE, REAR DOOR SCUFF, LH
67918-26200C0

GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH300,GRH300..RHD..4D..(GEN,TH)

BLACK,TRIM1#

 1
67918D - PLATE, REAR DOOR SCUFF, LH
67918-26200C0

GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GRH300..(SG,SP)..GCC;GDH300,GRH300..RHD..4D..(GEN,TH)

BLACK,TRIM1#

 1
Common parts
90189-06057
90467-09182
93560-56012
