GRH300R-GBTDH (2019)
Toyota Hiace

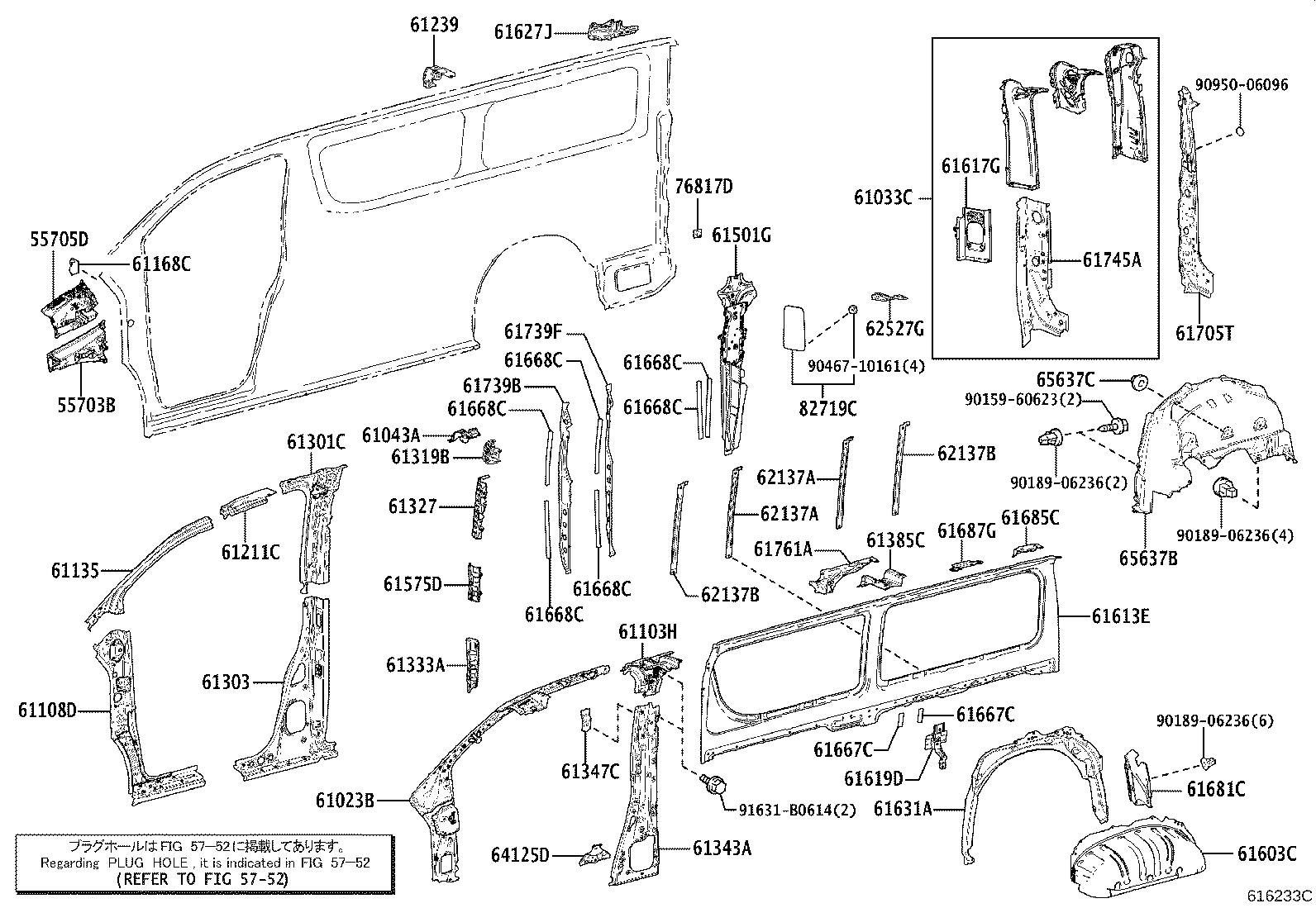

ILLUST NO. 2 OF 3(1902- )GDH300,GRH300..RHD..4D
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26510 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..D..GEN |
1 | ||
| 61043A - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH | ||||
| 61043-26010 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26040 |
GDH300,301,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 61103-26020 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH304,GRH300..GCC,TH;GDH300,301,306,GRH301..LHD..GEN;GDH300,303,GRH304..5D..(GCC,GEN) |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61239 - RETAINER, ROOF SIDE RAIL OUTER, RH | ||||
| 61239-26030 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH | ||||
| 61301-26520 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26070 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61319B - PLATE, CENTER BODY PILLAR, OUTER RH | ||||
| 61319-26010 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH | ||||
| 61327-26060 |
GDH322..ARL;GDH321..RHD..D;GDH300,320..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..4D..(D,N)..(GEN,NZ,TH) |
1 | ||
| 61333A - BASE, CENTER BODY PILLAR COVER, RH | ||||
| 61333-26010 |
GDH322..ARL;GDH321..RHD..D;GDH300,320..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..4D..(D,N)..(GEN,NZ,TH) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26530 |
GDH301,322..RHD..D..GEN;GDH300,320,321,GRH300,301,320,322..RHD..4D..D..(GEN,IDN,TH) |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26030 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61385-26050 |
GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26280 |
GDH300,320..RHD..4D..6FC;GRH300,320..RHD..4D..GEN;GDH300,320..RHD..4D..6F..(GEN,TH) |
1 | ||
| 61501-26330 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61575D - PLATE, NO.4 PILLAR, OUTER RH | ||||
| 61575-26010 |
GDH322..ARL;GDH321..RHD..D;GDH300,320..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..4D..(D,N)..(GEN,NZ,TH) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26J40 |
GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26160 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26090 |
GRH300..4D..GEN;GRH300..(SG,SP)..GCC;GDH322,GRH322..LHD..D;GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61667-26360 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
6 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26350 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..GCC,GEN,TH |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26050 |
GDH322..ARL;GDH321..RHD..D;GDH300,320..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..4D..(D,N)..(GEN,NZ,TH) |
1 | ||
| 61739F - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26060 |
GDH322..ARL;GDH321..RHD..D;GDH300,320..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..4D..(D,N)..(GEN,NZ,TH) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26120 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26060 |
GDH300..5D..(SHP,SP);GDH300..4D..6FC..ARL;GRH300..(SHP,SP)..GCC;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 62137A - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26060 |
GDH300..5D..(SHP,SP);GDH300..4D..6FC..ARL;GRH300..(SHP,SP)..GCC;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 62137B - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26090 |
GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
2 | ||
| 62137B - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26090 |
GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
2 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 90950-06096 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||

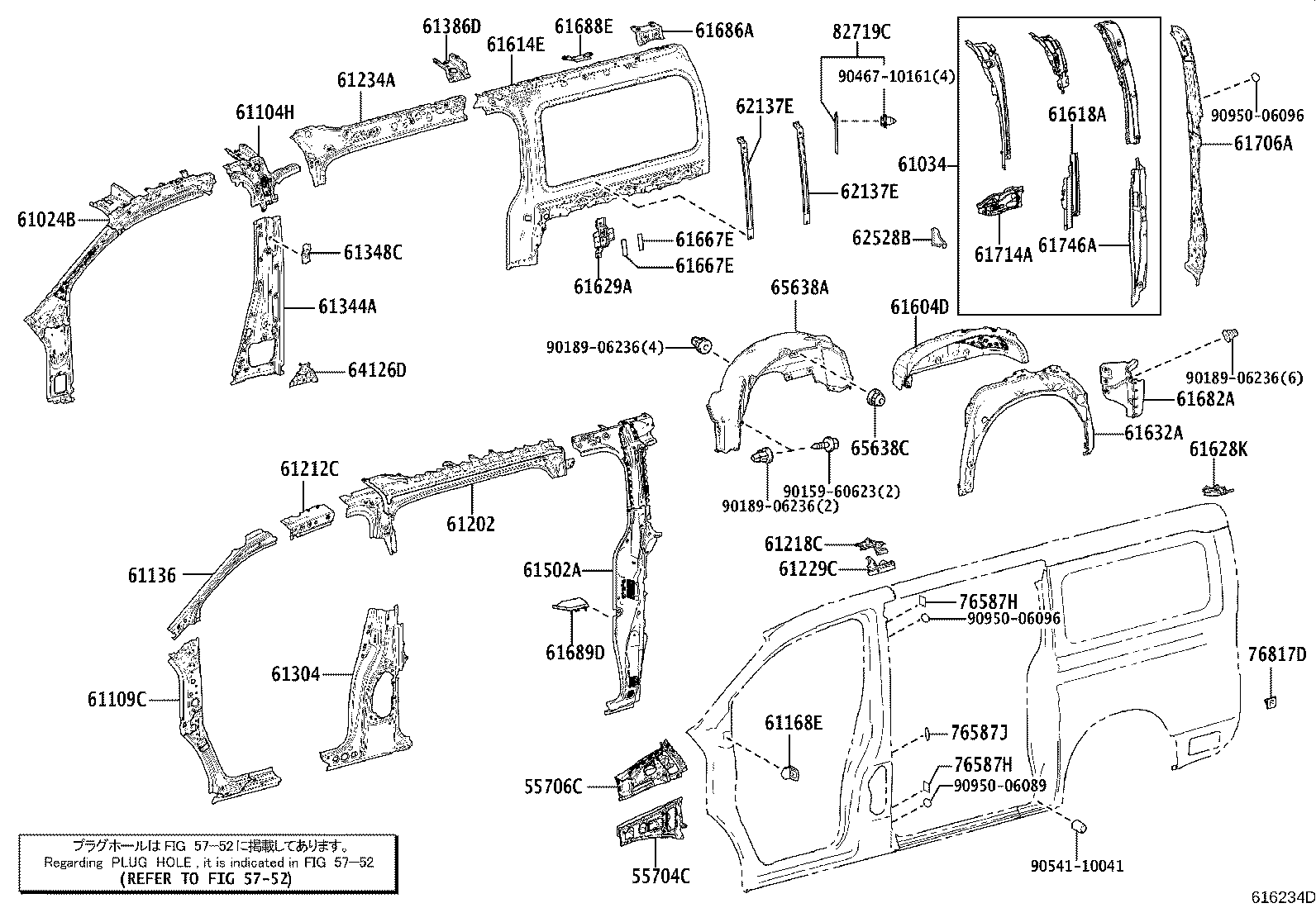

ILLUST NO. 2 OF 3(1902- )GDH300,GRH300..RHD..4D
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26200 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26600 |
GDH300..5D;GRH300..GCC;GDH301..RHD..D..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303..5D..(GCC,GEN);GDH300..RHD..4D..(GEN,TH);GDH301,304,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26120 |
GDH300..5D..SP;GRH300..SP..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26430 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH300,303..(SG,SHP)..(GCC,GEN);GDH301,304,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26450 |
GRH300..GCC;GRH303..LHD..J;GDH300,320..5D..(GCC,GEN);GDH303,306,GRH320..LHD..5D..(D,G,J);GDH301,303,322,GRH303,320..RHD..(D,G,H,J)..GEN;GDH300,320,321,GRH300,301,322..RHD..4D..D..(GEN,IDN,TH) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26050 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26330 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K50 |
GDH300..5D..SP;GRH300..SP..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26070 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26120 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26110 |
GRH300..4D..GEN;GDH301,GRH300..(SG,SP)..(GCC,NZ);GDH321,322,GRH322..RHD..D..(GEN,IDN);GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61688-26050 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26340 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..GCC,GEN,TH |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62137E - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26060 |
GDH300..5D..(SHP,SP);GDH300..4D..6FC..ARL;GRH300..(SHP,SP)..GCC;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 62137E - REINFORCE, SIDE WINDOW PANEL | ||||
| 62137-26060 |
GDH300..5D..(SHP,SP);GDH300..4D..6FC..ARL;GRH300..(SHP,SP)..GCC;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26060 |
GDH300..5D;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322,GRH300..(D,P)..GCC;GDH300,321,322,GRH300..4D..D..(GEN,NZ,TH);GDH301,320,328,GRH301,320,322..(D,P)..(GCC,GEN,VN) |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90467-10161 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 3 OF 3(1902- )GDH300,301,GRH300,301..4D..D
SILENCER SHEET & PAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-26110 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62621-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 62623-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62623-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62939E - SILENCER, QUARTER VENT | ||||
| 62939-33020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 67813F - SHEET, QUARTER PANEL SILENCER | ||||
| 67813-26100 |
GRH300,320..4D..GEN;GDH300,320..4D..6FC;GDH300,320..4D..6F..(GEN,TH) |
1 | ||

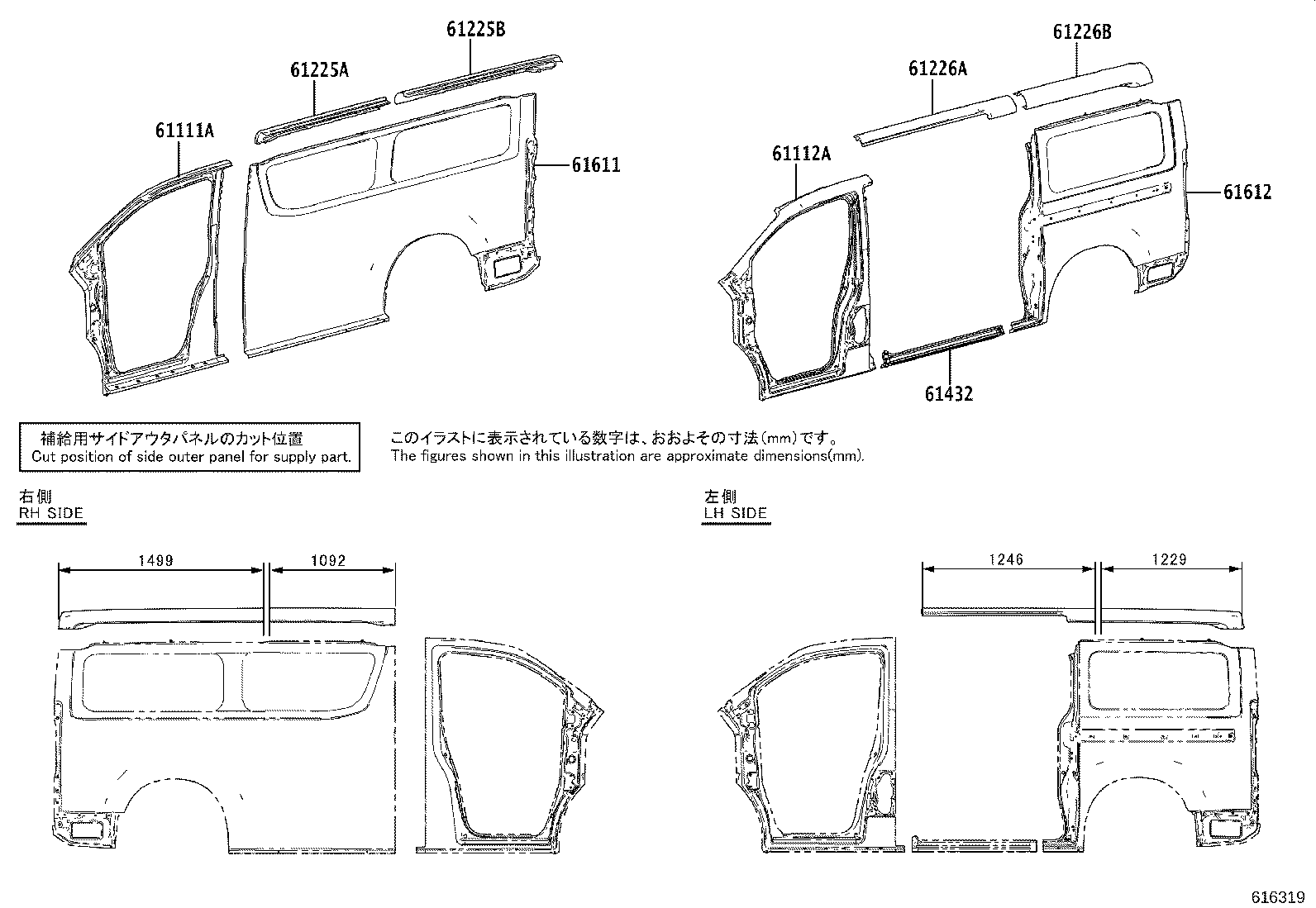

ILLUST NO. 1 OF 3(1902- )GDH300,GRH300..RHD..4D
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26430 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-26470 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..RHD..4D..D..(GEN,NZ,TH) |
1 | ||
| 61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH | ||||
| 61225-26060 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61225-26080 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61225B - RAIL, ROOF SIDE OUTER UPPER NO.2, RH | ||||
| 61225-26090 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61225-26070 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26080 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61226B - RAIL, ROOF SIDE OUTER UPPER NO.2, LH | ||||
| 61226-26090 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-26010 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26680 |
GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26670 |
GDH300..5D..(SHP,SP);GDH300..4D..6FC..ARL;GRH300..(SHP,SP)..GCC;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH | ||||
| 55703-26220 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26110 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26210 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61033-26510 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..D..GEN |
1 | ||
| 61103H - PANEL SUB-ASSY, SIDE, NO.2 RH | ||||
| 61103-26040 |
GDH300,301,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 61103-26020 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH304,GRH300..GCC,TH;GDH300,301,306,GRH301..LHD..GEN;GDH300,303,GRH304..5D..(GCC,GEN) |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168C - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61211-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61217D - RAIL, ROOF SIDE, OUTER NO.4 RH | ||||
| 61217-26020 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH | ||||
| 61228-26010 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-26390 |
GRH300..GCC;GRH303..LHD..J;GDH303..LHD..(G,J);GDH300..5D..(SG,SP);GRH300..4D..6F..GEN;GDH300..SHP..(GCC,GEN);GDH303,GRH303..RHD..GEN;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-26070 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-26530 |
GDH301,322..RHD..D..GEN;GDH300,320,321,GRH300,301,320,322..RHD..4D..D..(GEN,IDN,TH) |
1 | ||
| 61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH | ||||
| 61385-26030 |
GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301..RHD..(GEN,NZ,TH) |
1 | ||
| 61385-26050 |
GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN |
1 | ||
| 61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH | ||||
| 61501-26280 |
GDH300,320..RHD..4D..6FC;GRH300,320..RHD..4D..GEN;GDH300,320..RHD..4D..6F..(GEN,TH) |
1 | ||
| 61501-26330 |
GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,NZ,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26J40 |
GRH300..6FC..GEN;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61627J - PANEL, QUARTER INNER, UPPER REAR RH | ||||
| 61627-26160 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-26090 |
GRH300..4D..GEN;GRH300..(SG,SP)..GCC;GDH322,GRH322..LHD..D;GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61679D - SEAL, QUARTER WHEEL HOUSE | ||||
| 61679-26040 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-26060 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61685C - BRACKET, REAR SEAT BACK STOPPER, RH | ||||
| 61685-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61687-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26350 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..GCC,GEN,TH |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-26030 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62527G - PAD, QUARTER TRIM, LOWER RH | ||||
| 62527-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 64125D - ANCHOR, PILLAR SEAT BELT, RH | ||||
| 64125-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH | ||||
| 55704-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26200 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-26600 |
GDH300..5D;GRH300..GCC;GDH301..RHD..D..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 61104H - PANEL SUB-ASSY, SIDE, NO.2 LH | ||||
| 61104-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303..5D..(GCC,GEN);GDH300..RHD..4D..(GEN,TH);GDH301,304,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-26010 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-26120 |
GDH300..5D..SP;GRH300..SP..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61212-26020 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH | ||||
| 61218-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH | ||||
| 61229-26010 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26430 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH300,303..(SG,SHP)..(GCC,GEN);GDH301,304,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-26060 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26450 |
GRH300..GCC;GRH303..LHD..J;GDH300,320..5D..(GCC,GEN);GDH303,306,GRH320..LHD..5D..(D,G,J);GDH301,303,322,GRH303,320..RHD..(D,G,H,J)..GEN;GDH300,320,321,GRH300,301,322..RHD..4D..D..(GEN,IDN,TH) |
1 | ||
| 61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH | ||||
| 61347-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH | ||||
| 61386-26050 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH | ||||
| 61502-26330 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP) |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-26080 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26K50 |
GDH300..5D..SP;GRH300..SP..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..RHD..4D..(GEN,TH) |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-26070 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 61628K - PANEL, QUARTER INNER, UPPER REAR LH | ||||
| 61628-26120 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-26080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-26110 |
GRH300..4D..GEN;GDH301,GRH300..(SG,SP)..(GCC,NZ);GDH321,322,GRH322..RHD..D..(GEN,IDN);GDH300,320,GRH320..(SG,SP)..(GCC,GEN,TH) |
1 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61667E - SEAL, QUARTER PANEL, NO.1 | ||||
| 61667-26530 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 61686A - BRACKET, REAR SEAT BACK STOPPER, LH | ||||
| 61686-26030 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH | ||||
| 61688-26050 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 61689D - SEAL, QUARTER WHEEL HOUSE, LH | ||||
| 61689-26020 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26340 |
GRH300..GCC;GRH300..4D..GEN;GDH300,301,GRH301..GCC,GEN,TH |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-26030 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 62528B - PAD, QUARTER TRIM, LOWER LH | ||||
| 62528-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587H - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28030 |
GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH) |
2 | ||
| 76587J - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26070 |
GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH) |
1 | ||
| 76817D - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| Common parts | ||||
| 90159-60623 | ||||
| 90189-06236 | ||||
| 90541-10041 | ||||
| 90950-06089 | ||||
| 90950-06096 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
