GRH300R-GBTDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1902- )GDH322..RHD..6F..GEN ; (1902- )GDH322..RHD..6FC..N,P,Q ; (1902- )G

Click highlighted areas on diagram

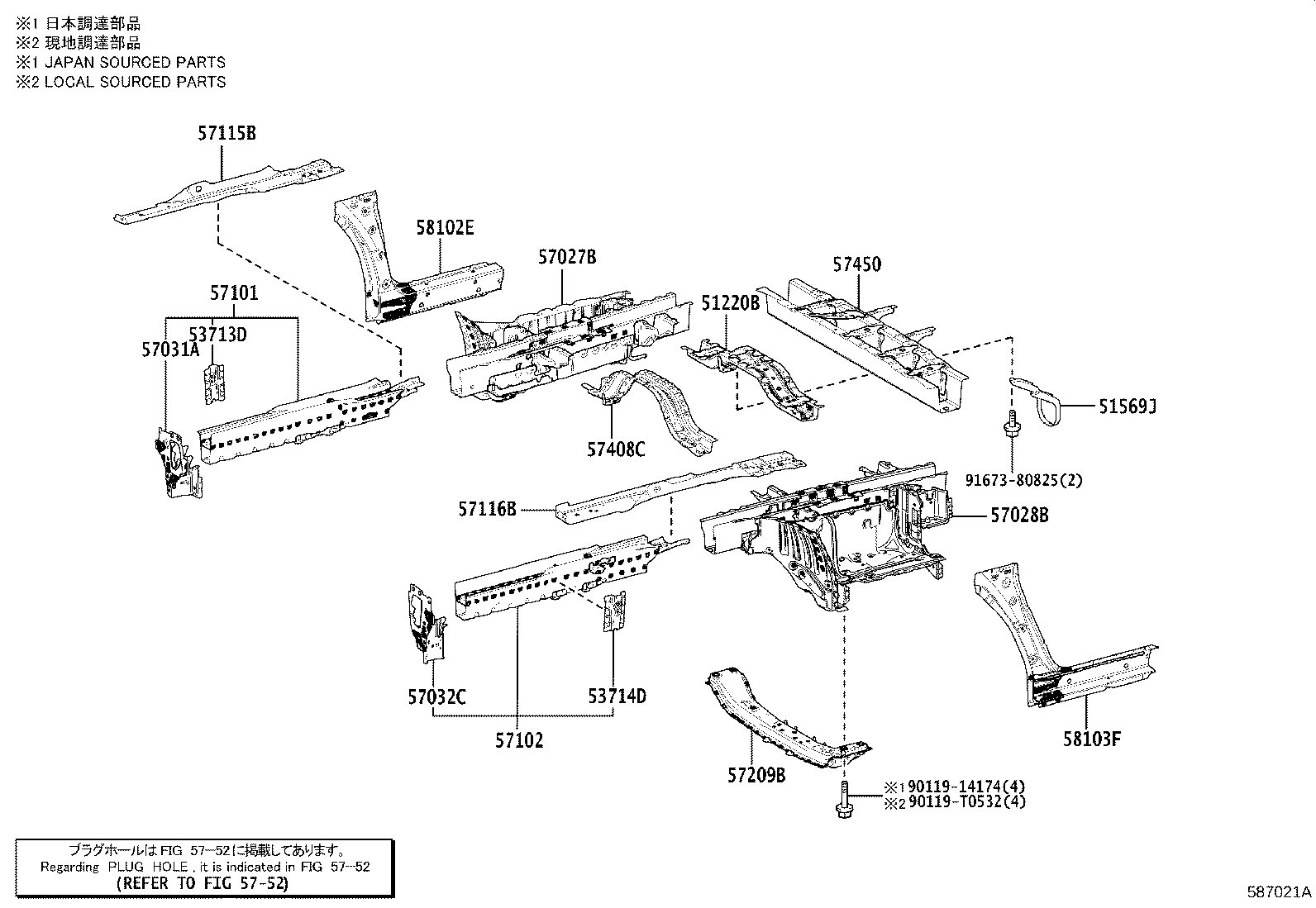

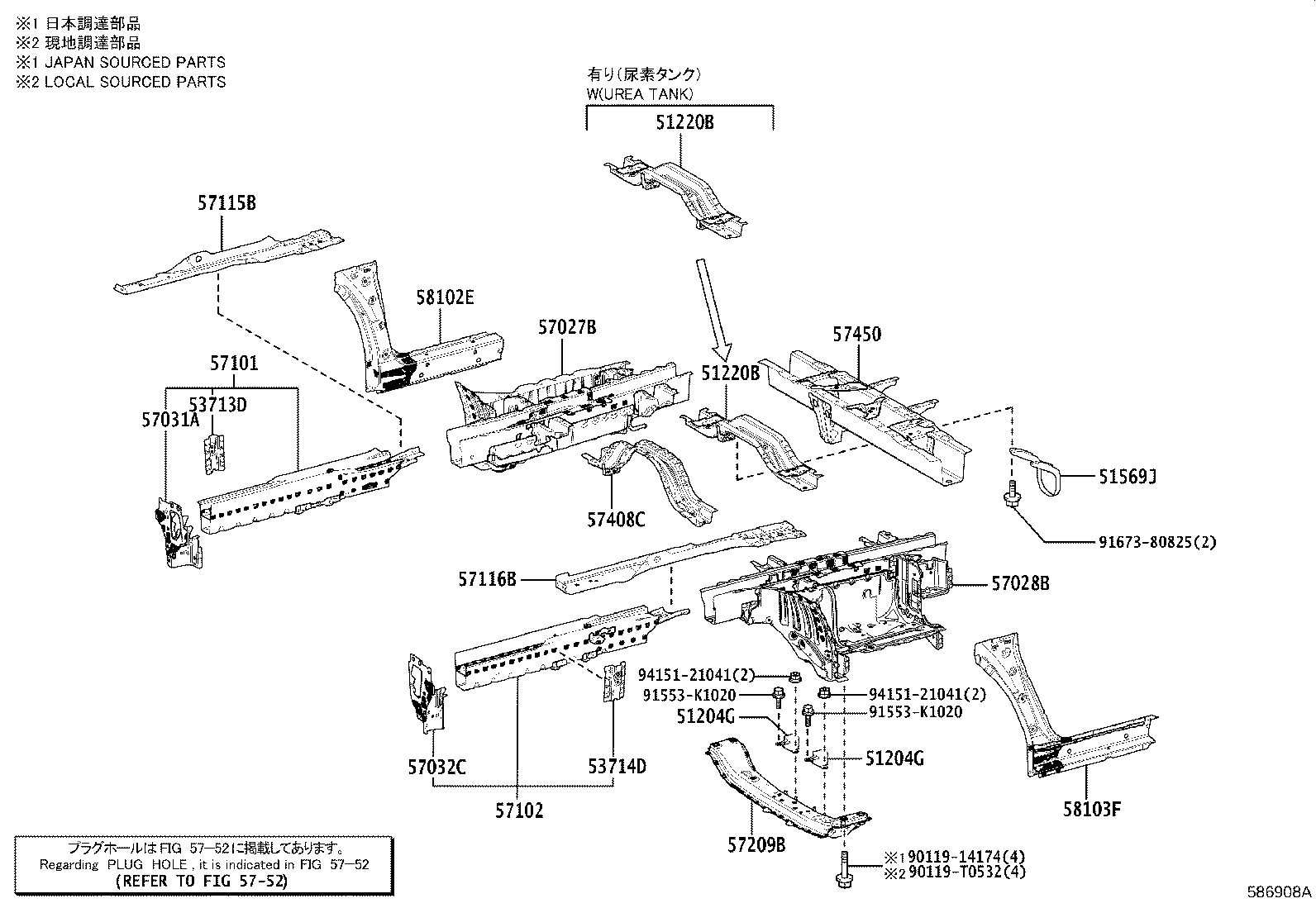

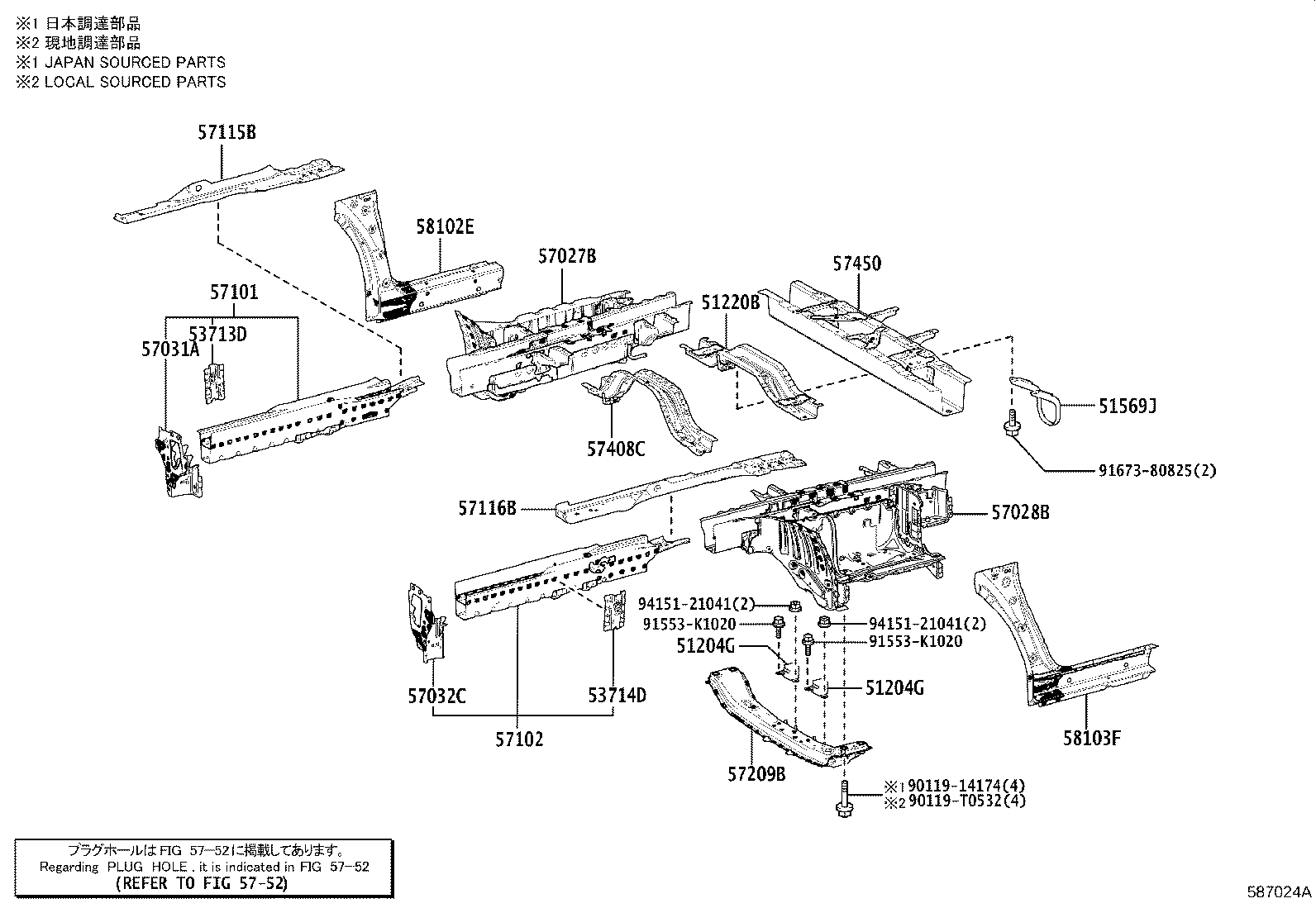

FLOOR MEMBER(FRONT SEPARATE SEAT)

diagram 51204G 51204G 51220B 51220B 51569J 53713D 53714D 57027B 57028B 57031A 57032C 57101 57102 57115B 57116B 57209B 57408C 57450 5752 58102E 58103F 9011914174 90119T0532 91553K1020 91553K1020 9167380825 9415121041 9415121041
Part # Description Qty Price
51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51220B - CROSSMEMBER ASSY, FRAME, NO.2
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51220B - CROSSMEMBER ASSY, FRAME, NO.2
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51569J - GUARD, PROPELLER SHAFT
51569-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
51569-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53713D - EXTENSION, FRONT FENDER APRON, RH
53713-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53713-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53714D - EXTENSION, FRONT FENDER APRON, LH
53714-26060

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53714-26060

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-26020

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..6FC..(P,Q)..GEN;GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57027-26020

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..6FC..(P,Q)..GEN;GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57027-26030

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57027-26030

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-26030

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57028-26030

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57028-26040

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57028-26040

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57031-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57032-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-26790

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57101-26790

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-26760

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57102-26760

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57115-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57115-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH
57116-26040

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57116-26040

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57209B - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57209-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57408-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57450 - MEMBER ASSY, FRONT FLOOR CROSS
57450-26060

GRH300,301,304,320,322..RHD..(D,H)..GEN

 1
57450-26060

GRH300,301,304,320,322..RHD..(D,H)..GEN

 1
57450-26050

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,320,322..LHD..D

 1
57450-26050

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,320,322..LHD..D

 1
58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58102-26220

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58102-26220

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58103-26110

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58103-26110

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-14174
90119-T0532
91553-K1020
91673-80825
94151-21041
Linked diagrams
5752

ILLUST NO. 1 OF 2(1907- )RHD..G,J

Click highlighted areas on diagram

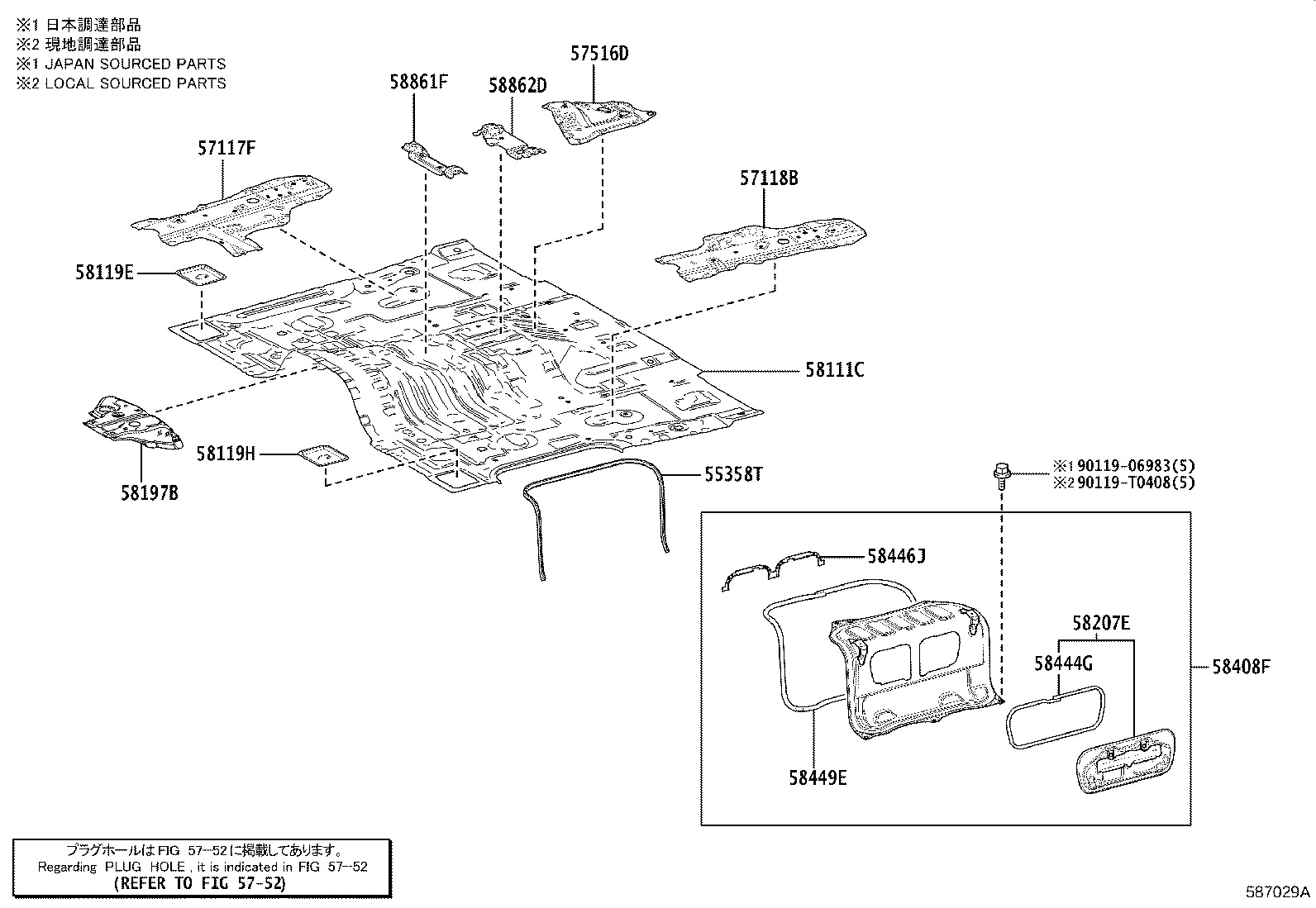

FLOOR PANEL(FRONT SEPARATE SEAT)

diagram 55358T 57117F 57118B 57515B 5752 58111C 58119E 58119H 58197B 58207E 58408F 58444G 58446J 58449E 58563P 58861F 58862D 89966 9011906983 90119T0408 9046706197
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57515B - BRACKET, PARKING BRAKE, RH
57515-26110

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58111C - PAN, FRONT FLOOR
58111-26D20

GDH300,320,GRH300,320..RHD..(SG,SP)..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D30

GDH322..RHD..D;GDH300,301,320,GRH300,301,320,322..RHD..D..GEN

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
90467-06197
Linked diagrams
5752

ILLUST NO. 1 OF 2(1907- )RHD..H

Click highlighted areas on diagram

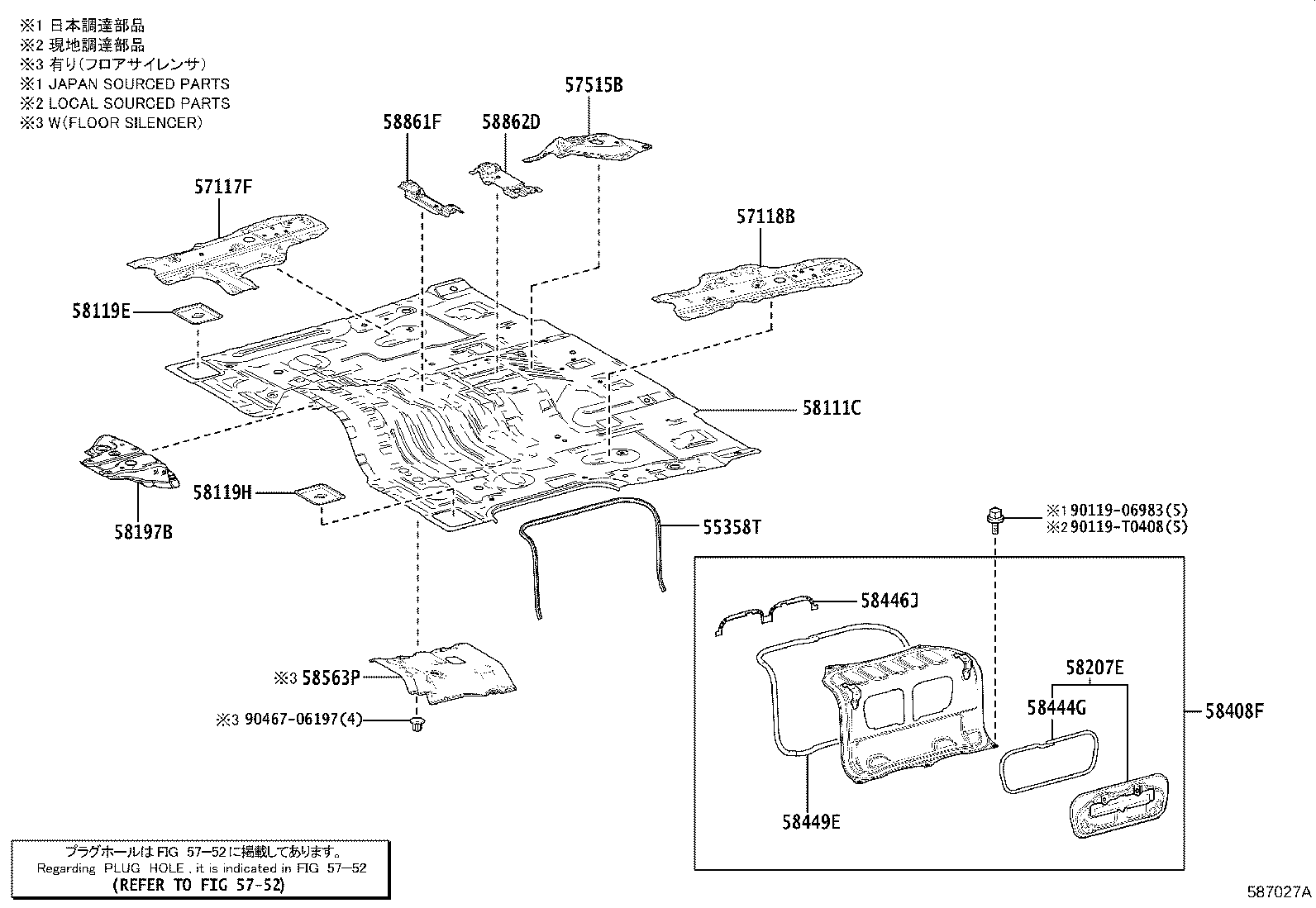

FLOOR PANEL(FRONT BENCH SEAT)

diagram 55358T 57117F 57118B 57515B 5752 58111C 58119E 58119H 58175A 58197B 58207E 58408F 58444G 58446J 58449E 89966 9011906983 90119T0408
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57515B - BRACKET, PARKING BRAKE, RH
57515-26110

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58111C - PAN, FRONT FLOOR
58111-26D20

GDH300,320,GRH300,320..RHD..(SG,SP)..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D30

GDH322..RHD..D;GDH300,301,320,GRH300,301,320,322..RHD..D..GEN

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1
58175-26010

GRH300..GCC;GDH303..RHD..H;GDH320..6FC..ARL;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH300,301..(SG,SHP)..D..(GCC,GEN);GDH304,320,322,GRH301,304,320,322..(D,H)..(GCC,GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
Linked diagrams
5752

ILLUST NO. 2 OF 2(1902- )GRH300,301,304,320,322..RHD..6FC..D,H..GEN

Click highlighted areas on diagram

FLOOR MEMBER(FRONT BENCH SEAT)

diagram 51220B 51569J 53713D 53714D 57027B 57028B 57031A 57032C 57101 57102 57115B 57116B 57209B 57408C 57450 5752 58102E 58103F 9011914174 90119T0532 9167380825
Part # Description Qty Price
51220B - CROSSMEMBER ASSY, FRAME, NO.2
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51569J - GUARD, PROPELLER SHAFT
51569-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53713D - EXTENSION, FRONT FENDER APRON, RH
53713-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53714D - EXTENSION, FRONT FENDER APRON, LH
53714-26060

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-26020

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..6FC..(P,Q)..GEN;GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57027-26030

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-26030

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57028-26040

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-26790

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-26760

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57115-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH
57116-26040

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57209B - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57450 - MEMBER ASSY, FRONT FLOOR CROSS
57450-26060

GRH300,301,304,320,322..RHD..(D,H)..GEN

 1
57450-26050

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,320,322..LHD..D

 1
58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58102-26220

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58103-26110

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-14174
90119-T0532
91673-80825
Linked diagrams
5752

ILLUST NO. 2 OF 2(1902- )GRH322..RHD..N ; (1902- )GRH320..6F..ARL ; (1902- )GRH300,301..RHD

Click highlighted areas on diagram

FLOOR MEMBER(FRONT SEPARATE SEAT)

diagram 51204G 51204G 51220B 51569J 53713D 53714D 57027B 57028B 57031A 57032C 57101 57102 57115B 57116B 57209B 57408C 57450 5752 58102E 58103F 9011914174 90119T0532 91553K1020 91553K1020 9167380825 9415121041 9415121041
Part # Description Qty Price
51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51087-26010

GDH300..5D;GRH300..GCC;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..LHD..(P,Q)..GEN;GRH300,301,322..4D..6F..(GCC,GEN);GDH301,303,304,322,328..D,G,H,J,N;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 2
51220B - CROSSMEMBER ASSY, FRAME, NO.2
51220-26050

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,304,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
51220-26030

GDH301..RHD..D..GEN;GDH300,303,304,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH)

 1
51569J - GUARD, PROPELLER SHAFT
51569-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53713D - EXTENSION, FRONT FENDER APRON, RH
53713-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
53714D - EXTENSION, FRONT FENDER APRON, LH
53714-26060

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH
57027-26020

GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GRH320..6F..(GCC,GEN);GDH322..6FC..(P,Q)..GEN;GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57027-26030

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH
57028-26030

GRH300..6F..GCC;GRH320..6F..(GCC,GEN);GRH300,301,321,322..4D..6F..(GCC,GEN)

 1
57028-26040

GRH303..LHD..J;GRH303..RHD..GEN;GRH300,301,304,320,322..6FC..(GCC,GEN)

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-26790

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-26760

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57115-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH
57116-26040

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57209B - MEMBER SUB-ASSY, ENGINE REAR MOUNTING
57209-26010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-26090

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57450 - MEMBER ASSY, FRONT FLOOR CROSS
57450-26060

GRH300,301,304,320,322..RHD..(D,H)..GEN

 1
57450-26050

GRH300..GCC;GRH300..4D..6F..GEN;GRH301,320,322..LHD..D

 1
58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58102-26220

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58103-26110

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-14174
90119-T0532
91553-K1020
91673-80825
94151-21041
Linked diagrams
5752

ILLUST NO. 1 OF 2(1902- )GDH322..RHD..6FC..N,P,Q ; (1902- )GDH301,GRH301,322..RHD..N ; (1902-

Click highlighted areas on diagram

FLOOR PANEL(FRONT SEPARATE SEAT)

diagram 55358T 57117F 57118B 57515B 5752 58111C 58119E 58119H 58197B 58207E 58408F 58444G 58446J 58449E 58563P 58861F 58862D 9011906983 90119T0408 9046706197
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57515B - BRACKET, PARKING BRAKE, RH
57515-26110

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
57515-26110

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58111C - PAN, FRONT FLOOR
58111-26D20

GDH300,320,GRH300,320..RHD..(SG,SP)..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..(SG,SP)..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D30

GDH322..RHD..D;GDH300,301,320,GRH300,301,320,322..RHD..D..GEN

 1
58111-26D30

GDH322..RHD..D;GDH300,301,320,GRH300,301,320,322..RHD..D..GEN

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
90467-06197
Linked diagrams
5752

ILLUST NO. 1 OF 2(1902- )GDH322..GCC ; (1902- )6FC..P..GEN; (1902- )GDH301,GRH301,322..LHD

Click highlighted areas on diagram

FLOOR PANEL(FRONT SEPARATE SEAT)

diagram 55358T 57117F 57118B 57516D 5752 58111C 58119E 58119H 58197B 58207E 58408F 58444G 58446J 58449E 58861F 58862D 9011906983 90119T0408
Part # Description Qty Price
55358T - PROTECTOR, EDGE
55358-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH
57117-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH
57118-26050

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58111C - PAN, FRONT FLOOR
58111-26D20

GDH300,320,GRH300,320..RHD..(SG,SP)..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GDH300,320,GRH300,320..RHD..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D80

GRH300..4D..6F..GEN;GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6F;GDH300,GRH320..LHD..6FC..GEN;GDH301,320,322,GRH301,322..LHD..D..GEN

 1
58111-26D60

GRH320..LHD..GEN;GRH300..4D..6F..GEN;GDH300,320..LHD..SP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER)

 1
58111-26D30

GDH322..RHD..D;GDH300,301,320,GRH300,301,320,322..RHD..D..GEN

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER SEAT SIDE ONLY)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&NCAP-LATIN&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRSAIR BAG-W(DRIVER & PASSENGER & KNEE)

 1
58111-26D20

GRH300..6FC..GEN;GDH300..RHD..SP..6F..GEN

TRINIDAD-TOBAGO SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER)

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET
58197-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH
58207-26080

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH
58408-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58444G - PACKING, BATTERY SERVICE OPENING LID
58444-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58446J - PROTECTOR, BATTERY SERVICE OPENING LID
58446-26020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
58449E - PACKING, BATTERY SERVICE HOLE COVER
58449-26030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
Common parts
90119-06983
90119-T0408
Linked diagrams
5752
