GRH300L-RCFDHV (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )LHD

Click highlighted areas on diagram

BENCH SEAT(DRIVER & PASSENGER)

diagram 73023 73024 73120 7313460010 73178A 73178C 73178C 73187 73200A 73210 73214 73219 73220 73230 73233 73233 73240 73250 73373 9010510523 9010511053 9010511058 9010911059 9010911064 9017811002 9017905011 9155380612 9415180600
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73120 - BELT ASSY, FRONT SEAT 3 POINT TYPE, LH
73120-26040C0

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-48010C1

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73178-26010A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73178-26010A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73187 - GUIDE, FRONT SEAT SHOULDER BELT
73187-60030

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73200-26030A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26780B0

GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH)

BLACK/LT.GRAY,TRIM1#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

GDH300..GEN,TH;GDH303..RHD..H;GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,304,320,322,GRH301,304,320,322..(D,H)..GEN

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BEIGE

 1
73219-33010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BLACK

 1
73219-33020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26540B0

GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH)

BLACK/LT.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26351C0

GDH300,320,GRH300,320..6F..GCC

BLACK,TRIM1#

 1
73230-26520C0

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26450C0

GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN)

BLACK,TRIM1#

 1
73250 - BELT ASSY, FRONT SEAT, CENTER
73230-26340C1

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-48080C1

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
Common parts
73134-60010
90105-10523
90105-11053
90105-11058
90109-11059
90109-11064
90178-11002
90179-05011
91553-80612
94151-80600

(1902- )SHP

Click highlighted areas on diagram

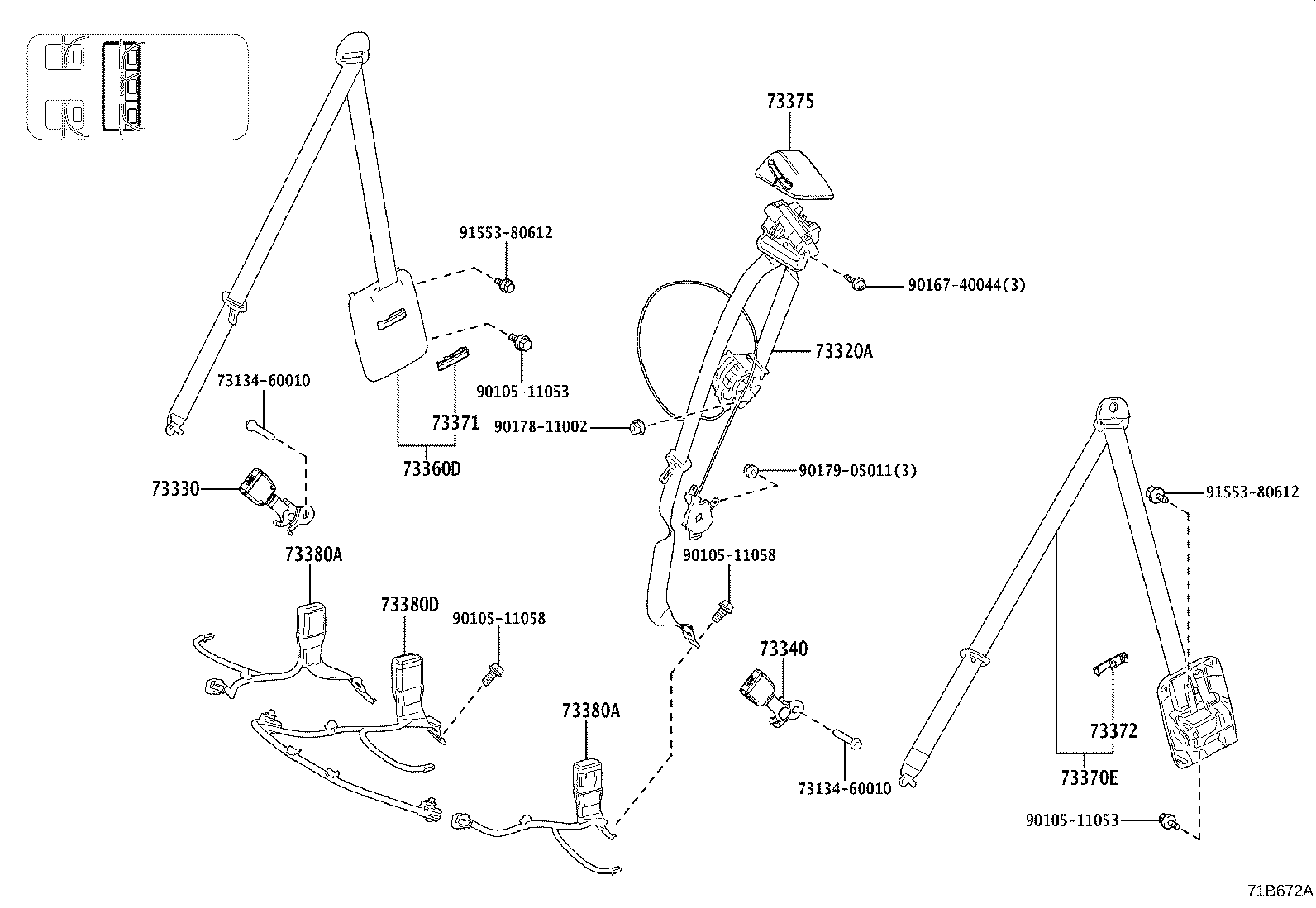

REAR SEAT

diagram 7313460010 7313460010 73320A 73330 73340 73360D 73370E 73371 73372 73375 73380A 73380A 73380D 9010511053 9010511053 9010511058 9010511058 9016740044 9017811002 9017905011 9155380612 9155380612
Part # Description Qty Price
73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH
73320-26091C0

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-26340C1

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-26430C0

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73360D - BELT ASSY, REAR SEAT, OUTER RH
73360-26A60B0

GDH300,GRH300..SHP..(GCC,GEN)

BLACK/LT.GRAY,TRIM1#

 1
73370E - BELT ASSY, REAR SEAT, OUTER LH
73370-26600B0

GDH300,GRH300..SHP..(GCC,GEN)

BLACK/LT.GRAY,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-44020C2

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-44020C2

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-26060C0

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-26760C0

GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-26760C0

GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 2
73380D - BELT ASSY, REAR SEAT, INNER
73380-26770C0

GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
Common parts
73134-60010
90105-11053
90105-11058
90167-40044
90178-11002
90179-05011
91553-80612

(1902- )GDH321..N..GEN ; (1902- )GDH300,301,320,322,328,GRH300,301,32#..LHD..

Click highlighted areas on diagram

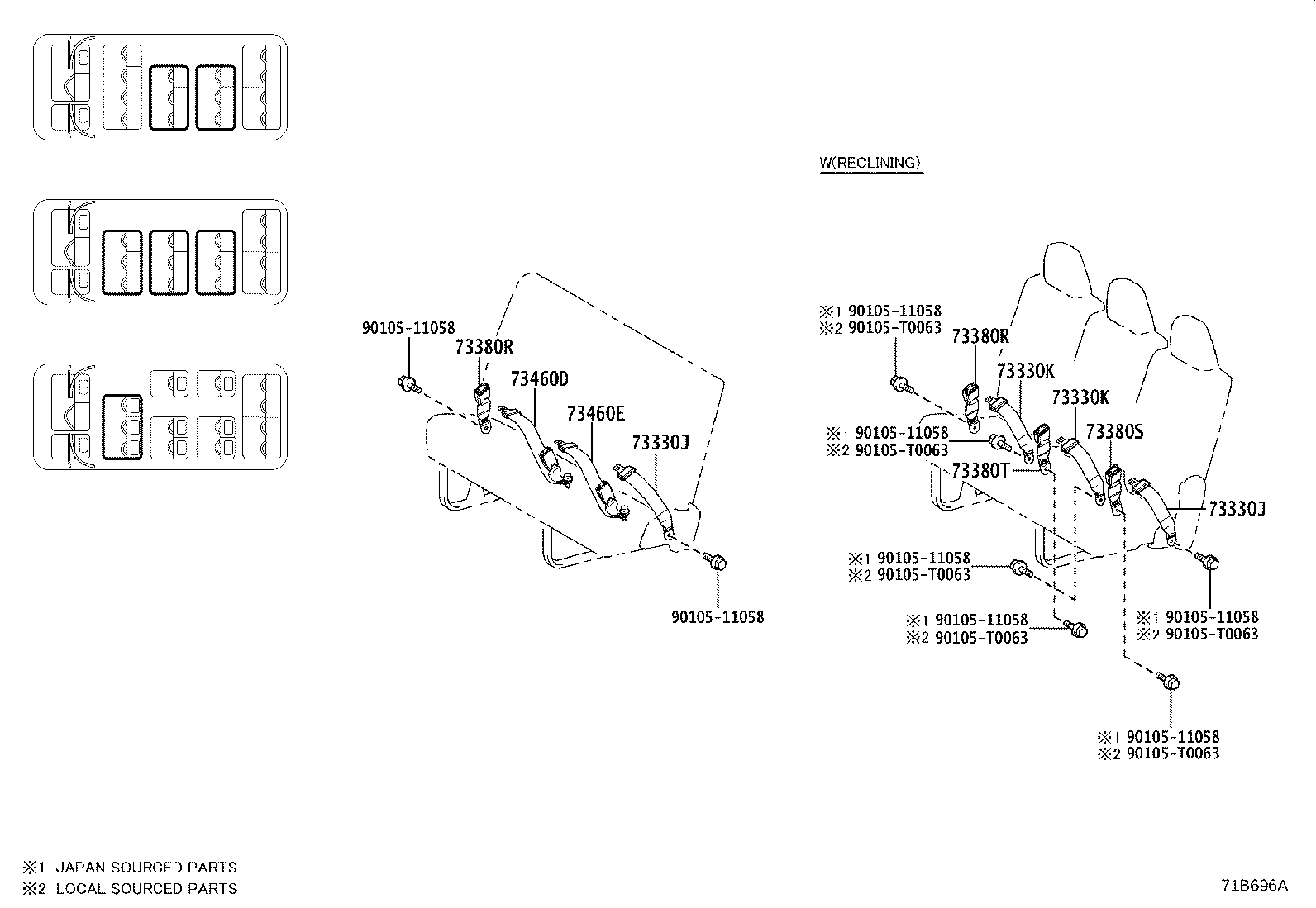

REAR, 2 POINT TYEP(FOR 3 PERSONS)

diagram 73330J 73330J 73330K 73330K 73380R 73380R 73380S 73380T 73460D 73460E 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063 90105T0063
Part # Description Qty Price
Common parts
90105-11058
90105-T0063

(1902- )GDH321..N..GEN ; (1902- )GDH300,301,303,304,320,322,328,GRH300,301,30

Click highlighted areas on diagram

SPACE UP SEAT *45

diagram 72667C 72667D 73119 73219 73233D 73233D 73373A 73375 73380 73380P 73380P 73380Q 73380Q 73390 73560D 73560D 73570D 73570D 9010511053 9010511058 9010911059 9010911060 9016740044 9017811002 9155380612 9356054014
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BEIGE

 1
73219-33010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BLACK

 1
73219-33020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

GRAY

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-26060C0

GDH300,GRH300..SHP

BLACK,TRIM1#

 1
Common parts
90105-11053
90105-11058
90109-11059
90109-11060
90167-40044
90178-11002
91553-80612
93560-54014

(1902- )GDH321..N..GEN ; (1902- )GDH300,301,320,322,328,GRH300,301,32#..LHD..

Click highlighted areas on diagram

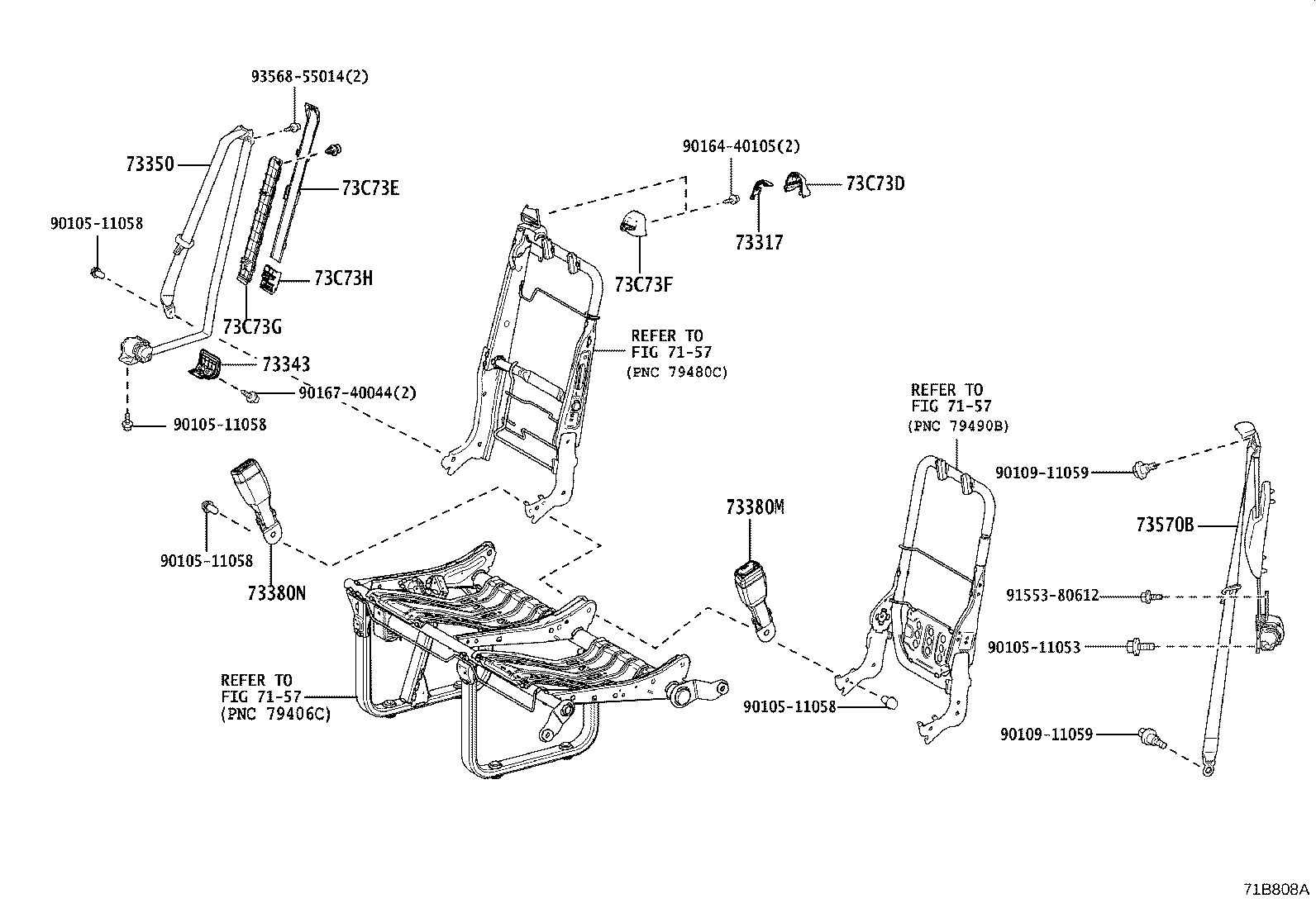

NO.4 LAST-ROW SEAT:2 PERSONS W(*45)

diagram 7157 7157 7157 73317 73343 73350 73380M 73380N 73570B 73C73D 73C73E 73C73F 73C73G 73C73H 9010511053 9010511058 9010511058 9010511058 9010511058 9010911059 9010911059 9016440105 9016740044 9155380612 9356855014
Part # Description Qty Price
Common parts
90105-11053
90105-11058
90109-11059
90164-40105
90167-40044
91553-80612
93568-55014
Linked diagrams
7157

(1902- )GDH321..N..GEN ; (1902- )GDH300,301,320,322,328,GRH300,301,32#..LHD..

Click highlighted areas on diagram

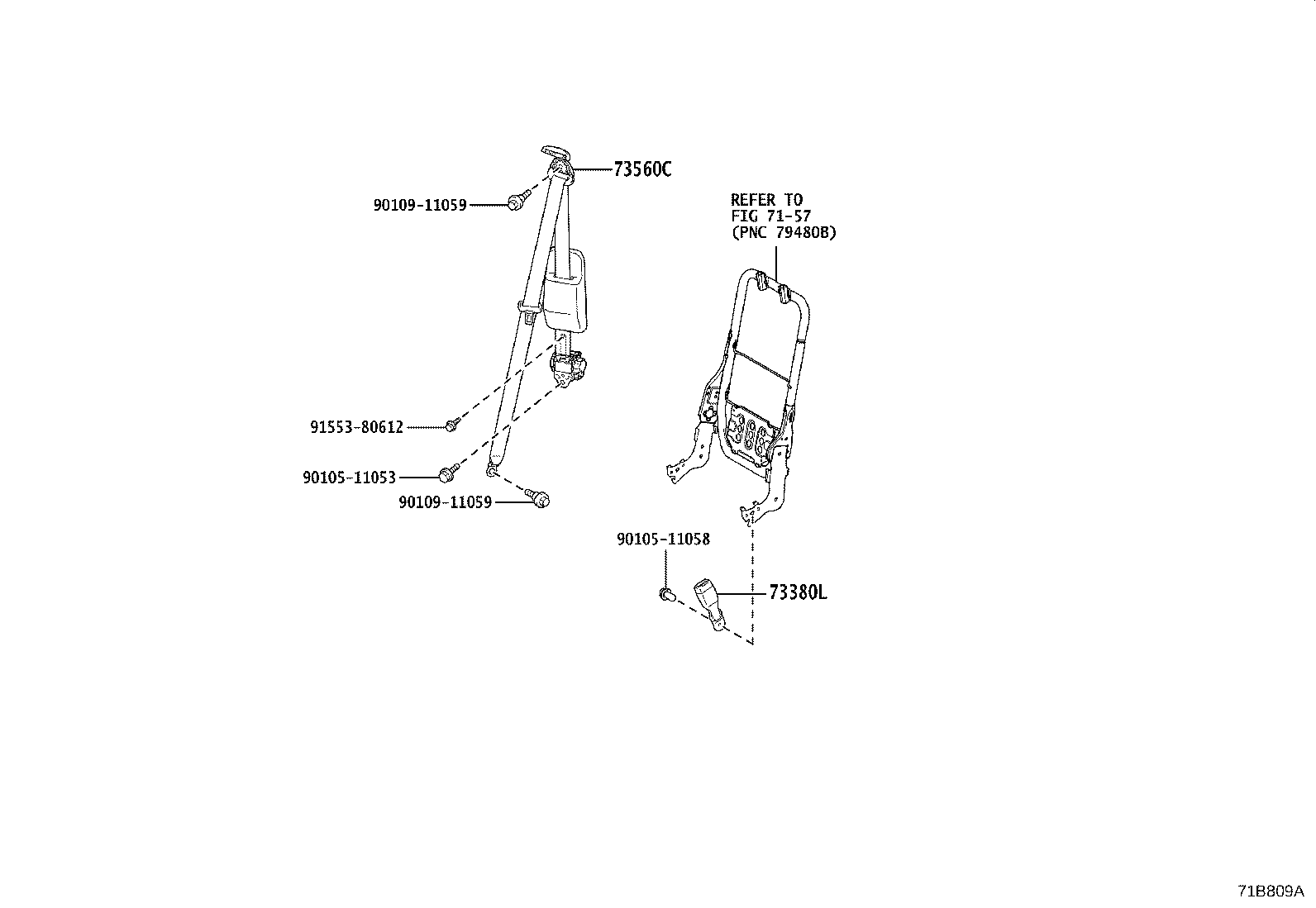

NO.4 LAST-ROW SEAT:1 PERSON W(*45)

diagram 7157 73380L 73560C 9010511053 9010511058 9010911059 9010911059 9155380612
Part # Description Qty Price
Common parts
90105-11053
90105-11058
90109-11059
91553-80612
Linked diagrams
7157

(1902- )GDH300,301,320,322,GRH300,301,320,322..LHD..D

Click highlighted areas on diagram

BENCH SEAT(PASSENGER, FIX TYPE)

diagram 73023 73024 73119 73150 73178C 73200A 73210 73219 73230 73233 82191B 9010510523 9010511053 9010511058 9010911059 9010911064 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-26040C0

GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH300,301,320,322,GRH301,320,322..D..GEN

BLACK,TRIM1#

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73178-26010A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73200-26030A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26780B0

GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH)

BLACK/LT.GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BEIGE

 1
73219-33010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BLACK

 1
73219-33020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

GRAY

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26351C0

GDH300,320,GRH300,320..6F..GCC

BLACK,TRIM1#

 1
73230-26520C0

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
82191B - WIRE, FRONT SEAT BELT
82191-26170

GDH300,320,GRH300,320..6F..GCC

 1
Common parts
90105-10523
90105-11053
90105-11058
90109-11059
90109-11064
91553-80612

(1902- )GDH301,321,322,328,GRH301,321..LHD..6F..D,N,Q..GCC,GEN,PH ; (1911- )P

Click highlighted areas on diagram

NO.2-NO.3 SEAT:FOR 1 PERSONS W(*45)

diagram 7157 7157 73317 73343 73360 73380L 73C73D 73C73E 73C73F 73C73G 73C73H 9010511058 9010511058 9010511058 9016440105 9016740044 9356855014
Part # Description Qty Price
Common parts
90105-11058
90164-40105
90167-40044
93568-55014
Linked diagrams
7157

(1902- )GDH300,301,32#,GRH300,301,32#..LHD

Click highlighted areas on diagram

SEPARATE SEAT(DRIVER & PASSENGER)

diagram 73023 73023 73024 73024 73119 73135 73136 73178C 73200A 73210 73214 73219 73220 73230 73233 73240 9010510523 9010511053 90105T0056 90105T0064 90105T0378 9010911059 9010911064 90109T0041 90109T0056 9017811002 90178T0017 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 1
73023-12020B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73178-26010A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030B0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

LT.GRAY,TRIM11

 2
73200-26030A0

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,GRH300,301,322..4D..(D,P)..(GCC,GEN,NZ,TH)

FROMAGE,TRIM11

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26780B0

GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH)

BLACK/LT.GRAY,TRIM1#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

GDH300..GEN,TH;GDH303..RHD..H;GRH300..4D..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,304,320,322,GRH301,304,320,322..(D,H)..GEN

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BEIGE

 1
73219-33010

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

BLACK

 1
73219-33020

GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)

GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26540B0

GDH321..D;GDH322..NZ;GDH300,320,GRH300,320,322..6F..(D,P)..(GCC,TH)

BLACK/LT.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26351C0

GDH300,320,GRH300,320..6F..GCC

BLACK,TRIM1#

 1
73230-26520C0

GDH300,320,GRH300,320..6F..GCC

UNITED ARAB EMIRATES SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE,BLACK,TRIM1#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH320,322,GRH320..D..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,321,GRH300,301,322..4D..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26450C0

GDH320,GRH300..6F..GCC;GDH300,GRH320..LHD..6FC..GEN;GDH300,321,GRH320..LHD..6F..D;GDH301,320,GRH301..LHD..D..GEN;GDH322,GRH300,322..LHD..4D..(D,P)..(GCC,GEN)

BLACK,TRIM1#

 1
Common parts
90105-10523
90105-11053
90105-T0056
90105-T0064
90105-T0378
90109-11059
90109-11064
90109-T0041
90109-T0056
90178-11002
90178-T0017
91553-80612
