Toyota Hiace GRH300 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
HIACE
GRH300L-RBFDHV (2019)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GRH300L-RBFDHV (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999

Engine 7GRFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

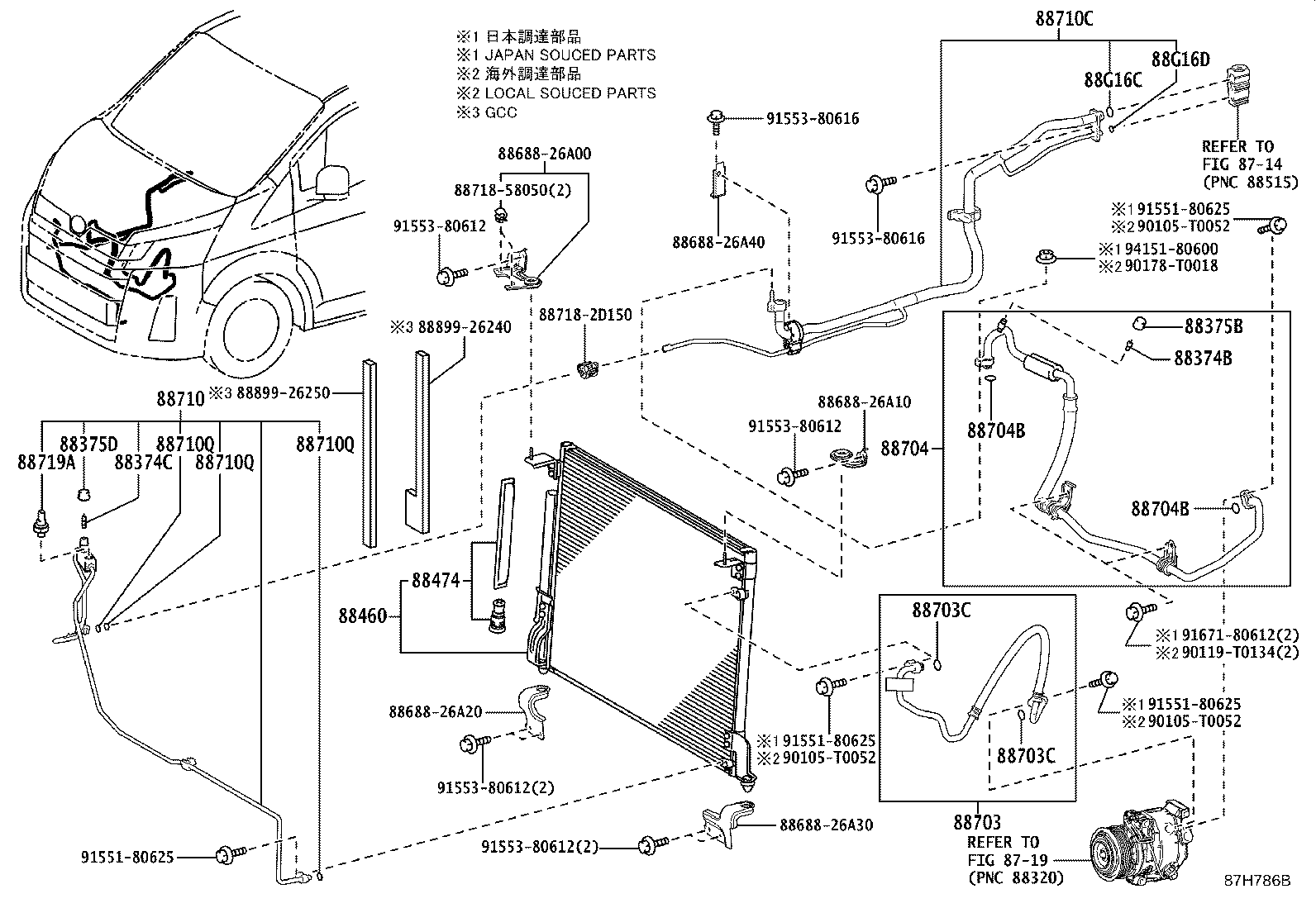

ILLUST NO. 2 OF 3(1902- )GRH300,320..GCC

Click highlighted areas on diagram

FRONT:SINGLE A/C

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
884A0-26040	GRH301,322..N;GRH300,320..6F..GCC	02/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12020	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26020	GRH300,303,320,322..GCC	02/2019 - 12/2999	1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88704 - HOSE SUB-ASSY, SUCTION
88704-26020	GRH300,320..GCC;GRH301,321,322..(N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A50	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26A90	GDH300,320,GRH300,320..6F..GCC	02/2019 - 12/2999	1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=13.4,OD=18.2	02/2019 - 12/2999	1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=6.7,OD=10.3	02/2019 - 12/2999	1
Common parts
88688-26A00
88688-26A10
88688-26A20
88688-26A30
88688-26A40
88718-2D150
88718-58050
88899-26240
88899-26250
90105-T0052
90119-T0134
90178-T0018
91551-80625
91553-80612
91553-80616
91671-80612
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 2 OF 3(1902- )RHD..SHP ; (1902- )GDH322..RHD..ARL,GEN,NZ ; (1902- )GDH301,303,30

Click highlighted areas on diagram

FRONT:DUAL A/C

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
884A0-26040	GRH301,322..N;GRH300,320..6F..GCC	02/2019 - 12/2999	1
88474 - DRYER, COOLER
88474-12020	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-26020	GRH300,303,320,322..GCC	02/2019 - 12/2999	1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=10.8,OD=15.6	02/2019 - 12/2999	2
88704 - HOSE SUB-ASSY, SUCTION
88704-26020	GRH300,320..GCC;GRH301,321,322..(N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH301,GRH301,322..N,P,Q;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,GRH304..ARL,GCC,GEN,NZ,TH;GDH300,301,320,328,GRH300,320..GCC,NZ,PH,TH ID=13.4,OD=18.2	02/2019 - 12/2999	2
88710 - TUBE ASSY, AIR CONDITIONER
88710-26A50	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN)	02/2019 - 12/2999	1
88710C - TUBE ASSY, AIR CONDITIONER
88710-26A90	GDH300,320,GRH300,320..6F..GCC	02/2019 - 12/2999	1
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GRH303..LHD..J;GRH303..RHD..GEN;GRH300,320..6F..GCC;GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) ID=6.7,OD=10.3	02/2019 - 12/2999	3
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-47010	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,GRH301,322..N,P,Q;GDH301,322..ARL,GCC,NZ,TH;GDH300,320,GRH300,320..6F..(GCC,TH);GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH303,304,321,328,GRH304..ARL,GCC,GEN,NZ,PH,TH,VN	02/2019 - 12/2999	1
88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
90099-14121	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=13.4,OD=18.2	02/2019 - 12/2999	1
88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
90099-14119	GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,321..NZ,TH;GDH306,GRH321..LHD;GDH322..ARL,GCC,NZ;GDH322..6FC..(P,Q)..GEN;GDH300,320,GRH300,320..6F..GCC;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) ID=6.7,OD=10.3	02/2019 - 12/2999	1
Common parts
88688-26A00
88688-26A10
88688-26A40
88718-2D150
88718-58050
90105-T0056
90119-T0258
91551-80625
91553-80612
91671-80612
91673-A0616
91673-A0820
94151-80600
Linked diagrams
8714
8719
