GRH300L-RBFDHV (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GRH301..N ; (1902- )GDH301..RHD ;(1902- )GDH301..LHD..N ; (1902-

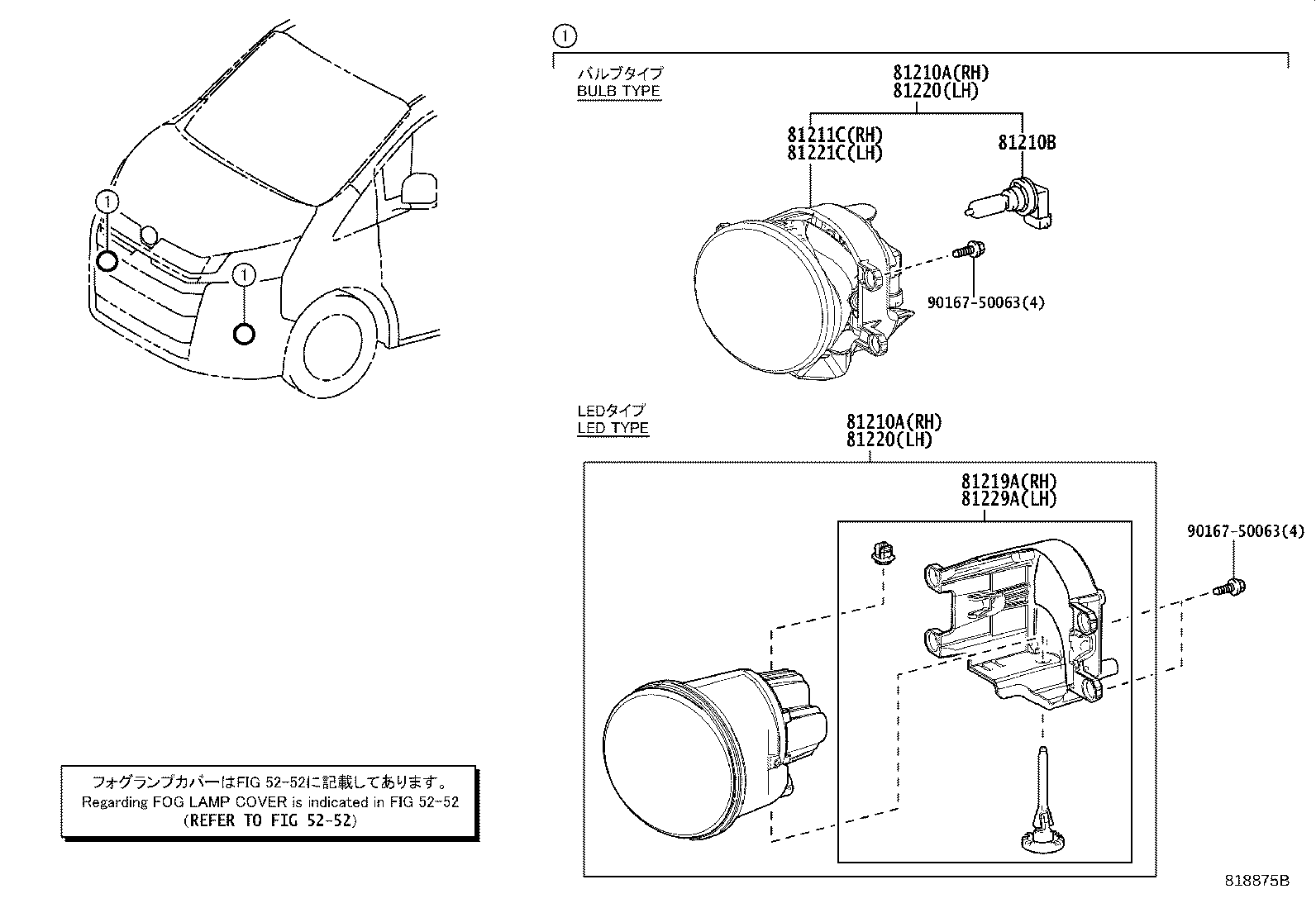

Click highlighted areas on diagram

diagram 5252 81210A 81210A 81210B 81211C 81219A 81220 81220 81221C 81229A 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
81210A - LAMP ASSY, FOG, RH
81210-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
81210B - BULB, FOG LAMP
90981-13090

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

12V 19W,GL PACKAGE

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
81220 - LAMP ASSY, FOG, LH
81220-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-47010

GDH300..5D;GDH322..D..GEN;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH301,GRH300..GCC,NZ,TH;GDH300,GRH300..4D..(GEN,TH);GDH320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,NZ)

GL PACKAGE

 1
Common parts
90167-50063
Linked diagrams
5252
