GRH300L-RBFDHV (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

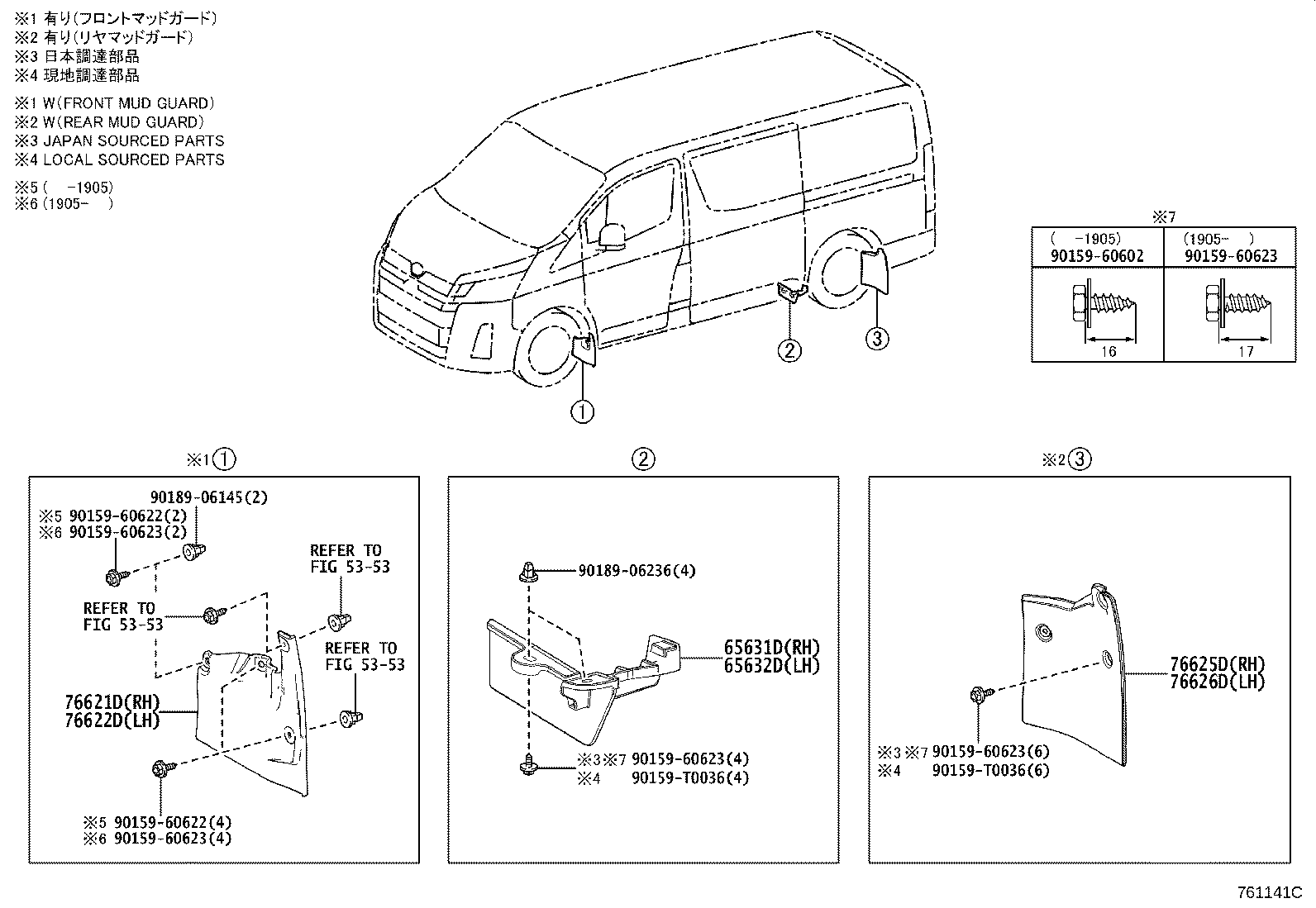

ILLUST NO. 1 OF 2(1902- )GDH322..ARL,GCC,GEN,NZ ; (1902- )GDH300,301,320,321,328,GRH300,301,32

Click highlighted areas on diagram

diagram 5353 5353 5353 65631D 65632D 76621D 76622D 76625D 76626D 9015960602 9015960622 9015960622 9015960623 9015960623 9015960623 9015960623 9015960623 90159T0036 90159T0036 9018906145 9018906236
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-26010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-26010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 1
Common parts
90159-60602
90159-60622
90159-60623
90159-T0036
90189-06145
90189-06236
Linked diagrams
5353
