GRH300L-RBFDH (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 7GRFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1903- )LHD..6F..P..GEN ; (1907- )GDH306..LHD

Click highlighted areas on diagram

W(VISCOUS)

diagram 1603 1603 8712 87209 9167180612 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
Common parts
91671-80612
96138-42501
Linked diagrams
1603
8712

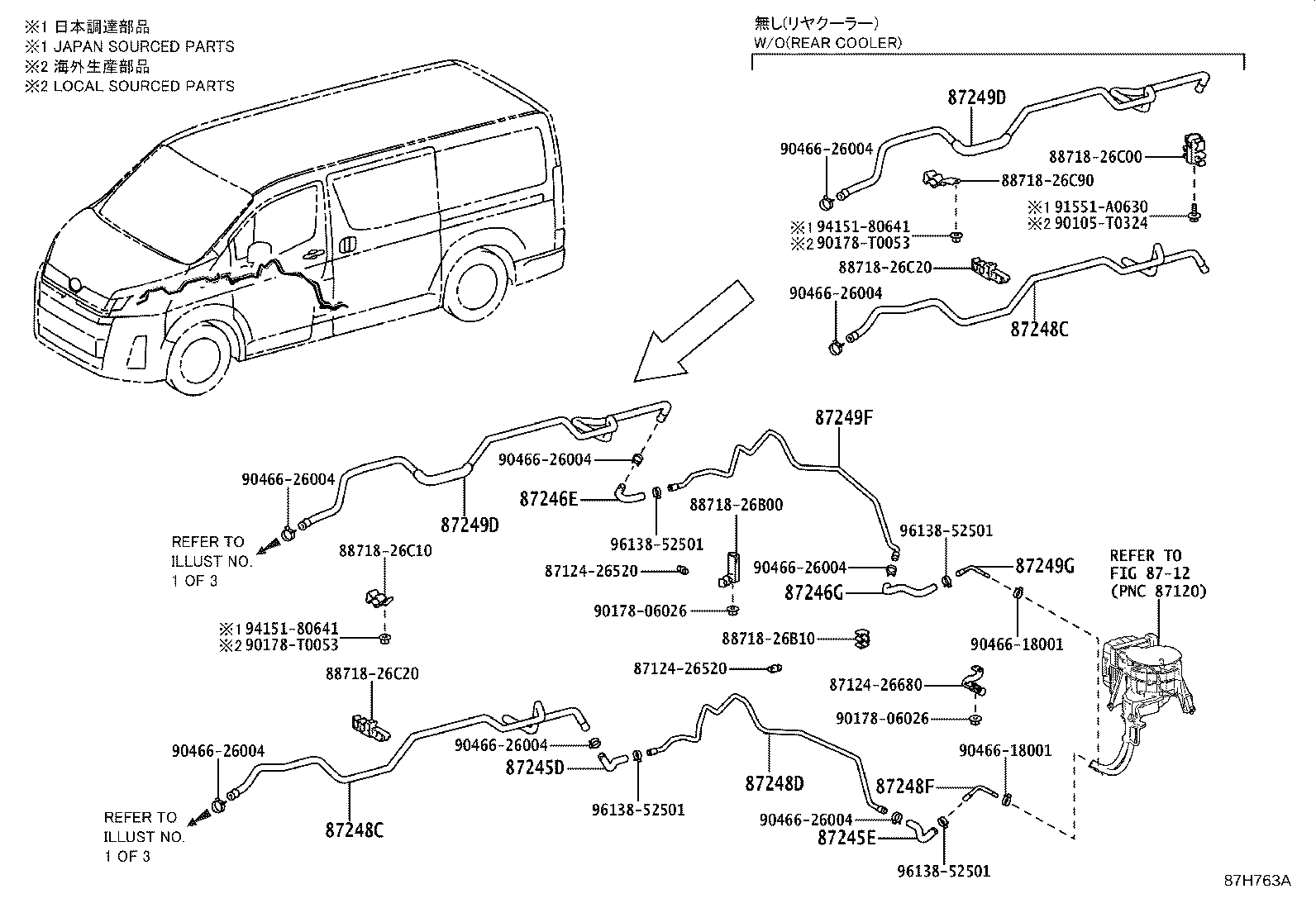

ILLUST NO. 3 OF 3(1902- )GDH300,301,GRH300,301..LHD

Click highlighted areas on diagram

REAR

diagram 8712 8712426520 8712426520 8712426680 87245D 87245E 87246E 87246G 87248C 87248C 87248D 87248F 87249D 87249D 87249F 87249G 8871826B00 8871826B10 8871826C00 8871826C10 8871826C20 8871826C20 8871826C90 90105T0324 9017806026 9017806026 90178T0053 90178T0053 9046618001 9046618001 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 91551A0630 9415180641 9415180641 9613852501 9613852501 9613852501 9613852501
Part # Description Qty Price
Common parts
87124-26520
87124-26680
88718-26B00
88718-26B10
88718-26C00
88718-26C10
88718-26C20
88718-26C90
90105-T0324
90178-06026
90178-T0053
90466-18001
90466-26004
91551-A0630
94151-80641
96138-52501
Linked diagrams
8712

ILLUST NO. 1 OF 3(1902- )GRH300,301,303,32#..LHD

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8712426650 8714 8714 87245A 87245B 87246A 87246B 87246C 87248A 87249A 87249B 887186B070 887186B070 9155380612 9167180612 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26L60

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L60

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26L20

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L20

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26L70

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L70

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26L30

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245-26L30

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245-26L40

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26E20

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E20

GRH300..5D..GEN

FRONT HEATER-WITH

 1
Common parts
87124-26650
88718-6B070
91553-80612
91671-80612
96138-42501
Linked diagrams
1603
8714

ILLUST NO. 1 OF 3(1902- )GRH300,301,303,32#..LHD

Click highlighted areas on diagram

FRONT ,W(REAR HEATER)

diagram 1603 1603 8712426650 8714 8714 87245A 87245B 87245C 87246A 87246B 87246C 87246D 87248A 87248B 87249A 87249B 87249C 8871826A80 8871826B21 887186B070 887186B070 887186B070 9155380612 9167180612 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26L60

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L60

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26L20

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L20

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26L70

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L70

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26L30

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245-26L30

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26L40

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87245-26L40

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E10

GRH300..5D..GEN

FRONT HEATER-WITH

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26E20

GRH300..5D..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87248-26E20

GRH300..5D..GEN

FRONT HEATER-WITH

 1
Common parts
87124-26650
88718-26A80
88718-26B21
88718-6B070
91553-80612
91671-80612
96138-42501
Linked diagrams
1603
8714
