GDH322R-EDTDYT (2019)
Toyota Hiace
(1906- )GDH322..TH

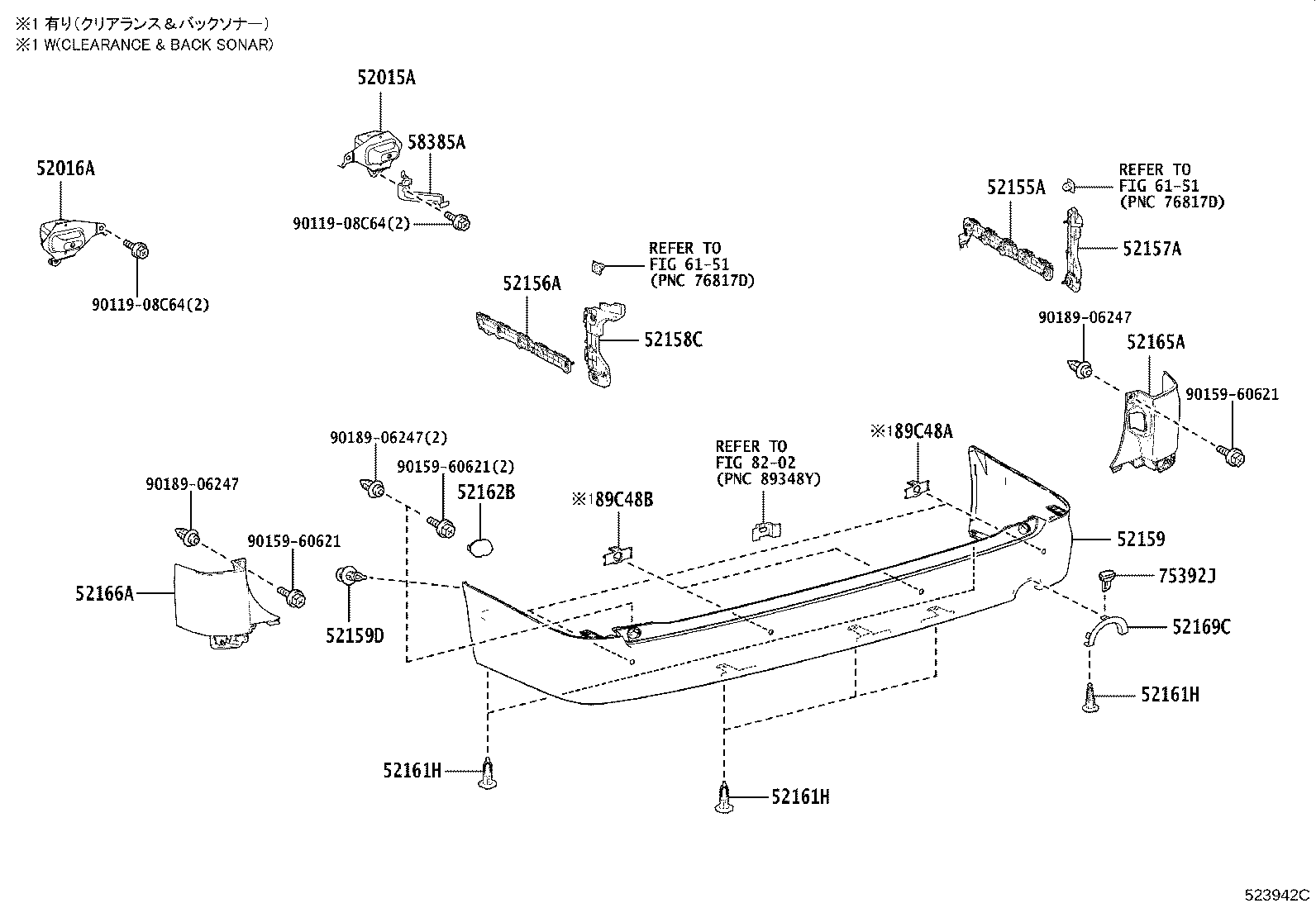

W(REAR BUMPER LOWER COVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-26010 |
GRH322;GDH321..D;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH301,303,304,322,328,GRH301,304..(D,G,H,J,N)..(ARL,GEN,NZ,PH,TH,VN) |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-26010 |
GRH322;GDH321..D;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH301,303,304,322,328,GRH301,304..(D,G,H,J,N)..(ARL,GEN,NZ,PH,TH,VN) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-26160 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-26020 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-26020 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-26690 |
GDH322..6FC..P..GEN;GDH322,GRH300..(D,P)..GCC;GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH) TYPE A(REFER ILLUST) |
1 | ||
| 52159-26690 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE,TYPE B(REFER ILLUST) |
1 | ||
| 52159-26950 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) CLEARANCE & BACK SONAR-WITH,TYPE A(REFER ILLUST) |
1 | ||
| 52159-26620 |
GDH322..TH NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-26620 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE&CLEARANCE & BACK SONAR-WITH,TYPE B(REFER ILLUST) |
1 | ||
| 52159-26690 |
GDH322..TH NO PAINT REQ. |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
5 | ||
| 52161-16010 |
GDH322..TH |
6 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
5 | ||
| 52161-16010 |
GDH322..TH |
6 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
5 | ||
| 52161-16010 |
GDH322..TH |
6 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-26030 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
2 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-26060A0 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN WHITE,058,COLOR 058 ONLY |
1 | ||
| 52165-26910 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN EXCEPT COLOR 058 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-26910 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN EXCEPT COLOR 058 |
1 | ||
| 52166-26060A0 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN WHITE,058,COLOR 058 ONLY |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-0L900 |
GDH322..TH |
1 | ||
| 58385A - BRACKET, REAR BUMPER COVER | ||||
| 58385-0L010 |
GDH322..TH |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
GDH322..TH |
3 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-78020 |
GDH322..D,N;GDH301,GRH301..N;GRH303..RHD..GEN;GDH301,GRH300..GCC,TH;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,303,304,320,328,GRH304,32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-78020 |
GDH322..D,N;GDH301,GRH301..N;GRH303..RHD..GEN;GDH301,GRH300..GCC,TH;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,303,304,320,328,GRH304,32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
GDH322..P..GCC;GDH322..6FC..P..GEN;GDH301,GRH300..GCC,TH;GDH322,GRH300..4D..D..GEN;GDH300,320,321,GRH320,322..(D,P)..(GCC,GEN,IDN,TH) GL PACKAGE&CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90189-06247 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8202 | ||||
