GDH306L-RDTJY (2019)
Toyota Hiace

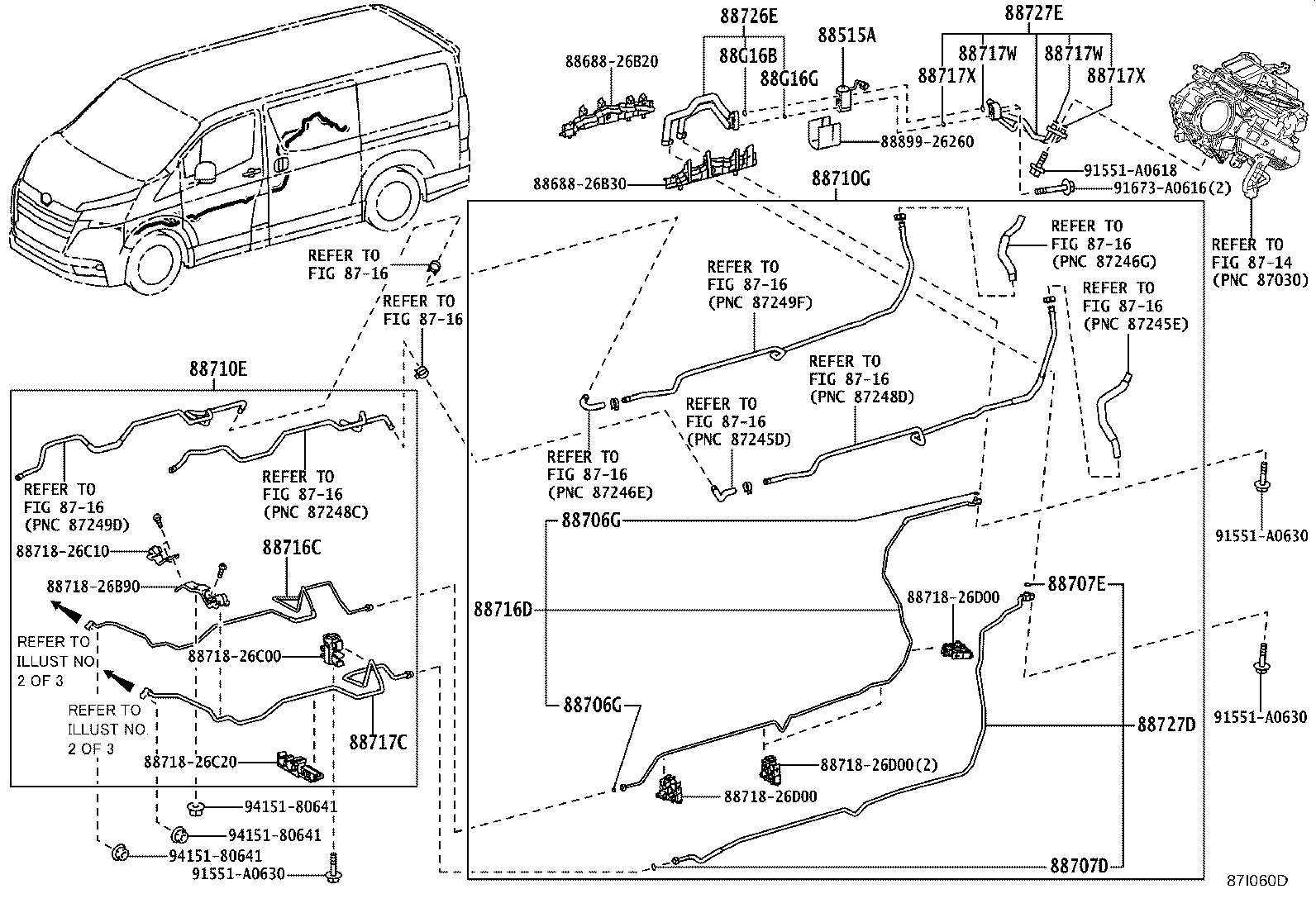

ILLUST NO. 1 OF 3(1907- )GDH306..LHD..G ; (1907- )GDH304,306..RHD ; (1907- )GDH303..ARL,GEN
W(CONDENSER FAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
ILLUST NO. 3 OF 3(1907- )GDH303,304,306,GRH303..ARL,GCC,GEN
REAR(W(AIR CONDITIONER))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-60220 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=6.7,OD=10.3 |
2 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=6.7,OD=10.3 |
2 | ||
| 88707E - RING, O, NO.2(FOR SUCTION TUBE) | ||||
| 90099-14121 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=13.4,OD=18.2 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-26B50 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-26B60 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-26A50 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-26A60 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-26A60 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88717W - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2 | ||||
| 90099-14121 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
2 | ||
| 88717W - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2 | ||||
| 90099-14121 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
2 | ||
| 88717X - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3 | ||||
| 90099-14120 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=10.8,OD=15.6 |
2 | ||
| 88717X - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3 | ||||
| 90099-14120 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=10.8,OD=15.6 |
2 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-26F40 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-26A70 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88710-26F50 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) |
1 | ||
| 88G16B - RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14121 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=13.4,OD=18.2 |
1 | ||
| 88G16G - RING, O, NO.3(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH303..LHD..(G,J) ID=6.7,OD=10.3 |
1 | ||
| Common parts | ||||
| 88688-26B20 | ||||
| 88688-26B30 | ||||
| 88718-26B90 | ||||
| 88718-26C00 | ||||
| 88718-26C10 | ||||
| 88718-26C20 | ||||
| 88718-26D00 | ||||
| 88899-26260 | ||||
| 91551-A0618 | ||||
| 91551-A0630 | ||||
| 91673-A0616 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||
