GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1907- )GDH303,304,306,GRH303,304..RHD

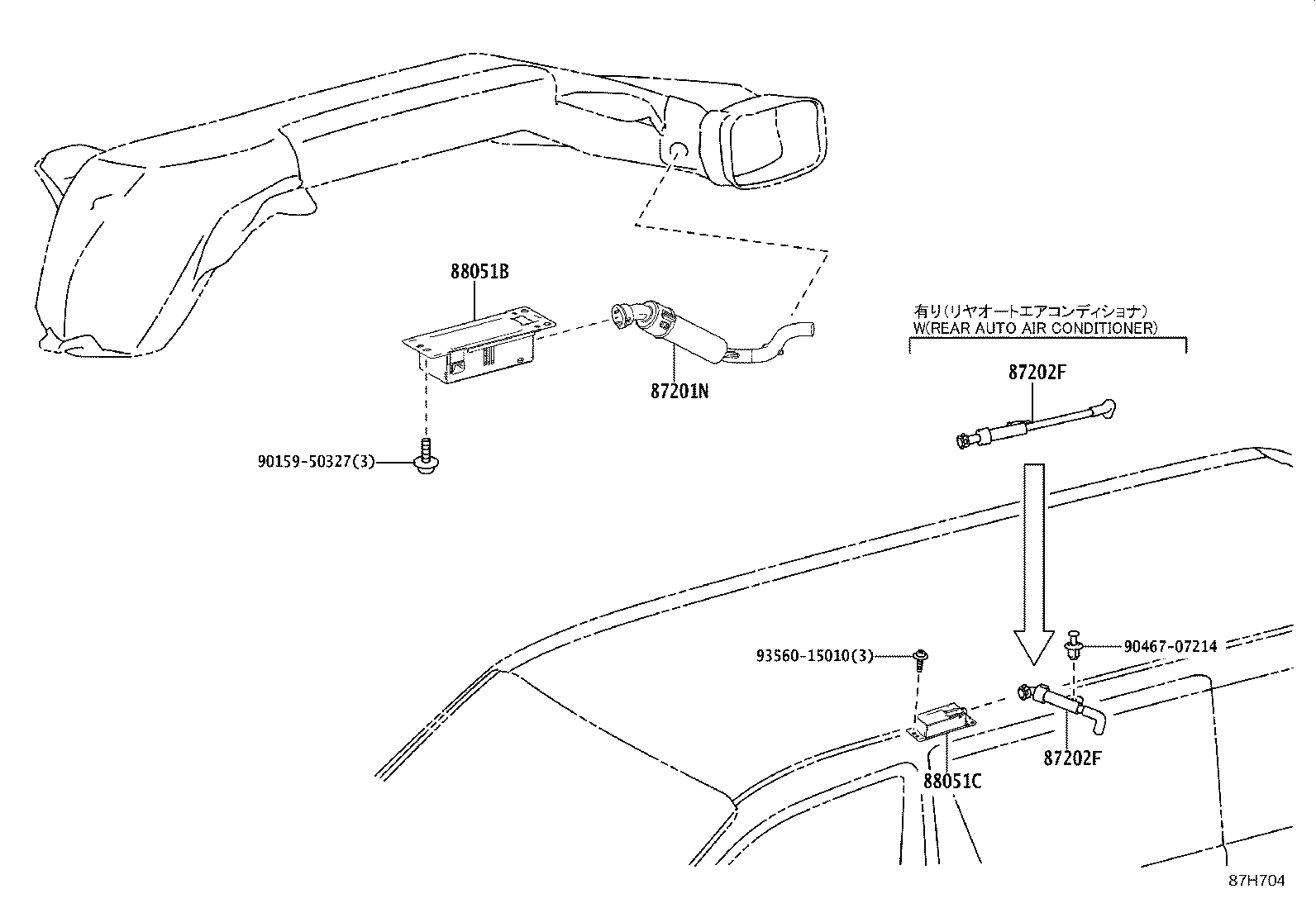

Click highlighted areas on diagram

diagram 87201N 87202F 87202F 88051B 88051C 9015950327 9046707214 9356015010
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
55086-26010

GDH303,304,GRH303,304..RHD..(GEN,TH)

PREMIUM PACKAGE

 1
87202F - DUCT SUB-ASSY, AIR, REAR
87202-26120

GDH304,GRH304..RHD

PREMIUM PACKAGE

 1
87202F - DUCT SUB-ASSY, AIR, REAR
87202-26120

GDH304,GRH304..RHD

PREMIUM PACKAGE

 1
88051B - GENERATOR SUB-ASSY, ION, NO.1
88051-28060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

PREMIUM PACKAGE

 1
88051C - GENERATOR SUB-ASSY, ION, NO.2
88051-28060

GDH304,GRH304;GRH303..LHD..J;GDH303,306..LHD..(G,J);GDH303,GRH303..RHD..GEN

PREMIUM PACKAGE

 1
Common parts
90159-50327
90467-07214
93560-15010
