GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

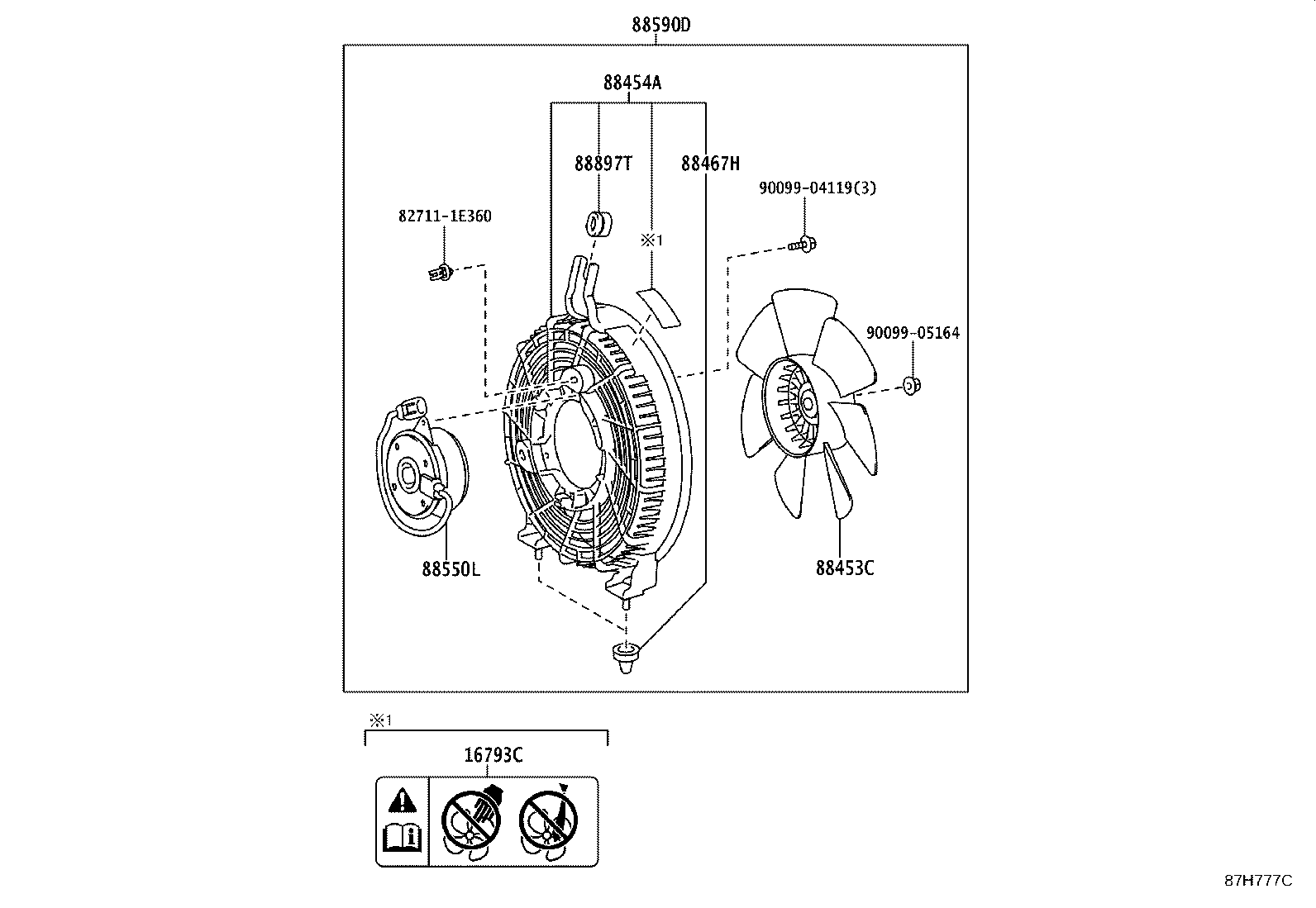

ILLUST NO. 1 OF 3(1907- )GDH306..LHD..G ; (1907- )GDH304,306..RHD ; (1907- )GDH303..ARL,GEN

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 827111E360 88453C 88454A 88467H 88550L 88590D 88897T 9009904119 9009905164
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-31070

1GDFTV..GDH303..H;1GDFTV..GDH303,304..ARL,TH

 1
88453C - FAN, COOLING, NO.1
88453-26030

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88454A - SHROUD, FAN
88454-26120

GDH303..H;GDH303,304..ARL,TH

 1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88467-20190

GDH303..H;GDH303,304..ARL,TH

 2
88550L - MOTOR ASSY, COOLING FAN, NO.1
88550-26120

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88590D - BLOWER ASSY, W/SHROUD, NO.1
88590-26170

GDH303..H;GDH303..ARL,GCC;GDH300,320..6F..GCC;GDH304,322..(H,P,Q)..(GCC,TH)

 1
88897T - GROMMET, COOLER
88897-26140

GDH303..H;GDH303,304..ARL,TH

 1
Common parts
82711-1E360
90099-04119
90099-05164
