GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(1907- )GDH303,304,306,GRH303,304

Click highlighted areas on diagram

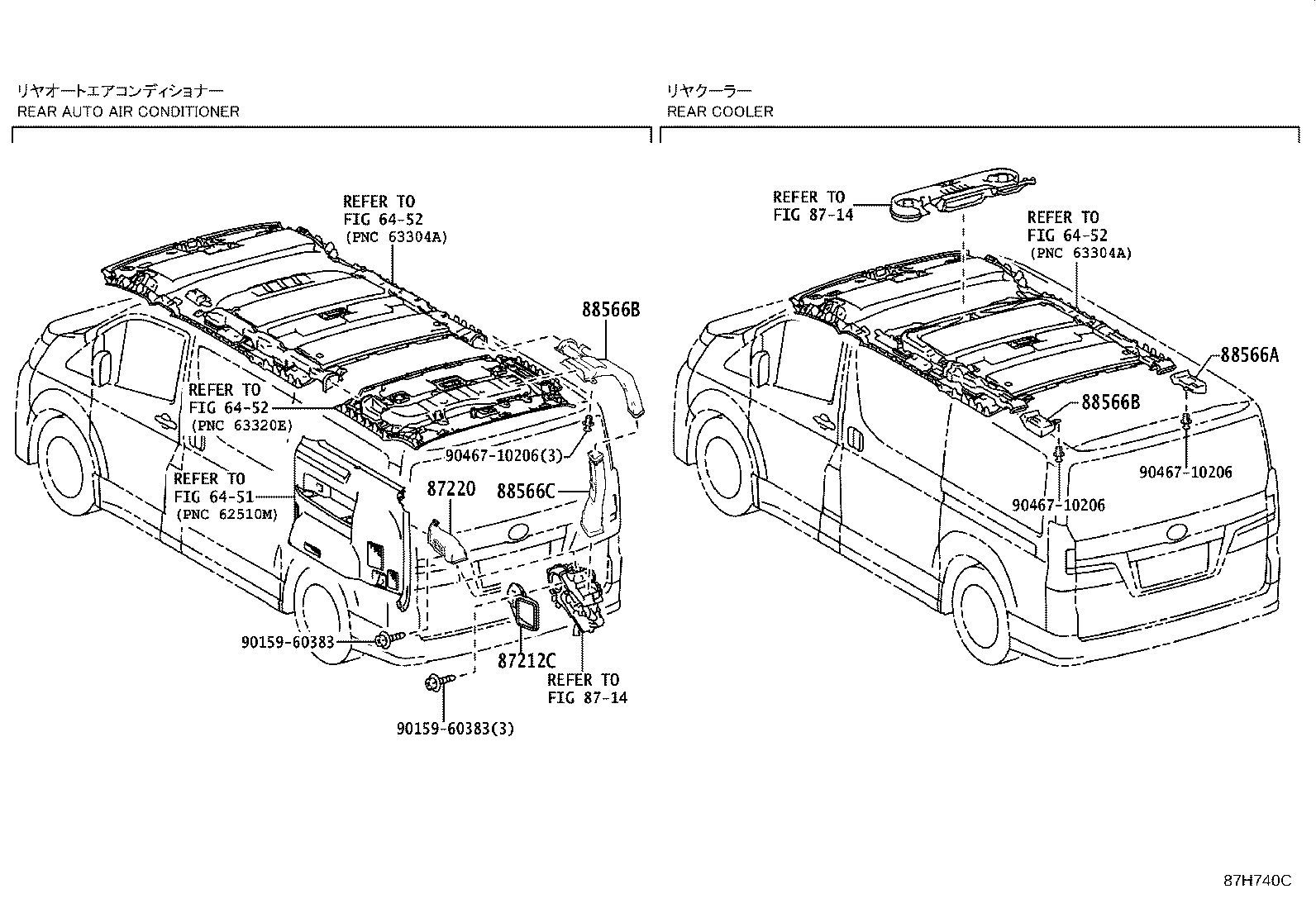

AIR DUCT---REAR

diagram 6451 6452 6452 6452 8714 8714 87212C 87220 88566A 88566B 88566B 88566C 9015960383 9015960383 9046710206 9046710206 9046710206
Part # Description Qty Price
88566A - DUCT, COOLER AIR, NO.1
88566-26180

GDH303..LHD..H;GDH304,GRH304..RHD

 1
88566B - DUCT, COOLER AIR, NO.2
88566-26190

GDH303..LHD..H;GDH304,GRH304..RHD

 1
88566B - DUCT, COOLER AIR, NO.2
88566-26190

GDH303..LHD..H;GDH304,GRH304..RHD

 1
Common parts
90159-60383
90467-10206
Linked diagrams
6451
6452
8714

ILLUST NO. 3 OF 4(1907- )GDH303,304,306,GRH303,304

Click highlighted areas on diagram

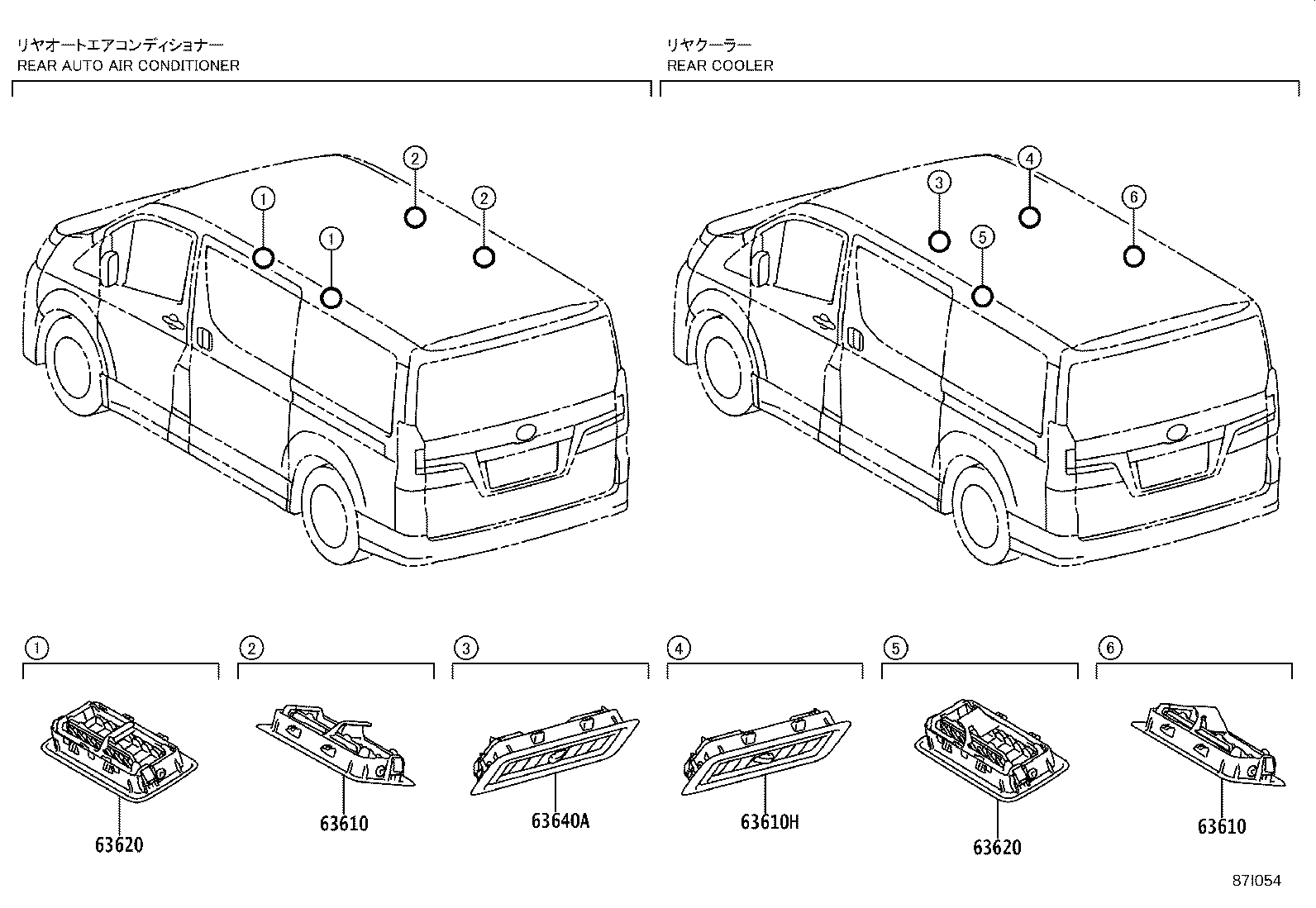

AIR DUCT---REAR

diagram 63610 63610 63610H 63620 63620 63640A
Part # Description Qty Price
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26160A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26160A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
63610H - REGISTER ASSY, AIR OUTLET, NO.3
63610-26250A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63610-26230A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63610-26230A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
63640A - REGISTER ASSY, AIR OUTLET, NO.4
63610-26260A0

GDH303..LHD..H;GDH304,GRH304..RHD

FROMAGE,TRIM2#

 1
