GDH304R-RDTHYT (2019)
Toyota Hiace
(1907- )GDH303,304,306,GRH303,304

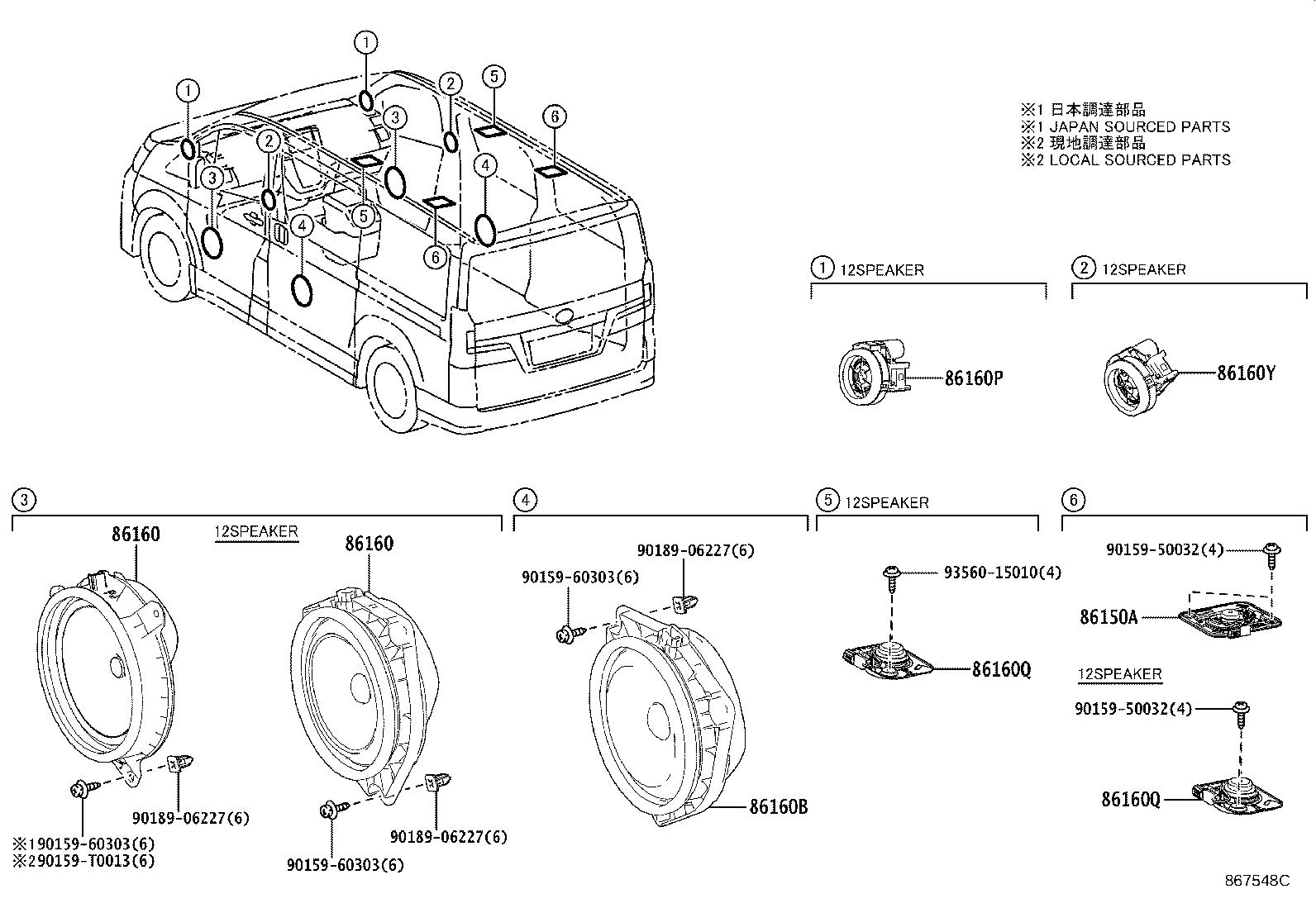

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150A - SPEAKER ASSY, W/BRACKET, NO.2 | ||||
| 86150-26160 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-26560 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
2 | ||
| 86160-1A210 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-26560 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
2 | ||
| 86160-1A210 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-26560 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-78010 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-60650 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
4 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-60650 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
4 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-78010 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
2 | ||
| Common parts | ||||
| 90159-50032 | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90189-06227 | ||||
| 93560-15010 | ||||
