GDH304R-RDTHYT (2019)
Toyota Hiace
(1907- )GDH303,304,306,GRH303,304

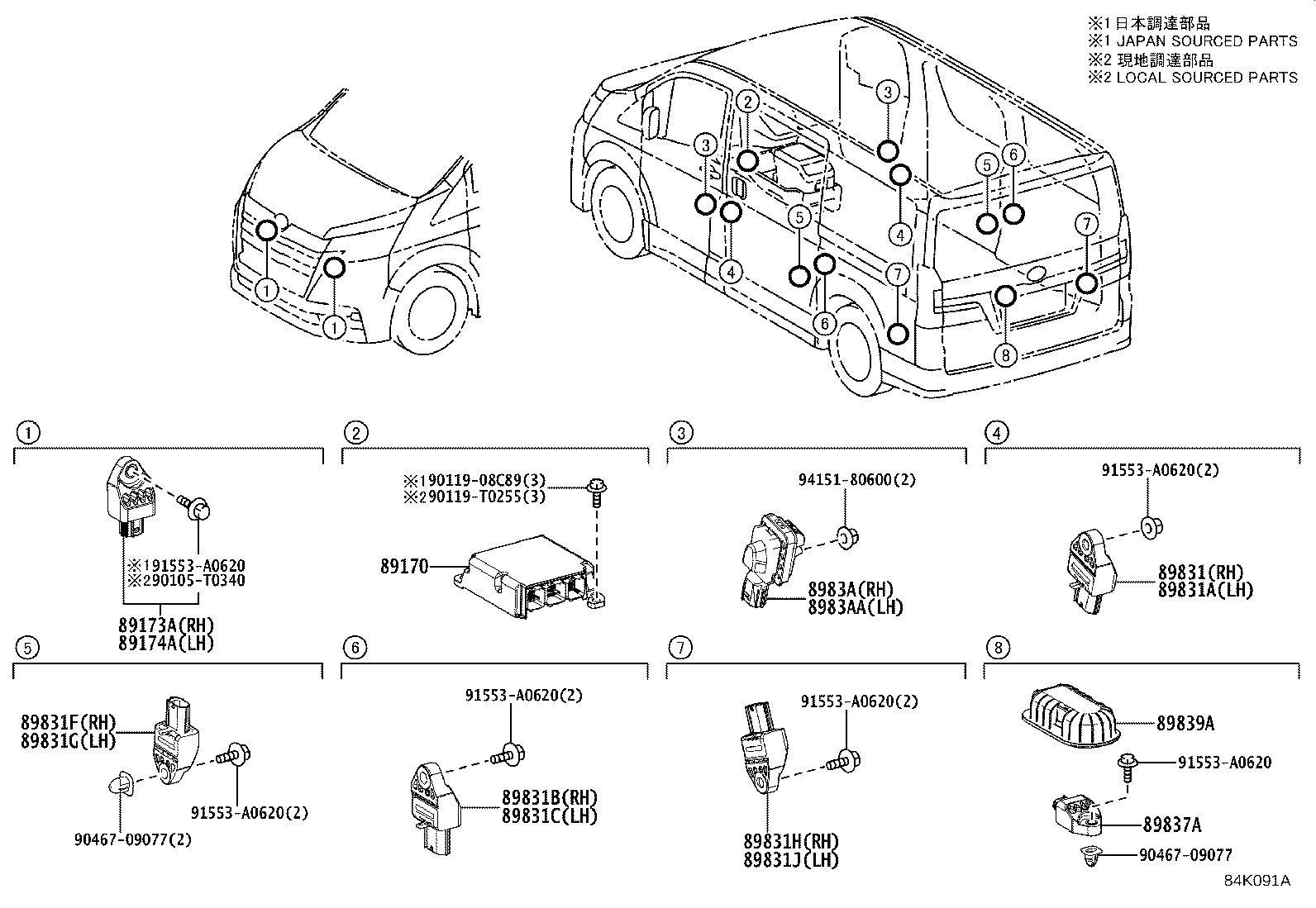

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-26530 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89170-26690 |
GDH304..TH |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-59325 |
GDH321..D;GDH322..N;GDH300..TH;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..ARL,GCC,NZ,TH;GDH300..5D..(ARL,GCC);GDH303,304,328,GRH304;GDH322..LHD..(P,Q)..GEN;GDH301,GRH301,322..N,P,Q;GDH301,320,GRH300,320..GCC,NZ,TH;GDH306,321,GRH321..LHD..(G,J,N,Q) |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-59325 |
GDH321..D;GDH322..N;GDH300..TH;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH322..ARL,GCC,NZ,TH;GDH300..5D..(ARL,GCC);GDH303,304,328,GRH304;GDH322..LHD..(P,Q)..GEN;GDH301,GRH301,322..N,P,Q;GDH301,320,GRH300,320..GCC,NZ,TH;GDH306,321,GRH321..LHD..(G,J,N,Q) |
1 | ||
| 89831 - SENSOR, SIDE AIR BAG, RH, NO.1 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831A - SENSOR, SIDE AIR BAG, LH, NO.1 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831B - SENSOR, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831C - SENSOR, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831F - SENSOR, SIDE AIR BAG, RH, NO.3 | ||||
| 89831-58010 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831G - SENSOR, SIDE AIR BAG, LH, NO.3 | ||||
| 89831-58010 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831H - SENSOR, SIDE AIR BAG, RH, NO.4 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89831J - SENSOR, SIDE AIR BAG, LH, NO.4 | ||||
| 89831-28060 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89837A - SENSOR, REAR FLOOR SIDE AIR BAG | ||||
| 89837-28040 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89839A - COVER, REAR FLOOR SIDE AIR BAG SENSOR | ||||
| 89839-28020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 8983A - SENSOR, SIDE AIR BAG PRESSURE, RH | ||||
| 8983A-33010 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 8983A-33011 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH | ||||
| 8983A-33010 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 8983A-33011 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 90105-T0340 | ||||
| 90119-08C89 | ||||
| 90119-T0255 | ||||
| 90467-09077 | ||||
| 91553-A0620 | ||||
| 94151-80600 | ||||
