GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1907- )GDH303,304,306,GRH303,304

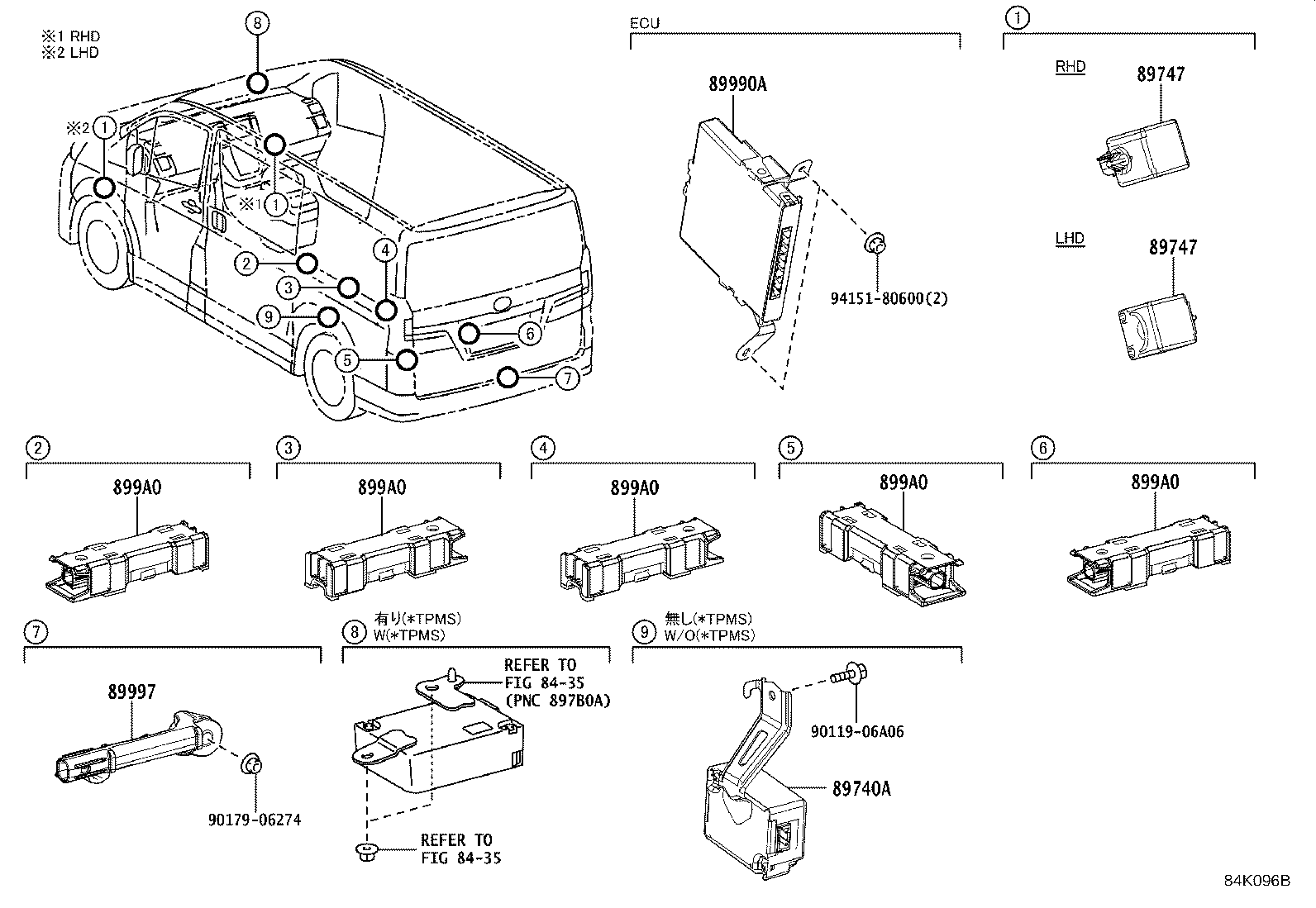

Click highlighted areas on diagram

diagram 8435 8435 89740A 89747 89747 89990A 89997 899A0 899A0 899A0 899A0 899A0 9011906A06 9017906274 9415180600
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-26020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,328,GRH321..LHD;GDH322..LHD..(P,Q)..GEN;GDH322..(D,Q)..(ARL,GCC,TH);GDH301,303,304,321,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,TH)

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,328,GRH321..LHD;GDH322..LHD..(P,Q)..GEN;GDH322..(D,Q)..(ARL,GCC,TH);GDH301,303,304,321,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,TH)

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-26020

GRH303..RHD..GEN;GDH303,304,GRH304..RHD

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-60020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
Common parts
90119-06A06
90179-06274
94151-80600
Linked diagrams
8435
