GDH304R-RDTHYT (2019)
Toyota Hiace

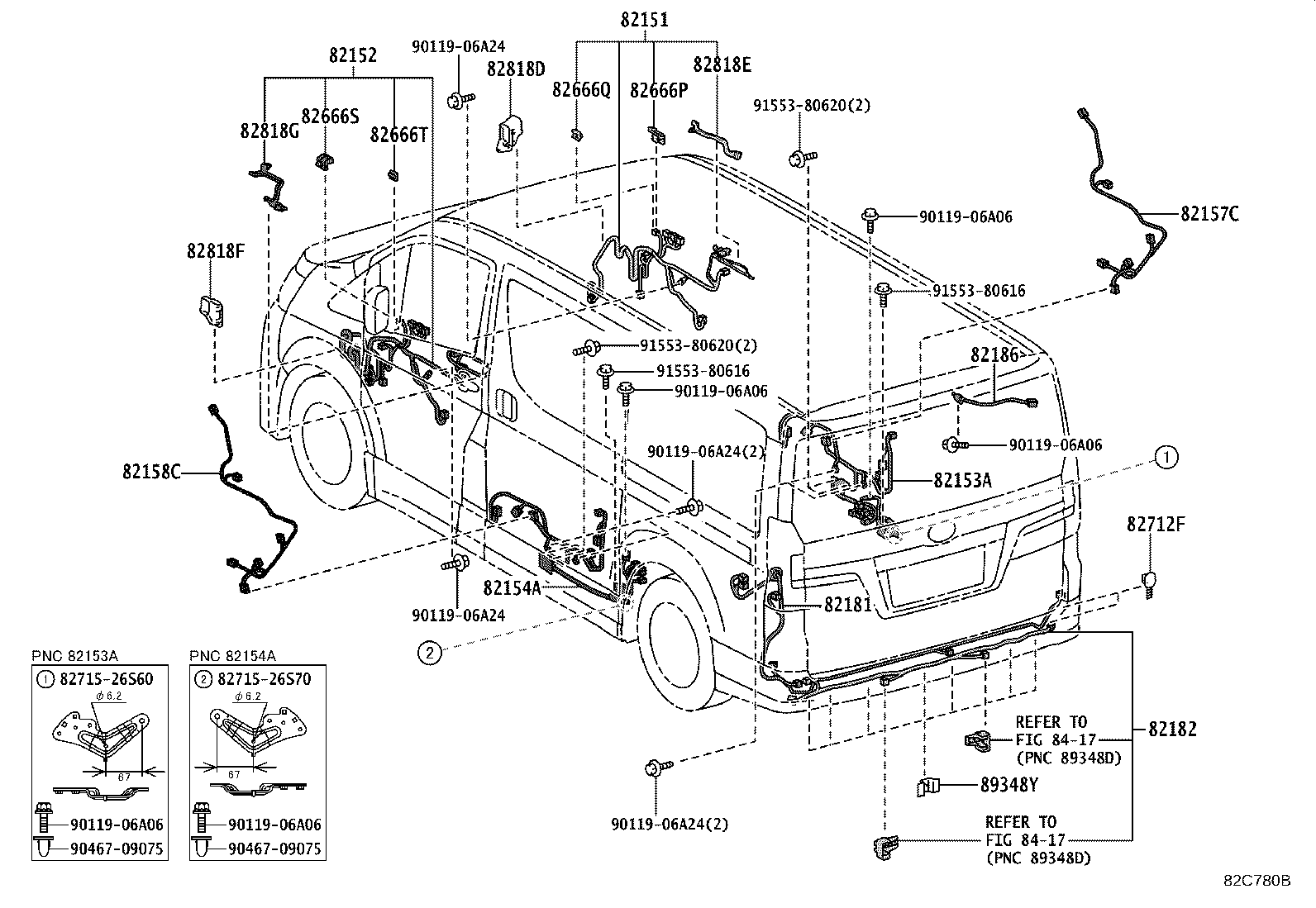

ILLUST NO.29 OF38(1907- )GDH303,304,306,GRH303,304
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26650 |
GDH303,304,GRH303,304..RHD..(GEN,TH) |
1 | ||
| 82151-26690 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82151-26680 |
GDH304..TH;GDH303..RHD..(G,J)..GEN BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA) |
1 | ||
| 82151-26700 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO) |
1 | ||
| 82151-26670 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26600 |
GDH303,304,GRH303,304..RHD..(GEN,TH) |
1 | ||
| 82152-26620 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82152-26650 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO) |
1 | ||
| 82152-26630 |
GDH304..TH;GDH303..RHD..(G,J)..GEN BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA) |
1 | ||
| 82152-26640 |
GDH304..TH SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-26050 |
GDH306..LHD;GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) |
1 | ||
| 82053-26100 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82053-26090 |
GDH306..LHD;GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82053-26060 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82053-26100 |
GDH304..TH LEATHER PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-26050 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82054-26040 |
GDH306..LHD;GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) |
1 | ||
| 82054-26090 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82054-26080 |
GDH306..LHD;GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82054-26090 |
GDH304..TH LEATHER PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82157C - WIRE, REAR DOOR, RH NO.2 | ||||
| 82157-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82157-26090 |
GDH306..RHD;GDH303..(G,J)..(GCC,GEN);GDH304,GRH303..GCC,GEN,TH *POSD & *ECS(*SD & BACK DOOR)&AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 82157-26060 |
GDH306..RHD;GDH303..(G,J)..(GCC,GEN);GDH304,GRH303..GCC,GEN,TH AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 82157-26080 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82158C - WIRE, REAR DOOR, LH NO.2 | ||||
| 82158-26060 |
GDH306..RHD;GDH303..(G,J)..(GCC,GEN);GDH304,GRH303..GCC,GEN,TH AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 82158-26090 |
GDH306..RHD;GDH303..(G,J)..(GCC,GEN);GDH304,GRH303..GCC,GEN,TH *POSD & *ECS(*SD & BACK DOOR)&AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 82158-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82158-26080 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26200 |
GDH306..LHD;GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82181-26210 |
GDH306..LHD;GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN) CLEARANCE & BACK SONAR-WITH&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82181-26180 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26090 |
GDH306..LHD;GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH303,304,GRH304..GEN,TH CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26120 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH300..5D..(ARL,GCC);GDH301,320,321,GRH300,320..GCC,NZ;GDH306,322,GRH321..LHD..(G,J,P,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,P,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26B80 |
GDH322..N;GDH300..5D..ARL;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,NZ,TH;GDH322..LHD..P..GEN;GDH303,304,328,GRH304;GDH301,GRH301,322..N,Q;GDH322,GRH303..LHD..(J,Q);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,301,321..4D..6FC..(ARL,NZ) |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-21040 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO) |
1 | ||
| 82666-21040 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82666-21040 |
GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN) BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA) |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26B90 |
GDH322..N;GDH300..5D..ARL;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,NZ,TH;GDH322..LHD..P..GEN;GDH303,304,328,GRH304;GDH301,GRH301,322..N,Q;GDH322,GRH303..LHD..(J,Q);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,301,321..4D..6FC..(ARL,NZ) |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-21040 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA) |
1 | ||
| 82666-21040 |
GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN) BACK MONITOR-WITH & WITH(GUIDE LINE)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA) |
1 | ||
| 82666-21040 |
GDH304..TH;GDH303..LHD..H SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO) |
1 | ||
| 82712F - SUPPORT, WIRING HARNESS | ||||
| 82712-60550 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH |
2 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26M80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26Y60 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26U90 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26Y70 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
GDH322..D,N;GDH301,GRH301..N;GRH303..RHD..GEN;GDH301,GRH300..GCC,TH;GDH306,321..LHD..(G,J,N);GDH322,GRH303..LHD..(J,P,Q);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,303,304,320,328,GRH304,32#..GCC,GEN,PH,TH,VN CLEARANCE & BACK SONAR-WITH |
7 | ||
| Common parts | ||||
| 82715-26S60 | ||||
| 82715-26S70 | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90467-09075 | ||||
| 91553-80616 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||

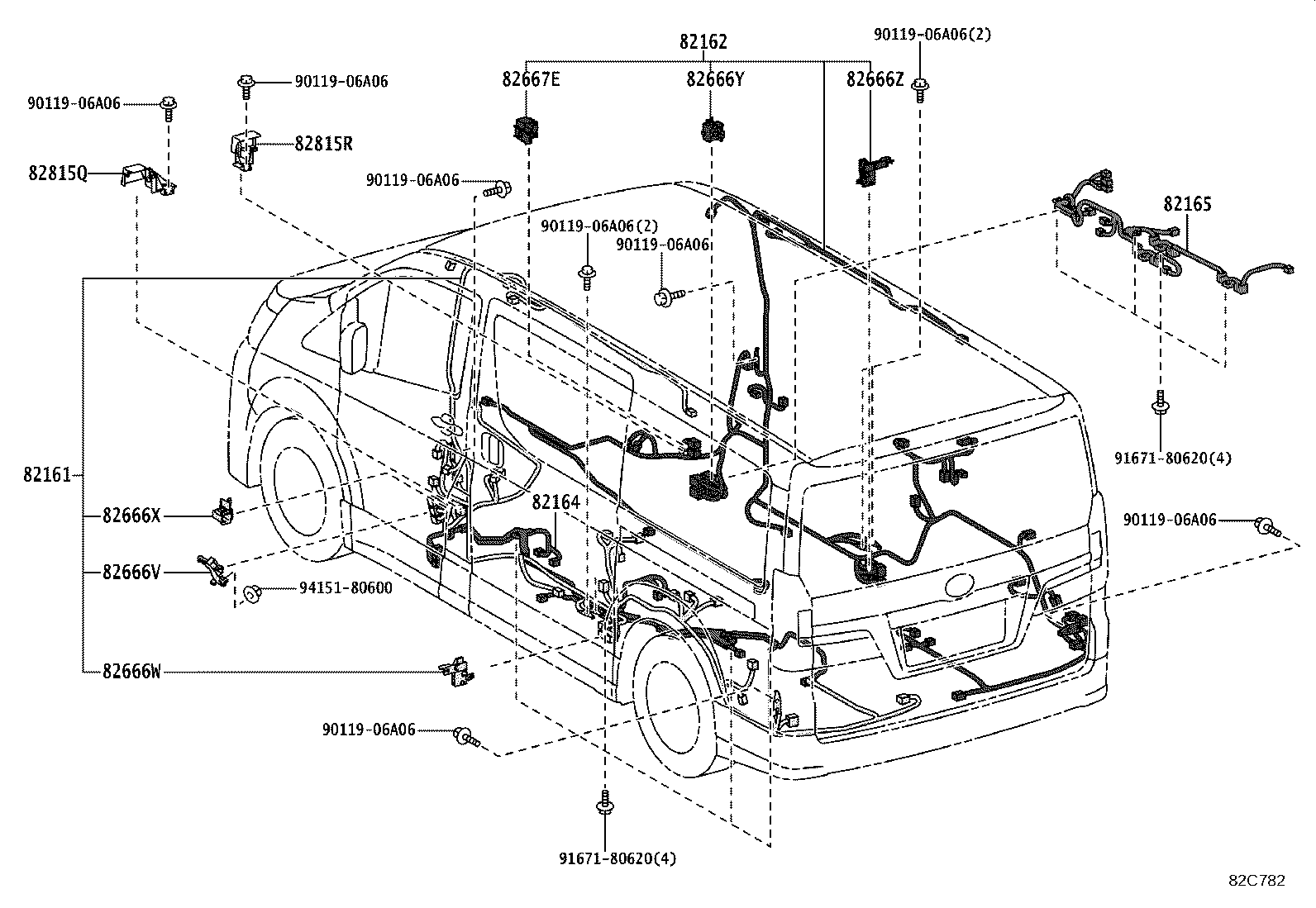

ILLUST NO.31 OF38(1907- )GDH303,304,306,GRH303,304
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-26A30 |
GDH303,304,GRH304..RHD..H |
1 | ||
| 82161-26A70 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82161-26N30 |
GDH304..TH LEATHER PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82161-26N50 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82161-26A50 |
GDH303,304,GRH304..RHD..H *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-26G00 |
GDH304..TH |
1 | ||
| 82162-26G60 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82162-26G60 |
GDH304..TH LEATHER PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82162-26G40 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82162-26G20 |
GDH304..TH *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-26A70 |
GDH303,304;GDH306..LHD |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-26510 |
GDH322..N;GDH322..ARL,GCC,NZ;GDH301,304,321,328..NZ,PH,TH;GDH303,322..LHD..6FC..(H,P,Q)..GEN;GDH301,321,GRH301,304,321,322..(H,N,P,Q)..(GCC,GEN) |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-26A50 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-26A60 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-26A70 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26A80 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-26A90 |
GDH300..5D..ARL;GDH320..6FC..ARL;GDH322..6FC..P..GCC;GDH322..LHD..6F..(N,P,Q);GDH322,GRH303..LHD..6FC..(J,N,Q);GDH300,GRH303..RHD..(SG,SHP)..GEN;GDH301,306,GRH301,321,322..LHD..(G,J,N,P,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-26B00 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-26L00 |
GDH303,304;GDH306..LHD |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-26L10 |
GDH303..LHD..J;GRH303..GCC,GEN;GDH304,306..RHD;GDH303..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 82815-26L10 |
GDH303..LHD..(G,J);GDH304,GRH303..GCC,TH AUDIO-AVN(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 82815-26L10 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||

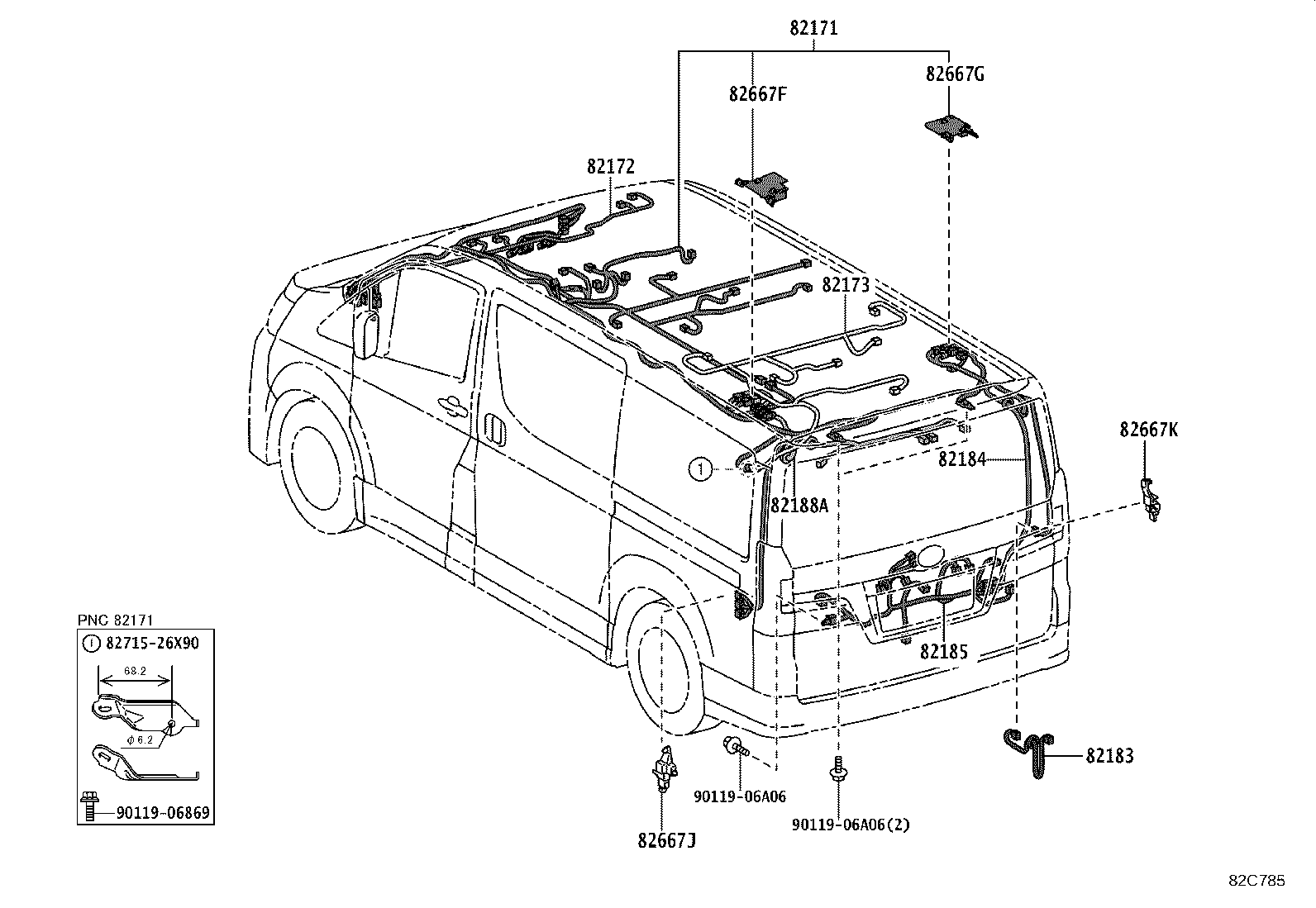

ILLUST NO.34 OF38(1907- )GDH303,304,306,GRH303,304
ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2FC30 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC30 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82171-2FC70 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC30 |
GDH304..TH AUDIO-*DA(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC70 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC50 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-*DA(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC70 |
GDH304..TH AUDIO-AVN(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC30 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC70 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82171-2FC50 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-*DA(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC50 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-*DA(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82171-2FC50 |
GDH304..TH TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-*DA(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC80 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-AVN(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC80 |
GDH304..TH TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-AVN(DVD & CD &*BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC80 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-AVN(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82171-2FC80 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)&AUDIO-AVN(DVD & CD & *BT)&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82171-2FC40 |
GDH303..LHD..H;GDH304,GRH304..RHD |
1 | ||
| 82171-2FC60 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION) |
1 | ||
| 82171-2FC60 |
GDH304..TH;GDH303..LHD..H TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION) |
1 | ||
| 82171-2FC60 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26E10 |
GDH304..TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-26D90 |
GDH304..TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-26E00 |
GDH304..TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-26E30 |
GDH304..TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F620 |
GDH304..TH PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F580 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82172-2F610 |
GDH304..TH PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&SRS AIR BAG-W(*DRP &*SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-2F600 |
GDH304..TH PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-2F640 |
GDH304,GRH304..RHD |
1 | ||
| 82172-2F690 |
GDH304..TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F630 |
GDH304..TH PREMIUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&SRS AIR BAG-W(*DRP &*SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F670 |
GDH304,GRH304..RHD INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-2F660 |
GDH304,GRH304..RHD INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 82172-2F680 |
GDH304..TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-AVN(DVD & CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F830 |
GDH304..TH PREMIUM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 82172-2F880 |
GDH304..TH PREMIUM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD &CD & *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F850 |
GDH304..TH PREMIUM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD & CD& *BT) |
1 | ||
| 82172-2F870 |
GDH304..TH PREMIUM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-AVN(DVD & CD& *BT)&SPEAKER-12SPEAKER |
1 | ||
| 82172-2F860 |
GDH304..TH PREMIUM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)&AUDIO-*DA(DVD &CD & *BT) |
1 | ||
| 82172-2F890 |
GDH304..TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26250 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26330 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26700 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82184-26720 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82184-26710 |
GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) |
1 | ||
| 82184-26730 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82184-26750 |
GDH303,304;GRH303..GCC INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26B90 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH *POSD & *ECS(*SD & BACK DOOR)&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82185-26B70 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82185-26B80 |
GRH303..LHD..J;GDH303,GRH304..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) |
1 | ||
| 82185-26C20 |
GDH303,304;GRH303..GCC *POSD & *ECS(*SD & BACK DOOR)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO) |
1 | ||
| 82185-26C00 |
GDH303..GCC,GEN;GDH304,GRH303..GCC,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE) |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26440 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) |
1 | ||
| 82188-26450 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-26B10 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26B20 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26C30 |
GDH322..P..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH320,GRH300,320,322..LHD..4D..(D,P);GDH300,301,306,322,GRH301..LHD..(D,G,J)..GEN;GDH303,304,321,GRH304..(D,G,H,J)..(ARL,GCC,GEN,TH) |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-26C40 |
GDH306..LHD;GRH303..LHD..J;GRH320..RHD..SG;GDH300..SHP..ARL;GDH303,304,GRH304;GDH322..RHD..6FC..P;GDH300,320..RHD..4D..6FC;GDH300,320..RHD..4D..6F..(GEN,TH);GDH301,321,322,GRH300,301,303,322..RHD..(D,G,J)..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 82715-26X90 | ||||
| 90119-06869 | ||||
| 90119-06A06 | ||||

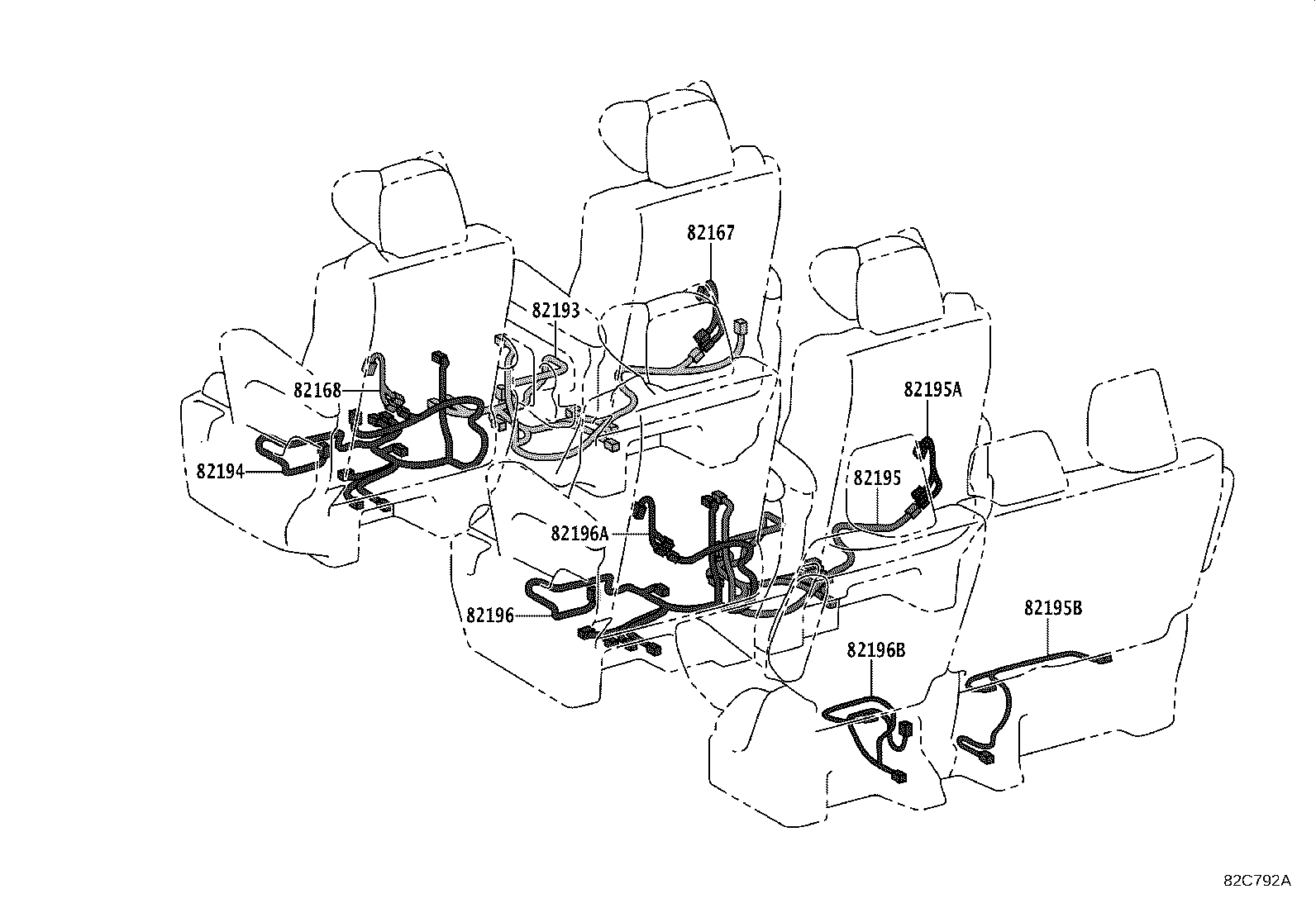

ILLUST NO.36 OF38(1907- )GDH303,304,306,GRH303,304
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26080 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-26100 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-26010 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)&SEAT HEATER-WITH(REAR NO.1 SEAT) |
1 | ||
| 82193-26040 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE) |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-26050 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE) |
1 | ||
| 82194-26010 |
GDH303..LHD..H;GDH304,GRH304..RHD PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)&SEAT HEATER-WITH(REAR NO.1 SEAT) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
