GDH304R-RDTHYT (2019)
Toyota Hiace
(1907- )GDH303,304,306,GRH303,304

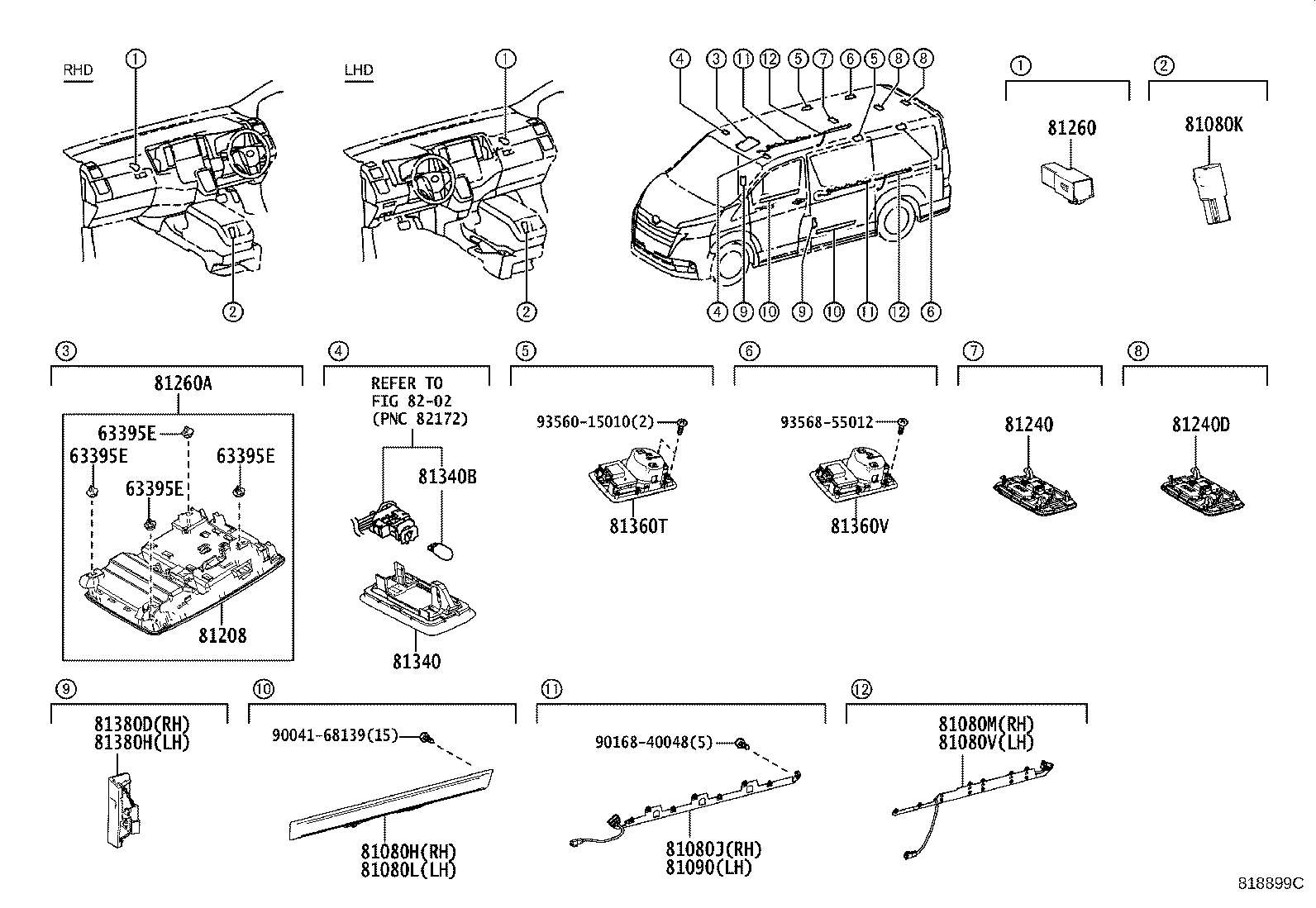

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 90467-09240 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 90467-09240 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 90467-09240 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 90467-09240 |
GDH301,GRH301..N;GDH300,301,328,GRH300..ARL,NZ,PH,VN;GDH303,304,306,320,321,322,GRH303,304,32# |
4 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-26240C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-26120 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE |
1 | ||
| 81080-26110 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-26240C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-26130 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 81080-26140 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE |
1 | ||
| 81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81090-26080 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 81090-26090 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE |
1 | ||
| 81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81090-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 81090-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE |
1 | ||
| 81208 - LAMP SUB-ASSY, MAP | ||||
| 81208-26110A0 |
GDH303,304,GRH303,304..RHD..(GEN,TH) AUDIO-*DA(DVD & CD & *BT),FROMAGE,TRIM2# |
1 | ||
| 81208-26110A0 |
GDH303..RHD..(G,J)..GEN;GDH304,GRH303..RHD..(GEN,TH) AUDIO-AVN(DVD & CD & *BT),FROMAGE,TRIM2# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-48030A0 |
GDH306..LHD;GRH303..GCC,GEN;GDH303,304,GRH304 FROMAGE,TRIM2# |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-48030A0 |
GDH306..LHD;GRH303..GCC,GEN;GDH303,304,GRH304 FROMAGE,TRIM2# |
2 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-58100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-26290A0 |
GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) FROMAGE,TRIM2# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-0K040 |
GDH304..TH |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
GDH303,304,306,GRH303,304 12V 8W |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-26040A0 |
GDH303,304,306,GRH303,304..H,J FROMAGE,TRIM2# |
2 | ||
| 81360V - LAMP ASSY, SPOT, NO.2 | ||||
| 81360-26040A0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J FROMAGE,TRIM2# |
2 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81380-26010C0 |
GDH303,304,306,GRH303,304..H,J BLACK,TRIM2# |
1 | ||
| 81380H - LAMP ASSY, STEP | ||||
| 81380-26020C0 |
GDH303,304,306,GRH303,304..H,J BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90168-40048 | ||||
| 93560-15010 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
