GDH304R-RDTHYT (2019)
Toyota Hiace

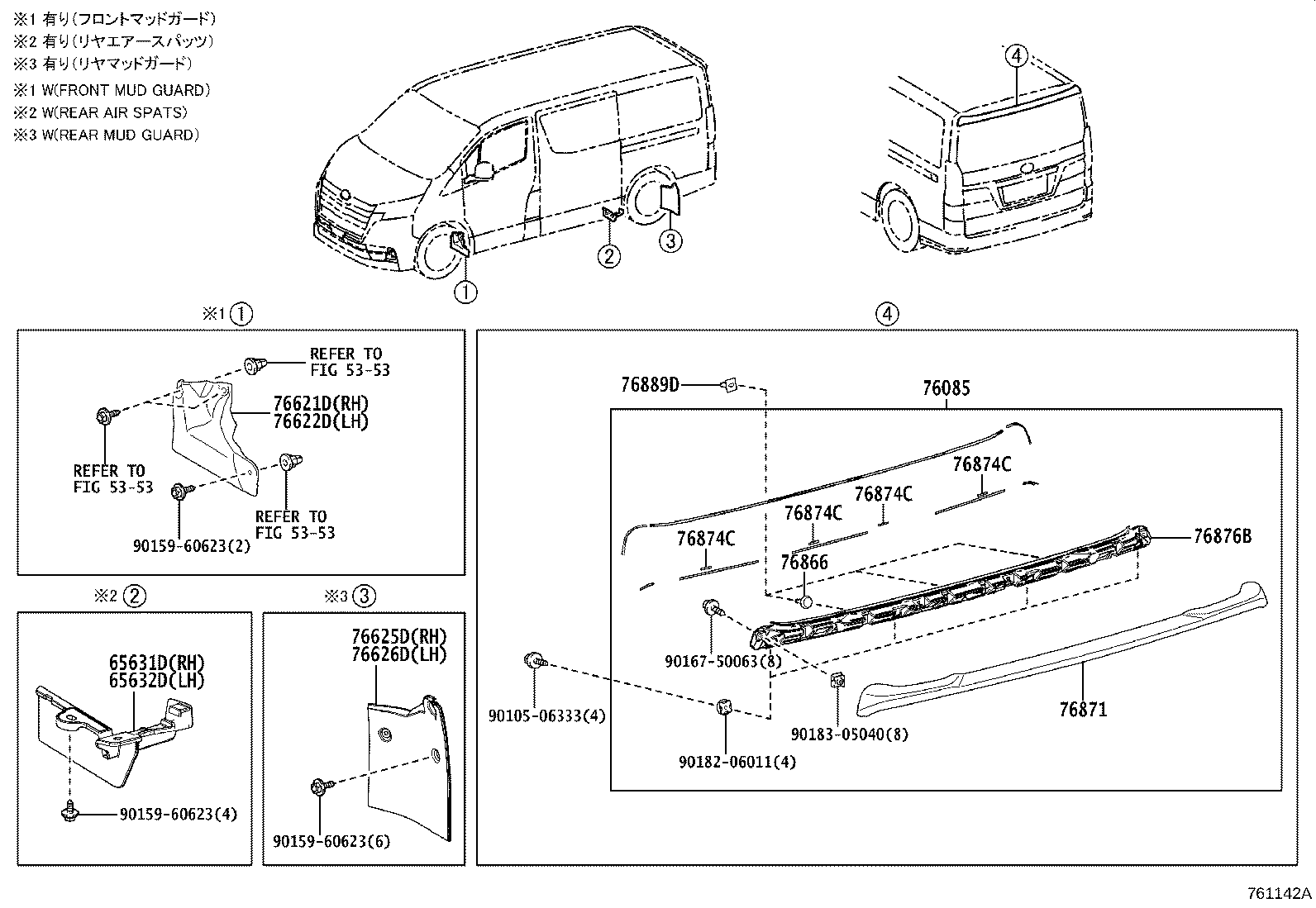

ILLUST NO. 1 OF 2(1907- )GDH303,304,306,GRH303,304
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-26020 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-26020 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-26070A0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 76085-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76085-26070B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76085-26070B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76621D - MUDGUARD, FRONT FENDER, RH | ||||
| 76621-26060 |
GDH304;GDH306..LHD |
1 | ||
| 76622D - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-26070 |
GDH304;GDH306..LHD |
1 | ||
| 76625D - MUDGUARD, QUARTER PANEL, REAR RH | ||||
| 76625-26070 |
GDH304;GDH306..LHD |
1 | ||
| 76626D - MUDGUARD, QUARTER PANEL, REAR LH | ||||
| 76626-26070 |
GDH304;GDH306..LHD |
1 | ||
| 76866 - RETAINER, REAR SPOILER, NO.2 | ||||
| 76866-48010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-26907 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76874C - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-V3010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76874C - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-V3010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76874C - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-V3010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76874C - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-V3010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76876B - INSERT, REAR SPOILER | ||||
| 76876-26900 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76889D - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-44020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90159-60623 | ||||
| 90167-50063 | ||||
| 90182-06011 | ||||
| 90183-05040 | ||||
| Linked diagrams | ||||
| 5353 | ||||

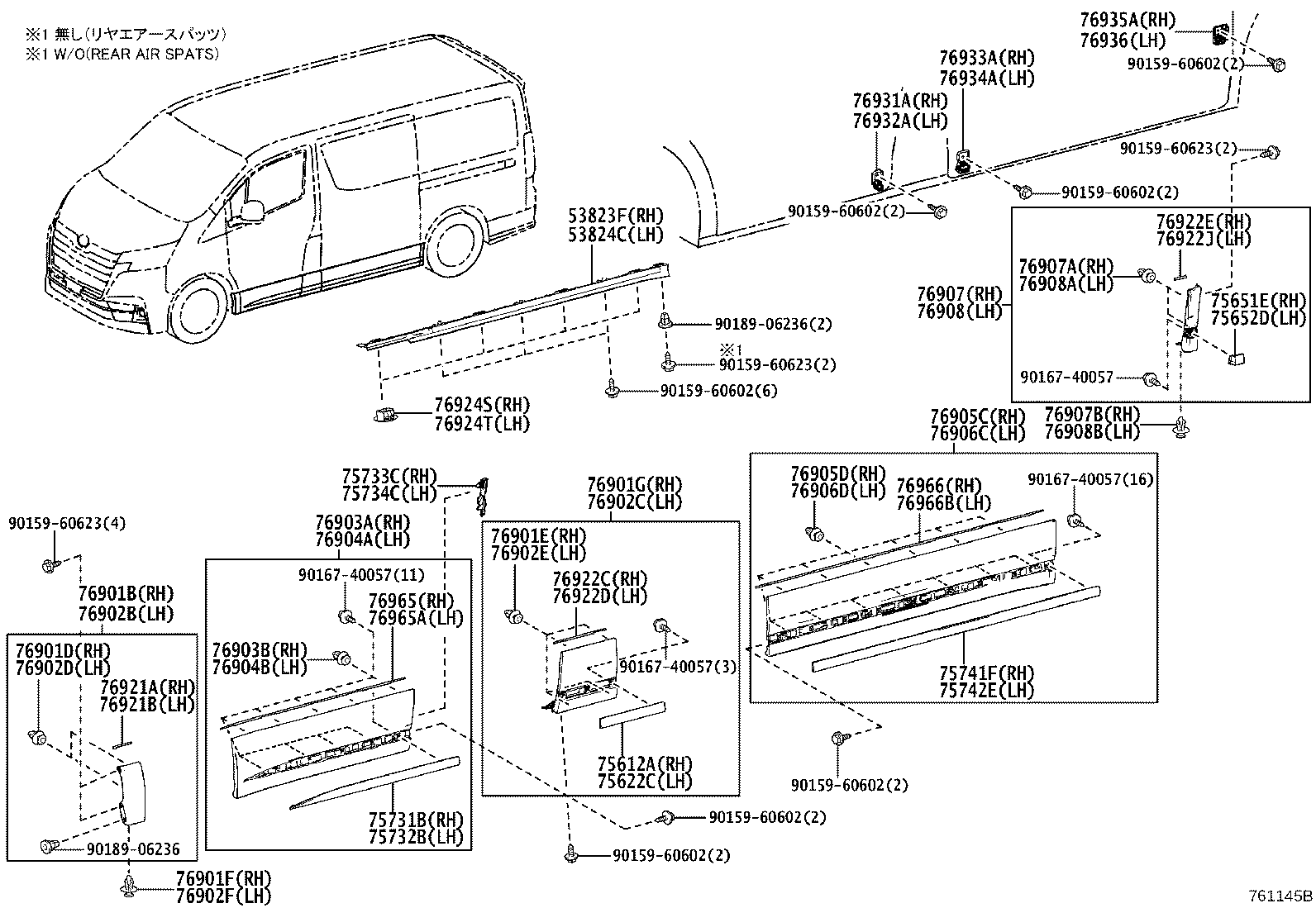

ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303,304
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53823F - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 53824C - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75612A - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75612-26020 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75622C - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 75622-26010 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75651E - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75651-26060 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75652D - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75652-26090 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75731B - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-26050 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75732B - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-26050 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75733C - MOULDING, FRONT DOOR, OUTSIDE REAR RH | ||||
| 75733-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 75733-26010A0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 75733-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 75733-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 75733-26010E0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 75734C - MOULDING, FRONT DOOR, OUTSIDE REAR LH | ||||
| 75734-26010A0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 75734-26010E0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 75734-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 75734-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 75734-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 75741F - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-26030 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 75742E - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-26040 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76901B - MUDGUARD SUB-ASSY, FENDER PANEL, RH | ||||
| 76901-26040B2 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76901-26040A1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76901-26040B3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76901-26040C1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76901-26040E1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76901D - CLIP, FENDER PANEL MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 76901E - CLIP, SIDE MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76901F - CLIP, FENDER PANEL MUDGUARD | ||||
| 90467-07214 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76901G - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76901-26050A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76901-26050B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76901-26050B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76901-26050C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76901-26050E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76902B - MUDGUARD SUB-ASSY, FENDER PANEL, LH | ||||
| 76902-26040B3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76902-26040B2 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76902-26040A1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76902-26040E1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76902-26040C1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76902C - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76902-26050A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76902-26050B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76902-26050C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76902-26050B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76902-26050E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76902D - CLIP, FENDER PANEL MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 76902E - CLIP, SIDE MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76902F - CLIP, FENDER PANEL MUDGUARD | ||||
| 90467-07214 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76903A - MUDGUARD SUB-ASSY, FRONT DOOR, RH | ||||
| 76903-26040A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76903-26040C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76903-26040B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76903-26040B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76903-26040E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76903B - CLIP, FRONT DOOR MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
9 | ||
| 76904A - MUDGUARD SUB-ASSY, FRONT DOOR, LH | ||||
| 76904-26040B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76904-26040A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76904-26040B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76904-26040E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76904-26040C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76904B - CLIP, FRONT DOOR MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
9 | ||
| 76905C - MUDGUARD SUB-ASSY, SLIDE DOOR, RH | ||||
| 76905-26010A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76905-26010E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76905-26010B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76905-26010C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76905-26010B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76905D - CLIP, SLIDE DOOR MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
13 | ||
| 76906C - MUDGUARD SUB-ASSY, SLIDE DOOR, LH | ||||
| 76906-26040A1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76906-26040B3 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1G3 |
1 | ||
| 76906-26040E1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76906-26040B2 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76906-26040C1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76906D - CLIP, SLIDE DOOR MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
13 | ||
| 76907 - MUDGUARD SUB-ASSY, QUARTER PANEL, RH | ||||
| 76907-26050B2 |
GDH306..RHD;GDH303,304,GRH303,304 SILVER ME.,1F7 |
1 | ||
| 76907-26050B3 |
GDH306..RHD;GDH303,304,GRH303,304 GRAY ME.,1G3 |
1 | ||
| 76907-26050E1 |
GDH306..RHD;GDH303,304,GRH303,304 BEIGE ME.,2QD |
1 | ||
| 76907-26050A1 |
GDH306..RHD;GDH303,304,GRH303,304 WHITE PEARL CS.,070 |
1 | ||
| 76907-26050C1 |
GDH306..RHD;GDH303,304,GRH303,304 BLACK,202 |
1 | ||
| 76907-V3010B0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76907-V3010C0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76907-V3010B1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76907-V3010A0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76907-V3010E0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76907A - CLIP, QUARTER PANEL MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 76907B - CLIP, QUARTER PANEL MUDGUARD | ||||
| 90467-07214 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76908 - MUDGUARD SUB-ASSY, QUARTER PANEL, LH | ||||
| 76908-26020C1 |
GDH306..RHD;GDH303,304,GRH303,304 BLACK,202 |
1 | ||
| 76908-26020A1 |
GDH306..RHD;GDH303,304,GRH303,304 WHITE PEARL CS.,070 |
1 | ||
| 76908-26020B3 |
GDH306..RHD;GDH303,304,GRH303,304 GRAY ME.,1G3 |
1 | ||
| 76908-26020E1 |
GDH306..RHD;GDH303,304,GRH303,304 BEIGE ME.,2QD |
1 | ||
| 76908-V3010A0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 |
1 | ||
| 76908-26020B2 |
GDH306..RHD;GDH303,304,GRH303,304 SILVER ME.,1F7 |
1 | ||
| 76908-V3010B0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76908-V3010B1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76908-V3010E0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BEIGE ME.,2QD |
1 | ||
| 76908-V3010C0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76908A - CLIP, QUARTER PANEL MUDGUARD | ||||
| 90467-07221 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 76908B - CLIP, QUARTER PANEL MUDGUARD | ||||
| 90467-07214 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-26060C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76921-26060B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76921-26060B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76921B - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76922-26120C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76922-26120B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76922-26120B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76922C - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76921-26070B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76921-26070B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76921-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76921-26070B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76921-26070B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76921-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76922E - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-26110B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76922-26110C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76922-26110B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76922J - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-26110B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76922-26110C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76922-26110B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76924S - RETAINER, FRONT SIDE PANEL PROTECTOR | ||||
| 76924-52021 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76924T - RETAINER, FRONT SIDE PANEL PROTECTOR | ||||
| 76924-52021 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76931A - BRACKET, SIDE MUDGUARD, NO.1 RH | ||||
| 76931-26030 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76932A - BRACKET, SIDE MUDGUARD, NO.1 LH | ||||
| 76932-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76933A - BRACKET, SIDE MUDGUARD, NO.2 RH | ||||
| 76933-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76934A - BRACKET, SIDE MUDGUARD, NO.2 LH | ||||
| 76933-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76935A - BRACKET, SIDE MUDGUARD, NO.3 RH | ||||
| 76935-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76936 - BRACKET, SIDE MUDGUARD, NO.3 LH | ||||
| 76936-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76965-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76965-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76965A - PROTECTOR, FRONT DOOR LOWER MUDGUARD | ||||
| 76965-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76965-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76965-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76966-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76966-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| 76966B - PROTECTOR, SLIDE DOOR LOWER MUDGUARD | ||||
| 76966-26010B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LT. GRAY,070 |
1 | ||
| 76966-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,1G3 ,202 |
1 | ||
| 76966-26010B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 MEDIUM GRAY,1F7 ,2QD |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90159-60623 | ||||
| 90167-40057 | ||||
| 90189-06236 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
