GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

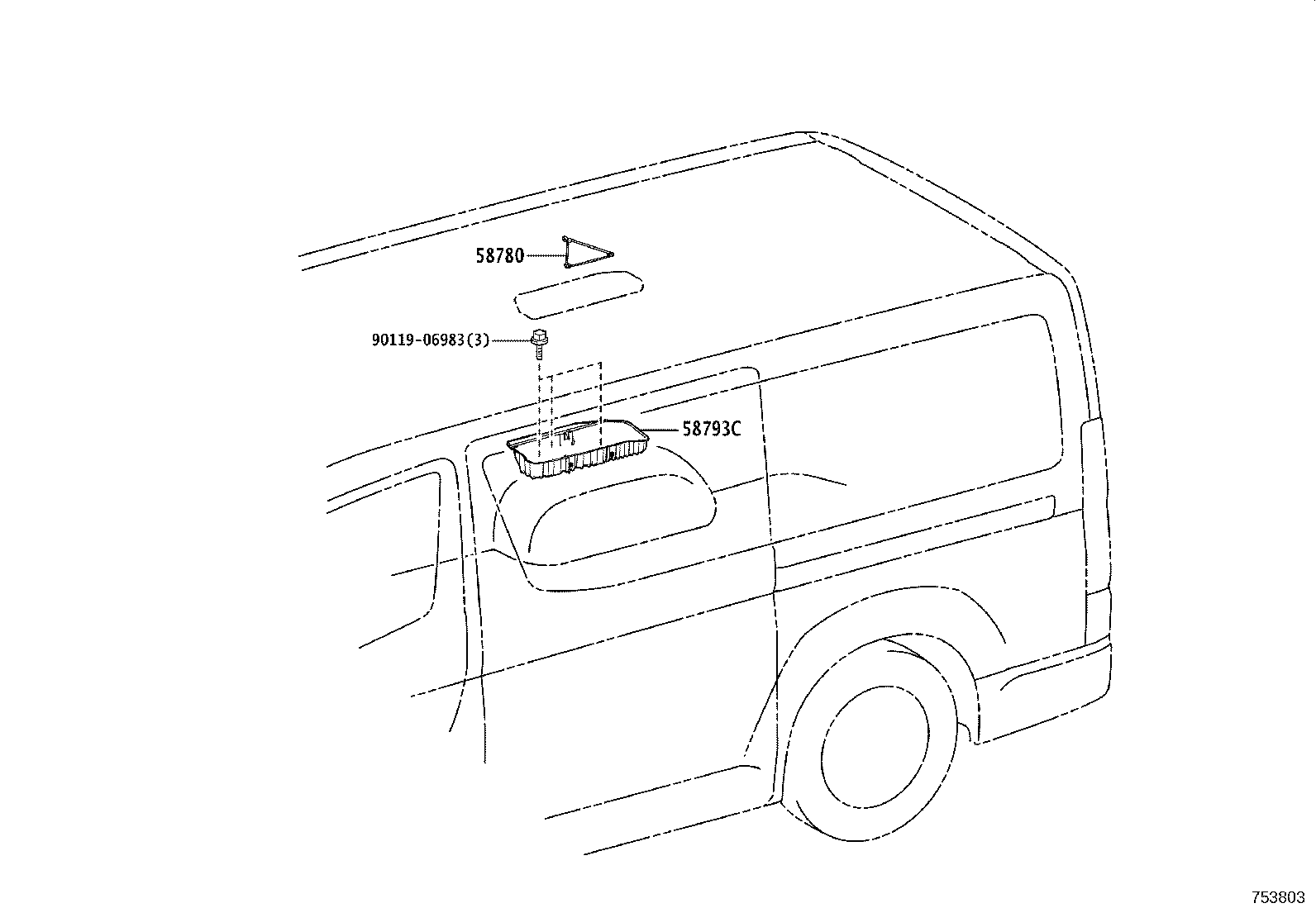

ILLUST NO. 1 OF 2(1907- )GDH303,304,306,GRH303,304

Click highlighted areas on diagram

TOOL

diagram 58780 58793C 9011906983
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-58040

GDH321..D;GDH322..D,N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q)

 1
58793C - BRACKET, JACK CARRIER, NO.1
58793-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
Common parts
90119-06983
