GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

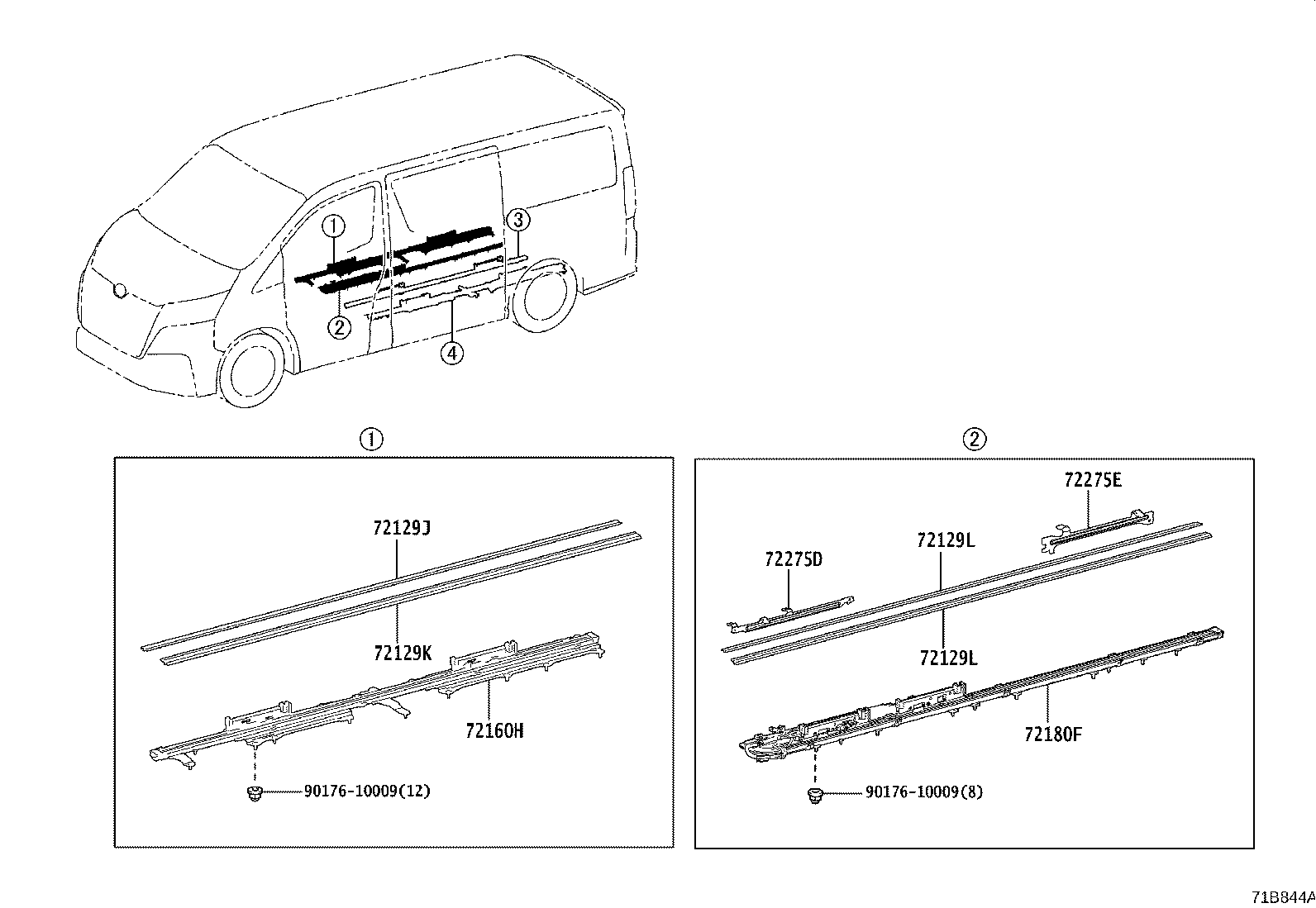

ILLUST NO. 1 OF 2(1907- )G ; (2006- )GDH304..GEN

Click highlighted areas on diagram

W(REAR NO.3 TIP-UP SEAT) RH

diagram 72129J 72129K 72129L 72129L 72129M 72129N 72160H 72180F 72180G 72275D 72275E 9017610009 9017610009 9017610009
Part # Description Qty Price
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-26300

GRH304;GDH303..LHD..H;GDH303,304,GRH303..GCC,TH

 1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-26310

GRH304;GDH303..LHD..H;GDH303,304,GRH303..GCC,TH

 1
72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER
72129-26330

GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH303,304,GRH304..G,H

 2
72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER
72129-26330

GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH303,304,GRH304..G,H

 2
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-26210

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-26280

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72180-26270

GDH303..LHD..H;GDH304,GRH304..RHD

PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
72275E - STOPPER, REAR SEAT TRACK SLIDE, RH NO.2
72275-26060

GDH303..LHD..H;GDH304,GRH304..RHD

 1
Common parts
90176-10009

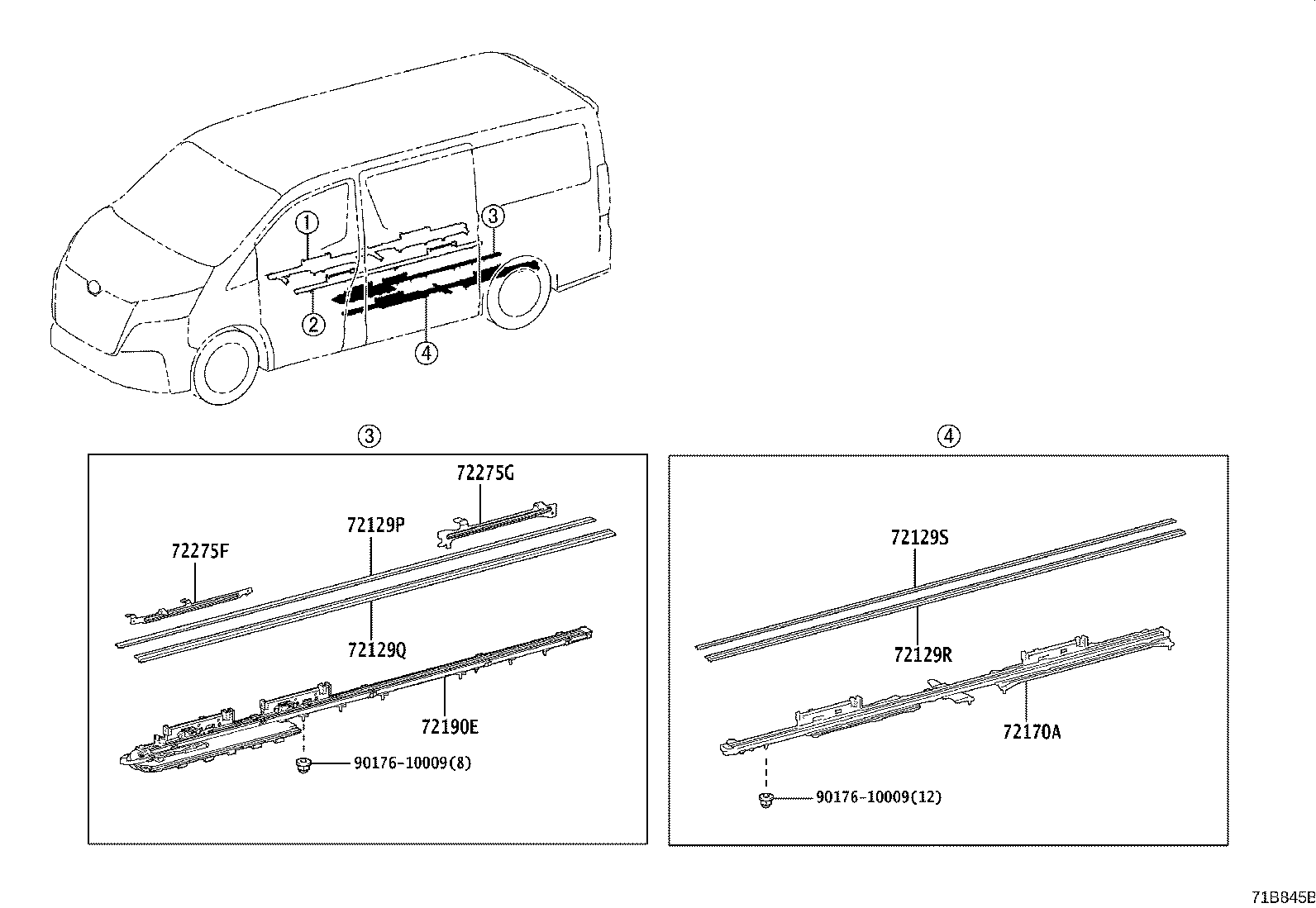

ILLUST NO. 2 OF 2(1907- )G ; (2006- )GDH304..GEN

Click highlighted areas on diagram

W(REAR NO.3 TIP-UP SEAT) LH

diagram 72129P 72129Q 72129R 72129S 72170A 72190E 72275F 72275G 82807B 9017606036 9017610009 9017610009 9155380628
Part # Description Qty Price
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-26330

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-26330

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-26300

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-26310

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-26320

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-26210

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72190-26130

GDH303..LHD..H;GDH304,GRH304..RHD

PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)

 1
72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1
72275-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
72275G - STOPPER, REAR SEAT TRACK SLIDE, LH NO.2
72275-26060

GDH303..LHD..H;GDH304,GRH304..RHD

 1
Common parts
90176-06036
90176-10009
91553-80628

ILLUST NO. 1 OF 2(1907- )GDH303..LHD..H ; (1907- )GDH304,GRH304..RHD

Click highlighted areas on diagram

W(REAR NO.3 SPACE-UP SEAT) RH

diagram 72129J 72129K 72129L 72129L 72160H 72180F 72275D 72275E 9017610009 9017610009
Part # Description Qty Price
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-26300

GRH304;GDH303..LHD..H;GDH303,304,GRH303..GCC,TH

 1
72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
72129-26310

GRH304;GDH303..LHD..H;GDH303,304,GRH303..GCC,TH

 1
72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER
72129-26330

GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH303,304,GRH304..G,H

 2
72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER
72129-26330

GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH303,304,GRH304..G,H

 2
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-26210

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-26280

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72180-26270

GDH303..LHD..H;GDH304,GRH304..RHD

PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
72275E - STOPPER, REAR SEAT TRACK SLIDE, RH NO.2
72275-26060

GDH303..LHD..H;GDH304,GRH304..RHD

 1
Common parts
90176-10009

ILLUST NO. 2 OF 2(1907- )GDH303..LHD..H ; (1907- )GDH304,GRH304..RHD

Click highlighted areas on diagram

W(REAR NO.3 SPACE-UP SEAT) LH

diagram 72129P 72129Q 72129R 72129S 72170A 72190E 72275F 72275G 9017610009 9017610009
Part # Description Qty Price
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-26330

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2
72129-26330

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-26300

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2
72129-26310

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72170-26320

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-26210

GDH303..LHD..H;GDH304,GRH304..RHD

 1
72190-26130

GDH303..LHD..H;GDH304,GRH304..RHD

PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 8 PERSONS, REAR NO.1SEAT:*PSE)

 1
72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1
72275-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
72275G - STOPPER, REAR SEAT TRACK SLIDE, LH NO.2
72275-26060

GDH303..LHD..H;GDH304,GRH304..RHD

 1
Common parts
90176-10009
