GDH304R-RDTHYT (2019)
Toyota Hiace

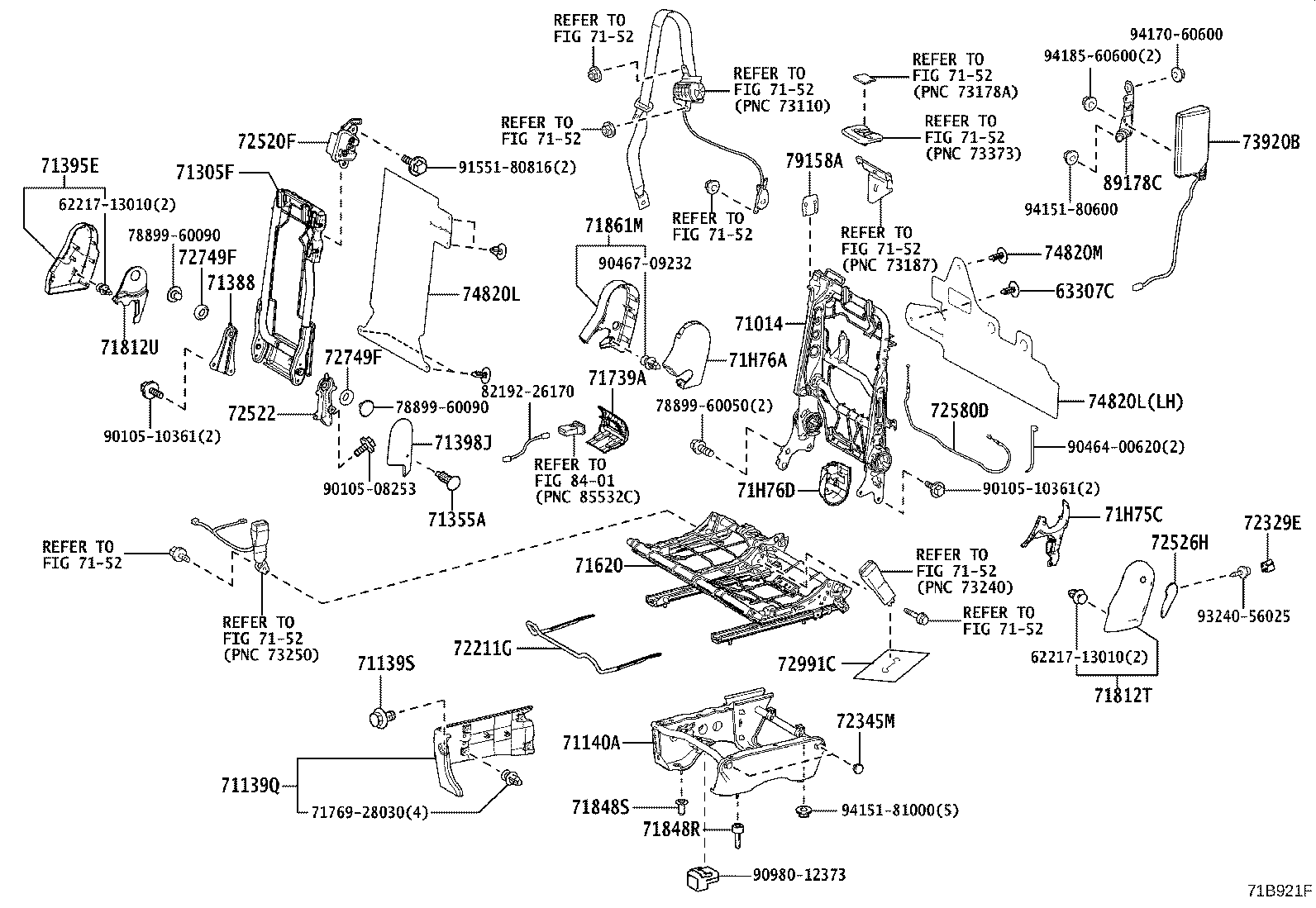

ILLUST NO. 3 OF 3(1907- )RHD..H
FITTIN PARTS(*PAS:SLIDE TYPE) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71139-26150C0 |
GDH303,304,GRH304..RHD..H BLACK,TRIM2# |
1 | ||
| 71149Z - COVER, FRONT SEAT LEG, INNER(FOR BENCH TYPE) | ||||
| 71149-26080C0 |
GDH303,304,GRH304..RHD..H BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71769-28030 | ||||
| 90105-10436 | ||||
| 90119-10A16 | ||||
ILLUST NO. 1 OF 3(1907- )RHD..H
LH:BENCH TYPE(COVER & PAD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-26D40C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71072-26D50C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-26D40C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71072-26D50C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-26C00E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71074-26B80C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074-26B80E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71074-26C00C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71074-26B80C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074-26B90C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71074-26B80E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71095 - COVER SUB-ASSY, CENTER SEAT BACK | ||||
| 71095-26370C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71095-26430C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71095-26430C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71095-26430C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71095-26430E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71095-26430E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71095-26430E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71365A - PAD, CENTER SEAT BACK | ||||
| 71365-26080 |
GDH304..TH |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71512-26260 |
GDH304..TH |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71512-26260 |
GDH304..TH |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-26210 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71552-26220 |
GDH304..TH |
1 | ||
| 71552-26210 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-26150C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71705-26120C1 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71750B - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26020C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26650C2 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71910-26660C5 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26660E2 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910G - HEADREST ASSY, FRONT SEAT, CENTER | ||||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660C5 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26650C2 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71910-26660E2 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930G - SUPPORT ASSY, FRONT SEAT HEADREST, CENTER | ||||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930G - SUPPORT ASSY, FRONT SEAT HEADREST, CENTER | ||||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90189-05003 | ||||
| 93568-55016 | ||||

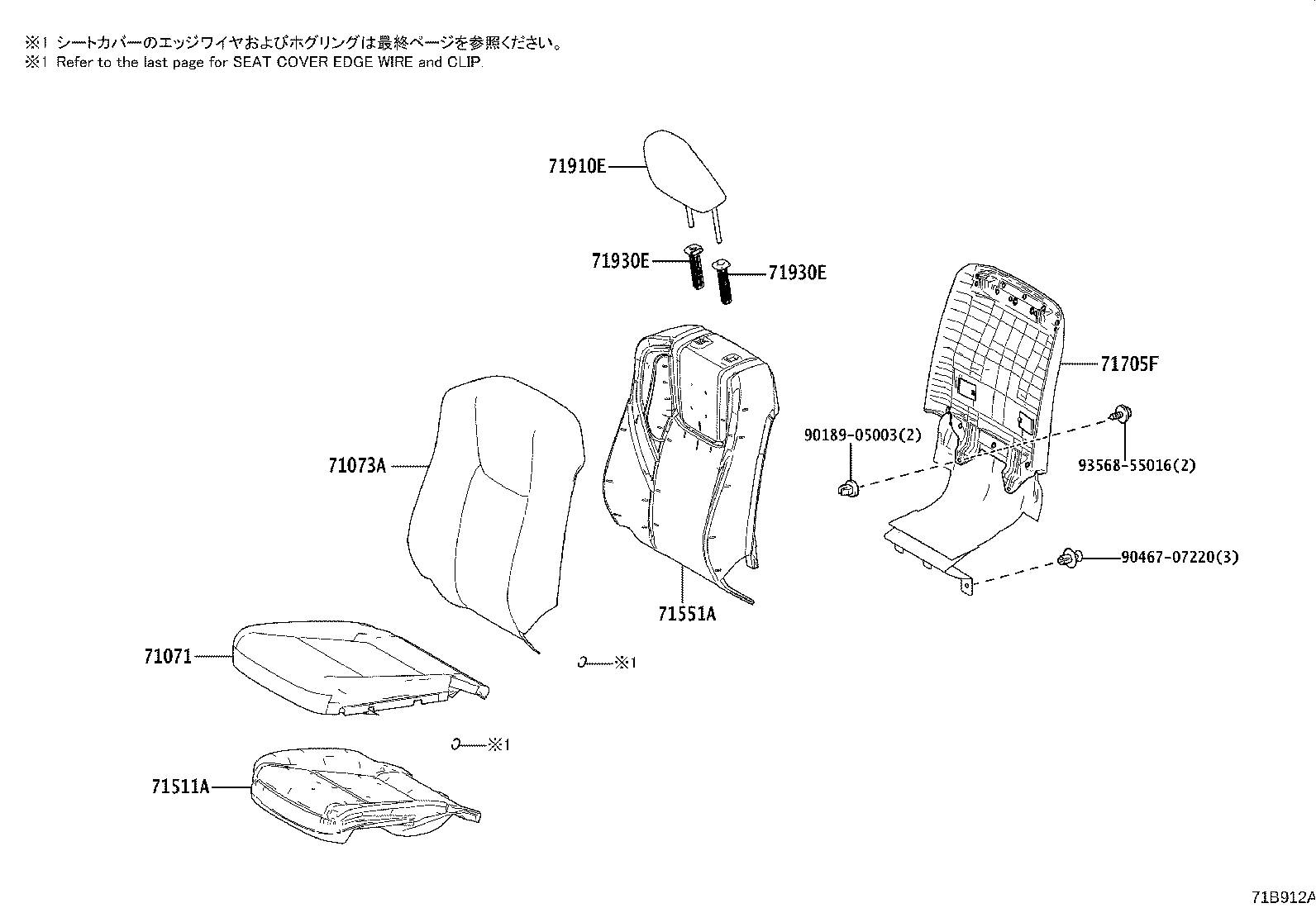

ILLUST NO. 1 OF 2(1907- )RHD..G,J
LH:SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-26D40C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71072-26D50C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71072-26D50C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-26C00E0 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71074-26B80C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074-26B80E0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71074-26C00C0 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71074-26B80C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71074-26B90C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71074-26B80E0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71512-26260 |
GDH304..TH |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-26210 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71552-26220 |
GDH304..TH |
1 | ||
| 71552-26210 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-26150C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71705-26120C1 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660C5 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26650C2 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71910-26660C5 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26660E2 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26660E2 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47020L0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020L0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47020C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47020C4 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90189-05003 | ||||
| 90467-07220 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 2(1907- )RHD..G,J
LH:SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26210 |
GDH304..TH |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-26250C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139S - CLIP, FRONT SEAT LEG COVER, LH | ||||
| 90467-07220 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 90467-07220 |
GDH304..TH |
1 | ||
| 71139S - CLIP, FRONT SEAT LEG COVER, LH | ||||
| 90467-07220 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 90467-07220 |
GDH304..TH |
1 | ||
| 71139U - COVER, FRONT SEAT LEG, REAR LH | ||||
| 71139-26150C0 |
GDH303,304,GRH304..RHD..H BLACK,TRIM2# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-26120 |
GDH304..TH |
1 | ||
| 71620 - SPRING ASSY, FRONT SEAT CUSHION, LH | ||||
| 71620-26140 |
GDH304..TH |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26400C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH301,303,328,GRH301,304,322;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q) |
1 | ||
| 71848-26030 |
GDH304..TH |
1 | ||
| 71848S - CAP, FRONT SEAT ADJUSTER COVER, LH NO.2 | ||||
| 71848-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q);GDH301,303,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 71848-33010 |
GDH304..TH |
1 | ||
| 72211G - HANDLE, SEAT TRACK ADJUSTING, LH | ||||
| 72211-26100 |
GDH304..TH |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60090C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-26010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 73920-26010 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10A16 | ||||
| 90179-08241 | ||||
| 90980-11155 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 2(1907- )GDH303,304,306,GRH303,304..RHD
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-26D70C3 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71071-26E20C3 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71071-26D70C3 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71071-26E20E3 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71071-26D70E3 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71071-26D60C2 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71071-26D70E3 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-26C50C3 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71073-26C90C3 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71073-26C60C3 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71073-26C60E2 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71073-26C90C3 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71073-26C90E2 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71073-26C90E2 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-26300 |
GDH304..TH |
1 | ||
| 71511-26260 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-26390 |
GDH304..TH |
1 | ||
| 71551-26410 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71551-26410 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-26080C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71705-26090C1 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-26630C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71910-26640C3 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26640C3 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM21 |
1 | ||
| 71910-26640E2 |
GDH304..TH LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26640E2 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71910-26640C3 |
GDH304..TH LEATHER PACKAGE,BLACK,TRIM21 |
1 | ||
| 71910-26640E2 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-47050C5 |
GDH304..TH W(LOCK),BLACK,TRIM2# |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71930-47050E0 |
GDH304..TH W(LOCK),PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030C4 |
GDH304..TH W/O(LOCK),BLACK,TRIM2# |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM22 |
1 | ||
| 71931-47030E0 |
GDH304..TH W/O(LOCK),LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),NEUTRAL BEIGE,TRIM22 |
1 | ||
| Common parts | ||||
| 90189-05003 | ||||
| 90467-07220 | ||||
| 93568-55016 | ||||

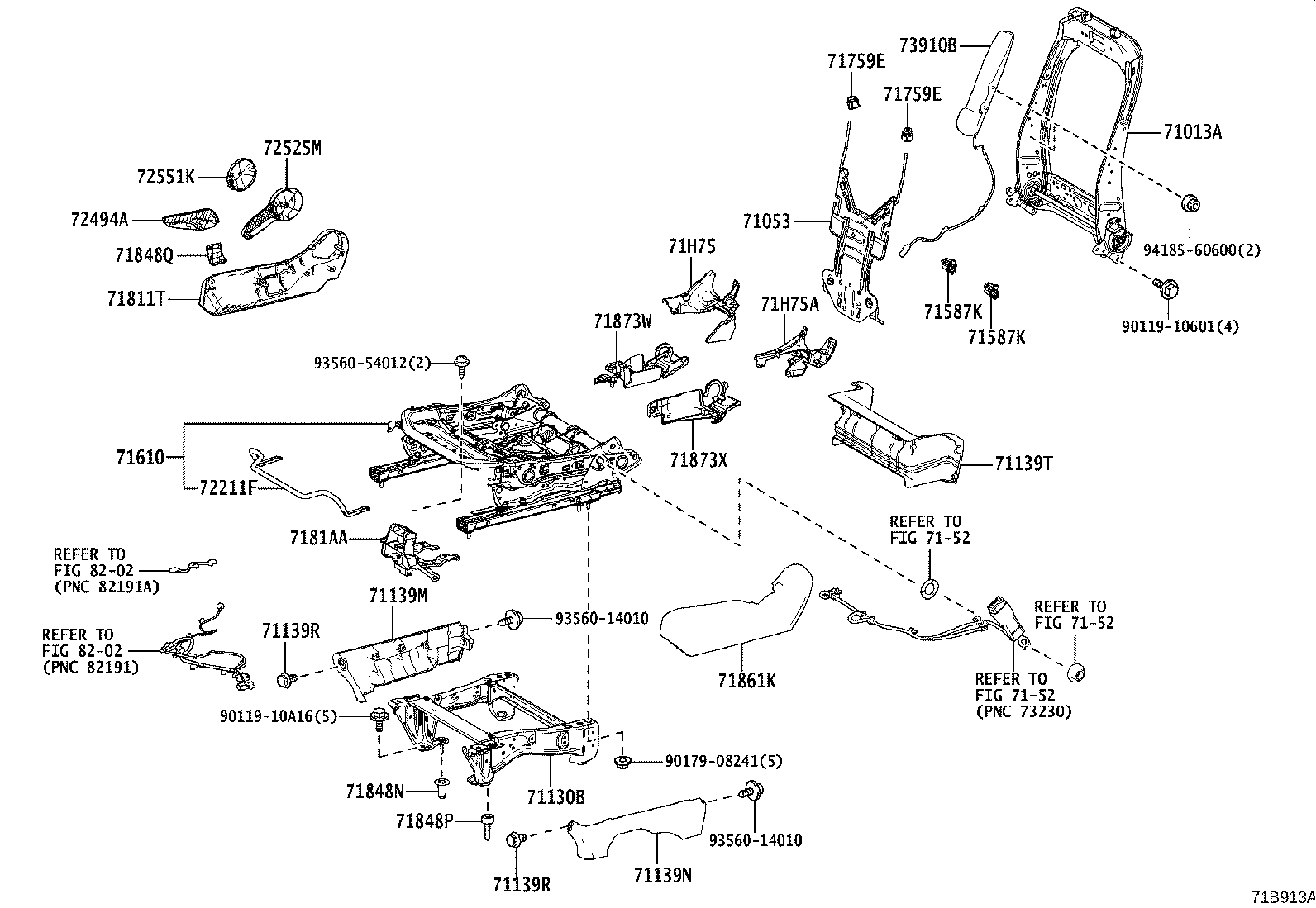

ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303,304..RHD
RH:MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-26260 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71013-26270 |
GDH304..TH |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
GDH304..TH |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-26150 |
GDH304..TH |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-26170C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71139-26220C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139R - CLIP, FRONT SEAT LEG COVER, RH | ||||
| 90467-07220 |
GDH304..TH |
2 | ||
| 71139R - CLIP, FRONT SEAT LEG COVER, RH | ||||
| 90467-07220 |
GDH304..TH |
2 | ||
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-26140C0 |
GDH303,304,GRH304..RHD..H BLACK,TRIM2# |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GDH304..TH |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GDH304..TH |
2 | ||
| 71610 - SPRING ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-26100 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71610-26160 |
GDH304..TH |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GDH304..TH |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GDH304..TH |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26510C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71811-26530C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
GDH304..TH |
1 | ||
| 7181A-42010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH301,303,328,GRH301,304,322;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q) |
1 | ||
| 71848-26030 |
GDH304..TH |
1 | ||
| 71848P - CAP, FRONT SEAT ADJUSTER COVER, RH NO.2 | ||||
| 71848-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q);GDH301,303,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 71848-33010 |
GDH304..TH |
1 | ||
| 71848Q - CAP, FRONT SEAT ADJUSTER COVER, RH NO.3 | ||||
| 71848-42020C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26040C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71861-26060C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-26020 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 71873-26020 |
GDH304..TH |
1 | ||
| 71873X - SHIELD, FRONT SEAT CUSHION, LOWER RH, INNER | ||||
| 71873-42060 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 71873-42060 |
GDH304..TH |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-26530C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71H75A - COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT) | ||||
| 71875-42100C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72211F - HANDLE, SEAT TRACK ADJUSTING, RH | ||||
| 72211-26120 |
GDH304..TH |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-26020C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26160C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72551K - COVER, RECLINING HINGE, RH | ||||
| 72551-47030C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-26020 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 73910-26020 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10A16 | ||||
| 90179-08241 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303,304..RHD
RH:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-26260 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71013-26270 |
GDH304..TH |
1 | ||
| 71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
GDH304..TH |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-26150 |
GDH304..TH |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-26170C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71139-26220C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139R - CLIP, FRONT SEAT LEG COVER, RH | ||||
| 90467-07220 |
GDH304..TH |
2 | ||
| 71139R - CLIP, FRONT SEAT LEG COVER, RH | ||||
| 90467-07220 |
GDH304..TH |
2 | ||
| 71139T - COVER, FRONT SEAT LEG, REAR RH | ||||
| 71139-26140C0 |
GDH303,304,GRH304..RHD..H BLACK,TRIM2# |
1 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GDH304..TH |
2 | ||
| 71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH | ||||
| 71587-47010 |
GDH304..TH |
2 | ||
| 71610 - SPRING ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-26100 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71610-26160 |
GDH304..TH |
1 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GDH304..TH |
2 | ||
| 71759E - HOOK, FRONT SEAT BACK, RH | ||||
| 71759-50040 |
GDH304..TH |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26510C0 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71811-26500C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71811-26530C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
GDH304..TH |
1 | ||
| 7181A-42010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH301,303,328,GRH301,304,322;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q) |
1 | ||
| 71848-26030 |
GDH304..TH |
1 | ||
| 71848P - CAP, FRONT SEAT ADJUSTER COVER, RH NO.2 | ||||
| 71848-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q);GDH301,303,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 71848-33010 |
GDH304..TH |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-26040C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71861-26060C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-26080C0 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42070 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER | ||||
| 71873-26020 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 71873-26020 |
GDH304..TH |
1 | ||
| 71873X - SHIELD, FRONT SEAT CUSHION, LOWER RH, INNER | ||||
| 71873-42060 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH322..RHD..(D,N)..GEN;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,GRH301,304,322..RHD;GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 71873-42060 |
GDH304..TH |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-26530C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71H75A - COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT) | ||||
| 71875-42100C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72713A - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-42010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 73910B - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-26020 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 73910-26020 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 71769-28030 | ||||
| 90119-10601 | ||||
| 90119-10A16 | ||||
| 90179-08241 | ||||
| 93560-14010 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1907- )GDH304..TH
LH:BENCH TYPE(*PAS:SLIDE TYPE) LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63307C - CLIP | ||||
| 63399-26050B0 |
GDH304..TH LT.GRAY |
1 | ||
| 71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-26210 |
GDH304..TH |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-26250C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71139S - CLIP, FRONT SEAT LEG COVER, LH | ||||
| 90467-07220 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 90467-07220 |
GDH304..TH |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-26120 |
GDH304..TH |
1 | ||
| 71305F - FRAME SUB-ASSY, CENTER SEAT BACK, LH | ||||
| 71305-26100 |
GDH304..TH |
1 | ||
| 71355A - CLIP | ||||
| 90467-05045C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71388 - ARM, CENTER SEAT HINGE, LOWER LH | ||||
| 71388-26060 |
GDH301,322..RHD..D..GEN;GDH300,303,320,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 71388-26060 |
GDH304..TH |
1 | ||
| 71395E - COVER, CENTER SEAT HINGE, RH | ||||
| 71395-26060C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71398J - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-26060C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71620 - SPRING ASSY, FRONT SEAT CUSHION, LH | ||||
| 71620-26140 |
GDH304..TH |
1 | ||
| 71739A - BEZEL, FRONT SEAT BACK | ||||
| 71739-26020 |
GDH304..TH |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26400C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71812U - SHIELD, FRONT SEAT CUSHION, LH(FOR BENCH TYPE) | ||||
| 71812-26410C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1 | ||||
| 71848-26030 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH301,303,328,GRH301,304,322;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q) |
1 | ||
| 71848-26030 |
GDH304..TH |
1 | ||
| 71848S - CAP, FRONT SEAT ADJUSTER COVER, LH NO.2 | ||||
| 71848-33010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH304,306,321,GRH321..LHD..(G,H,J,N,Q);GDH301,303,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 71848-33010 |
GDH304..TH |
1 | ||
| 71861M - SHIELD, FRONT SEAT CUSHION, INNER RH NO.2 | ||||
| 71861-26030C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-26100C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-26100C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-26120C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72211G - HANDLE, SEAT TRACK ADJUSTING, LH | ||||
| 72211-26100 |
GDH304..TH |
1 | ||
| 72329E - COVER, SEAT ADJUSTER BOLT, LH | ||||
| 72329-60080C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72345M - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-26170 |
GDH304..TH |
2 | ||
| 72520F - LOCK ASSY, FRONT SEAT BACK, LH | ||||
| 72520-26150 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 72520-26150 |
GDH304..TH |
1 | ||
| 72522 - ARM, RECLINING ADJUSTER, LOWER LH | ||||
| 72522-26050 |
GDH301,322..RHD..D..GEN;GDH300,303,320,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 72522-26050 |
GDH304..TH |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60090C1 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 72580D - CABLE ASSY, RECLINING ADJUSTING(FOR LH SEAT) | ||||
| 72580-26050 |
GDH304..TH |
1 | ||
| 72749F - SPACER, FRONT SEAT RECLINING, LH | ||||
| 72749-48020 |
GDH304..TH |
2 | ||
| 72749-48020 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
2 | ||
| 72749F - SPACER, FRONT SEAT RECLINING, LH | ||||
| 72749-48020 |
GDH304..TH |
2 | ||
| 72749-48020 |
GDH301..RHD..D..GEN;GDH300,303,320,322,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
2 | ||
| 72991C - COVER, FRONT SEAT | ||||
| 72991-26150 |
GDH304..TH |
1 | ||
| 73920B - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-26010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 73920-26010 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 74820L - PROTECTOR ASSY, FRONT LH | ||||
| 74820-26120 |
GDH304..TH CENTER |
1 | ||
| 74820-26110 |
GDH304..TH LH |
1 | ||
| 74820L - PROTECTOR ASSY, FRONT LH | ||||
| 74820-26120 |
GDH304..TH CENTER |
1 | ||
| 74820-26110 |
GDH304..TH LH |
1 | ||
| 74820M - CLIP, FRONT SEAT BACK PROTECTOR, LH | ||||
| 90467-07042C4 |
GDH304..TH BLACK |
1 | ||
| 79158A - PLATE, SEAT BACK COVER, LH | ||||
| 79158-26030 |
GDH301,322..RHD..D..GEN;GDH300,303,320,GRH300,301,304,320,322..RHD..(D,H)..(GEN,TH) |
1 | ||
| 79158-26030 |
GDH304..TH |
1 | ||
| 89178C - BRACKET, AIR BAG, NO.2 | ||||
| 89178-26010 |
GDH304..TH PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 89178-26010 |
GDH304..TH LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 71769-28030 | ||||
| 78899-60050 | ||||
| 78899-60090 | ||||
| 82192-26170 | ||||
| 90105-08253 | ||||
| 90105-10361 | ||||
| 90464-00620 | ||||
| 90467-09232 | ||||
| 90980-12373 | ||||
| 91551-80816 | ||||
| 93240-56025 | ||||
| 94151-80600 | ||||
| 94151-81000 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
