GDH304R-RDTHYT (2019)
Toyota Hiace
ILLUST NO. 1 OF 2(1907- )GDH303,304,306,GRH303,304

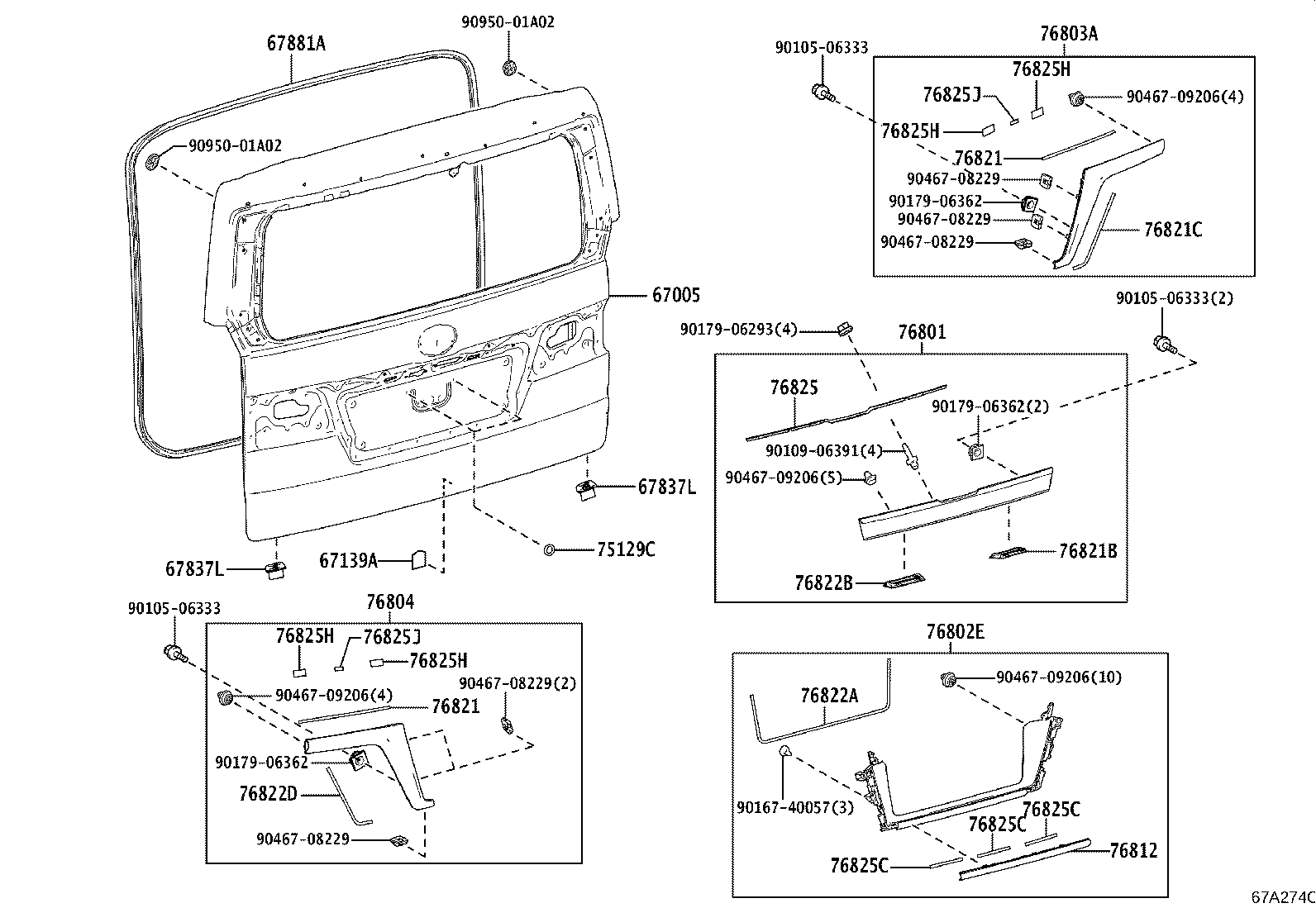

DOOR PANEL (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-26V00 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH |
1 | ||
| 67139A - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67139-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH322,GRH300..4D..(D,N)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26170 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304 |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-26020 |
GDH304..TH;GDH321..N..GEN;GDH300,301,303,306,320,322,328,GRH30#,32# |
2 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26410B0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76801-26410A0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 76801-26410C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76801-26410B1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-26030C0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,202 |
1 | ||
| 76802-26030B1 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 GRAY ME.,1G3 |
1 | ||
| 76802-26030B0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 SILVER ME.,1F7 |
1 | ||
| 76802-26030A0 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 76803A - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER RH | ||||
| 76803-26010 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76804 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER LH | ||||
| 76804-26010 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-26040 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76822-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LH |
1 | ||
| 76821-26030 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 RH |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76822-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 LH |
1 | ||
| 76821-26030 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 RH |
1 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 76821C - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-26040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-26040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 76822D - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-26050 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26190 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
4 | ||
| 76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76825-26210 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| 76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76825-26210 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
2 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90109-06391 | ||||
| 90167-40057 | ||||
| 90179-06293 | ||||
| 90179-06362 | ||||
| 90467-08229 | ||||
| 90467-09206 | ||||
| 90950-01A02 | ||||
