GDH304R-RDTHYT (2019)
Toyota Hiace

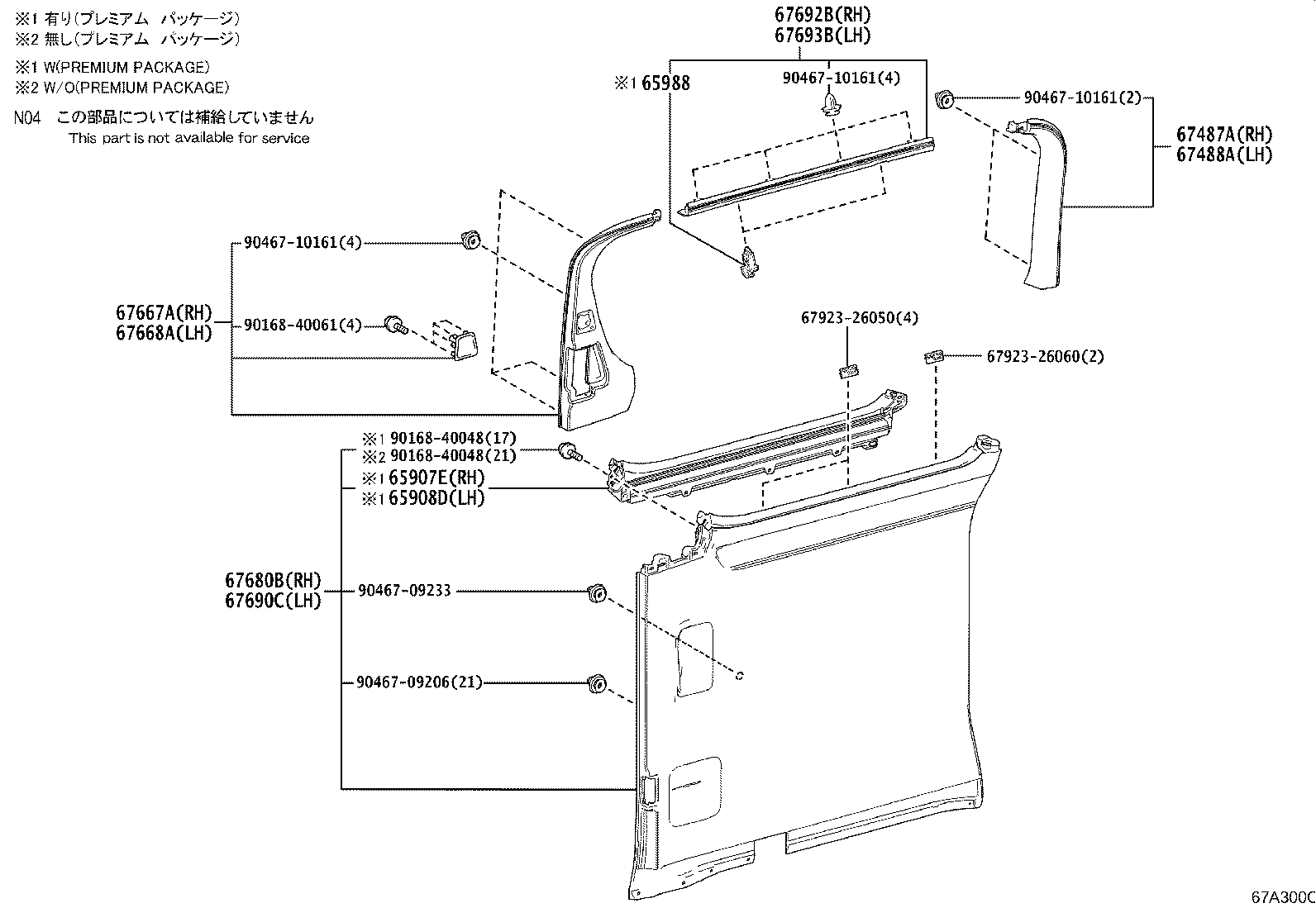

ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303,304
DOOR TRIM(MOLDED DOOR TRIM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 65907-26070C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-26060C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 65908-26060C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-26020C0 |
GDH303..LHD..H;GDH303..(G,J)..(GCC,GEN);GDH304,306,GRH303..GCC,GEN,TH PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
4 | ||
| 65988-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE |
4 | ||
| 65988-26020 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT) |
4 | ||
| 65988-26020C0 |
GDH303,304,306,GRH303,304 PREMIUM PACKAGE,BLACK,TRIM2# |
4 | ||
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-26080C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67667-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67667-26080C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-26090C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67668-26090C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67668-26080C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67680B - BOARD ASSY, SLIDE DOOR TRIM, RH | ||||
| 67680-26120C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67680-26120C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 67680-26050C1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67690C - BOARD ASSY, SLIDE DOOR TRIM, LH | ||||
| 67690-26180C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 67690-26110C1 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67690-26180C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67692B - COVER, SLIDE DOOR TRIM, UPPER RH | ||||
| 67692-26030C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67692-26050C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67692-26050C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 67693B - COVER, SLIDE DOOR TRIM, UPPER LH | ||||
| 67693-26070C0 |
GDH303..LHD..J;GDH304,GRH303..GCC,GEN,TH;GDH303,306..RHD..(G,J)..GEN PREMIUM PACKAGE&AUDIO-AVN(DVD & CD & *BT),BLACK,TRIM2# |
1 | ||
| 67693-26070C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 67693-26050C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 67923-26050 | ||||
| 67923-26060 | ||||
| 90168-40048 | ||||
| 90168-40061 | ||||
| 90467-09206 | ||||
| 90467-09233 | ||||
| 90467-10161 | ||||
