GDH304R-RDTHYT (2019)
Toyota Hiace

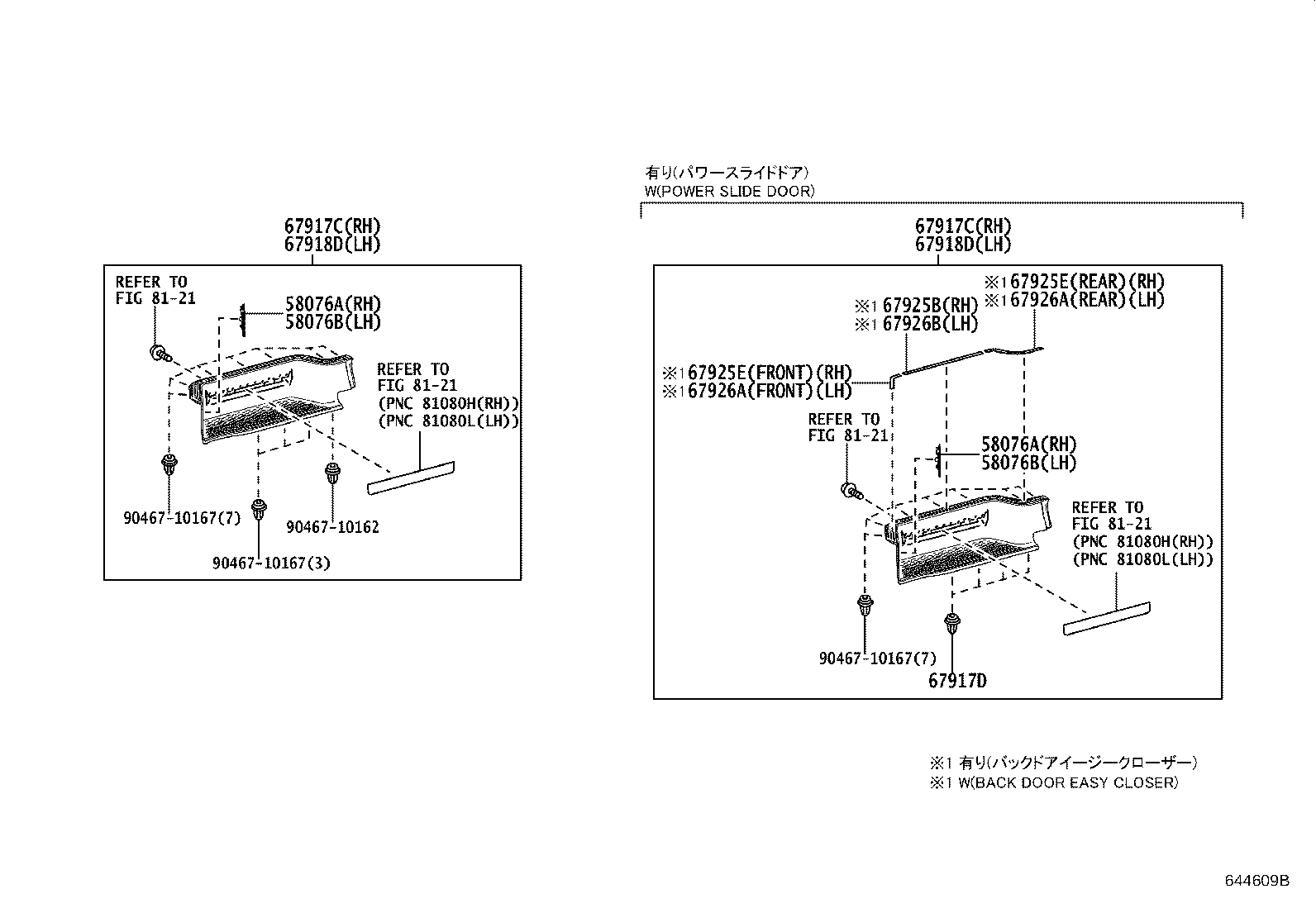

ILLUST NO. 4 OF 4(1907- )GDH303,304,306,GRH303,304
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26050C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26050C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 58076B - COVER SUB-ASSY, JACK BOX HOLE, LH | ||||
| 58076-26060C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 58076B - COVER SUB-ASSY, JACK BOX HOLE, LH | ||||
| 58076-26060C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26150C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 67930-26240C0 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 67930-26160C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26150C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 67930-26240C0 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 67930-26160C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
4 | ||
| 62217-13010 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
4 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-26110C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 67940-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 67940-26170C0 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-26110C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 67940-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 67940-26170C0 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),BLACK,TRIM2# |
1 | ||
| 67925B - PANEL, REAR DOOR SCUFF, RH | ||||
| 67925-26100 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| 67925E - PANEL, REAR DOOR SCUFF, RH NO.2 | ||||
| 67925-26110 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),REAR |
1 | ||
| 67925-26090 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FRONT |
1 | ||
| 67925E - PANEL, REAR DOOR SCUFF, RH NO.2 | ||||
| 67925-26110 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),REAR |
1 | ||
| 67925-26090 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FRONT |
1 | ||
| 67926A - PANEL, REAR DOOR SCUFF, LH | ||||
| 67926-26070 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FRONT |
1 | ||
| 67926-26080 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),REAR |
1 | ||
| 67926A - PANEL, REAR DOOR SCUFF, LH | ||||
| 67926-26070 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),FRONT |
1 | ||
| 67926-26080 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR),REAR |
1 | ||
| 67926B - PANEL, REAR DOOR SCUFF, LH NO.2 | ||||
| 67925-26100 |
GDH304..TH PREMIUM PACKAGE&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR) |
1 | ||
| Common parts | ||||
| 90467-10162 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8121 | ||||
