GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1907- )GDH303,304,306,GRH303,304

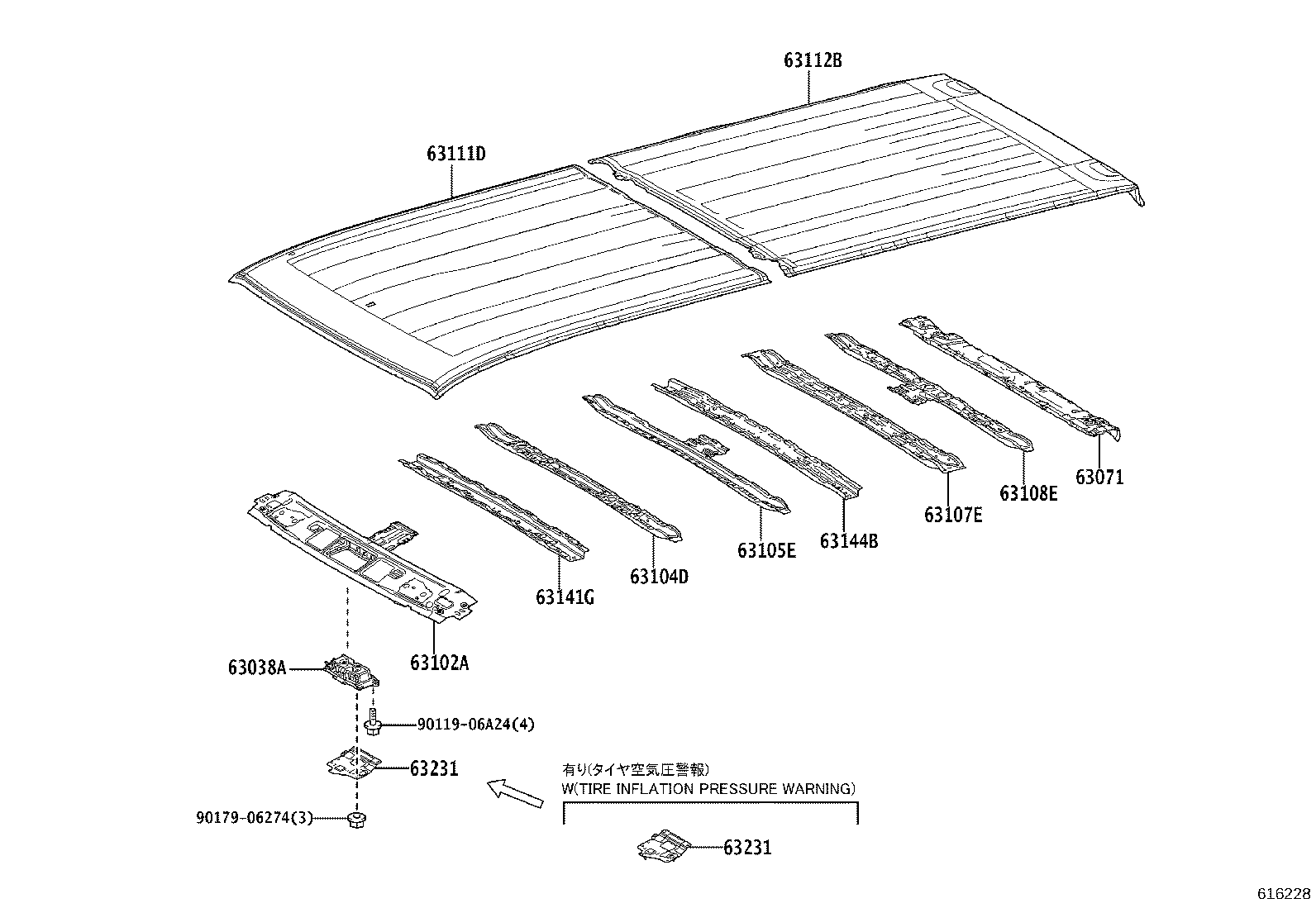

Click highlighted areas on diagram

diagram 63038A 63071 63102A 63104D 63105E 63107E 63108E 63111D 63112B 63141G 63144B 63231 63231 9011906A24 9017906274
Part # Description Qty Price
63038A - DAMPER SUB-ASSY, WINDSHIELD HEADER PANEL, RH
63038-26020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26390

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-26340

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63104-26290

GDH303..LHD..H;GDH304,GRH304..RHD

 1
63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63105-26260

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63107-26190

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
63108E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63108-26120

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
63111D - PANEL, ROOF, FRONT
63111-26570

GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(GCC,GEN,TH)

 1
63112B - PANEL, ROOF, REAR
63112-26080

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-26340

GDH301..NZ,TH;GDH303..LHD..H;GDH301,GRH301..N;GDH304,GRH304..RHD

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63106-26210

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
63231 - BRACKET, ROOM LAMP
63231-26200

GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(ARL,GEN,TH)

 1
63231-26320

GDH304..TH;GDH303..LHD..H;GDH303..(G,J)..(ARL,GEN)

TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)

 1
63231 - BRACKET, ROOM LAMP
63231-26200

GRH303..RHD..GEN;GRH303..LHD..J..GEN;GDH301,303,304,GRH301,304..(G,H,J,N)..(ARL,GEN,TH)

 1
63231-26320

GDH304..TH;GDH303..LHD..H;GDH303..(G,J)..(ARL,GEN)

TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)

 1
Common parts
90119-06A24
90179-06274
