GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1907- )GDH303..LHD..H ; (1907- )GDH304,GRH304..RHD

Click highlighted areas on diagram

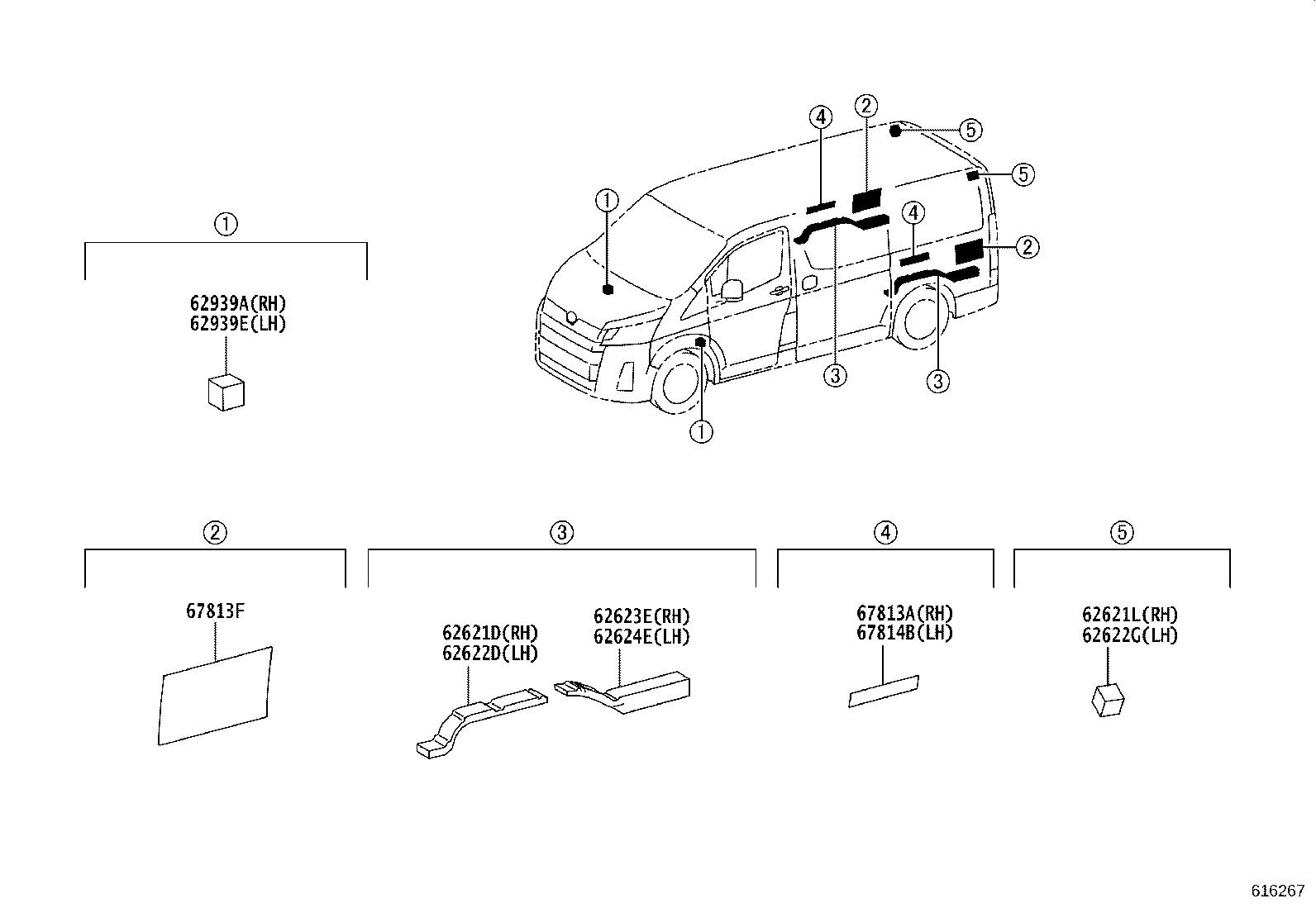

SILENCER SHEET & PAD

diagram 62621D 62621L 62622D 62622G 62623E 62624E 62939A 62939E 67813A 67813F 67814B
Part # Description Qty Price
62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62621-26110

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN

 1
62621L - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62621-26120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62621-26110

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62622G - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62621-26120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH
62623-26010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN

 1
62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH
62623-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62939A - SILENCER, QUARTER VENT
62939-33020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62939E - SILENCER, QUARTER VENT
62939-33020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67813A - SHEET, QUARTER PANEL SILENCER, RH
67813-26130

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
67813F - SHEET, QUARTER PANEL SILENCER
67813-26140

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
67814B - SHEET, QUARTER PANEL SILENCER, LH
67813-26130

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1

ILLUST NO. 3 OF 3(1907- )GDH303..RHD ; (1907- )GDH303..LHD..G,J ; (1907- )GDH304,306,GRH303

Click highlighted areas on diagram

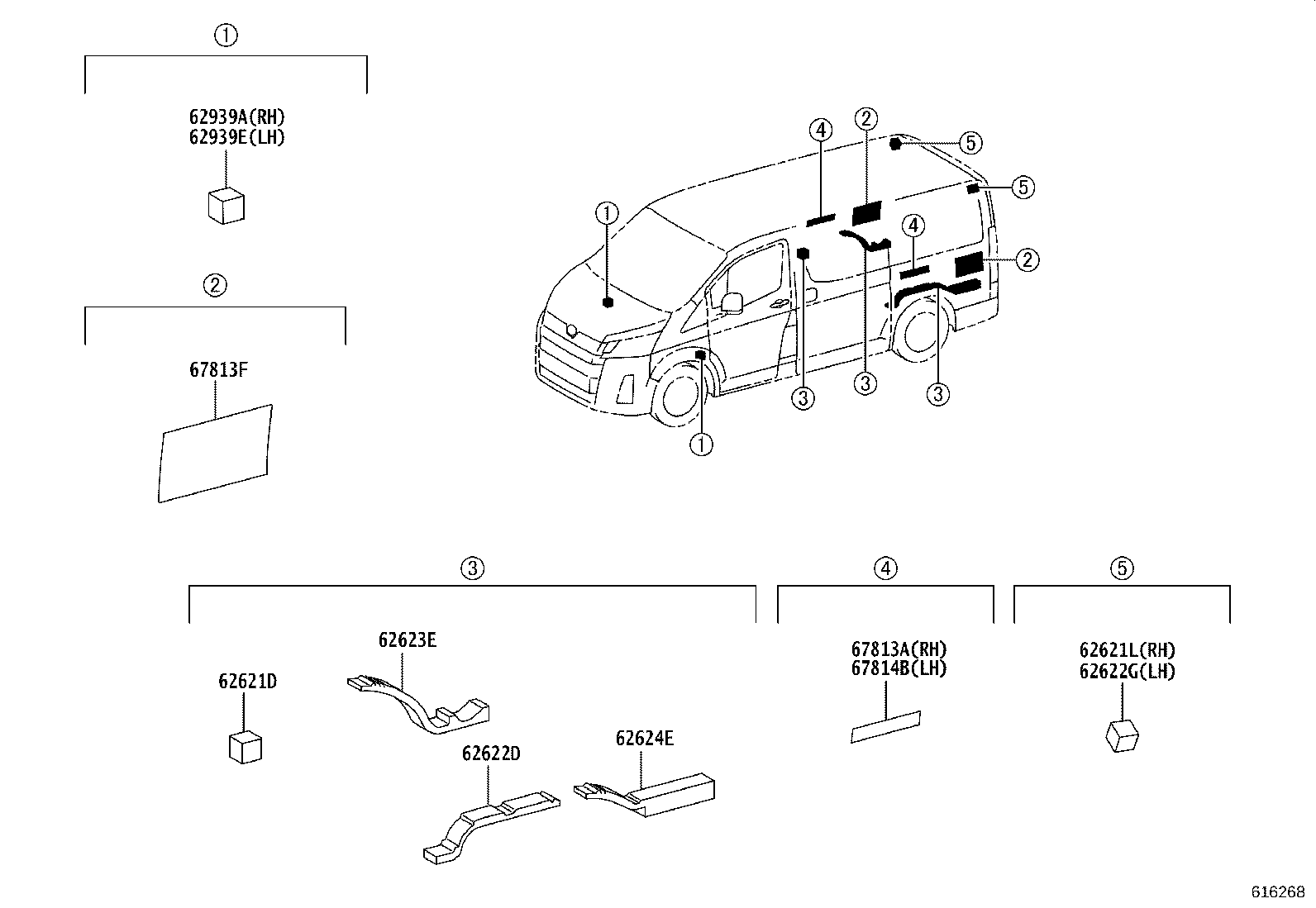

SILENCER SHEET & PAD

diagram 62621D 62621L 62622D 62622G 62623E 62624E 62939A 62939E 67813A 67813F 67814B
Part # Description Qty Price
62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62621-26110

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN

 1
62621L - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH
62621-26120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62621-26110

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62622G - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH
62621-26120

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
62623E - PAD, QUARTER WHEEL HOUSE, INNER REAR RH
62623-26010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH303,321..LHD..(H,N);GDH322..LHD..(P,Q)..GEN;GDH304,320..6FC..(ARL,TH);GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,304,32#..GCC,GEN,NZ,PH,TH,VN

 1
62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH
62623-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62939A - SILENCER, QUARTER VENT
62939-33020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62939E - SILENCER, QUARTER VENT
62939-33020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67813A - SHEET, QUARTER PANEL SILENCER, RH
67813-26130

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1
67813F - SHEET, QUARTER PANEL SILENCER
67813-26140

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
67814B - SHEET, QUARTER PANEL SILENCER, LH
67813-26130

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH301,303,304,GRH301,304..G,H,J,N

 1

ILLUST NO. 2 OF 3(1907- )GDH303..LHD..H ; (1907- )GDH304,GRH304..RHD

Click highlighted areas on diagram

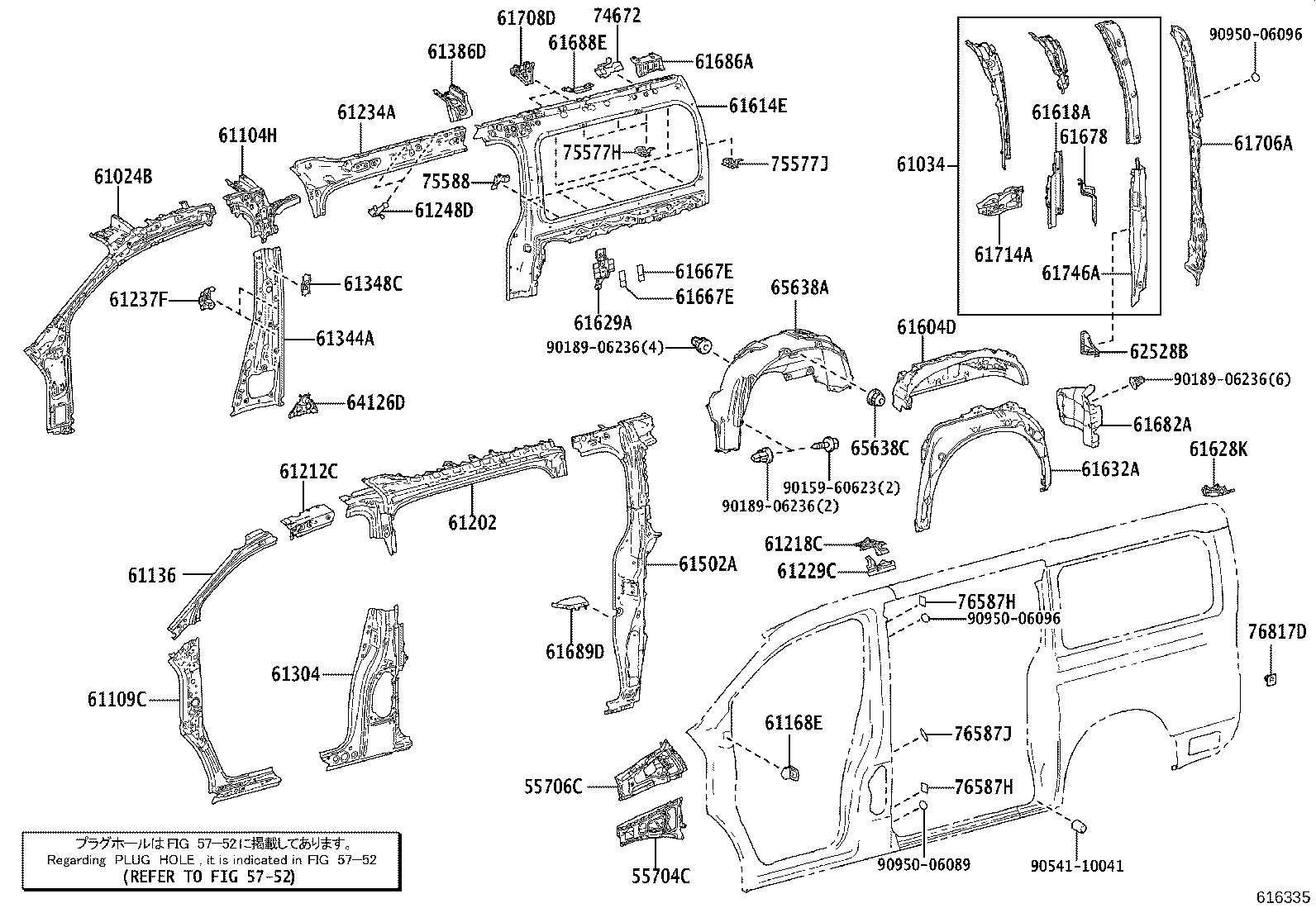

INNER PANEL, LH

diagram 55704C 55706C 5752 61024B 61034 61104H 61109C 61136 61168E 61202 61212C 61218C 61229C 61234A 61237F 61248D 61304 61344A 61348C 61386D 61502A 61604D 61614E 61618A 61628K 61629A 61632A 61667E 61667E 61678 61682A 61686A 61688E 61689D 61706A 61708D 61714A 61746A 62528B 64126D 65638A 65638C 74672 75577H 75577J 75588 76587H 76587H 76587J 76817D 9015960623 9018906236 9018906236 9018906236 9054110041 9095006089 9095006096 9095006096
Part # Description Qty Price
55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH
55704-26090

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-26200

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61034-26560

GDH303..LHD..H;GDH301,304,GRH301,304..RHD..(H,N)

 1
61104H - PANEL SUB-ASSY, SIDE, NO.2 LH
61104-26020

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303..5D..(GCC,GEN);GDH300..RHD..4D..(GEN,TH);GDH301,304,GRH30#..RHD..(GEN,NZ,TH)

 1
61104-26090

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-26010

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61168E - BRACKET, NO.6 PILLAR OUTER
61168-44010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-26070

GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH301,GRH301,303,304..RHD..(GEN,NZ,TH)

 1
61212C - RAIL, ROOF SIDE, LH
61212-26020

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61218C - RAIL, ROOF SIDE, OUTER NO.4 LH
61218-26010

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH
61229-26010

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-26430

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH300,303..(SG,SHP)..(GCC,GEN);GDH301,304,GRH30#..RHD..(GEN,NZ,TH)

 1
61234-26450

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61237F - BRACKET, PILLAR ASSIST GRIP, LOWER
61236-26040

GDH306..LHD;GDH322..ARL;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301..RHD..N;GDH301,321..D..(IDN,NZ,TH);GDH322,GRH303,322..RHD..(D,G,J,N)..(GEN,TH)

 2
61248D - BRACKET, ASSIST GRIP, LH
61245-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-26060

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-26480

GDH303..LHD..H;GDH301,322..ARL,NZ,TH;GDH304,321,GRH304..RHD..6FC;GDH301,322,GRH301,322..RHD..N

 1
61344-26500

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH
61347-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH
61386-26050

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH
61502-26330

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP)

 1
61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61604-26140

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61614E - PANEL, QUARTER, INNER LH
61614-26M80

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61614-26M50

GDH304..TH

LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61614-26M50

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61618A - PANEL, QUARTER, INNER REAR LH
61618-26080

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
61628K - PANEL, QUARTER INNER, UPPER REAR LH
61628-26120

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61629A - REINFORCEMENT, QUARTER PANEL, LH
61629-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-26100

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL

 1
61667E - SEAL, QUARTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61667E - SEAL, QUARTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61678-26020

GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN)

 1
61682A - EXTENSION, REAR WHEEL OPENING, LH
61682-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
61686A - BRACKET, REAR SEAT BACK STOPPER, LH
61686-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61688-26050

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61689D - SEAL, QUARTER WHEEL HOUSE, LH
61689-26020

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-26380

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
61706-26370

GDH306..LHD;GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN)

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

 1
61708D - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61707-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61714A - EXTENSION, ROOF SIDE, OUTER LH
61714-26030

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62528B - PAD, QUARTER TRIM, LOWER LH
62528-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH)

 1
64126D - ANCHOR, PILLAR SEAT BELT, LH
64126-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
65638A - LINER, REAR WHEEL HOUSE, LH
65638-26020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
65638C - CLIP, REAR WHEEL HOUSE LINER
90467-06206C0

GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

BLACK

 11
74672 - SUPPORT,ASSIST GRIP, NO.2
74671-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
75577H - BRACKET, ROOF SIDE GARNISH
75577-26060

GDH306..LHD;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301,303..RHD..(G,J,N)..GEN

 3
75577J - BRACKET, ROOF SIDE GARNISH
75577-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
75577-26050

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 2
75588 - BRACKET, ROOF SIDE GARNISH, NO.2 LH
75588-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
76587H - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 2
76587H - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 2
76587J - PROTECTOR, CENTER PILLAR OUTER
76587-26070

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
76817D - CLIP, BACK DOOR OUTSIDE GARNISH
76817-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
Common parts
90159-60623
90189-06236
90541-10041
90950-06089
90950-06096
Linked diagrams
5752

ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH

Click highlighted areas on diagram

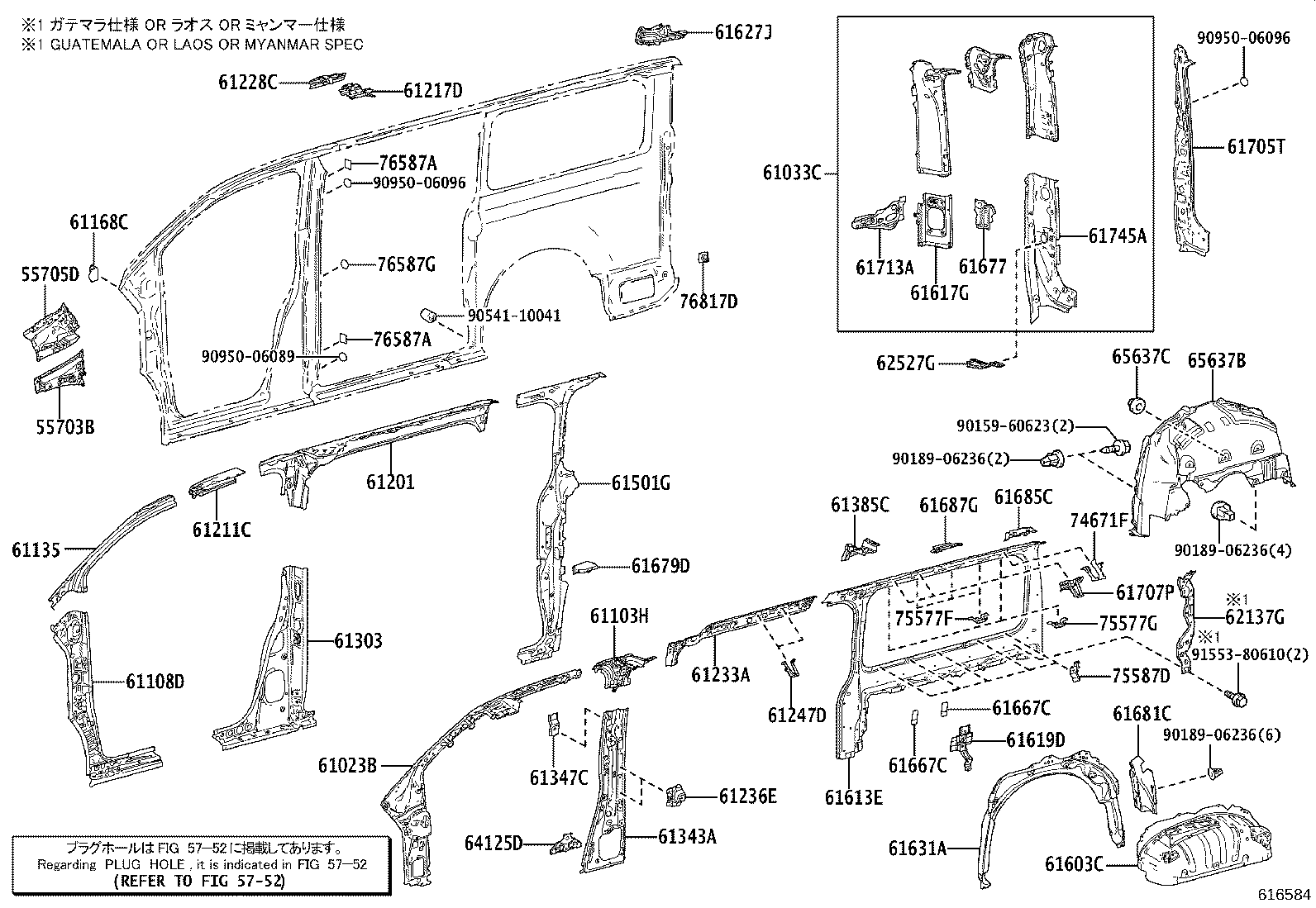

INNER PANEL, RH

diagram 55703B 55705D 5752 61023B 61033C 61103H 61108D 61135 61168C 61201 61211C 61217D 61228C 61233A 61236E 61247D 61303 61343A 61347C 61385C 61501G 61603C 61613E 61617G 61619D 61627J 61631A 61667C 61667C 61677 61679D 61681C 61685C 61687G 61705T 61707P 61713A 61745A 62137G 62527G 64125D 65637B 65637C 74671F 75577F 75577G 75587D 76587A 76587A 76587G 76817D 9011906A06 9015960623 9018906236 9018906236 9018906236 9054110041 9095006089 9095006096 9095006096
Part # Description Qty Price
55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH
55703-26220

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH,
55705-26110

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-26210

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH
61033-26540

GDH304,GRH304..RHD;GDH301,303,GRH301..LHD..(H,N)

 1
61103H - PANEL SUB-ASSY, SIDE, NO.2 RH
61103-26020

GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH304,GRH300..GCC,TH;GDH300,301,306,GRH301..LHD..GEN;GDH300,303,GRH304..5D..(GCC,GEN)

 1
61103-26090

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61168C - BRACKET, NO.6 PILLAR OUTER
61168-44010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-26040

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD

 1
61211C - RAIL, ROOF SIDE, RH
61211-26020

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61217D - RAIL, ROOF SIDE, OUTER NO.4 RH
61217-26020

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH
61228-26010

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-26410

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61236E - BRACKET, PILLAR ASSIST GRIP, LOWER
61236-26040

GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN

 2
61247D - BRACKET, ASSIST GRIP, RH
61245-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-26060

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-26570

GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN

 1
61343-26600

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH
61347-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH
61385-26050

GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN

 1
61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH
61501-26330

GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP)

 1
61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61603-26130

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61613E - PANEL, QUARTER, INNER RH
61613-26M90

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61613-26M90

GDH304..TH

LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61613-26N10

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61617G - PANEL, QUARTER, INNER REAR RH
61617-26050

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
61619D - REINFORCEMENT, QUARTER PANEL, RH
61619-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61627J - PANEL, QUARTER INNER, UPPER REAR RH
61627-26160

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-26100

GDH303..LHD..H;GDH320..6FC..ARL;GDH304,GRH304..RHD;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL

 1
61667C - SEAL, QAURTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61667C - SEAL, QAURTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61677-26040

GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH321,322..(D,P,Q)..(ARL,IDN);GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN)

 1
61679D - SEAL, QUARTER WHEEL HOUSE
61679-26040

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61681C - EXTENSION, REAR WHEEL OPENING, RH
61681-26070

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
61685C - BRACKET, REAR SEAT BACK STOPPER, RH
61685-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61687-26010

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-26390

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
61705-26380

GDH306..LHD;GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN)

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

 1
61707P - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61707-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61713A - EXTENSION, ROOF SIDE, OUTER RH
61713-26030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62527G - PAD, QUARTER TRIM, LOWER RH
62527-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
64125D - ANCHOR, PILLAR SEAT BELT, RH
64125-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
65637B - LINER, REAR WHEEL HOUSE, RH
65637-26020

GDH303..LHD..H;GDH304,GRH304..RHD

 1
65637C - CLIP, REAR WHEEL HOUSE LINER
90467-06206C0

GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

BLACK

 11
74671F - SUPPORT,ASSIST GRIP, NO.1
74671-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
75577F - BRACKET, ROOF SIDE GARNISH
75577-26060

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD..(G,J,N)

 3
75577G - BRACKET, ROOF SIDE GARNISH
75577-26050

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 2
75577-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
75587D - BRACKET, ROOF SIDE GARNISH, NO.2 RH
75587-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
76587A - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 2
76587A - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 2
76587G - PROTECTOR, CENTER PILLAR OUTER
76587-26070

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
76817D - CLIP, BACK DOOR OUTSIDE GARNISH
76817-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
Common parts
90119-06A06
90159-60623
90189-06236
90541-10041
90950-06089
90950-06096
Linked diagrams
5752

ILLUST NO. 2 OF 3(1907- )GDH303..LHD..G ; (1907- )GDH303..RHD..G,H ; (1907- )GDH304,306,GRH

Click highlighted areas on diagram

INNER PANEL, LH

diagram 55704C 55706C 5752 61024B 61034 61104H 61109C 61136 61168E 61202 61212C 61218C 61229C 61234A 61237F 61248D 61304 61344A 61348C 61386D 61502A 61604D 61614E 61618A 61628K 61629A 61632A 61667E 61667E 61678 61682A 61686A 61688E 61689D 61706A 61708D 61714A 61746A 62528B 64126D 65638A 65638C 74672 75577H 75577J 75588 76587H 76587H 76587J 76817D 9015960623 9018906236 9018906236 9018906236 9054110041 9095006089 9095006096 9095006096
Part # Description Qty Price
55704C - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, LH
55704-26090

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-26200

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH
61034-26560

GDH303..LHD..H;GDH301,304,GRH301,304..RHD..(H,N)

 1
61104H - PANEL SUB-ASSY, SIDE, NO.2 LH
61104-26020

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303..5D..(GCC,GEN);GDH300..RHD..4D..(GEN,TH);GDH301,304,GRH30#..RHD..(GEN,NZ,TH)

 1
61104-26090

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-26010

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61168E - BRACKET, NO.6 PILLAR OUTER
61168-44010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-26070

GDH303,304;GDH306..LHD;GRH303..LHD..J;GDH301,GRH301,303,304..RHD..(GEN,NZ,TH)

 1
61212C - RAIL, ROOF SIDE, LH
61212-26020

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61218C - RAIL, ROOF SIDE, OUTER NO.4 LH
61218-26010

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61229C - RAIL, ROOF SIDE OUTER UPPER NO.3. LH
61229-26010

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-26430

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH300,303..(SG,SHP)..(GCC,GEN);GDH301,304,GRH30#..RHD..(GEN,NZ,TH)

 1
61234-26450

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61237F - BRACKET, PILLAR ASSIST GRIP, LOWER
61236-26040

GDH306..LHD;GDH322..ARL;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301..RHD..N;GDH301,321..D..(IDN,NZ,TH);GDH322,GRH303,322..RHD..(D,G,J,N)..(GEN,TH)

 2
61248D - BRACKET, ASSIST GRIP, LH
61245-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61304-26060

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-26480

GDH303..LHD..H;GDH301,322..ARL,NZ,TH;GDH304,321,GRH304..RHD..6FC;GDH301,322,GRH301,322..RHD..N

 1
61344-26500

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61348C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, LH
61347-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61386D - EXTENSION, CENTER BODY PILLAR, UPPER LH
61386-26050

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61502A - PILLAR SUB-ASSY, QUARTER LOCK, LH
61502-26330

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..(SG,SP)..GCC;GDH300,301..4D..6FC..(ARL,NZ);GDH300,GRH300..RHD..4D..(GEN,TH);GDH300,303,304,GRH304..5D..(SG,SP)

 1
61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61604-26140

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61614E - PANEL, QUARTER, INNER LH
61614-26M80

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61614-26M50

GDH304..TH

LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61614-26M50

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61618A - PANEL, QUARTER, INNER REAR LH
61618-26080

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
61628K - PANEL, QUARTER INNER, UPPER REAR LH
61628-26120

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61629A - REINFORCEMENT, QUARTER PANEL, LH
61629-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-26100

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL

 1
61667E - SEAL, QUARTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61667E - SEAL, QUARTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH
61678-26020

GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN)

 1
61682A - EXTENSION, REAR WHEEL OPENING, LH
61682-26050

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
61686A - BRACKET, REAR SEAT BACK STOPPER, LH
61686-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61688E - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61688-26050

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61689D - SEAL, QUARTER WHEEL HOUSE, LH
61689-26020

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-26380

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
61706-26370

GDH306..LHD;GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN)

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

 1
61708D - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH
61707-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61714A - EXTENSION, ROOF SIDE, OUTER LH
61714-26030

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62528B - PAD, QUARTER TRIM, LOWER LH
62528-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN);GDH300,322,GRH300..4D..(D,N)..(GEN,TH)

 1
64126D - ANCHOR, PILLAR SEAT BELT, LH
64126-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
65638A - LINER, REAR WHEEL HOUSE, LH
65638-26020

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
65638C - CLIP, REAR WHEEL HOUSE LINER
90467-06206C0

GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

BLACK

 11
74672 - SUPPORT,ASSIST GRIP, NO.2
74671-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
75577H - BRACKET, ROOF SIDE GARNISH
75577-26060

GDH306..LHD;GRH303..LHD..J;GDH303,304,GRH304;GDH301,GRH301,303..RHD..(G,J,N)..GEN

 3
75577J - BRACKET, ROOF SIDE GARNISH
75577-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
75577-26050

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 2
75588 - BRACKET, ROOF SIDE GARNISH, NO.2 LH
75588-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
76587H - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 2
76587H - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GDH320..6FC..ARL;GRH320..RHD..GEN;GDH300,303,304..5D;GDH320..SP..(GCC,GEN);GDH306,GRH320..LHD..5D;GDH300,322..4D..6FC..(ARL,NZ);GDH300,321,GRH300..RHD..4D..D..(GEN,IDN,NZ,TH);GDH301,320,322,GRH301,303,304,322..RHD..SG..(D,G,H,J,N)..(GEN,NZ,TH)

 2
76587J - PROTECTOR, CENTER PILLAR OUTER
76587-26070

GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GDH300,303,304..5D;GDH300..4D..6FC..ARL;GDH300..RHD..4D..(GEN,TH);GDH301,GRH30#..RHD..(GEN,NZ,TH)

 1
76817D - CLIP, BACK DOOR OUTSIDE GARNISH
76817-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
Common parts
90159-60623
90189-06236
90541-10041
90950-06089
90950-06096
Linked diagrams
5752

ILLUST NO. 2 OF 3(1907- )GDH304,GRH304..RHD

Click highlighted areas on diagram

INNER PANEL, RH

diagram 55703B 55705D 5752 61023B 61033C 61103H 61108D 61135 61168C 61201 61211C 61217D 61228C 61233A 61236E 61247D 61303 61343A 61347C 61385C 61501G 61603C 61613E 61617G 61619D 61627J 61631A 61667C 61667C 61677 61679D 61681C 61685C 61687G 61705T 61707P 61713A 61745A 62137G 62527G 64125D 65637B 65637C 74671F 75577F 75577G 75587D 76587A 76587A 76587G 76817D 9015960623 9018906236 9018906236 9018906236 9054110041 9095006089 9095006096 9095006096 9155380610
Part # Description Qty Price
55703B - PANEL SUB-ASSY, COWL TOP INSIDE CORNER, RH
55703-26220

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH,
55705-26110

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-26210

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61033C - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, RH
61033-26540

GDH304,GRH304..RHD;GDH301,303,GRH301..LHD..(H,N)

 1
61103H - PANEL SUB-ASSY, SIDE, NO.2 RH
61103-26020

GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH304,GRH300..GCC,TH;GDH300,301,306,GRH301..LHD..GEN;GDH300,303,GRH304..5D..(GCC,GEN)

 1
61103-26090

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61168C - BRACKET, NO.6 PILLAR OUTER
61168-44010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-26040

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD

 1
61211C - RAIL, ROOF SIDE, RH
61211-26020

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61217D - RAIL, ROOF SIDE, OUTER NO.4 RH
61217-26020

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61228C - RAIL, ROOF SIDE OUTER UPPER NO.3, RH
61228-26010

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-26410

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61236E - BRACKET, PILLAR ASSIST GRIP, LOWER
61236-26040

GRH303..RHD..GEN;GDH306,322,GRH321,322..LHD;GDH301,GRH301,303..LHD..(J,N);GDH303,304,321,328,GRH304..ARL,GCC,GEN,PH,TH,VN

 2
61247D - BRACKET, ASSIST GRIP, RH
61245-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61303-26060

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-26570

GDH322..GCC;GDH322..6FC..P..GEN;GDH304,328..PH,TH,VN;GRH322..LHD..(N,P,Q);GDH321,GRH304,321..(H,N,Q)..GEN;GDH301,303,322,GRH301..LHD..(H,N,Q)..GEN

 1
61343-26600

GDH304..TH

SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61347C - REINFORCE, SEAT BELT ANCHOR TO CENTER BODY PILLAR, RH
61347-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61385C - EXTENSION, CENTER BODY PILLAR, UPPER RH
61385-26050

GRH300..GCC;GDH303..J..ARL;GRH300..4D..6F..GEN;GRH303..RHD..G..GEN;GDH300,303,304,GRH304..5D..(D,G,H);GDH300,301,306,GRH301..LHD..(D,G,N)..GEN

 1
61501G - PILLAR SUB-ASSY, QUARTER LOCK, RH
61501-26330

GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,306..LHD..GEN;GRH300..(SG,SP)..GCC;GDH300,303,304,GRH304..5D..(SG,SP)

 1
61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61603-26130

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61613E - PANEL, QUARTER, INNER RH
61613-26M90

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61613-26M90

GDH304..TH

LEATHER PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 1
61613-26N10

GDH303..LHD..H;GDH304,GRH304..RHD

 1
61617G - PANEL, QUARTER, INNER REAR RH
61617-26050

GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH322..Q..(ARL,GCC);GDH306,322,GRH321..LHD..(G,J,Q)..GEN;GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

 1
61619D - REINFORCEMENT, QUARTER PANEL, RH
61619-26080

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
61627J - PANEL, QUARTER INNER, UPPER REAR RH
61627-26160

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-26100

GDH303..LHD..H;GDH320..6FC..ARL;GDH304,GRH304..RHD;GDH300..4D..6FC..ARL;GDH300..5D..(SG,SP)..ARL

 1
61667C - SEAL, QAURTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61667C - SEAL, QAURTER PANEL, NO.1
61667-26530

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH
61677-26040

GDH322..N;GDH303..LHD..H;GDH322..Q..GCC;GDH322..LHD..6F..P..GEN;GDH301,304,328..NZ,PH,TH;GDH321,322..(D,P,Q)..(ARL,IDN);GDH301,GRH301,304,321,322..(H,N,Q)..(GCC,GEN)

 1
61679D - SEAL, QUARTER WHEEL HOUSE
61679-26040

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61681C - EXTENSION, REAR WHEEL OPENING, RH
61681-26070

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
61685C - BRACKET, REAR SEAT BACK STOPPER, RH
61685-26030

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61687G - BRACKET, REAR SEAT BACK SIDE MOUNTING, NO.1 RH
61687-26010

GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH)

 1
61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-26390

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
61705-26380

GDH306..LHD;GDH303..LHD..H;GDH304,GRH303..GCC,TH;GDH303..(G,J)..(GCC,GEN)

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

 1
61707P - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH
61707-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
61713A - EXTENSION, ROOF SIDE, OUTER RH
61713-26030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
62527G - PAD, QUARTER TRIM, LOWER RH
62527-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
64125D - ANCHOR, PILLAR SEAT BELT, RH
64125-26060

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
65637B - LINER, REAR WHEEL HOUSE, RH
65637-26020

GDH303..LHD..H;GDH304,GRH304..RHD

 1
65637C - CLIP, REAR WHEEL HOUSE LINER
90467-06206C0

GDH322..N;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH)

BLACK

 11
74671F - SUPPORT,ASSIST GRIP, NO.1
74671-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
75577F - BRACKET, ROOF SIDE GARNISH
75577-26060

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH301,306,GRH301..LHD..(G,J,N)

 3
75577G - BRACKET, ROOF SIDE GARNISH
75577-26050

GDH304..TH

PREMIUM PACKAGE&SRS AIR BAG-W(*DRP & *SKA & *SSADP & *SCSFR)

 2
75577-26060

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 2
75587D - BRACKET, ROOF SIDE GARNISH, NO.2 RH
75587-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 5
76587A - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 2
76587A - PROTECTOR, CENTER PILLAR OUTER
76587-28030

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..SP..6FC..ARL;GDH300,GRH300..LHD..4D;GDH300,303,304,GRH304..5D;GDH320,GRH320..SP..(GCC,GEN);GDH301,306,32#,GRH301,32#..LHD..SG

 2
76587G - PROTECTOR, CENTER PILLAR OUTER
76587-26070

GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GRH300..4D..6F..GEN;GDH300,303,304,GRH304..5D;GDH300,301,306,GRH301..LHD..GEN

 1
76817D - CLIP, BACK DOOR OUTSIDE GARNISH
76817-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
Common parts
90159-60623
90189-06236
90541-10041
90950-06089
90950-06096
91553-80610
Linked diagrams
5752
