GDH304R-RDTHYT (2019)
Toyota Hiace

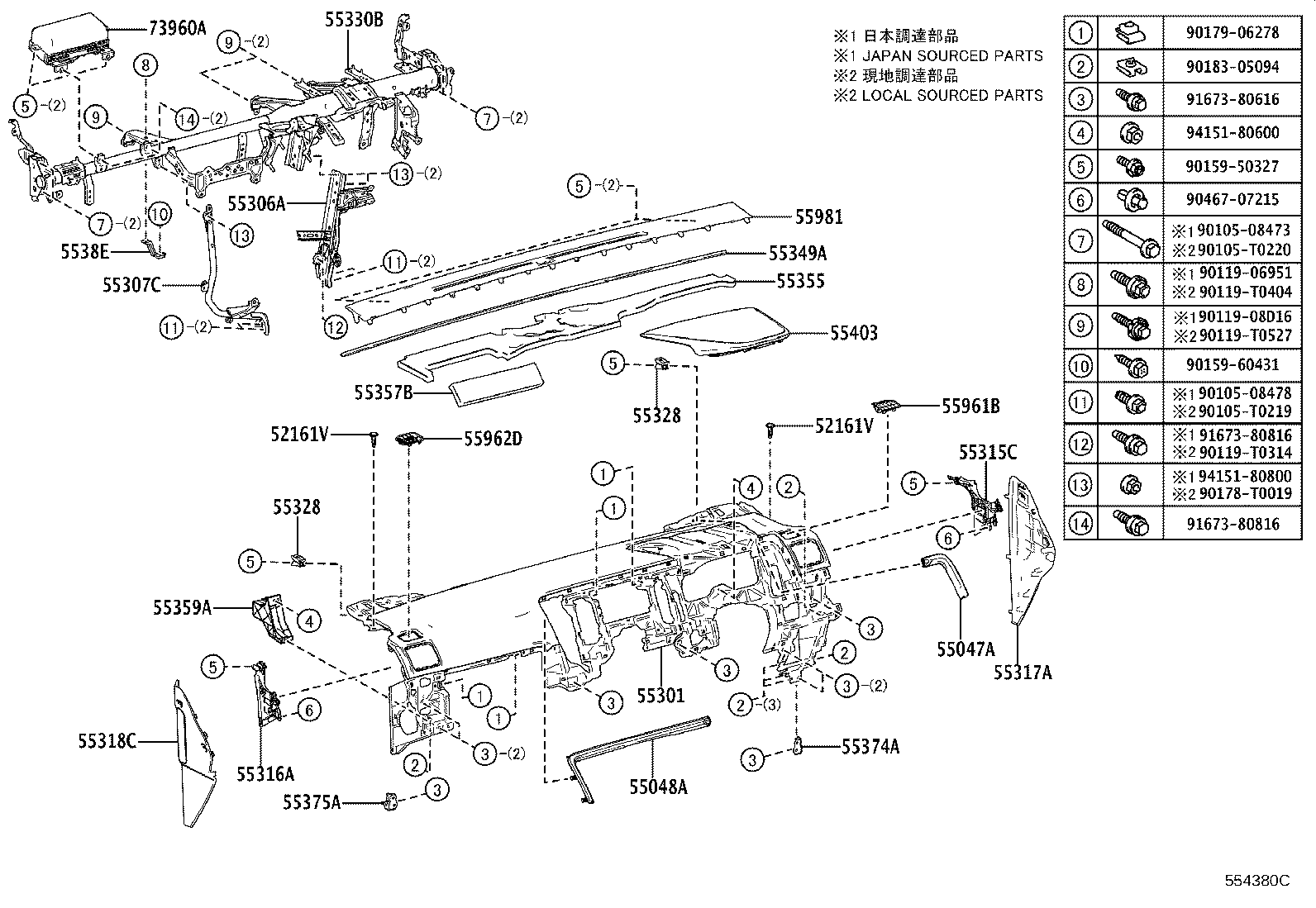

ILLUST NO. 1 OF 3(1907- )GDH303,304,306,GRH303,304..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55047A - CLUSTER SUB-ASSY, METER HOOD, RH | ||||
| 55047-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55048A - CLUSTER SUB-ASSY, METER HOOD, LH | ||||
| 55048-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55400-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-26030 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55315C - PATCH, INSTRUMENT SIDE, UPPER RH | ||||
| 55315-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55316A - PATCH, INSTRUMENT SIDE, UPPER LH | ||||
| 55316-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-26110C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-26090C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-26350 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-26110 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-26070 |
GDH322..N;GRH303..LHD..J;GRH303..RHD..GEN;GDH306,GRH321..LHD;GDH322..Q..(ARL,GCC);GDH301,303,304,321,328,GRH301,304,322..(G,H,J,N,Q)..(ARL,GCC,GEN,PH,TH) |
1 | ||
| 55359A - PROTECTOR, INSTRUMENT PANEL, NO.2 | ||||
| 55359-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-26040 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 5538E - BRACKET, ELECTRICAL PARTS MOUNTING | ||||
| 5538E-26030 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-26030C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-26040C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55962D - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-26040C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55091-26010C0 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-26160 |
GDH300,304..TH;GDH303,GRH304..RHD..H |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-T0219 | ||||
| 90105-T0220 | ||||
| 90119-06951 | ||||
| 90119-08D16 | ||||
| 90119-T0314 | ||||
| 90119-T0404 | ||||
| 90119-T0527 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-07215 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

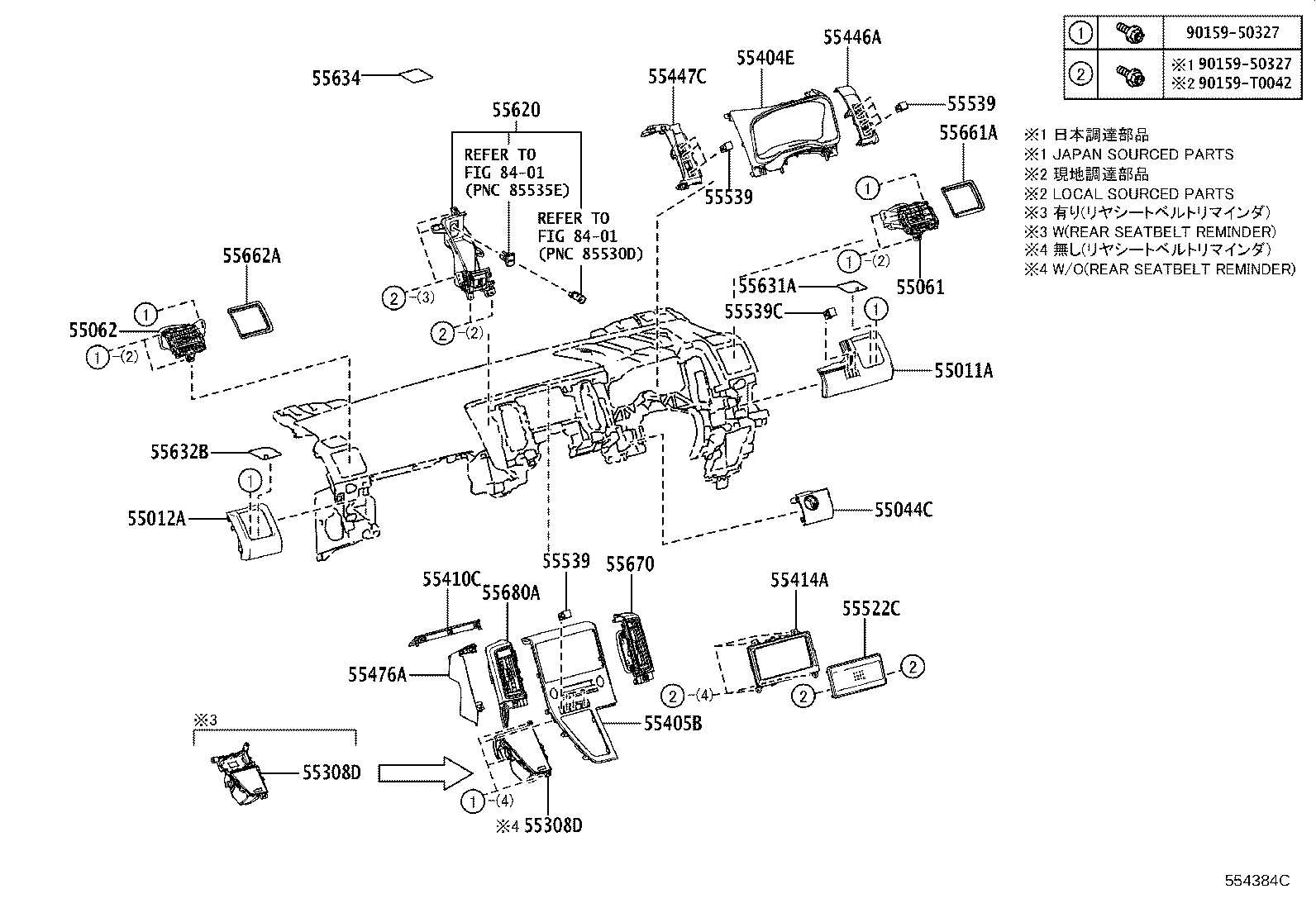

ILLUST NO. 2 OF 3(1907- )GDH303,304,306,GRH303,304..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-26030C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55044C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55044-26030C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55061-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| 55062-26030 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26130 |
GDH303,304,GRH304..RHD..H |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-26130 |
GDH303,304,GRH304..RHD..H |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-26470 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55944-26040 |
GDH304,GRH304..RHD |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-26200 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-26170 |
GDH303,304,322,GRH303,322..(H,J,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 55414-26170 |
GDH303..LHD..J;GDH303..RHD..(G,J)..GEN;GDH304,GRH303..GCC,GEN,TH AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 55414-26170 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55414-26170 |
GDH303..LHD..(G,J);GDH304,GRH303..GCC,TH AUDIO-AVN(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-26020 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-26010 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-52020 |
GDH303..LHD..J;GDH303..RHD..(G,J)..GEN;GDH304,GRH303..GCC,GEN,TH AUDIO-AVN(DVD & CD & *BT) |
1 | ||
| 55522-52020 |
GDH303,304,322,GRH303,322..(H,J,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT) |
1 | ||
| 55522-52020 |
GRH303..RHD..GEN;GDH322,GRH303..LHD..(J,P,Q);GDH322,GRH300..4D..(D,N)..(GEN,TH);GDH304,321,GRH300..(D,H)..(GCC,IDN,TH);GDH300,301,303,320,328,GRH301,304,320,322..GCC,GEN,PH,TH,VN |
1 | ||
| 55522-52020 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55522-52020 |
GDH303..LHD..(G,J);GDH304,GRH303..GCC,TH AUDIO-AVN(DVD & CD & *BT & 17CY PLUS) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303..LHD..H;GDH303..(G,J)..(GCC,GEN);GDH304,306,GRH303..GCC,GEN,TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..RHD;GRH303..GCC;GRH303..LHD..G;GDH303,304,306 BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH306..LHD;GDH303,304,GRH303,304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH304;GDH306..LHD;GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH303..(G,J)..(GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH303,304;GDH306..LHD;GRH303..GCC BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303..LHD..H;GDH303..(G,J)..(GCC,GEN);GDH304,306,GRH303..GCC,GEN,TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..RHD;GRH303..GCC;GRH303..LHD..G;GDH303,304,306 BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH306..LHD;GDH303,304,GRH303,304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH304;GDH306..LHD;GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH303..(G,J)..(GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH303,304;GDH306..LHD;GRH303..GCC BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303..LHD..H;GDH303..(G,J)..(GCC,GEN);GDH304,306,GRH303..GCC,GEN,TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..RHD;GRH303..GCC;GRH303..LHD..G;GDH303,304,306 BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH306..LHD;GDH303,304,GRH303,304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH304;GDH306..LHD;GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH303..(G,J)..(GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH303,304;GDH306..LHD;GRH303..GCC BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-26190 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55539-26190 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
2 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-26100 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55631A - STOPPER, INSTRUMENT PANEL UNDER TRAY, NO.1 | ||||
| 55631-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55632B - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55634 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.3 | ||||
| 55634-26020 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-26060 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-26040 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-26090C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-26040C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-T0042 | ||||
| Linked diagrams | ||||
| 8401 | ||||

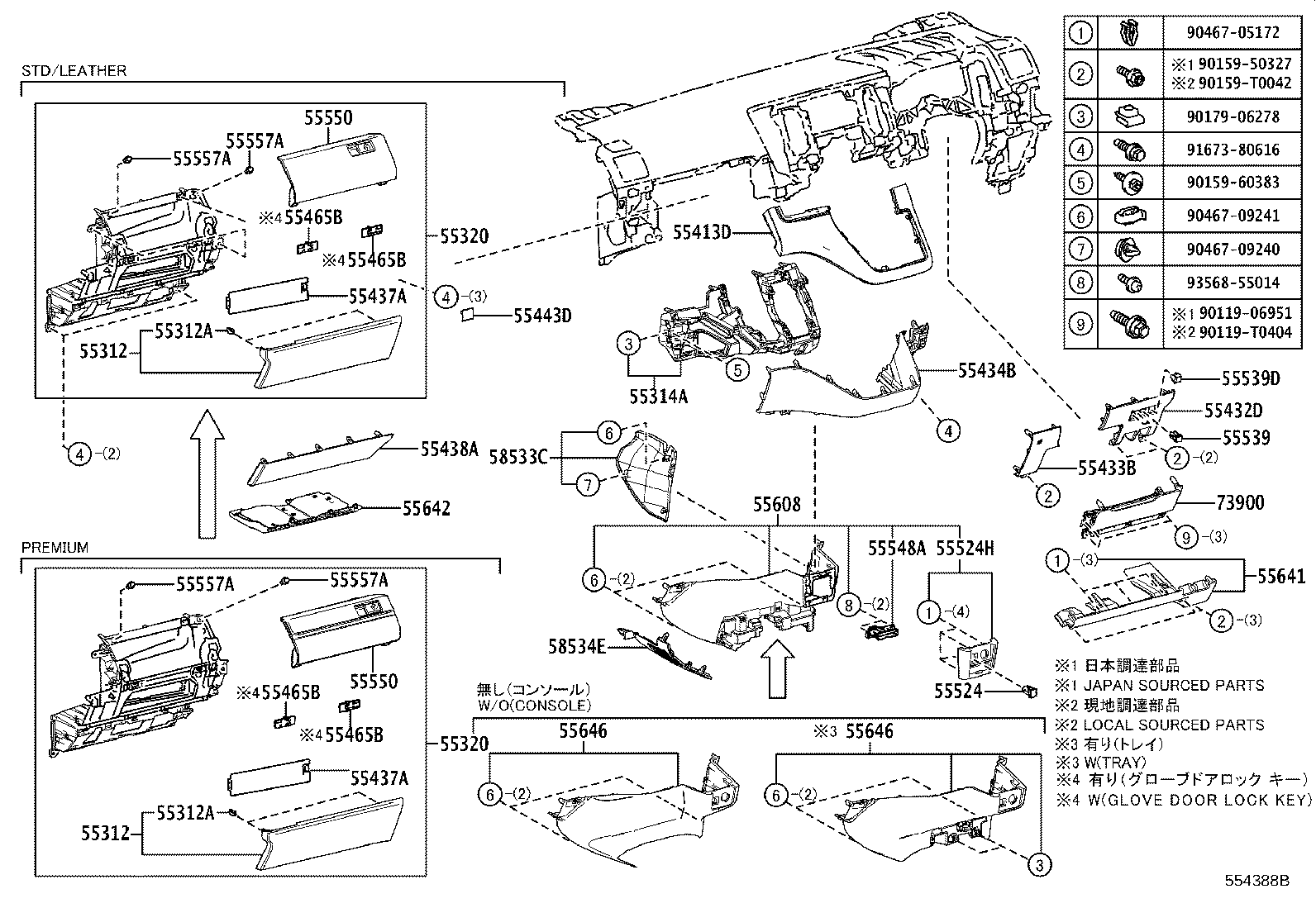

ILLUST NO. 3 OF 3(1907- )GDH303,304,306,GRH303,304..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-26130C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-26130C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) MELLOW WHITE |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-13082A0 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) MELLOW WHITE |
2 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-26030 |
GDH322..Q..ARL;GRH303..RHD..GEN;GDH301,303,304,322,GRH301,304,322..RHD..(G,H,J,N) |
1 | ||
| 55320 - PANEL ASSY, INSTRUMENT, LOWER NO.2 | ||||
| 55320-26030C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55320-26050C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55320 - PANEL ASSY, INSTRUMENT, LOWER NO.2 | ||||
| 55320-26030C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55320-26050C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-26190C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-26200C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-26090C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-26190C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 | ||||
| 55437-26070 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-26060C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-26050 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
GDH321;GDH303,304,322,GRH303,322..(H,J,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT),BLACK |
1 | ||
| 55524-12010C0 |
GDH303..LHD..J;GDH303..RHD..(G,J)..GEN;GDH304,GRH303..GCC,GEN,TH AUDIO-AVN(DVD & CD & *BT),BLACK |
1 | ||
| 55524-12010C0 |
GDH322..D,N;GRH303..RHD..GEN;GDH322..LHD..(P,Q);GDH304,GRH300..GCC,TH;GDH321,GRH303..LHD..(J,N);GDH321,GRH300..4D..D..(GEN,IDN);GDH300,301,303,320,328,GRH301,304,32#..GCC,GEN,PH,TH,VN BLACK |
1 | ||
| 55524-12010C0 |
GRH303..RHD..GEN;GDH301,GRH322..6F..N;GDH303,GRH303..LHD..(H,J);GDH300,320..LHD..SP..6FC..GEN;GDH303,321,322,GRH301..(G,N)..GEN;GDH304,322,GRH322..(H,Q)..(GCC,TH) AUDIO-*DA(DVD & CD & *BT & 17CY PLUS),BLACK |
1 | ||
| 55524-12010C0 |
GDH303..LHD..(G,J);GDH304,GRH303..GCC,TH AUDIO-AVN(DVD & CD & *BT & 17CY PLUS),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303..LHD..H;GDH303..(G,J)..(GCC,GEN);GDH304,306,GRH303..GCC,GEN,TH ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH303,304,306,GRH303,304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..GCC;GRH303..RHD..GEN;GDH303,304..GCC,GEN,TH INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GRH303..RHD;GRH303..GCC;GRH303..LHD..G;GDH303,304,306 BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C0 |
GDH306..LHD;GDH303,304,GRH303,304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH304;GDH306..LHD;GDH303..LHD..H;GRH303..LHD..J;GRH303..RHD..GEN;GDH303..(G,J)..(GCC,GEN) ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 *POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GRH303..GCC;GDH303..GCC,GEN;GDH304,GRH303..RHD..(GEN,TH) INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&BACK MONITOR-WITH & WITH(GUIDE LINE)& *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C3 |
GDH303,304;GDH306..LHD;GRH303..GCC BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO),BLACK,TRIM2# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-26200 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH306,GRH321..LHD;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH320,322,GRH320..(D,N)..(GCC,GEN,TH);GDH301,303,304,321,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-26050C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55550-26070C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-26050C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55550-26070C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD PREMIUM PACKAGE,BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 55641 - COVER, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-26100C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 55642 - COVER, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-26010 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 55646 - COVER, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-26050C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 55646 - COVER, INSTRUMENT PANEL UNDER, NO.3 | ||||
| 55646-26050C0 |
GDH304..TH BLACK,TRIM2# |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-26010C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
