GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1907- )GDH303,304,306,GRH303,304

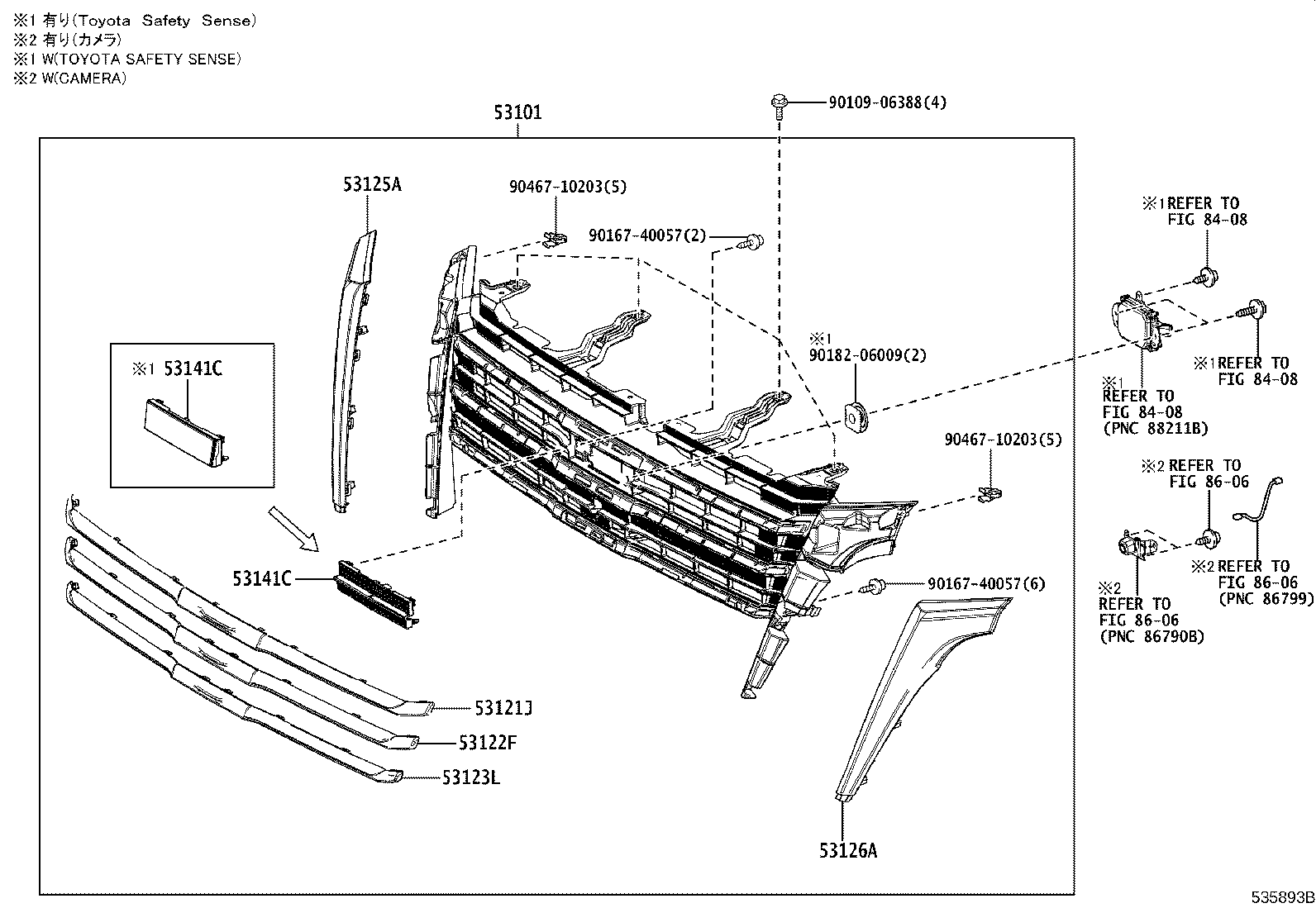

Click highlighted areas on diagram

diagram 53101 53121J 53122F 53123L 53125A 53126A 53141C 53141C 8408 8408 8408 8606 8606 8606 9010906388 9016740057 9016740057 9018206009 9046710203 9046710203
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-26270

GDH304

PLATED,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

 1
53101-26310

GDH304

PLATED,ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO)

 1
53101-26260

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

PLATED

 1
53101-26300

GRH303..GCC;GDH303,304..GCC,GEN,TH

PLATED,BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO)

 1
53121J - MOULDING, RADIATOR GRILLE, NO.1
53121-26020

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
53122F - MOULDING, RADIATOR GRILLE, NO.2
53122-26060

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
53123L - MOULDING, RADIATOR GRILLE, NO.3
53123-26050

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
53125A - MOULDING, RADIATOR GRILLE, CENTER RH
53125-26010

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
53126A - MOULDING, RADIATOR GRILLE, CENTER LH
53126-26010

GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304

 1
53141C - GARNISH, RADIATOR GRILLE
53141-26030

GDH304;GDH306..LHD

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

 1
53141-26030

GDH304;GDH306..LHD

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO)

 1
53142-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
53141C - GARNISH, RADIATOR GRILLE
53141-26030

GDH304;GDH306..LHD

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

 1
53141-26030

GDH304;GDH306..LHD

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&BACK MONITOR-WITH & WITH(GUIDE LINE) & *PVM(LO)

 1
53142-26010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304..GCC,GEN,TH

 1
Common parts
90109-06388
90167-40057
90182-06009
90467-10203
Linked diagrams
8408
8606
