Toyota Hiace GDH304 SUSPENSION CROSSMEMBER & UNDER COVER

Manufacturers Home
Toyota
US
HIACE
GDH304R-RDTHYT (2019)
5152 - SUSPENSION CROSSMEMBER & UNDER COVER

GDH304R-RDTHYT (2019)

Toyota Hiace

Production Jul 2019 - Sep 9999

Engine 1GDFTV

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

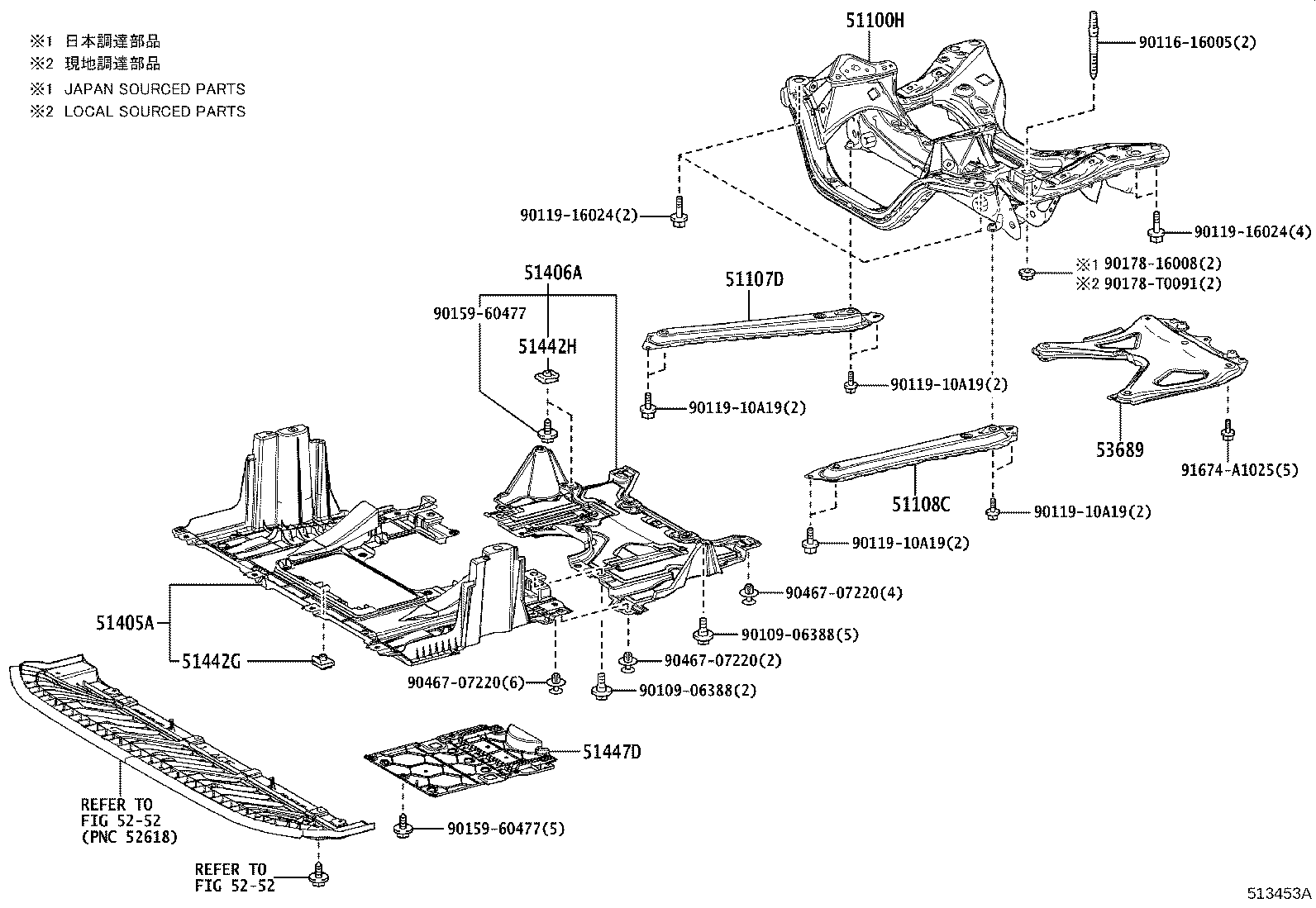

ILLUST NO. 1 OF 2(1907- )GRH303..GCC,GEN ; (1907- )GDH303,304,306,GRH304

Click highlighted areas on diagram

Part #	Description	Period	Qty
51100H - FRAME ASSY, FRONT
51100-26010	GDH300..5D;GDH321..N..GEN;GDH320..GCC,GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH301,303,304,322,328..D,G,H,J,N;GDH300,321..4D..D..(GEN,IDN,NZ,TH)	02/2019 - 12/2999	1
51107D - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-26010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51108C - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-26010	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-26190	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH301,303,304,328,GRH301,304,322;GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH300,322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51406-26240	GDH300..5D;GRH303..LHD..J;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH301,GRH301..N;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,GRH300..GCC,NZ,TH;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	02/2019 - 12/2999	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-05176	GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	04/2020 - 12/2999	5
90179-06104	GDH30#,32#,GRH30#,32#	02/2019 - 03/2020	5
51442H - CLIP, ENGINE UNDER COVER, NO.2
90179-06104	GDH301..NZ,TH;GDH301,GRH301..N;GDH300,303,304,306,32#,GRH300,303,304,32#	02/2019 - 03/2020	1
90467-05176	GDH300..5D;GRH303..LHD..J;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH301,GRH301..N;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,GRH300..GCC,NZ,TH;GDH303,304,328,GRH304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)	04/2020 - 12/2999	1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-26070	GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322,GRH303..LHD..(J,P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH301,303,304,328,GRH301,304,322;GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH300,322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
53689 - BRACE, FRONT SUSPENSION, LOWER CENTER
53689-26010	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304	07/2019 - 12/2999	1
Common parts
90109-06388
90116-16005
90119-10A19
90119-16024
90159-60477
90178-16008
90178-T0091
90467-07220
91674-A1025
Linked diagrams
5252

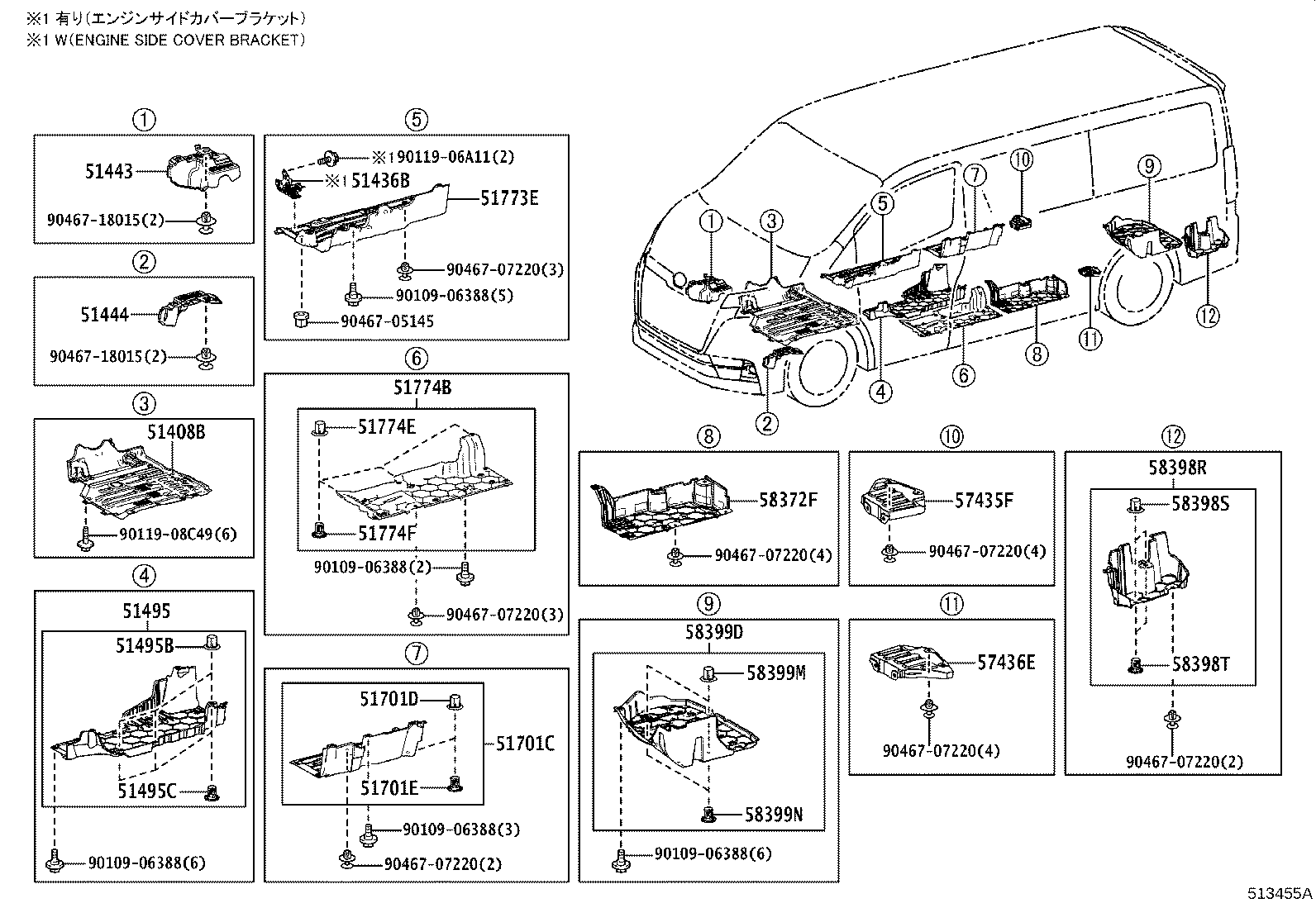

ILLUST NO. 2 OF 2(1907- )GDH303,304,306..ARL,GEN,TH

Click highlighted areas on diagram

Part #	Description	Period	Qty
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-26090	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH322..LHD..6F..P..GEN;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-26090	GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51443 - COVER, ENGINE UNDER, REAR RH
51443-26140	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51444 - COVER, ENGINE UNDER, REAR LH
51444-26100	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51495 - COVER, TRANSMISSION UNDER
51495-26010	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51495B - CLIP, TRANSMISSION UNDER COVER
90467-17026A0	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH322..LHD..6F..P..GEN;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	3
51495C - CLIP, TRANSMISSION UNDER COVER
90467-17027C0	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH322..LHD..6F..P..GEN;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	3
51701C - COVER SUB-ASSY, STEP PLATE, RH
51701-26100	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH303,304,GRH304 POSD & ECS(*SD & BACK DOOR)	02/2019 - 12/2999	1
51701-26110	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304	02/2019 - 12/2999	1
51701D - CLIP, STEP PLATE COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL SUPER WHITE 2	02/2019 - 12/2999	1
51701E - CLIP, STEP PLATE COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL BLACK	02/2019 - 12/2999	1
51773E - COVER, STEP PLATE, RH
51773-26060	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51774B - COVER, STEP PLATE, LH
51774-26090	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51774E - CLIP, STEP PLATE COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	3
51774F - CLIP, STEP PLATE COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	3
57435F - PLATE, REAR STEP, LOWER RH
57435-26100	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304	07/2019 - 12/2999	1
57436E - PLATE, REAR STEP, LOWER LH
57436-26040	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304	07/2019 - 12/2999	1
58372F - COVER, REAR FLOOR STEP, NO.2
58372-26030	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH303,304,GRH304 POSD & ECS(*SD & BACK DOOR)	02/2019 - 12/2999	1
58372-26040	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL	02/2019 - 12/2999	1
58398R - COVER, BODY LOWER BACK, LH
58398-26020	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
58398S - CLIP, BODY LOWER BACK COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	2
58398T - CLIP, BODY LOWER BACK COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	2
58399D - COVER, FLOOR UNDER, NO.2
58399-26010	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	2
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	2
Common parts
90109-06388
90119-06A11
90119-08C49
90467-05145
90467-07220
90467-18015

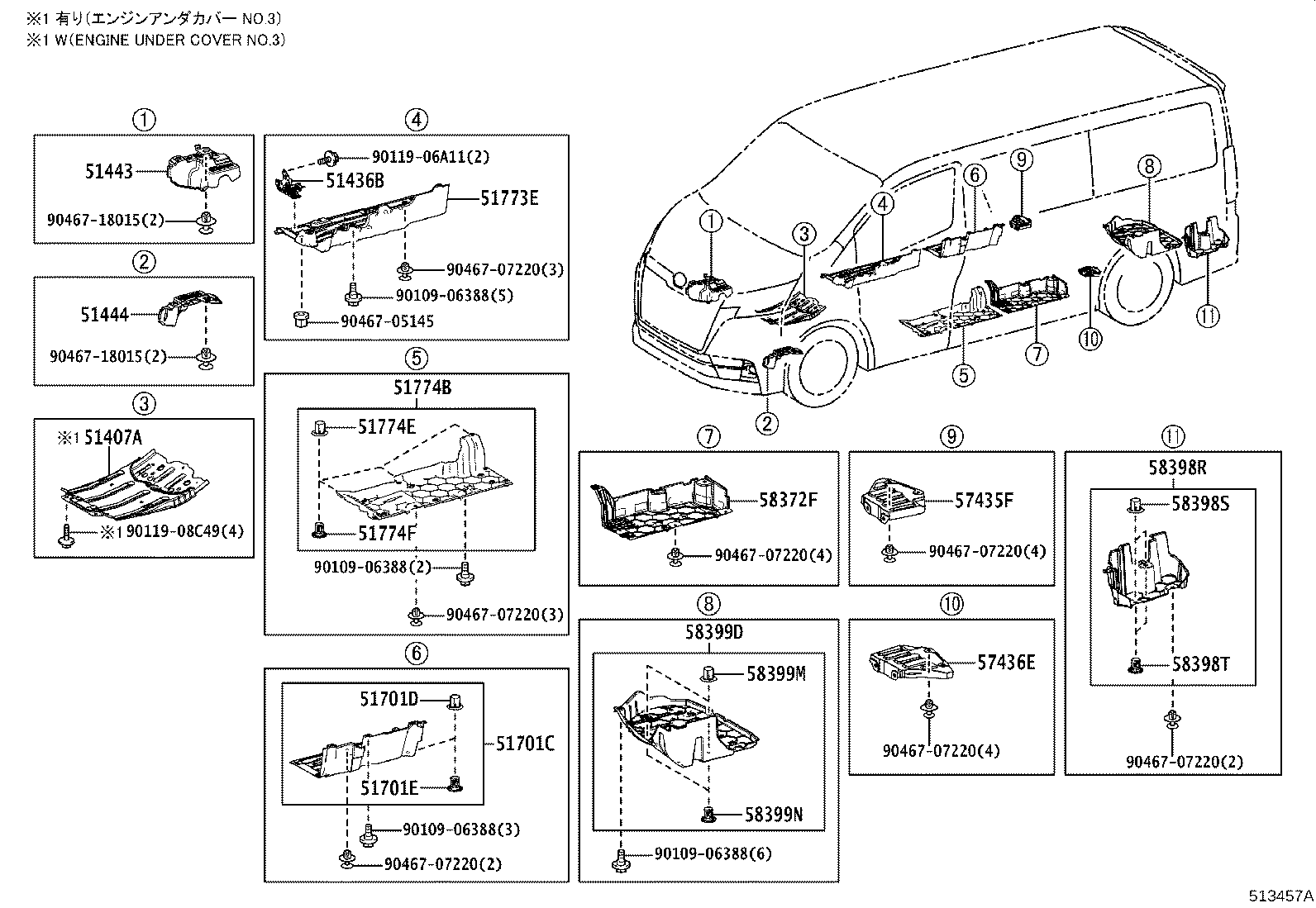

ILLUST NO. 2 OF 2(1907- )GRH303,304

Click highlighted areas on diagram

Part #	Description	Period	Qty
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-26090	GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51443 - COVER, ENGINE UNDER, REAR RH
51443-26140	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51444 - COVER, ENGINE UNDER, REAR LH
51444-26100	GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH)	02/2019 - 12/2999	1
51701C - COVER SUB-ASSY, STEP PLATE, RH
51701-26100	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH303,304,GRH304 POSD & ECS(*SD & BACK DOOR)	02/2019 - 12/2999	1
51701-26110	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304	02/2019 - 12/2999	1
51701D - CLIP, STEP PLATE COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL SUPER WHITE 2	02/2019 - 12/2999	1
51701E - CLIP, STEP PLATE COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL BLACK	02/2019 - 12/2999	1
51773E - COVER, STEP PLATE, RH
51773-26060	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51774B - COVER, STEP PLATE, LH
51774-26090	GDH306..LHD;GDH300..5D..ARL;GDH320..6FC..ARL;GDH303,304..ARL,GEN,TH;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
51774E - CLIP, STEP PLATE COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	3
51774F - CLIP, STEP PLATE COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	3
57435F - PLATE, REAR STEP, LOWER RH
57435-26100	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304	07/2019 - 12/2999	1
57436E - PLATE, REAR STEP, LOWER LH
57436-26040	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304	07/2019 - 12/2999	1
58372F - COVER, REAR FLOOR STEP, NO.2
58372-26030	GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..SHP..ARL;GDH303,304,GRH304 POSD & ECS(*SD & BACK DOOR)	02/2019 - 12/2999	1
58372-26040	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300..4D..6FC..ARL	02/2019 - 12/2999	1
58398R - COVER, BODY LOWER BACK, LH
58398-26020	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
58398S - CLIP, BODY LOWER BACK COVER
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	2
58398T - CLIP, BODY LOWER BACK COVER
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	2
58399D - COVER, FLOOR UNDER, NO.2
58399-26010	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL	02/2019 - 12/2999	1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL SUPER WHITE 2	02/2019 - 12/2999	2
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0	GDH306..LHD;GRH303..LHD..J;GDH300..5D..ARL;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH303,304,GRH304;GDH300,322..4D..6FC..(D,Q)..ARL BLACK	02/2019 - 12/2999	2
Common parts
90109-06388
90119-06A11
90119-08C49
90467-05145
90467-07220
90467-18015
