GDH304R-RDTHYT (2019)
Toyota Hiace

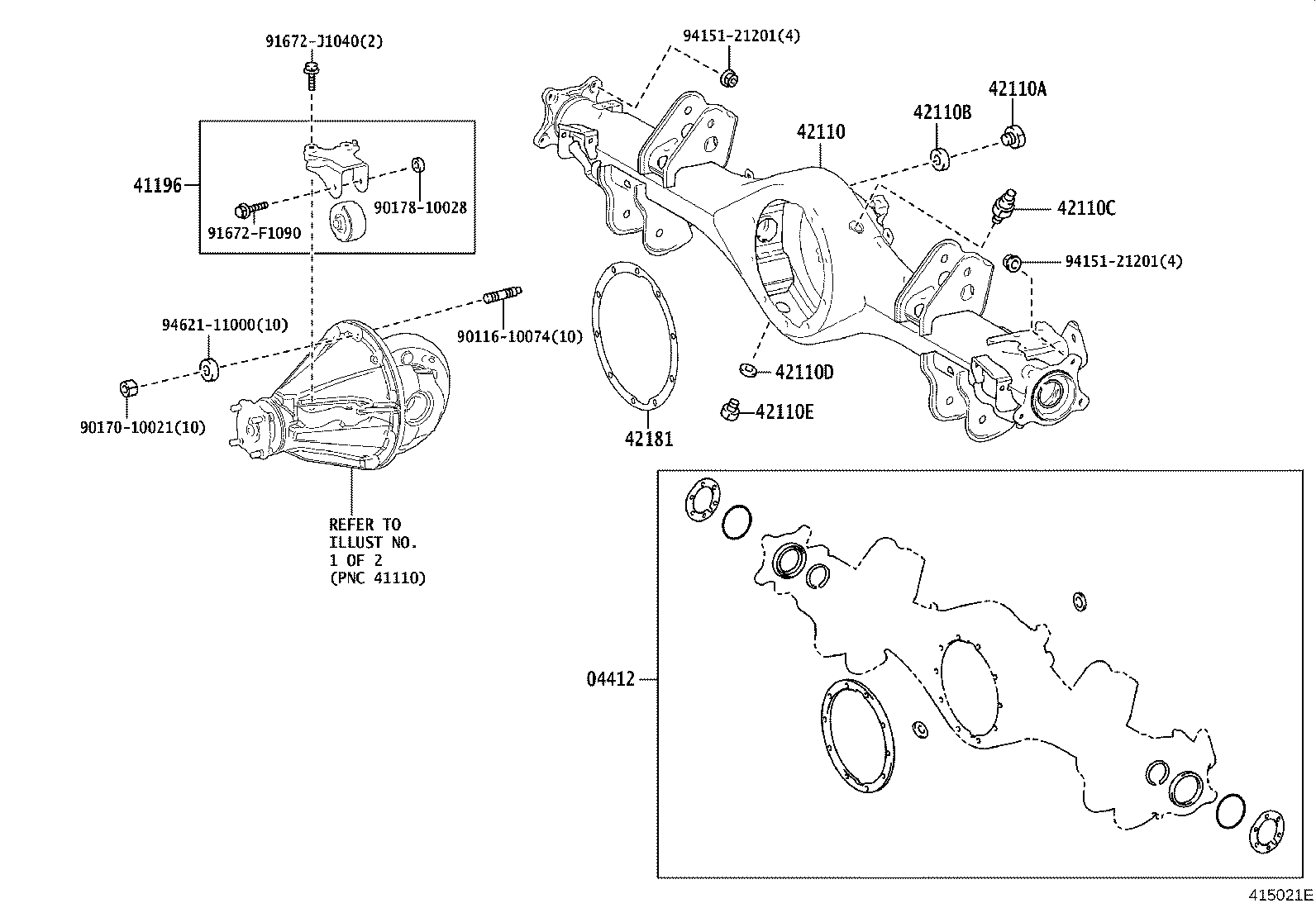

ILLUST NO. 2 OF 2(1907- )GDH303,304,306,GRH303,304
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-26280 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 41196 - DAMPER, REAR DIFFERENTIAL DYNAMIC | ||||
| 41196-26100 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42120-26170 |
GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18040 |
GDH30#,32#,GRH30#,32# |
1 | ||
| 90341-18057 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-26010 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| Common parts | ||||
| 90116-10074 | ||||
| 90170-10021 | ||||
| 90178-10028 | ||||
| 91672-F1090 | ||||
| 91672-J1040 | ||||
| 94151-21201 | ||||
| 94621-11000 | ||||
