GDH303R-RDTJY (2019)
Toyota Hiace

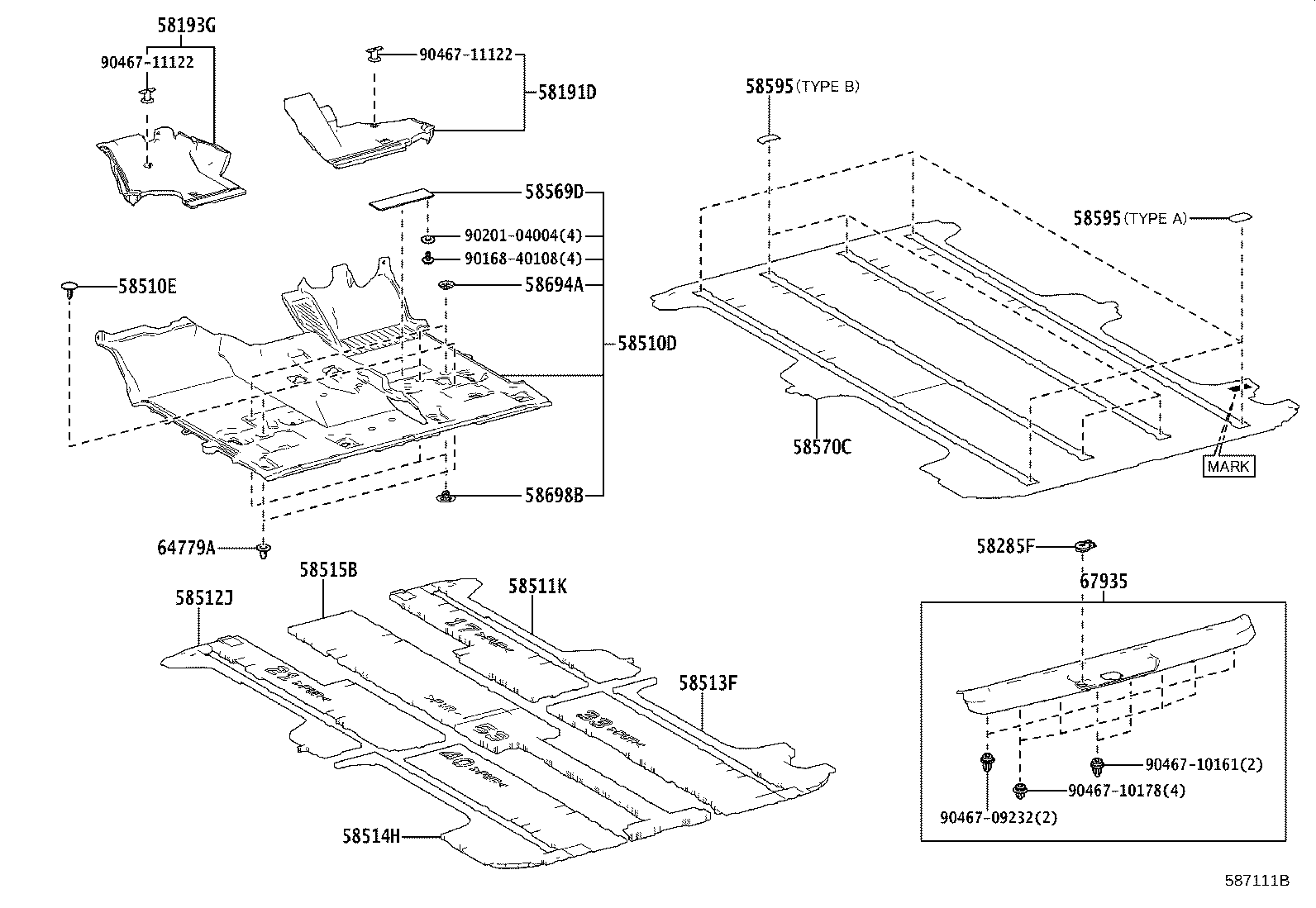

(1907- )RHD..G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58191D - FOOTREST, FRONT FLOOR | ||||
| 58191-26110 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 58193G - FOOTREST, FRONT FLOOR, NO.3 | ||||
| 58193-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 58285F - COVER, REAR FLOOR HOLE | ||||
| 58285-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 58285-26120C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-26J90C2 |
GDH303,306,GRH303..RHD..(G,J) GRAY,TRIM2# |
1 | ||
| 58510-26L80C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2# |
1 | ||
| 58510-26J80C2 |
GDH303,304,GRH304..RHD..H GRAY,TRIM2# |
1 | ||
| 58510-26J91C2 |
GRH303..RHD..GEN;GDH303..RHD..(G,J) BLACK,TRIM2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 64726-26010B0 |
GDH306..LHD;GDH303,GRH304;GRH303..LHD..J;GDH304,GRH303..RHD..(GEN,TH) MD.GRAY,TRIM2# |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-26040 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58513-26030 |
GRH303..J..GEN;GDH303..RHD..(H,J);GDH303,306..LHD..J..GEN |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26100 |
GDH303..RHD..H EXTINGUISHER-WITHOUT |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26100 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58514-26140 |
GDH303..RHD..H |
1 | ||
| 58514-26110 |
GDH303..G;GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26140 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-26100 |
GDH303..RHD..H |
1 | ||
| 58515-26140 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58515-26130 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D30C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2#,MARK 6D3 |
1 | ||
| 58570-26E10C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D10C0 |
GDH303..RHD..H EXTINGUISHER-WITHOUT,BLACK,TRIM2#,MARK 6D1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D40C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM2#,MARK 6D4 |
1 | ||
| 58570-26D70C0 |
GDH303..RHD..H BLACK,TRIM2#,MARK 6D7 |
1 | ||
| 58570-26D50C0 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) BLACK,TRIM2#,MARK 6D5 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26250C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 67935-26250C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) BLACK,TRIM2# |
1 | ||
| 67935-26260C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM0#,2# |
1 | ||
| 67935-26260C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90201-04004 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90467-11122 | ||||

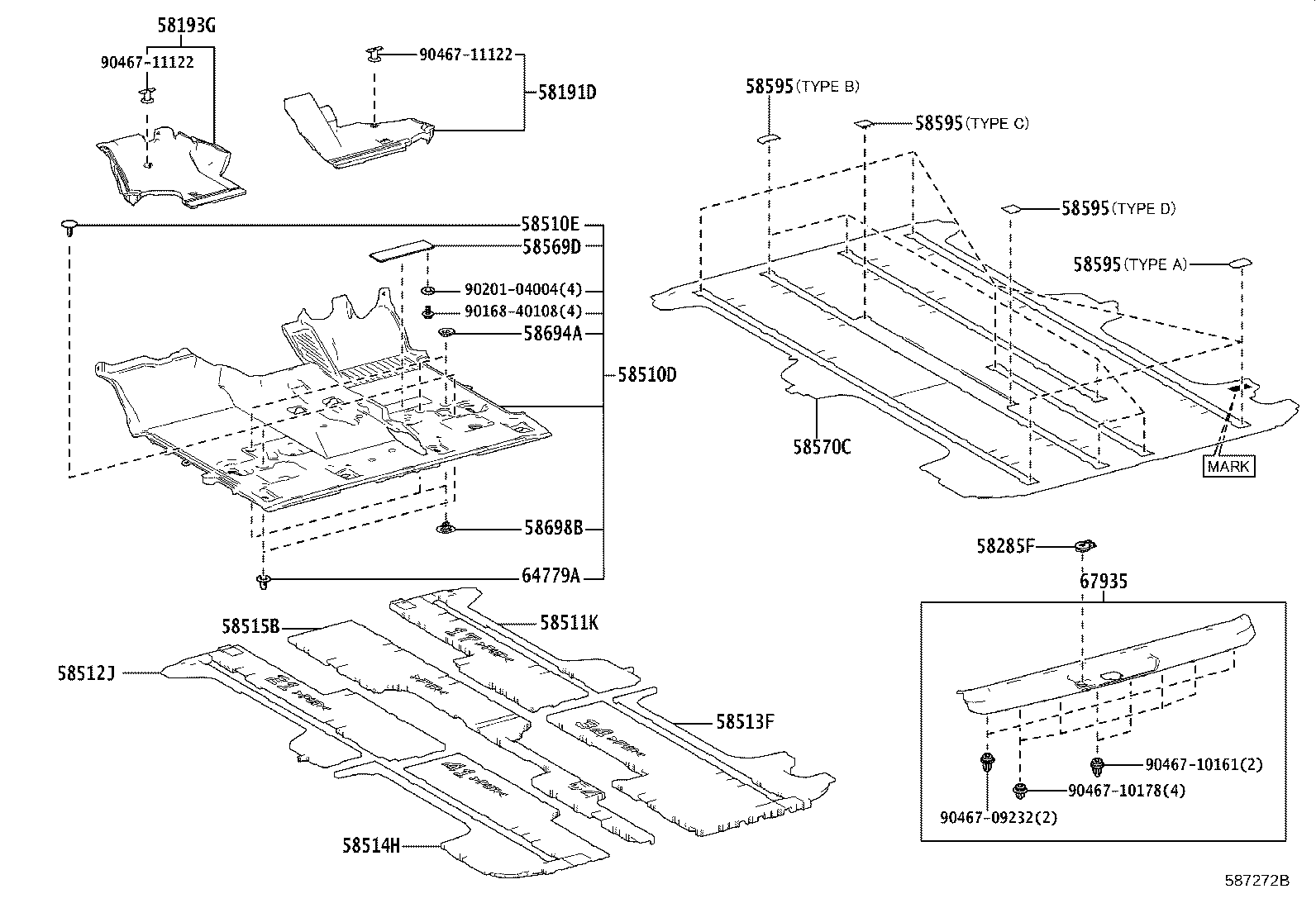

(1907- )RHD..H
W(TIP UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58191D - FOOTREST, FRONT FLOOR | ||||
| 58191-26110 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 58193G - FOOTREST, FRONT FLOOR, NO.3 | ||||
| 58193-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 58285F - COVER, REAR FLOOR HOLE | ||||
| 58285-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 58285-26120C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-26J90C2 |
GDH303,306,GRH303..RHD..(G,J) GRAY,TRIM2# |
1 | ||
| 58510-26L80C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2# |
1 | ||
| 58510-26J80C2 |
GDH303,304,GRH304..RHD..H GRAY,TRIM2# |
1 | ||
| 58510-26J91C2 |
GRH303..RHD..GEN;GDH303..RHD..(G,J) BLACK,TRIM2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 64726-26010B0 |
GDH306..LHD;GDH303,GRH304;GRH303..LHD..J;GDH304,GRH303..RHD..(GEN,TH) MD.GRAY,TRIM2# |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-26040 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58513-26030 |
GRH303..J..GEN;GDH303..RHD..(H,J);GDH303,306..LHD..J..GEN |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26100 |
GDH303..RHD..H EXTINGUISHER-WITHOUT |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26100 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58514-26140 |
GDH303..RHD..H |
1 | ||
| 58514-26110 |
GDH303..G;GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26140 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-26100 |
GDH303..RHD..H |
1 | ||
| 58515-26140 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58515-26130 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D30C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2#,MARK 6D3 |
1 | ||
| 58570-26E10C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D10C0 |
GDH303..RHD..H EXTINGUISHER-WITHOUT,BLACK,TRIM2#,MARK 6D1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D40C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM2#,MARK 6D4 |
1 | ||
| 58570-26D70C0 |
GDH303..RHD..H BLACK,TRIM2#,MARK 6D7 |
1 | ||
| 58570-26D50C0 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) BLACK,TRIM2#,MARK 6D5 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26250C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 67935-26250C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) BLACK,TRIM2# |
1 | ||
| 67935-26260C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM0#,2# |
1 | ||
| 67935-26260C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90201-04004 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90467-11122 | ||||
(1907- )RHD..H
W(SPACE UP SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58191D - FOOTREST, FRONT FLOOR | ||||
| 58191-26110 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 58193G - FOOTREST, FRONT FLOOR, NO.3 | ||||
| 58193-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 58285F - COVER, REAR FLOOR HOLE | ||||
| 58285-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 58285-26120C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-26J90C2 |
GDH303,306,GRH303..RHD..(G,J) GRAY,TRIM2# |
1 | ||
| 58510-26L80C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2# |
1 | ||
| 58510-26J80C2 |
GDH303,304,GRH304..RHD..H GRAY,TRIM2# |
1 | ||
| 58510-26J91C2 |
GRH303..RHD..GEN;GDH303..RHD..(G,J) BLACK,TRIM2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 64726-26010B0 |
GDH306..LHD;GDH303,GRH304;GRH303..LHD..J;GDH304,GRH303..RHD..(GEN,TH) MD.GRAY,TRIM2# |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-26040 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58513-26030 |
GRH303..J..GEN;GDH303..RHD..(H,J);GDH303,306..LHD..J..GEN |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26100 |
GDH303..RHD..H EXTINGUISHER-WITHOUT |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26100 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58514-26140 |
GDH303..RHD..H |
1 | ||
| 58514-26110 |
GDH303..G;GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26140 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-26100 |
GDH303..RHD..H |
1 | ||
| 58515-26140 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58515-26130 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D30C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2#,MARK 6D3 |
1 | ||
| 58570-26E10C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D10C0 |
GDH303..RHD..H EXTINGUISHER-WITHOUT,BLACK,TRIM2#,MARK 6D1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D40C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM2#,MARK 6D4 |
1 | ||
| 58570-26D70C0 |
GDH303..RHD..H BLACK,TRIM2#,MARK 6D7 |
1 | ||
| 58570-26D50C0 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) BLACK,TRIM2#,MARK 6D5 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26250C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 67935-26250C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) BLACK,TRIM2# |
1 | ||
| 67935-26260C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM0#,2# |
1 | ||
| 67935-26260C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90201-04004 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90467-11122 | ||||
(1907- )RHD..J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58191D - FOOTREST, FRONT FLOOR | ||||
| 58191-26110 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 58193G - FOOTREST, FRONT FLOOR, NO.3 | ||||
| 58193-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 58285F - COVER, REAR FLOOR HOLE | ||||
| 58285-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 58285-26120C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-26J90C2 |
GDH303,306,GRH303..RHD..(G,J) GRAY,TRIM2# |
1 | ||
| 58510-26L80C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2# |
1 | ||
| 58510-26J80C2 |
GDH303,304,GRH304..RHD..H GRAY,TRIM2# |
1 | ||
| 58510-26J91C2 |
GRH303..RHD..GEN;GDH303..RHD..(G,J) BLACK,TRIM2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 64726-26010B0 |
GDH306..LHD;GDH303,GRH304;GRH303..LHD..J;GDH304,GRH303..RHD..(GEN,TH) MD.GRAY,TRIM2# |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-26040 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58513-26030 |
GRH303..J..GEN;GDH303..RHD..(H,J);GDH303,306..LHD..J..GEN |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26100 |
GDH303..RHD..H EXTINGUISHER-WITHOUT |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26100 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58514-26140 |
GDH303..RHD..H |
1 | ||
| 58514-26110 |
GDH303..G;GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26140 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-26100 |
GDH303..RHD..H |
1 | ||
| 58515-26140 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58515-26130 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D30C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2#,MARK 6D3 |
1 | ||
| 58570-26E10C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D10C0 |
GDH303..RHD..H EXTINGUISHER-WITHOUT,BLACK,TRIM2#,MARK 6D1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D40C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM2#,MARK 6D4 |
1 | ||
| 58570-26D70C0 |
GDH303..RHD..H BLACK,TRIM2#,MARK 6D7 |
1 | ||
| 58570-26D50C0 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) BLACK,TRIM2#,MARK 6D5 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26250C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 67935-26250C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) BLACK,TRIM2# |
1 | ||
| 67935-26260C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM0#,2# |
1 | ||
| 67935-26260C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90201-04004 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90467-11122 | ||||
(1907- )GDH303..RHD..G..GEN
INDONESIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58191D - FOOTREST, FRONT FLOOR | ||||
| 58191-26110 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD |
1 | ||
| 58193G - FOOTREST, FRONT FLOOR, NO.3 | ||||
| 58193-26040 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 58285F - COVER, REAR FLOOR HOLE | ||||
| 58285-26120C0 |
GDH306..LHD..J;GRH303..J..(GCC,GEN);GDH303,304,GRH304..H,J BLACK,TRIM2# |
1 | ||
| 58285-26120C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-26J90C2 |
GDH303,306,GRH303..RHD..(G,J) GRAY,TRIM2# |
1 | ||
| 58510-26L80C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2# |
1 | ||
| 58510-26J80C2 |
GDH303,304,GRH304..RHD..H GRAY,TRIM2# |
1 | ||
| 58510-26J91C2 |
GRH303..RHD..GEN;GDH303..RHD..(G,J) BLACK,TRIM2# |
1 | ||
| 58510E - RETAINER, FLOOR CARPET | ||||
| 64726-26010B0 |
GDH306..LHD;GDH303,GRH304;GRH303..LHD..J;GDH304,GRH303..RHD..(GEN,TH) MD.GRAY,TRIM2# |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-26070 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-26010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-26040 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58513-26030 |
GRH303..J..GEN;GDH303..RHD..(H,J);GDH303,306..LHD..J..GEN |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26100 |
GDH303..RHD..H EXTINGUISHER-WITHOUT |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26100 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58514-26140 |
GDH303..RHD..H |
1 | ||
| 58514-26110 |
GDH303..G;GDH306..LHD..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26140 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26140 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC |
1 | ||
| 58514-26170 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC |
1 | ||
| 58514-26170 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-26100 |
GDH303..RHD..H |
1 | ||
| 58515-26140 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) |
1 | ||
| 58515-26130 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-26020C0 |
GRH303..RHD..GEN;GDH303,304,GRH304..RHD BLACK,TRIM2# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D30C0 |
GDH303..RHD..G..GEN INDONESIA SPEC,BLACK,TRIM2#,MARK 6D3 |
1 | ||
| 58570-26E10C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&INDONESIA SPEC,BLACK,TRIM2#,MARK 6E1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D10C0 |
GDH303..RHD..H EXTINGUISHER-WITHOUT,BLACK,TRIM2#,MARK 6D1 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D40C0 |
GDH303..G;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM2#,MARK 6D4 |
1 | ||
| 58570-26D70C0 |
GDH303..RHD..H BLACK,TRIM2#,MARK 6D7 |
1 | ||
| 58570-26D50C0 |
GDH306..LHD..J;GRH303..J..GEN;GDH303..J..(ARL,GEN) BLACK,TRIM2#,MARK 6D5 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26D90C0 |
GDH303,GRH303..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26D90C0 |
GDH303..RHD..J..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&SRI LANKA SPEC,BLACK,TRIM2#,MARK 6D9 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&NEPAL SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&JAMAICA SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&ZIMBABWE SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&LATIN AMERICA(GENERAL) SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&TRINIDAD-TOBAGO SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58570-26E00C0 |
GDH303..G..GEN;GRH303..RHD..G..GEN EXTINGUISHER-WITH(FOR INSTALLATION, REAR)&AFRICA(GENERAL)SPEC,BLACK,TRIM2#,MARK 6E0 |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26110C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE D:REFER ILLUST. |
1 | ||
| 58595-26070C1 |
GDH303..RHD..H BLACK,TRIM2#,TYPE A:REFER ILLUST. |
8 | ||
| 58595-26070C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
4 | ||
| 58595-26070C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE A:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH303..G;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
5 | ||
| 58595-26080C1 |
GDH304..TH;GDH303,GRH304..H BLACK,TRIM2#,TYPE B:REFER ILLUST. |
2 | ||
| 58595-26080C1 |
GDH303..J;GDH306..LHD..J;GRH303..J..(GCC,GEN) BLACK,TRIM2#,TYPE B:REFER ILLUST. |
4 | ||
| 58595-26100C1 |
GDH303..G;GDH303,GRH303..GCC;GRH303..RHD..G..GEN;GDH304,306..LHD..(G,H) BLACK,TRIM2#,TYPE C:REFER ILLUST. |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-33010 |
GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304 |
3 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26250C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN BLACK,TRIM0#,2# |
1 | ||
| 67935-26250C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..(GCC,GEN,TH) BLACK,TRIM2# |
1 | ||
| 67935-26260C0 |
GDH303..G..GEN;GDH306..LHD..G;GRH303..RHD..G..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM0#,2# |
1 | ||
| 67935-26260C0 |
GDH306..LHD..J;GDH303,304,GRH303,304..(H,J)..GEN ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90201-04004 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90467-11122 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
