GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1902- )GDH300,301,GRH300,301..RHD

Click highlighted areas on diagram

REAR

diagram 8712 8712426660 87245D 87246E 87248C 87248C 87248D 87249D 87249D 87249F 8871826C00 8871826C10 8871826C20 8871826C20 8871826C90 8871844160 90105T0324 9017806026 90178T0053 90178T0053 9046618001 9046618001 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 91551A0630 9415180641 9415180641 9613852501 9613852501
Part # Description Qty Price
Common parts
87124-26660
88718-26C00
88718-26C10
88718-26C20
88718-26C90
88718-44160
90105-T0324
90178-06026
90178-T0053
90466-18001
90466-26004
91551-A0630
94151-80641
96138-52501
Linked diagrams
8712

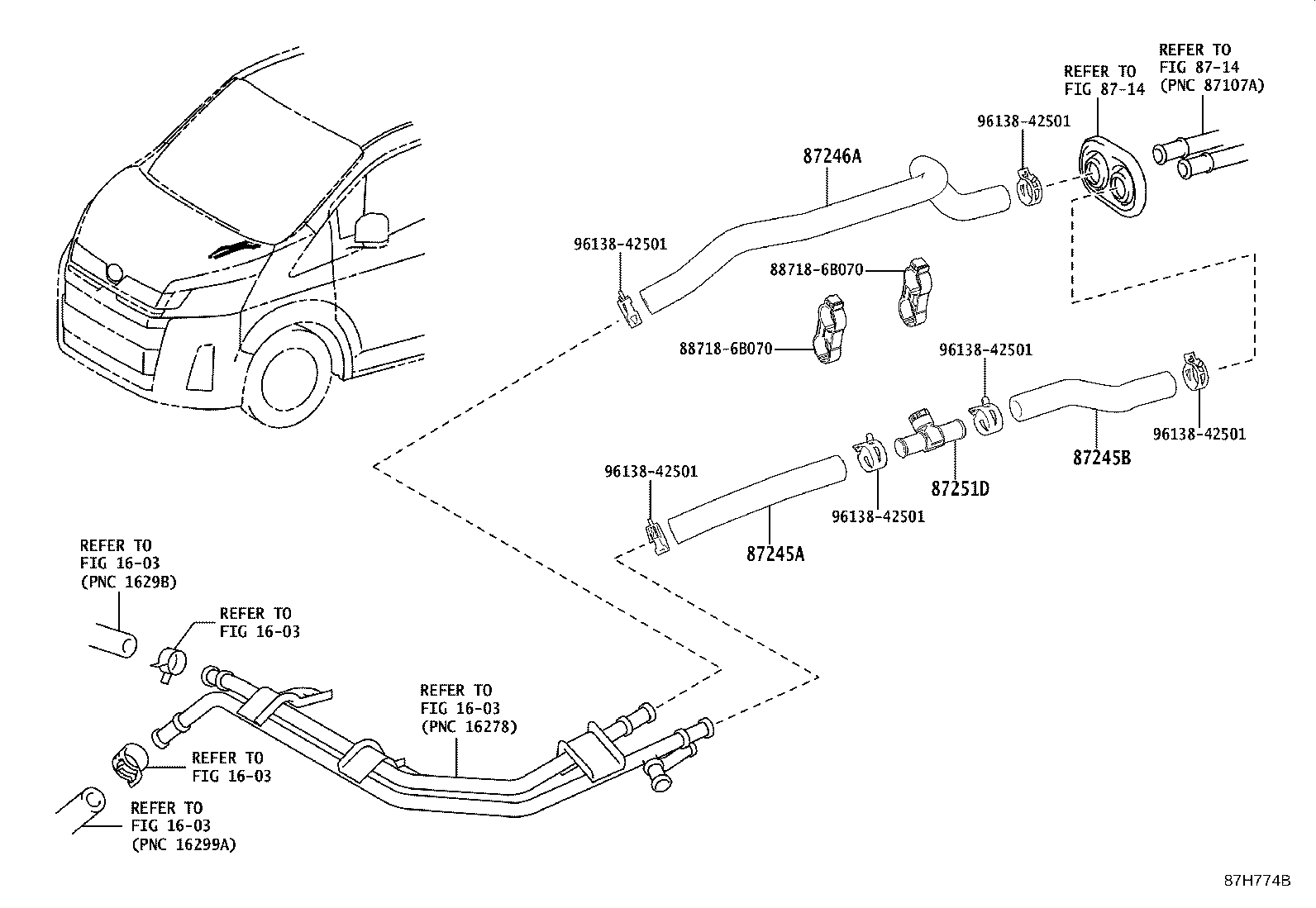

ILLUST NO. 1 OF 3(1902- )GDH30#,320,321,322..RHD..ARL,GEN,NZ,TH

Click highlighted areas on diagram

FRONT

diagram 1603 1603 1603 1603 1603 8714 8714 87245A 87245B 87246A 87251D 887186B070 887186B070 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L90

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26K30

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26G80

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87251D - JOINT, WATER, NO.1
87251-78010

GDH300,301,32#..(D,N)..(GEN,PH,VN)

FRONT HEATER-WITH

 1
87251-78010

GDH300,301,320,322..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87251-78010

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
Common parts
88718-6B070
96138-42501
Linked diagrams
1603
8714

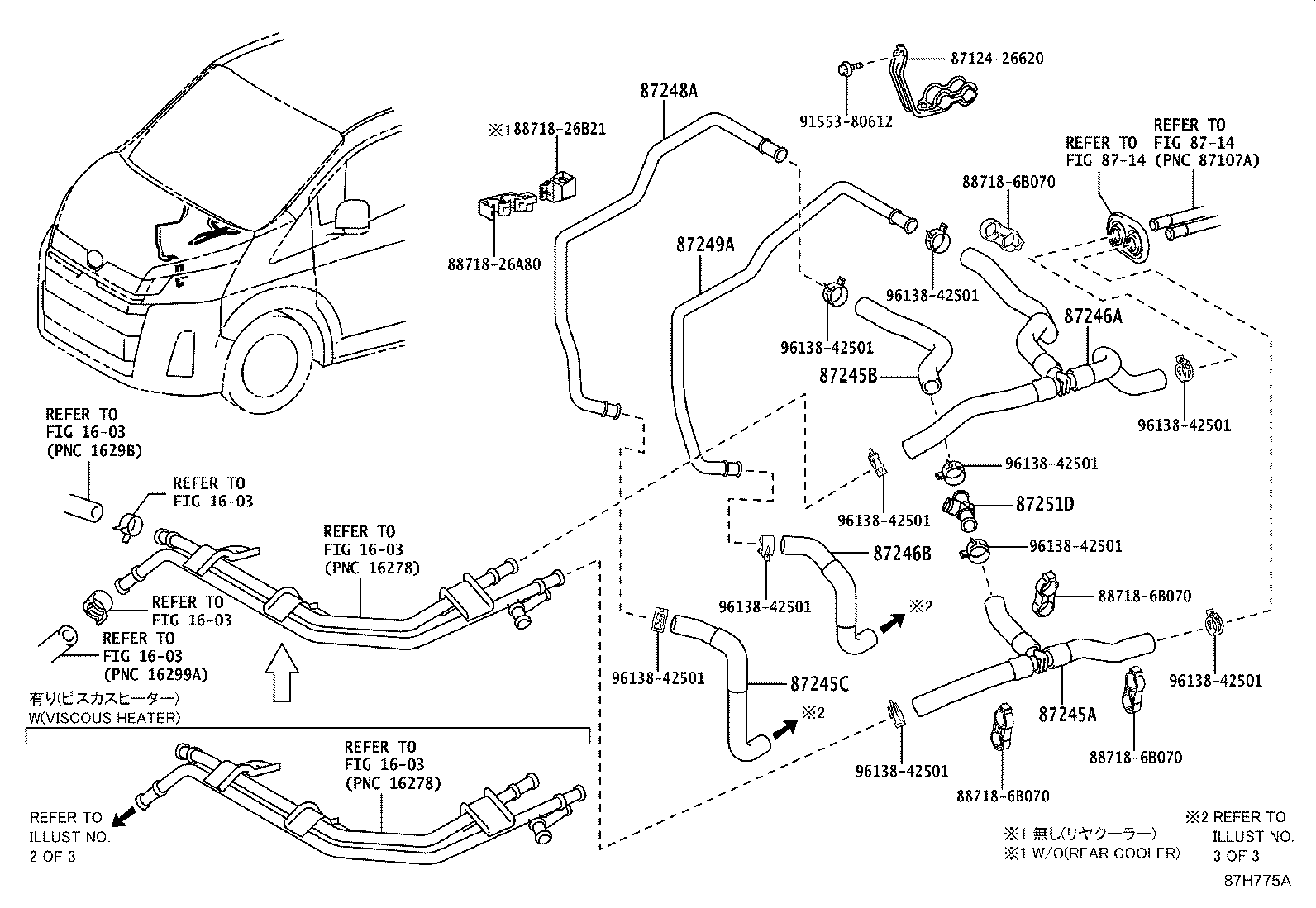

ILLUST NO. 1 OF 3(1902- )GDH30#,320,321,322..RHD..ARL,GEN,NZ,TH

Click highlighted areas on diagram

FRONT ,W(REAR HEATER)

diagram 1603 1603 1603 1603 1603 1603 8712426620 8714 8714 87245A 87245B 87245C 87246A 87246B 87248A 87249A 87251D 8871826A80 8871826B21 887186B070 887186B070 887186B070 887186B070 9155380612 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L90

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26K30

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26G80

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87251D - JOINT, WATER, NO.1
87251-78010

GDH300,301,32#..(D,N)..(GEN,PH,VN)

FRONT HEATER-WITH

 1
87251-78010

GDH300,301,320,322..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87251-78010

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
Common parts
87124-26620
88718-26A80
88718-26B21
88718-6B070
91553-80612
96138-42501
Linked diagrams
1603
8714

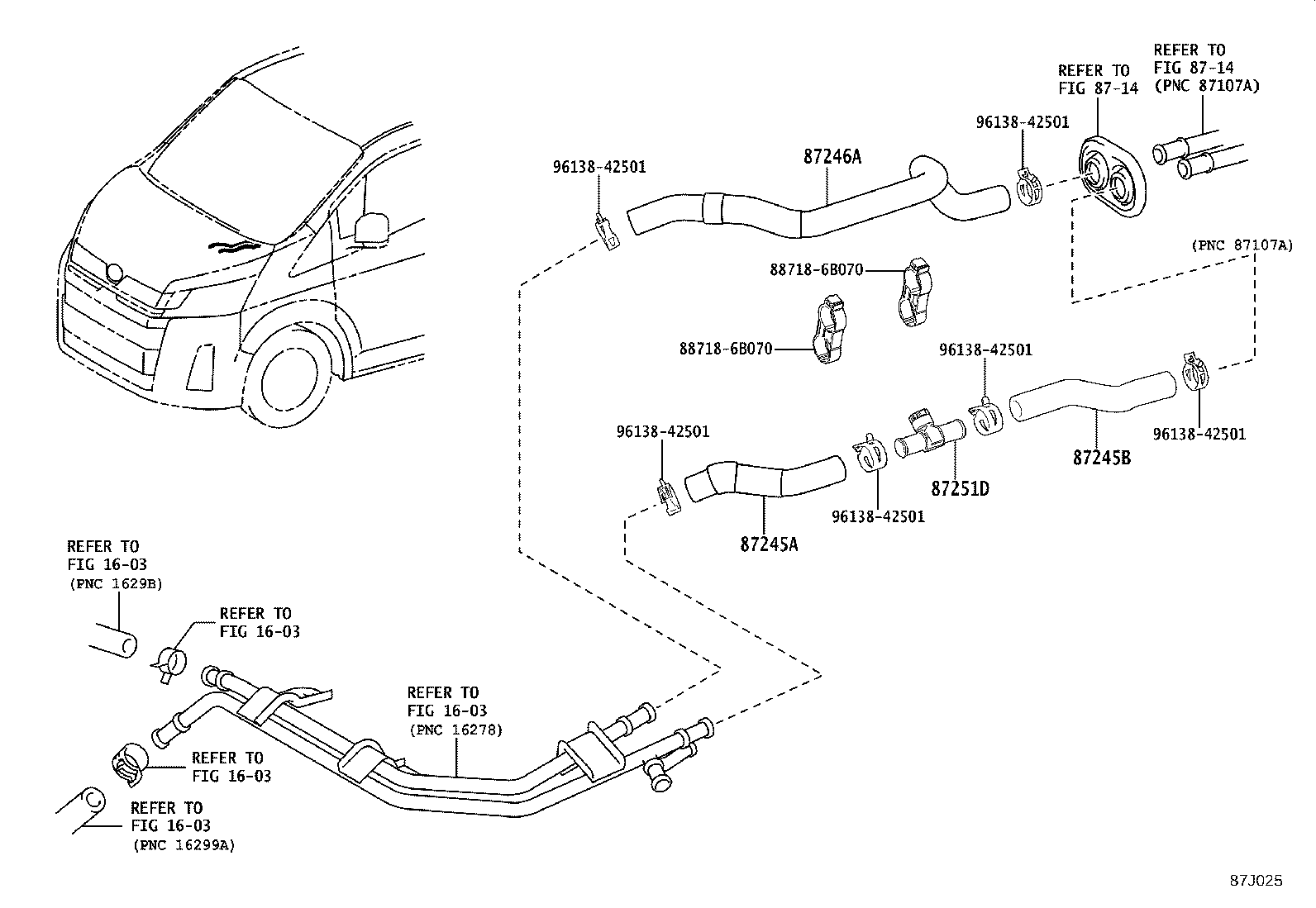

ILLUST NO. 1 OF 3(2006- )SHP..GEN

Click highlighted areas on diagram

FRONT, HONG KONG SPEC

diagram 1603 1603 1603 1603 1603 8714 8714 87245A 87245B 87246A 87251D 887186B070 887186B070 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K40

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26L90

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K30

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26K30

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH

 1
87245-26K50

GDH300,301,320,322..RHD..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87245-26G80

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
87251D - JOINT, WATER, NO.1
87251-78010

GDH300,301,32#..(D,N)..(GEN,PH,VN)

FRONT HEATER-WITH

 1
87251-78010

GDH300,301,320,322..(D,N)..GEN

FRONT HEATER-WITH(PTC HEATER)

 1
87251-78010

GDH300..SHP..GEN

HONG KONG SPEC&FRONT HEATER-WITH

 1
Common parts
88718-6B070
96138-42501
Linked diagrams
1603
8714
