GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1902- )

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62117C 62117C 62170B 62170B 62170B 62170C 62170D 62180D 62211 62211D 62211T 62212 62311B 62312B 62489A 67923G 67923G
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09245

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
90467-09240

GDH30#,32#,GRH30#,32#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-09245

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
90467-09240

GDH30#,32#,GRH30#,32#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-26040C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-26040C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62211 - GARNISH, FRONT PILLAR, RH
62210-26140B0

GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

LT.GRAY,TRIM1#

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-10167

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
62212 - GARNISH, FRONT PILLAR, LH
62220-26140B0

GRH300..GCC;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH322,GRH300..4D..D..GEN;GDH300,301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

LT.GRAY,TRIM1#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-26110

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH)

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-26110

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..4D..D..(GEN,NZ,TH)

 1
67923G - CLAMP, COWL SIDE TRIM BOARD
67923-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67923G - CLAMP, COWL SIDE TRIM BOARD
67923-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2

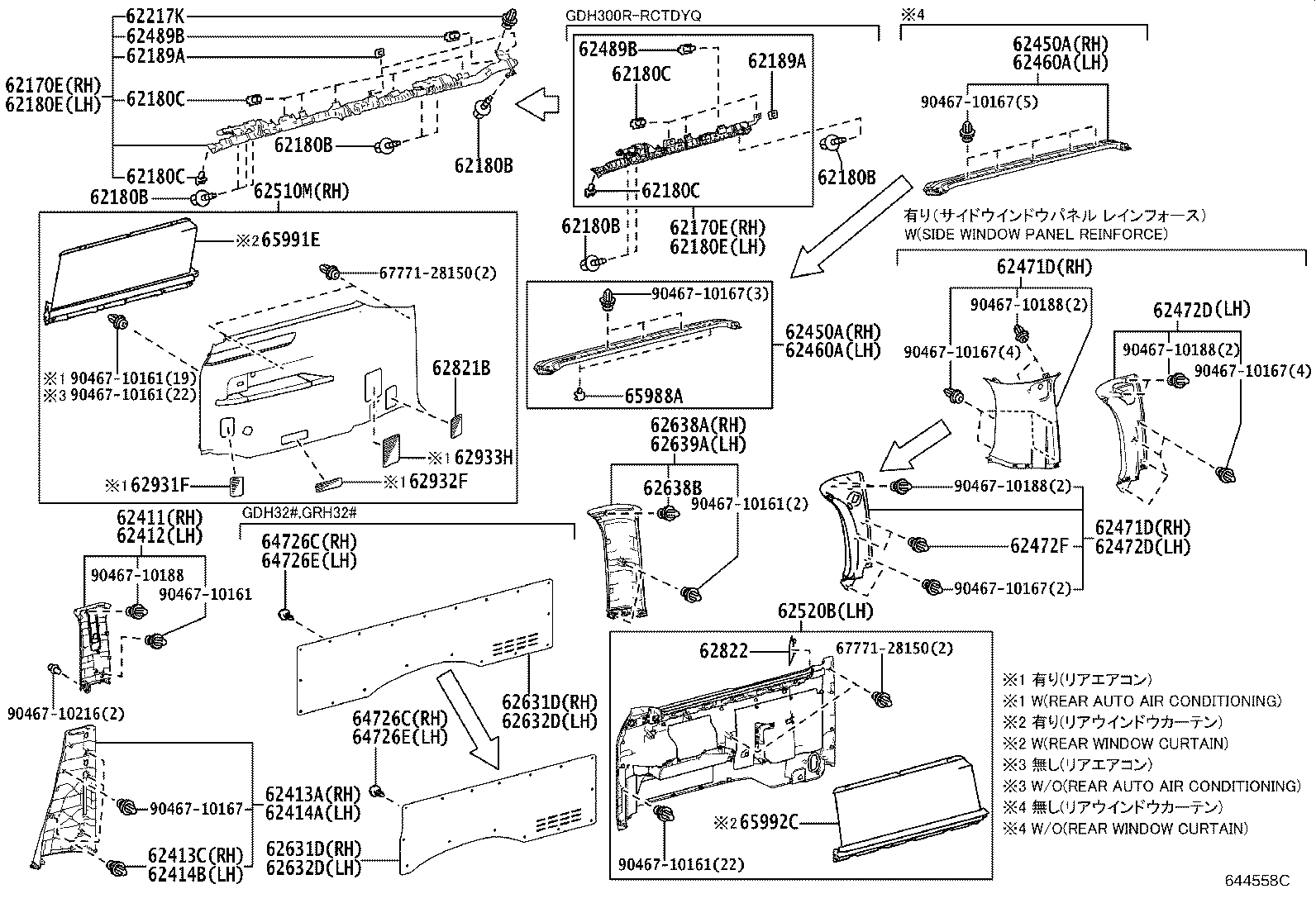

ILLUST NO. 2 OF 4(1902- )5D

Click highlighted areas on diagram

diagram 62170E 62170E 62180B 62180B 62180B 62180B 62180B 62180C 62180C 62180C 62180C 62180E 62180E 62189A 62189A 62217K 62411 62412 62413A 62413C 62414A 62414B 62450A 62450A 62460A 62460A 62471D 62471D 62472D 62472D 62472F 62489B 62489B 62510M 62520B 62631D 62631D 62632D 62632D 62638A 62638B 62639A 62821B 62822 62931F 62932F 62933H 64726C 64726C 64726E 64726E 65988A 65991E 65992C 6777128150 6777128150 9046710161 9046710161 9046710161 9046710161 9046710161 9046710167 9046710167 9046710167 9046710167 9046710167 9046710167 9046710188 9046710188 9046710188 9046710188 9046710216
Part # Description Qty Price
62411 - GARNISH, CENTER PILLAR, RH
62410-26160B0

GDH300..5D;GRH300..GCC;GDH300,301,GRH300,301..LHD..4D..D

LT.GRAY,TRIM1#

 1
62412 - GARNISH, CENTER PILLAR, LH
62420-26150B0

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,301,GRH300,301..RHD..4D..D..(GEN,NZ,TH)

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26340C0

GDH300..5D;GRH300..GCC;GDH320..SP..6FC..ARL;GDH320,GRH320..SP..(GCC,GEN);GDH300,301,320,GRH300,301,320..LHD..4D..D

BLACK,TRIM1#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GDH322..D..GEN;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GRH303,322..LHD..(J,N);GDH322..P..(ARL,GCC,NZ);GDH300,GRH300..4D..(GEN,TH);GDH301,306,322,GRH301,321..LHD..(G,J,N,Q);GDH303,304,321,328,GRH304..(G,H,J,N)..(ARL,GCC,GEN,PH,TH);GDH301,320,321,GRH301,320,322..(D,P,Q)..(GCC,GEN,IDN,NZ,TH)

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26480C0

GDH300..5D;GRH300..GCC;GRH320..LHD..SP;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH320..SP..(GCC,GEN);GDH301,GRH320..RHD..D..GEN;GDH300,320,GRH300,301..RHD..4D..D..(GEN,TH)

BLACK,TRIM1#

 1
62414B - CLIP (FOR CENTER LOWER GARNISH)
90467-10161

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH322..RHD..N;GDH320..6FC..ARL;GDH320,GRH320..GCC,GEN;GDH322..RHD..(D,N)..GEN;GDH300,GRH300..4D..(GEN,TH);GDH300,322..4D..6FC..(ARL,NZ);GDH301,GRH301,303..RHD..(GEN,NZ,TH);GDH303,304,321,GRH304,322..D,G,H,J,P;GDH301,306,322,GRH301..LHD..(D,G,J,P)

 4
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26C00

GDH300,GRH300..SHP..(GCC,GEN)

 1
62631D - BOARD, QUARTER TRIM, REAR RH
62631-26C00

GDH300,GRH300..SHP..(GCC,GEN)

 1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26C90

GDH300,GRH300..SHP..(GCC,GEN)

 1
62632D - BOARD, QUARTER TRIM, REAR LH
62632-26C90

GDH300,GRH300..SHP..(GCC,GEN)

 1
64726C - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
64726C - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
64726E - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
64726E - RETAINER, DECK TRIM REAR COVER
67771-26250E1

GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH)

OCHER,TRIM1#

 15
Common parts
67771-28150
90467-10161
90467-10167
90467-10188
90467-10216

ILLUST NO. 3 OF 4(1902- )

Click highlighted areas on diagram

FRONT

diagram 51794D 51794D 51794D 51798C 51798C 51798C 58445K 58445K 58458H 58458H 67911B 67911B 67911B 67912A 67912A 67912A 67913B 67913B 67914B 67914B 67923C 67923C 67924A 67924A 67925D 67925D 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 90119T0141 90119T0141 90119T0141 90119T0141 90119T0141 90119T0262 90119T0262 90119T0262 90119T0262 9018306030 9018306030 9018306030 91673A0620 91673A0620 91673A0620 91673A0620 91673A0620 91673A0620 9354054008 9354054008 9354054008 9354055010 9354055010
Part # Description Qty Price
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51794D - PLATE, STEP BRACKET
51794-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

RH

 1
51794-26040

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

LH

 1
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
51798C - BRACKET, STEP PANEL
51798-26020

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 4
58445K - LOCK, BATTERY SERVICE HOLE COVER
58445-26040

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 2
58445K - LOCK, BATTERY SERVICE HOLE COVER
58445-26040

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GRH303..RHD..GEN;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..6FC..(P,Q)..GEN;GDH321,GRH303..LHD..(J,N);GDH301,303,304,328,GRH301,304,322;GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320,321..(D,Q)..(GCC,GEN,IDN,NZ)

 2
58458H - KNOB, BATTERY SERVICE HOLE COVER
58458-26030C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
58458H - KNOB, BATTERY SERVICE HOLE COVER
58458-26030C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67911-26010C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67911-26020C0

GDH322..D;GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,328,GRH300..4D..(GEN,PH,TH,VN);GDH301,320,321,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH)

BLACK,TRIM1#

 2
67913B - PLATE, FRONT DOOR SCUFF, RH
67910-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67910-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67920-26060C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67920-26060C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-26010

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67924A - CLAMP, DOOR SCUFF PLATE, NO.2
67923-26030

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 1
67925D - COVER, DOOR SCUFF PLATE
67925-26080C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
67925D - COVER, DOOR SCUFF PLATE
67925-26080C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..6FC..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
Common parts
90119-06983
90119-T0141
90119-T0262
90183-06030
91673-A0620
93540-54008
93540-55010

ILLUST NO. 4 OF 4(1902- )SHP ; (1902- )GDH301,GRH301..GEN

Click highlighted areas on diagram

REAR(WITHOUT POWER SLIDE DOOR)

diagram 58076A 58076A 58076B 58076B 67917C 67917C 67918D 67918D 8121 8121 9046710162 9046710162 9046710167 9046710167 9046710167 9046710167
Part # Description Qty Price
58076A - COVER SUB-ASSY, JACK BOX HOLE, RH
58076-26030C0

GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P)

BLACK,TRIM1#

 1
58076A - COVER SUB-ASSY, JACK BOX HOLE, RH
58076-26030C0

GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P)

BLACK,TRIM1#

 1
58076B - COVER SUB-ASSY, JACK BOX HOLE, LH
58076-26040C0

GDH322..P..ARL;GDH300,GRH300..SHP;GDH301,321,322,GRH301,322..RHD..D

BLACK,TRIM1#

 1
58076B - COVER SUB-ASSY, JACK BOX HOLE, LH
58076-26040C0

GDH322..P..ARL;GDH300,GRH300..SHP;GDH301,321,322,GRH301,322..RHD..D

BLACK,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67930-26020C0

GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67930-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67930-26020C0

GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67930-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67918D - PLATE, REAR DOOR SCUFF, LH
67940-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67940-26020C0

GDH301,GRH301..RHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67918D - PLATE, REAR DOOR SCUFF, LH
67940-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67940-26020C0

GDH301,GRH301..RHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
Common parts
90467-10162
90467-10167
Linked diagrams
8121

ILLUST NO. 4 OF 4(1902- )SHP ; (1902- )GDH301..NZ,TH ; (1902- )GDH301,GRH301..N

Click highlighted areas on diagram

REAR(WITH POWER SLIDE DOOR)

diagram 58076A 58076A 58076B 58076B 67917C 67917C 67917D 67917D 67918D 67918D 8121 8121 9046710167 9046710167
Part # Description Qty Price
58076A - COVER SUB-ASSY, JACK BOX HOLE, RH
58076-26030C0

GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P)

BLACK,TRIM1#

 1
58076A - COVER SUB-ASSY, JACK BOX HOLE, RH
58076-26030C0

GDH300,GRH300..SHP;GDH301,321,322,328,GRH301,322..LHD..(D,P)

BLACK,TRIM1#

 1
58076B - COVER SUB-ASSY, JACK BOX HOLE, LH
58076-26040C0

GDH322..P..ARL;GDH300,GRH300..SHP;GDH301,321,322,GRH301,322..RHD..D

BLACK,TRIM1#

 1
58076B - COVER SUB-ASSY, JACK BOX HOLE, LH
58076-26040C0

GDH322..P..ARL;GDH300,GRH300..SHP;GDH301,321,322,GRH301,322..RHD..D

BLACK,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67930-26020C0

GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67930-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67930-26020C0

GDH301,GRH301..LHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67930-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67917D - CLIP, REAR DOOR SCUFF PLATE
62217-13010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR)

 4
67917D - CLIP, REAR DOOR SCUFF PLATE
62217-13010

GDH306..LHD;GRH303..LHD..J;GRH303..RHD..GEN;GDH303,304,GRH304;GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR)

 4
67918D - PLATE, REAR DOOR SCUFF, LH
67940-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67940-26020C0

GDH301,GRH301..RHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
67918D - PLATE, REAR DOOR SCUFF, LH
67940-26040C0

GDH300,GRH300..SHP

*POSD & *ECS(*SD & BACK DOOR),BLACK,TRIM1#

 1
67940-26020C0

GDH301,GRH301..RHD..D;GDH300,GRH300..SHP..(GCC,GEN)

BLACK,TRIM1#

 1
Common parts
90467-10167
Linked diagrams
8121
