GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )GDH300,320,GRH300,320..RHD..5D

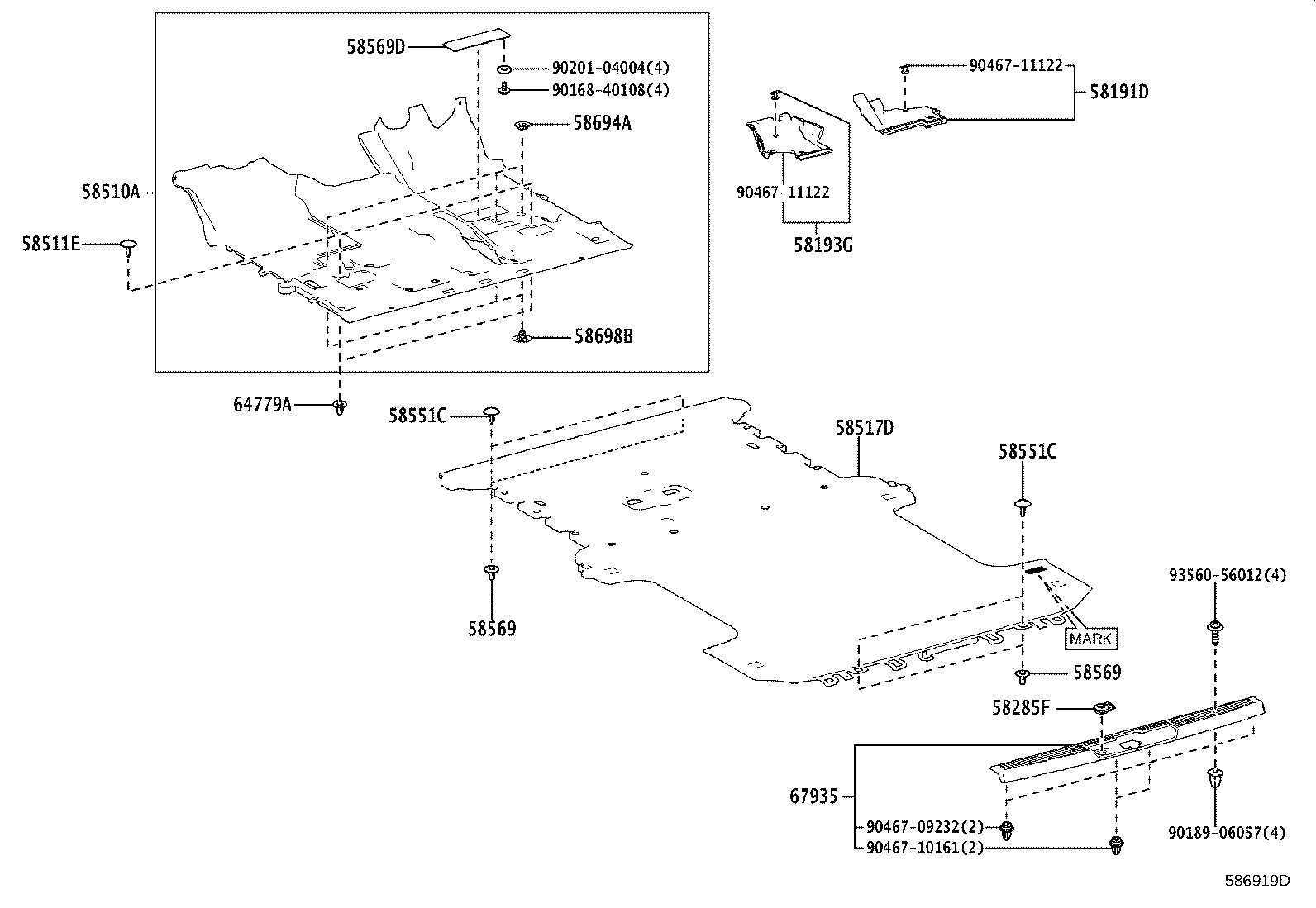

Click highlighted areas on diagram

diagram 58191D 58193G 58285F 58510A 58511E 58517D 58551C 58551C 58569 58569 58569D 58694A 58698B 64779A 67935 9016840108 9018906057 9020104004 9046709232 9046710161 9046711122 9046711122 9356056012
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..RHD..D;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..(D,N)..(GEN,NZ,TH)

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
58510A - MAT ASSY, FRONT FLOOR
58510-26N30B2

GDH300..SHP..6F..GEN

SOUTH AFRICA SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER & PASSENGER),GRAY,TRIM1#

 1
58510-26N30B2

GDH300..SHP..GEN

HONG KONG SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIR BAG-W(DRIVER& PASSENGER),GRAY,TRIM1#

 1
58510-26N20B2

GDH300,301,322,GRH301,322..RHD..(SG,SHP)..D..GEN

GRAY,TRIM1#

 1
58510-26N30B2

GDH300..SHP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#

 1
58510-26N30B2

GDH300..SHP..GEN

LATIN AMERICA(GENERAL) SPEC&FRONT SEAT BELT-CENTER SEAT BELT:3 POINT TYPE&SRS AIRBAG-W(DRIVER & PASSENGER),GRAY,TRIM1#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
64726-26010B0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

MD.GRAY,TRIM1#

 2
58517D - MAT, REAR FLOOR
58517-26P90B0

GDH300..SHP..GEN

MEDIUM GRAY,TRIM1#

 1
58551C - CLIP(FOR FLOOR MAT, REAR)
64726-26010B0

GDH322..D;GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,328,GRH301,322..D,P

MD.GRAY,TRIM1#

 4
58551C - CLIP(FOR FLOOR MAT, REAR)
64726-26010B0

GDH322..D;GDH300,GRH300..SHP;GDH322..LHD..P..GEN;GDH322..P..(ARL,GCC,NZ);GDH301,321,328,GRH301,322..D,P

MD.GRAY,TRIM1#

 4
58569 - STOPPER, REAR FLOOR MAT
64779-26020

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH300,GRH300..SHP;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN

 4
58569 - STOPPER, REAR FLOOR MAT
64779-26020

GDH321..D;GDH322..D,N;GDH321..N..GEN;GDH300,GRH300..SHP;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH301,328,GRH301,321,322..GCC,GEN,NZ,PH,TH,VN

 4
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM1#

 1
67935-26210C0

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

BLACK,TRIM1#

 1
Common parts
90168-40108
90189-06057
90201-04004
90467-09232
90467-10161
90467-11122
93560-56012

(1907- )RHD..G

Click highlighted areas on diagram

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..RHD..D;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..(D,N)..(GEN,NZ,TH)

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM1#

 1
67935-26210C0

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122

(1907- )RHD..H

Click highlighted areas on diagram

W(TIP UP SEAT)

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..RHD..D;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..(D,N)..(GEN,NZ,TH)

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM1#

 1
67935-26210C0

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122

(1907- )RHD..H

Click highlighted areas on diagram

W(SPACE UP SEAT)

diagram 58191D 58193G 58285F 58510D 58510E 58511K 58512J 58513F 58514H 58515B 58569D 58570C 58595 58595 58694A 58698B 64779A 67935 9016840108 9020104004 9046709232 9046710161 9046710178 9046711122 9046711122
Part # Description Qty Price
58191D - FOOTREST, FRONT FLOOR
58191-26090

GDH321..RHD..D;GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,320,322,GRH300,301,320,322..RHD..(D,N)..(GEN,NZ,TH)

 1
58193G - FOOTREST, FRONT FLOOR, NO.3
58193-26040

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ)

 1
58285F - COVER, REAR FLOOR HOLE
58285-26120C0

GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN)

BLACK,TRIM1#

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-26020C0

GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,322..6FC..(D,P)..(ARL,NZ);GDH301,320,321,322,GRH300,301,320,322..RHD..D..(GEN,IDN,NZ,TH)

BLACK,TRIM1#

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN

 3
64779A - STOPPER, SPARE WHEEL COVER
64779-26020

GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ)

 2
67935 - PLATE, BACK DOOR SCUFF
67935-26220C0

GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN)

ROUGH ROAD AREA SPEC-WITH,BLACK,TRIM1#

 1
67935-26210C0

GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN)

BLACK,TRIM1#

 1
Common parts
90168-40108
90201-04004
90467-09232
90467-10161
90467-10178
90467-11122
