GDH300R-RCFDY (2019)
Toyota Hiace

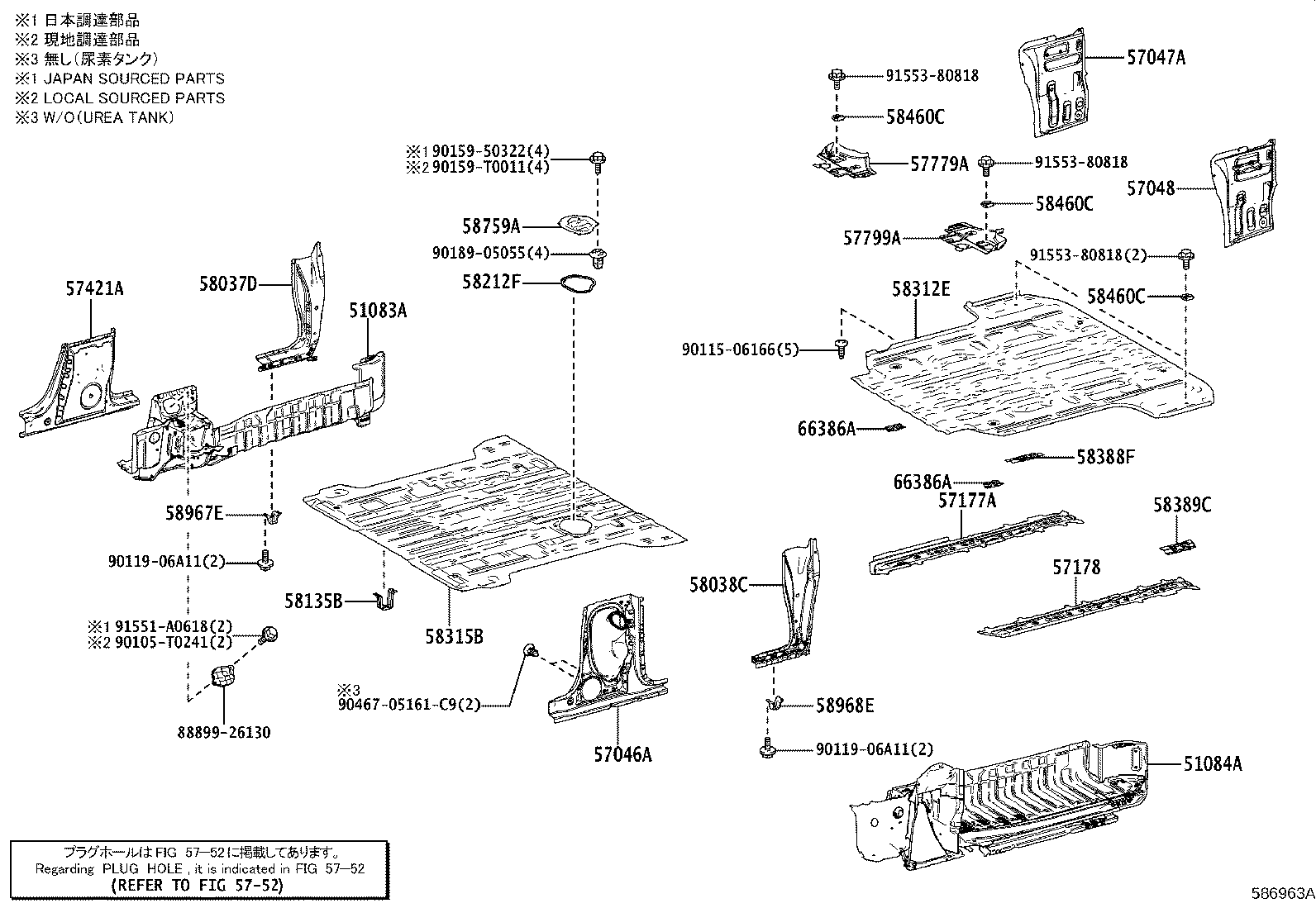

ILLUST NO. 1 OF 2(1902- )SHP..GEN
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083A - STEP SUB-ASSY, RH | ||||
| 51083-26430 |
GDH301,GRH301..LHD;GDH300,GRH300..SHP..(GCC,GEN) |
1 | ||
| 51083-26600 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26210 |
GDH301,GRH301..RHD;GDH300,GRH300..SHP..(GCC,GEN) |
1 | ||
| 51084-26310 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26480 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26370 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26450 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&*POSD & *ECS(*SD & BACK DOOR)&REAR AIRCONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26380 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6) |
1 | ||
| 57046-26460 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&*POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26390 |
GDH300,GRH300..SHP;GDH301,GRH301..RHD..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26470 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26400 |
GRH303..LHD..J;GDH320..6FC..ARL;GDH303..LHD..(G,J);GDH300,303..RHD..5D;GRH320..LHD..SP..6F;GDH300..RHD..4D..6FC;GRH320..SP..6FC..GEN;GDH300..RHD..4D..6F..GEN;GDH304,306,320..LHD..5D..GEN;GDH300,320,321,GRH300..6F..D..(GCC,IDN,TH);GDH301,320,322,GRH300,301,303,320,322..RHD..(D,G,J)..GEN |
1 | ||
| 57046-26370 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26460 |
GDH300..SHP..GEN;GDH303..LHD..(G,J)..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&*POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26450 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&*POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26380 |
GDH300..SHP..GEN;GDH303..LHD..(G,J)..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6) |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH) |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-26030 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-26010 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GRH303..LHD..J;GDH320..SP..GEN;GDH300..LHD..6F;GRH303..RHD..GEN;GDH300,303..RHD..5D;GDH320..SP..6FC..ARL;GDH320,GRH300..6F..GCC;GRH320..SP..6F..(GCC,GEN);GDH322,GRH300..LHD..4D..6F..(D,P)..GEN;GDH301,303,320,GRH301,320,322..LHD..SG..(D,G,J);GDH300,304,306,322,GRH320..LHD..6FC..(D,G,H,J)..GEN |
1 | ||
| 57421-26290 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57421-26300 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57421-26250 |
GDH300,GRH300..SHP;GDH301,GRH301..LHD..D REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26110 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26080 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26020 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..LHD..4D |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26010 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26590 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26F70 |
GDH300,GRH300..SHP |
1 | ||
| 58315-26F60 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 58388F - PLATE, FLOOR, REAR RH | ||||
| 58388-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58389C - PLATE, FLOOR, REAR LH | ||||
| 58389-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GDH300,GRH300..SHP |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GDH300,GRH300..SHP |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GDH300,GRH300..SHP |
4 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GDH300..5D;GDH306..LHD;GRH303..LHD..J;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH);GDH321,GRH300..D..(GCC,IDN,NZ);GDH300,320,322..4D..6FC..(ARL,NZ);GDH320,322,GRH303,320,322..RHD..SG..(D,G,J,N)..(GEN,TH) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG |
1 | ||
| 66386A - PLATE, ROPE HOOK BAR | ||||
| 66386-26010 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
2 | ||
| 66386A - PLATE, ROPE HOOK BAR | ||||
| 66386-26010 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
2 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| 91551-A0618 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 1 OF 2(1903- )RHD..P..GEN
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26210 |
GDH301,GRH301..RHD;GDH300,GRH300..SHP..(GCC,GEN) |
1 | ||
| 51084-26310 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26370 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26450 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&*POSD & *ECS(*SD & BACK DOOR)&REAR AIRCONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26380 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6) |
1 | ||
| 57046-26460 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL-VAN,EURO6)&*POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26390 |
GDH300,GRH300..SHP;GDH301,GRH301..RHD..D..GEN REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26470 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26480 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26400 |
GRH303..LHD..J;GDH320..6FC..ARL;GDH303..LHD..(G,J);GDH300,303..RHD..5D;GRH320..LHD..SP..6F;GDH300..RHD..4D..6FC;GRH320..SP..6FC..GEN;GDH300..RHD..4D..6F..GEN;GDH304,306,320..LHD..5D..GEN;GDH300,320,321,GRH300..6F..D..(GCC,IDN,TH);GDH301,320,322,GRH300,301,303,320,322..RHD..(D,G,J)..GEN |
1 | ||
| 57046-26370 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26460 |
GDH300..SHP..GEN;GDH303..LHD..(G,J)..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&*POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57046-26450 |
GDH300..SHP..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6)&*POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57046-26380 |
GDH300..SHP..GEN;GDH303..LHD..(G,J)..GEN CATALYTIC CONVERTER-WITH(DIESEL,EURO6) |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26410 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH320,321,GRH320..D..(GEN,NZ);GDH322,GRH322..(D,P)..(GCC,TH) |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH322,GRH322..(D,P)..(ARL,GCC,TH);GDH300,320,321,GRH320..D..(GCC,GEN,IDN,NZ,TH) |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-26030 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57178-26010 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26260 |
GRH303..LHD..J;GDH320..SP..GEN;GDH300..LHD..6F;GRH303..RHD..GEN;GDH300,303..RHD..5D;GDH320..SP..6FC..ARL;GDH320,GRH300..6F..GCC;GRH320..SP..6F..(GCC,GEN);GDH322,GRH300..LHD..4D..6F..(D,P)..GEN;GDH301,303,320,GRH301,320,322..LHD..SG..(D,G,J);GDH300,304,306,322,GRH320..LHD..6FC..(D,G,H,J)..GEN |
1 | ||
| 57421-26290 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR)&REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57421-26300 |
GDH303..RHD;GRH303..LHD..J;GDH304,306..LHD;GRH303..RHD..GEN;GDH300,GRH300..SHP;GDH303..LHD..(G,J) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57421-26250 |
GDH300,GRH300..SHP;GDH301,GRH301..LHD..D REAR AIR CONDITIONER-WITH(REAR COOLER,JET NOZZLE) |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26110 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26080 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26020 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..LHD..4D |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26010 |
GRH300..GCC;GDH300..5D..(SG,SP);GDH300..4D..6FC..ARL;GDH300..SHP..(GCC,GEN);GDH300,301,GRH300,301..RHD..4D..(GEN,NZ,TH) |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ);GDH301,303,304,328,GRH301,304,322..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26590 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26F70 |
GDH300,GRH300..SHP |
1 | ||
| 58315-26F60 |
GDH300,GRH300..SHP *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 58388F - PLATE, FLOOR, REAR RH | ||||
| 58388-26040 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58389C - PLATE, FLOOR, REAR LH | ||||
| 58389-26010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GDH300..5D;GDH306..LHD;GRH303..LHD..J;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH);GDH321,GRH300..D..(GCC,IDN,NZ);GDH300,320,322..4D..6FC..(ARL,NZ);GDH320,322,GRH303,320,322..RHD..SG..(D,G,J,N)..(GEN,TH) |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH301,303,304,328,GRH301,304;GDH306,320,321,322,GRH32#..LHD..SG |
1 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 90467-05161C9 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1902- )GDH300,GRH300..5D
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-26040 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-26020 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 52295-26030 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26020 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26720 |
GDH300,320,GRH320..RHD..6F..GEN SOUTH AFRICA SPEC |
1 | ||
| 57023-26710 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 57023-26790 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26800 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57024-26730 |
GDH300,320,GRH320..RHD..6F..GEN SOUTH AFRICA SPEC |
1 | ||
| 57024-26720 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26230 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57041-26330 |
GDH300..5D;GDH300,301..LHD..D..GEN |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26170 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH301..RHD..D..(GEN,NZ);GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26390 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26220 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 57069-26230 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-26420 |
GRH300..GCC;GDH300..5D..(GCC,GEN);GDH300,301,GRH300,301..LHD..4D..D |
1 | ||
| 57071-26610 |
GDH300..SHP..GEN HONG KONG SPEC&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57071-26580 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57071-26620 |
GDH300..SHP..GEN HONG KONG SPEC&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26420 |
GRH300..GCC;GDH300..5D..(GCC,GEN);GDH301..RHD..D..(GEN,NZ);GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 57072-26560 |
GDH300..SHP..GEN HONG KONG SPEC&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57072-26530 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57072-26550 |
GDH300..SHP..GEN HONG KONG SPEC&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26330 |
GDH300,GRH300..SHP |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26250 |
GDH300,GRH300..SHP |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26130 |
GDH300,GRH300..SHP |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26A80 |
GDH300,GRH300..SHP |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26350 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26490 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-26070 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26180 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26020 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 58307-26030 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26030 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| Common parts | ||||
| 90119-10866 | ||||
| 90119-T0380 | ||||
| 91645-C1232 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1903- )D..IDN ; (1903- )RHD..P..GEN
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-26040 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH | ||||
| 51096-26020 |
GDH300..5D;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..(D,N)..GEN;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 52295-26030 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26020 |
GDH322..D,N;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,321,328,GRH300,301,32# |
1 | ||
| 52296-V3010 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH322..ARL,GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26720 |
GDH300,320,GRH320..RHD..6F..GEN SOUTH AFRICA SPEC |
1 | ||
| 57023-26710 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 57023-26790 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26800 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57024-26730 |
GDH300,320,GRH320..RHD..6F..GEN SOUTH AFRICA SPEC |
1 | ||
| 57024-26720 |
GRH300..GCC;GRH300..4D..GEN;GDH300,320,GRH320..GCC,GEN,TH |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26230 |
GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 57041-26330 |
GDH300..5D;GDH300,301..LHD..D..GEN |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26170 |
GDH300..5D;GRH300..GCC;GDH300..4D..6FC..ARL;GDH301..RHD..D..(GEN,NZ);GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26390 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26220 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 57069-26230 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-26420 |
GRH300..GCC;GDH300..5D..(GCC,GEN);GDH300,301,GRH300,301..LHD..4D..D |
1 | ||
| 57071-26610 |
GDH300..SHP..GEN HONG KONG SPEC&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57071-26580 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57071-26620 |
GDH300..SHP..GEN HONG KONG SPEC&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-26420 |
GRH300..GCC;GDH300..5D..(GCC,GEN);GDH301..RHD..D..(GEN,NZ);GDH300,GRH300,301..RHD..4D..D..(GEN,TH) |
1 | ||
| 57072-26560 |
GDH300..SHP..GEN HONG KONG SPEC&*POSD & *ECS(*SD & BACK DOOR)&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57072-26530 |
GDH300,GRH300..SHP..(GCC,GEN) *POSD & *ECS(*SD & BACK DOOR) |
1 | ||
| 57072-26550 |
GDH300..SHP..GEN HONG KONG SPEC&SRS AIR BAG-W(DRIVER & PASSENGER) |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26330 |
GDH300,GRH300..SHP |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26250 |
GDH300,GRH300..SHP |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26130 |
GDH300,GRH300..SHP |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26A80 |
GDH300,GRH300..SHP |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26350 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH300..4D..6FC..ARL;GDH300,GRH300..4D..(GEN,TH);GDH320,322,GRH320,322..D..(GCC,GEN) |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26490 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-26070 |
GDH300..RHD..5D;GDH300..4D..6FC;GDH300..LHD..6F;GRH300..4D..GEN;GDH320..6FC..ARL;GDH320,GRH320..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH) |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26180 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26020 |
GRH300..GCC;GDH322..LHD..P;GDH322,GRH300..4D..D..(GEN,TH);GDH300,301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,TH,VN) |
1 | ||
| 58307-26030 |
GRH300..4D..GEN;GDH322..LHD..P..GEN;GDH300,301,32#,GRH301,320,322..D..(GEN,IDN,VN) ROUGH ROAD AREA SPEC-WITH |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26030 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26040 |
GDH300..5D;GRH300..GCC;GDH320..6FC..ARL;GDH322..LHD..P..GEN;GDH300..4D..6FC..ARL;GDH322..P..(ARL,GCC,NZ);GDH300,322,GRH300..4D..D..(GEN,TH);GDH301,320,321,328,GRH301,320,322..(D,P)..(GCC,GEN,IDN,NZ,TH,VN) |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GRH303..LHD..J;GDH300..4D..6FC;GDH300..LHD..6F;GDH300..RHD..5D;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH322..LHD..(P,Q)..GEN;GDH320,GRH300,320..6F..GCC;GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH320,321,GRH320..D..(GEN,IDN,NZ);GDH322,GRH300..4D..(D,N)..(GEN,TH) |
3 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-10866 | ||||
| 90119-T0380 | ||||
| 90119-T0526 | ||||
| 91645-C1232 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
