GDH300R-RCFDY (2019)
Toyota Hiace
ILLUST NO. 2 OF 2(1902- )
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-26350 |
GRH300..GEN;GDH300..6F..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 44050-26320 |
GDH301..LHD..6F;GRH300..4D..GEN;GDH301..6FC..GEN;GDH300,GRH301..GEN;GDH301..RHD..6F..D..GEN |
1 | ||
| 44050-26320 |
GDH300..RHD..6F..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 44050-26320 |
GDH301..LHD..6F;GRH300..4D..GEN;GDH301..6FC..GEN;GDH300,GRH301..GEN;GDH301..RHD..6F..D..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 44050-26411 |
GDH300..RHD..6F..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 44050-26401 |
GDH300..6F..GEN;GRH300..4D..GEN REAR WHEEL BRAKE-DISC&VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 44050-26320 |
GDH301..LHD..6F;GRH300..4D..GEN;GDH301..6FC..GEN;GDH300,GRH301..GEN;GDH301..RHD..6F..D..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 44050-26320 |
GDH300..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 44050-26361 |
GDH300..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 44050-26660 |
GDH301..LHD..6F;GRH300..4D..GEN;GDH301..6FC..GEN;GDH300,GRH301..GEN;GDH301..RHD..6F..D..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 44050-26351 |
GDH300..6F..GEN;GRH300..4D..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-10080 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-26060 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 91674-80818 | ||||
ILLUST NO. 1 OF 2(1902- )GDH300,GRH300..6F..ARL ; (1902- )GDH300,301,GRH300,301..RHD..GEN,TH
BRAKE TUBE(REAR DRUM BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-26B00 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
1 | ||
| 47311-26A90 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47311-26A90 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26400 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 47312-26410 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
1 | ||
| 47312-26400 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26410 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H88 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H89 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26370 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-26840 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26450 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47323B - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26440 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26590 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26410 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47327-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26220 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47328-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26240 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 90464-00903 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
3 | ||
| 90464-00920 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90464-00903 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
6 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E02 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90461-08639 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D20 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E47 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
6 | ||
| 90949-01E48 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
6 | ||
| 90949-01E47 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
6 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00903 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
2 | ||
| 90464-00903 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
2 | ||
| Common parts | ||||
| 90119-T0237 | ||||
| 90119-T0342 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

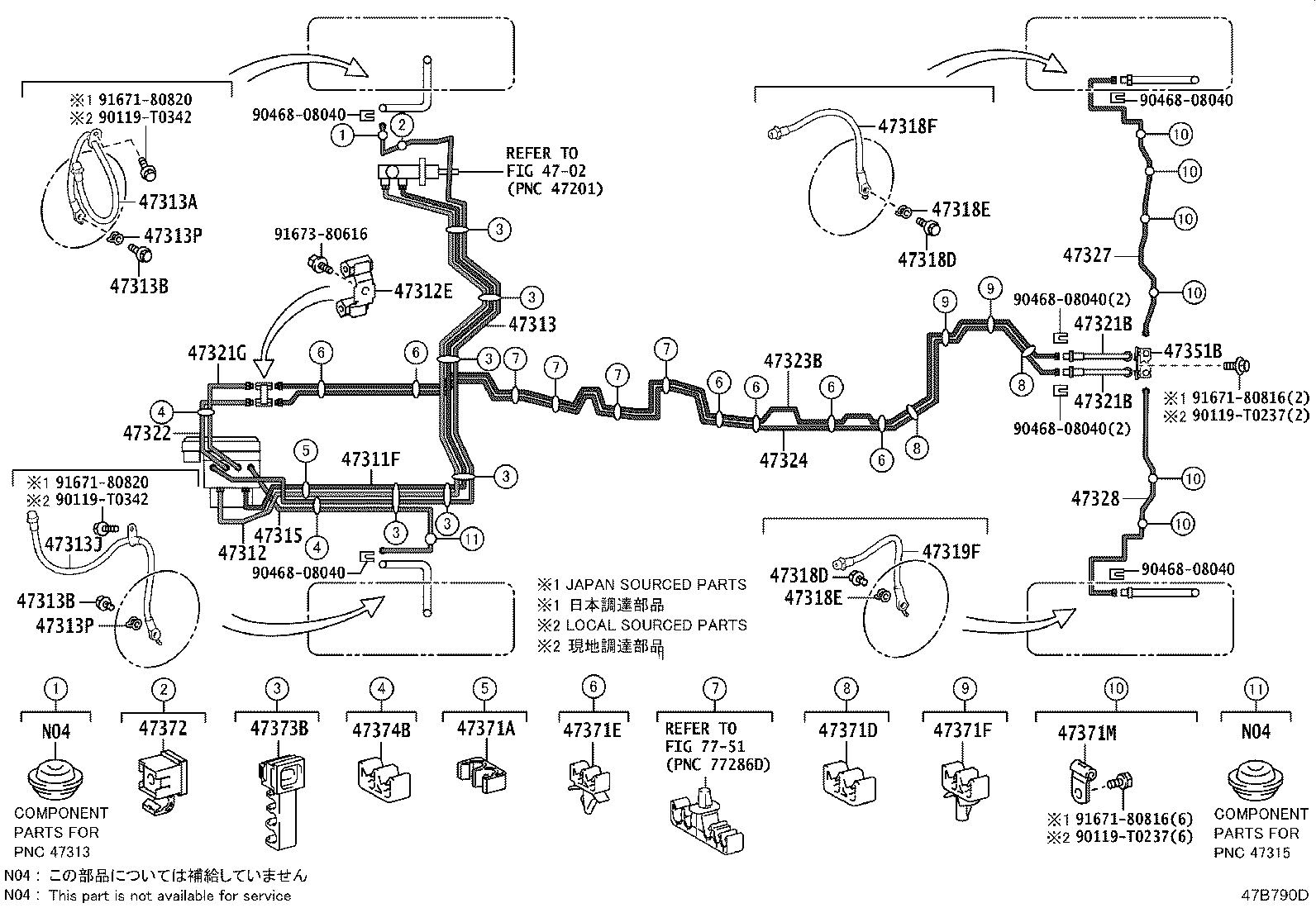

ILLUST NO. 1 OF 2(1902- )GDH322..TH ; (1902- )GDH300..RHD..6F..GEN ; (1902- )GDH300,GRH300.
BRAKE TUBE(REAR DISC BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-26B00 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
1 | ||
| 47311-26A90 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47311-26A90 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-26400 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 47312-26410 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
1 | ||
| 47312-26400 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26410 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H88 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H89 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26370 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H23 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H23 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H90 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-26840 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26450 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47323B - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26440 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26590 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26410 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47327-26420 |
GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26220 |
GRH300..4D..GEN;GDH300,301,GRH301..GEN REAR WHEEL BRAKE-DISC |
1 | ||
| 47328-26230 |
GRH300..GCC;GRH300..4D..GEN;GDH300..5D..6F..ARL;GDH300,301,320,GRH301,320..GCC,GEN,TH |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26240 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
1 | ||
| 90464-00903 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
3 | ||
| 90464-00920 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90464-00903 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90469-07019 |
GDH300..5D;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH301,303,304,328,GRH301,304,322;GDH306,321,GRH321..LHD..(G,J,N,Q);GDH300,322,GRH300..4D..(D,N)..(GEN,TH);GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
6 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01E02 |
GDH300..5D;GDH306..LHD;GRH300..GCC;GRH303..LHD..J;GRH303..RHD..GEN;GDH300..4D..6FC..ARL;GDH301,303,304,GRH301,304;GDH300,GRH300..4D..(GEN,TH) |
2 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| 90461-08639 |
GDH300..5D;GDH322..D,N;GRH300..GCC;GDH321..N..GEN;GDH320..6FC..ARL;GDH322..ARL,GCC,NZ;GDH300..4D..6FC..ARL;GDH322..LHD..(P,Q)..GEN;GDH300,321,GRH300..4D..D..(GEN,IDN,NZ,TH);GDH301,320,328,GRH301,32#..GCC,GEN,NZ,PH,TH,VN |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D20 |
GDH300..RHD..5D;GDH300..RHD..4D..6FC;GDH320,322..6FC..(ARL,NZ);GDH300..RHD..4D..6F..(GEN,TH);GDH301,303,304,322,GRH301,304,322..RHD..(D,G,H,J,N);GDH320,321,GRH300,303,320..RHD..(D,G,J)..(GEN,IDN,NZ) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E47 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
6 | ||
| 90949-01E48 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN |
6 | ||
| 90949-01E47 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
6 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00903 |
GDH322..RHD..6FC..N;GDH301..RHD..6FC..GEN;GDH301..RHD..6F..D..GEN;GDH322,GRH322..RHD..D..GEN;GDH300,320,GRH300,301,320..RHD..GEN VEHICLE STABILITY CONTROL-WITH |
2 | ||
| 90464-00903 |
GDH300,320,GRH320..RHD..6F..GEN VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL) |
2 | ||
| Common parts | ||||
| 90119-T0237 | ||||
| 90119-T0342 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
