GDH300R-RCFDY (2019)
Toyota Hiace
(1902- )1GDFTV..GDH304,306,321,322..RHD..GEN,IDN,TH ; (1902- )1GDFTV..GDH300,
W/O(HEATER)

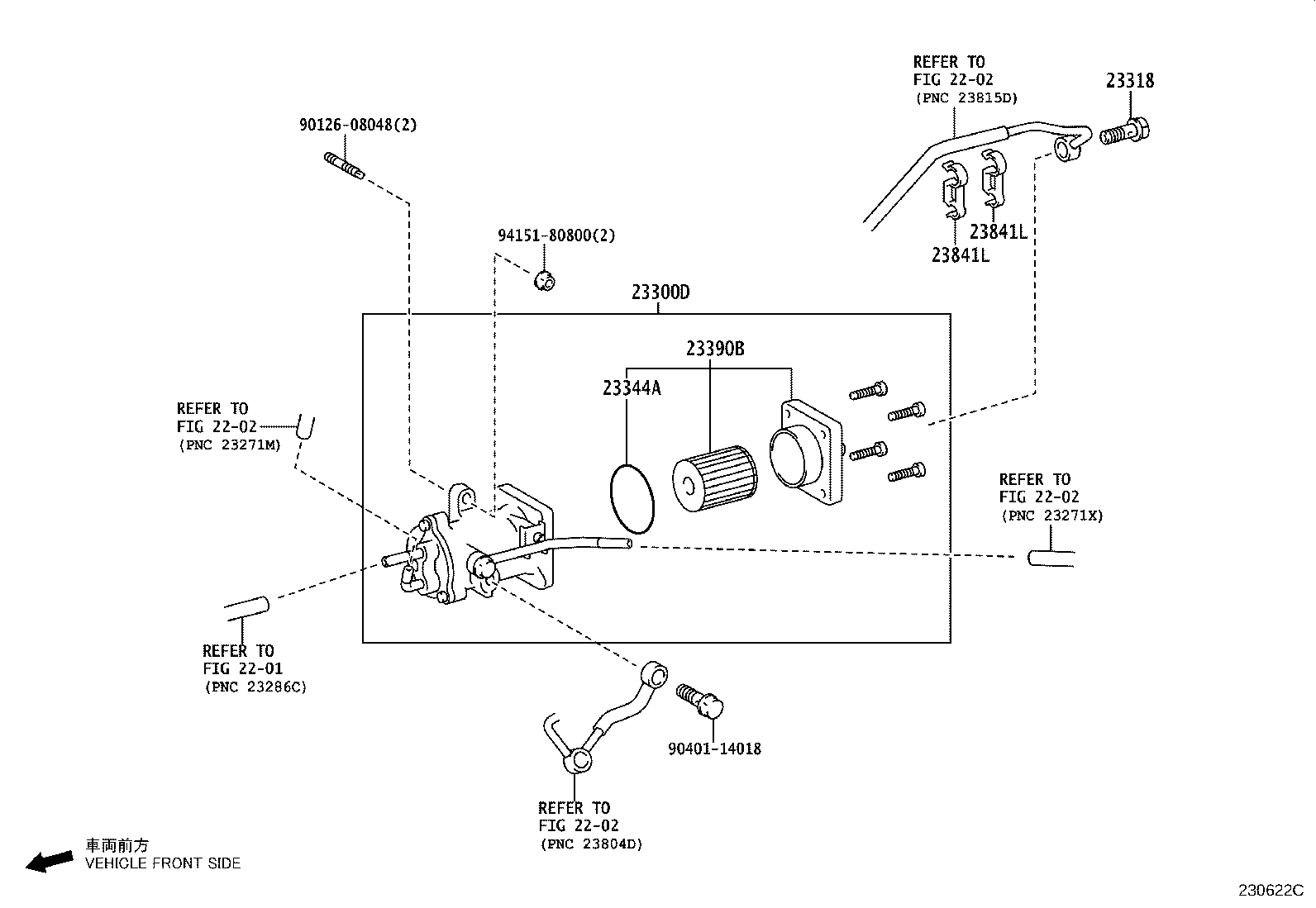

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-A0816 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1902- )1GDFTV..GDH322..LHD..6F ; (1902- )1GDFTV..GDH322..6FC..GCC ; (1902-
W/O(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-A0816 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1902- )1GDFTV..GDH300..ARL,TH ; (1902- )1GDFTV..GDH300..6F..GEN ; (1902-
W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-A0816 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1902- )1GDFTV..GDH301,320,322..6FC..ARL,NZ,TH ; (1902- )1GDFTV..GDH300,306,3
W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-A0816 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1902- )1GDFTV..GDH303..G,J..ARL,GEN ; (1902-)1GDFTV..GDH320..LHD..SP..GEN ;
W(HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300 - FILTER ASSY, FUEL | ||||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS),MARK=23300-11250 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) MARK=23300-11240 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23300-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S),MARK=23300-11260 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23344-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11240 |
1GDFTV..GDH322..GCC;1GDFTV..GDH303..LHD..(G,J);1GDFTV..GDH303,321..RHD..(D,G,H,J)..(GEN,IDN);1GDFTV..GDH300,301,320,322,328..(D,N)..(GCC,GEN,VN) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..6F..GEN;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300..RHD..4D..6F..GEN SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO1/2,WITHOUT(ON BOARD DIAGNOSIS) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23380-11250 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23388 - PLUG, FUEL FILTER DRAIN | ||||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23388-0L041 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11240 |
1GDFTV..GDH300..5D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH301,303,304,328;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23390-11260 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),W/O(S&S) |
1 | ||
| 23925 - STAY, FUEL FILTER SUPPORT | ||||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23925-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926 - STAY, FUEL FILTER SUPPORT, NO.2 | ||||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23926-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 23941 - PROTECTOR, FUEL FILTER, NO.1 | ||||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 23941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90179-08241 | ||||
| 91551-A0816 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1902- )1GDFTV..GDH30#,320,321,322..ARL,GCC,GEN,IDN,NZ
PRESSURIZED FUEL FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-11231 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
1 | ||
| 23300-11231 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
1 | ||
| 23300-11231 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
1 | ||
| 23318 - BOLT, UNION | ||||
| 90401-14020 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
1 | ||
| 90401-14020 |
1GDFTV..GDH30#,320,321,322..ARL,GCC,GEN,NZ |
1 | ||
| 90401-14020 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
1 | ||
| 90401-T0009 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
1 | ||
| 90401-T0009 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
1 | ||
| 90401-T0009 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
1 | ||
| 23344A - GASKET, FUEL FILTER ELEMENT | ||||
| 23385-11230 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
1 | ||
| 23385-11230 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
1 | ||
| 23385-11230 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
1 | ||
| 23390B - ELEMENT ASSY, FUEL FILTER, NO.2 | ||||
| 23390-11231 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
1 | ||
| 23390-11231 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
1 | ||
| 23390-11231 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
1 | ||
| 23841L - CLAMP, FUEL PIPE | ||||
| 23841-11050 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
2 | ||
| 23841-11050 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
2 | ||
| 23841-11050 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
2 | ||
| 23841L - CLAMP, FUEL PIPE | ||||
| 23841-11050 |
1GDFTV..GDH300..5D;1GDFTV..GDH303..RHD;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH303,306,321..LHD..(G,J,N);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ);1GDFTV..GDH301,304,320,322..(D,H,N)..(GCC,GEN,NZ) |
2 | ||
| 23841-11050 |
1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..SHP..6FC..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN HONG KONG SPEC |
2 | ||
| 23841-11050 |
1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH303..RHD..(G,J)..GEN;1GDFTV..GDH300,320,322..RHD..6F..(D,N)..GEN SOUTH AFRICA SPEC |
2 | ||
| Common parts | ||||
| 90126-08048 | ||||
| 90401-14018 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
