GDH300R-RCFDY (2019)
Toyota Hiace
ILLUST NO. 1 OF 2(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11A10 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-31790 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11640 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17710B - GROMMET | ||||
| 90480-11016 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 17710K - COLLAR(FOR AIR CLEANER) | ||||
| 90387-09064 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
2 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-11160 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-31030 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-31030 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17772-31010 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) NO.2 |
1 | ||
| 17771-31040 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) NO.1 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17772-31010 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) NO.2 |
1 | ||
| 17771-31040 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) NO.1 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31160 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11650 |
1GDFTV..GDH301..RHD..GEN;1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN;1GDFTV..GDH300,303..RHD..(SG,SHP)..6FC..(D,G,J)..GEN FIJI SPEC |
1 | ||
| 17881-11610 |
1GDFTV..GDH322..GCC;1GDFTV..GDH321..6F..D;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..6FC..(P,Q)..GEN;1GDFTV..GDH300,301,303,304,320,322,328..(D,G,H,J,N)..(GCC,GEN,PH,TH,VN) |
1 | ||
| 17881-11650 |
1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..GEN OCEANIA(GENERAL)SPEC |
1 | ||
| 17881-11650 |
1GDFTV..GDH301..RHD..GEN;1GDFTV..GDH322..RHD..D..GEN;1GDFTV..GDH300..RHD..6F..GEN;1GDFTV..GDH300..RHD..4D..6FC..GEN;1GDFTV..GDH300,303..RHD..(SG,SHP)..6FC..(D,G,J)..GEN PAPUA NEW GUINEA SPEC |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-11080 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06786 | ||||
| 90119-06900 | ||||
| 90119-T0156 | ||||
| 90119-T0448 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||

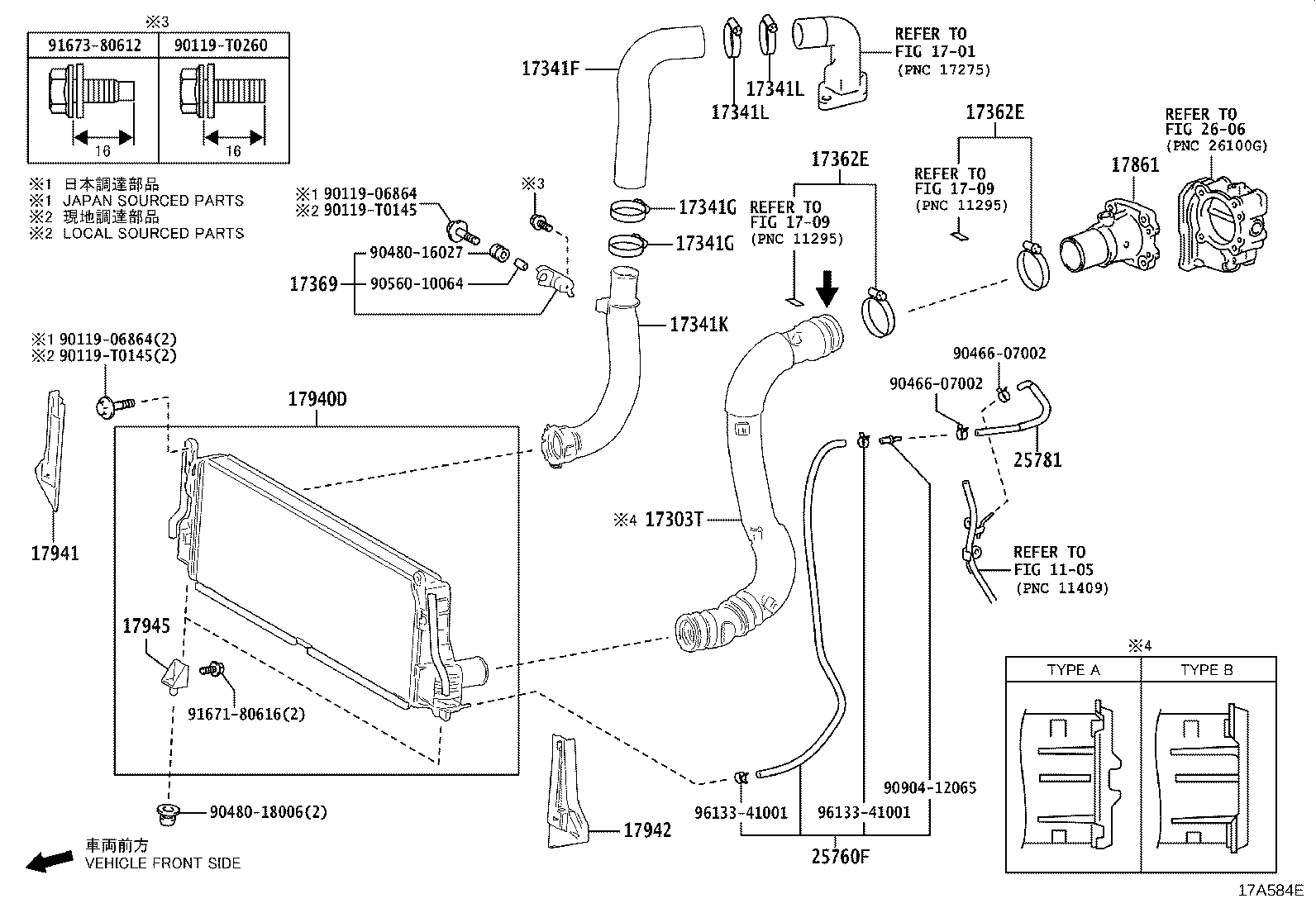

ILLUST NO. 2 OF 2(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303T - PIPE SUB-ASSY, AIR | ||||
| 17303-11A01 |
1GDFTV..GDH30#,32# TYPE A:REFER ILLUST. |
1 | ||
| 17303-11A02 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) TYPE B:REFER ILLUST. |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-11480 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-62008 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-62008 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17361-11130 |
1GDFTV..GDH30#,32# |
1 | ||
| 17361-11131 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-62008 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-62008 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 17808-11010 |
1GDFTV..GDH30#,32# PNC 17303T=TYPE A |
1 | ||
| 17808-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,PNC 17303T=TYPE A |
1 | ||
| 17808-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) PNC 17303T=TYPE B |
1 | ||
| 17808-11011 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,PNC 17303T=TYPE B |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 17808-11010 |
1GDFTV..GDH30#,32# PNC 17303T=TYPE A |
1 | ||
| 17808-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,PNC 17303T=TYPE A |
1 | ||
| 17808-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) PNC 17303T=TYPE B |
1 | ||
| 17808-11011 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC,PNC 17303T=TYPE B |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-11120 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17861-11130 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-11060 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17940-11080 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17941 - GUIDE, INTERCOOLER AIR, NO.1 | ||||
| 17941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17942 - GUIDE, INTERCOOLER AIR, NO.2 | ||||
| 17942-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-11050 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17945-11040 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 25760F - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11431 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 25781 - HOSE, VACUUM TRANSMITTING, NO.3 | ||||
| 25781-11031 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| Common parts | ||||
| 90119-06864 | ||||
| 90119-T0145 | ||||
| 90119-T0260 | ||||
| 90466-07002 | ||||
| 90480-16027 | ||||
| 90480-18006 | ||||
| 90560-10064 | ||||
| 90904-12065 | ||||
| 91671-80616 | ||||
| 91673-80612 | ||||
| 96133-41001 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
| 1709 | ||||
| 2606 | ||||
ILLUST NO. 2 OF 2(1912- )1GDFTV..GDH300..SHP..GEN ; (1912-)1GDFTV..GDH320..LHD..SP..6F..GEN ;
W(INTERCOOLER (WATER COOLED TYPE))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17030 - HOSE ASSY, AIR | ||||
| 17030-11040 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17360E - TUBE ASSY, AIR, NO.1 | ||||
| 17360-11090 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-11120 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17861-11130 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-11060 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17940-11080 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17941 - GUIDE, INTERCOOLER AIR, NO.1 | ||||
| 17941-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17942 - GUIDE, INTERCOOLER AIR, NO.2 | ||||
| 17942-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-11050 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| 17945-11040 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
2 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-11020 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| Common parts | ||||
| 82715-6A680 | ||||
| 90119-06953 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 2501 | ||||
| 2606 | ||||
| 8405 | ||||
