GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV

Click highlighted areas on diagram

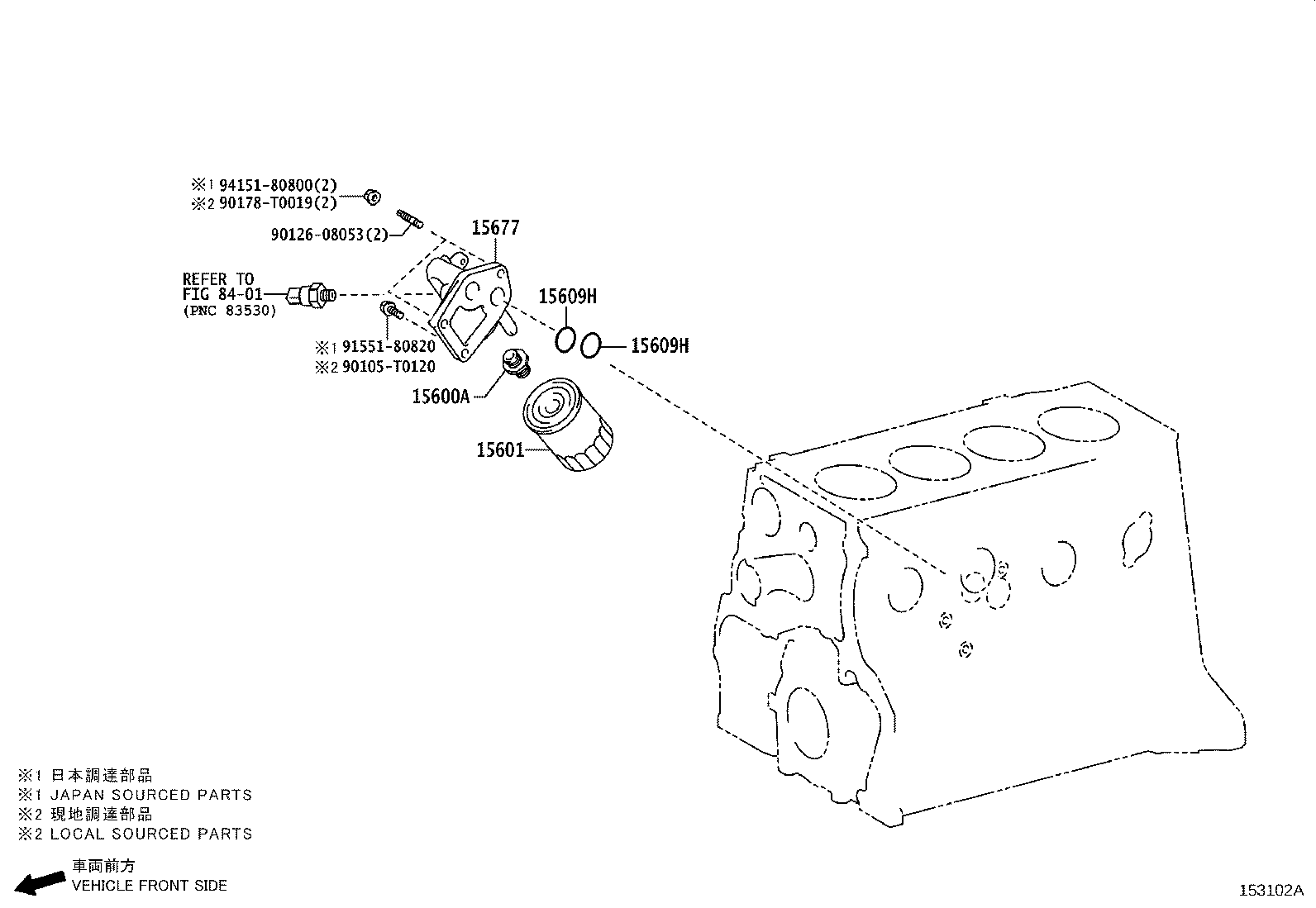

diagram 15600A 15601 15609H 15609H 15677 8401 90105T0120 9012608053 90178T0019 9155180820 9415180800
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19015

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
15601 - FILTER SUB-ASSY, OIL
90915-20003

1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH30#,32#..D,G,H,J,N;1GDFTV..GDH322..LHD..(P,Q)..GEN

(J)

 1
90915-20005

1GDFTV..GDH300..RHD..5D;1GDFTV..GDH300..4D..6FC;1GDFTV..GDH300..LHD..6F;1GDFTV..GDH320..6F..GCC;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..(D,N)..GEN;1GDFTV..GDH322..LHD..P..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,321..D..(GEN,IDN,NZ);1GDFTV..GDH300..RHD..4D..6F..(GEN,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24030

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24030

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 2
15677 - BRACKET, OIL FILTER
15677-11020

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
Common parts
90105-T0120
90126-08053
90178-T0019
91551-80820
94151-80800
Linked diagrams
8401
