GDH300R-RCFDY (2019)

Toyota Hiace

Production Feb 2019 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )1GDFTV

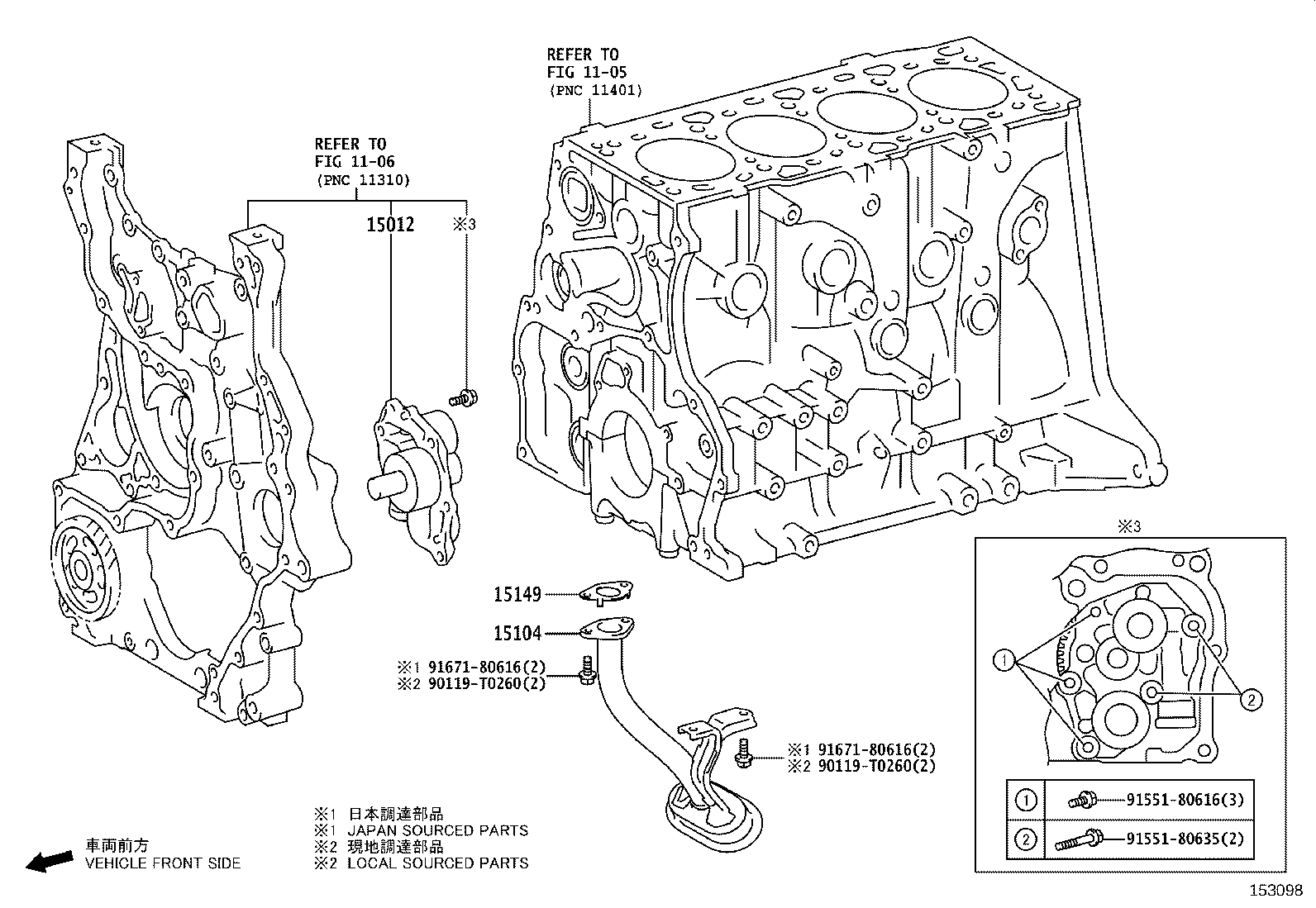

Click highlighted areas on diagram

diagram 1105 1106 15012 15104 15149 90119T0260 90119T0260 9155180616 9155180635 9167180616 9167180616
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-11030

1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH)

 1
15104 - STRAINER SUB-ASSY, OIL
15104-11230

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-11120

1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH

(J)

 1
Common parts
90119-T0260
91551-80616
91551-80635
91671-80616
Linked diagrams
1105
1106
