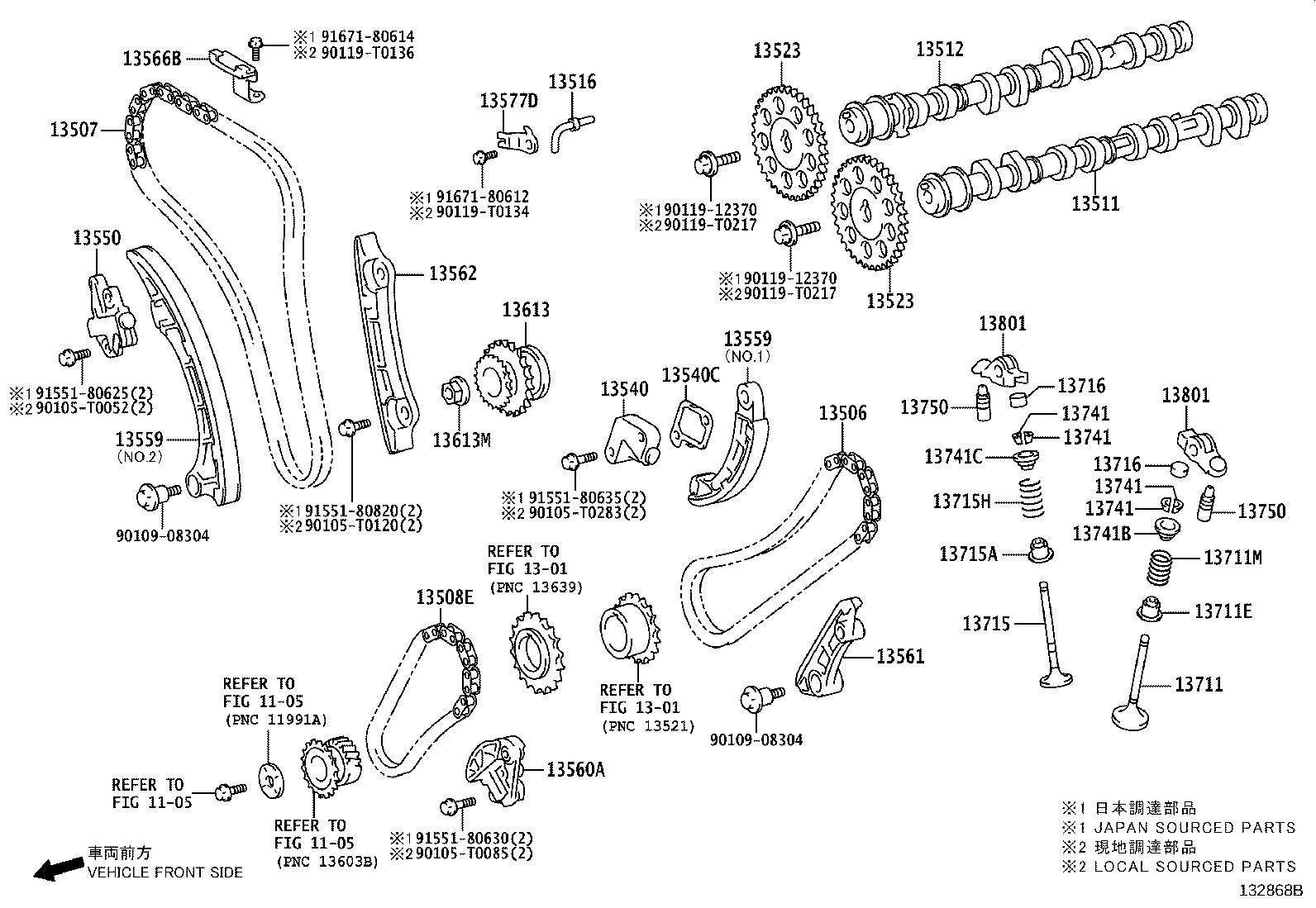

GDH300R-RCFDY (2019)
Toyota Hiace
(1902- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) (J) |
1 | ||
| 13508E - CHAIN SUB-ASSY, NO.3 | ||||
| 13508-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH322..ARL,GCC;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-11070 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-11070 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13516 - JET, OIL | ||||
| 13516-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
2 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
2 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13550 - TENSIONER ASSY, CHAIN, NO.2 | ||||
| 13550-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH NO.2,(J) |
1 | ||
| 13559-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH NO.1,(J) |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH NO.2,(J) |
1 | ||
| 13559-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH NO.1,(J) |
1 | ||
| 13560A - TENSIONER ASSY, CHAIN, NO.3 | ||||
| 13560-11010 |
1GDFTV..GDH30#,32# |
1 | ||
| 13560-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-11010 |
1GDFTV..GDH30#,32# (J) |
1 | ||
| 13561-11011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13577D - PLATE, LOCK | ||||
| 13577-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 13613 - GEAR, INJECTION PUMP DRIVE | ||||
| 13616-11020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH MADE IN JAPAN |
1 | ||
| 13616-0E010 |
1GDFTV..GDH30#,32# MADE IN THAILAND |
1 | ||
| 13616-0E011 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) MADE IN THAILAND |
1 | ||
| 13613M - NUT(FOR INJECTION PUMP DRIVE GEAR) | ||||
| 90179-18021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH MADE IN JAPAN |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02130 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13711M - SPRING, COMPRESSION(FOR INTAKE VALVE) | ||||
| 90501-29063 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-11050 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02130 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE) | ||||
| 90501-29063 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-33010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-33010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 90913-03021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 90913-03021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 90913-03021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 90913-03021 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
32 | ||
| 13741B - RETAINER, INTAKE VALVE SPRING | ||||
| 13741-33020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
8 | ||
| 13741C - RETAINER, EXHAUST VALVE SPRING | ||||
| 13741-33020 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH |
8 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-26010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-26010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-11011 |
1GDFTV..GDH30#,32# (J) |
16 | ||
| 13801-11012 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-11011 |
1GDFTV..GDH30#,32# (J) |
16 | ||
| 13801-11012 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
16 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0085 | ||||
| 90105-T0120 | ||||
| 90105-T0283 | ||||
| 90109-08304 | ||||
| 90119-12370 | ||||
| 90119-T0134 | ||||
| 90119-T0136 | ||||
| 90119-T0217 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91551-80635 | ||||
| 91551-80820 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1301 | ||||
