GDH300R-RCFDY (2019)
Toyota Hiace
(1902- )1GDFTV..GDH300,301,32#..6F

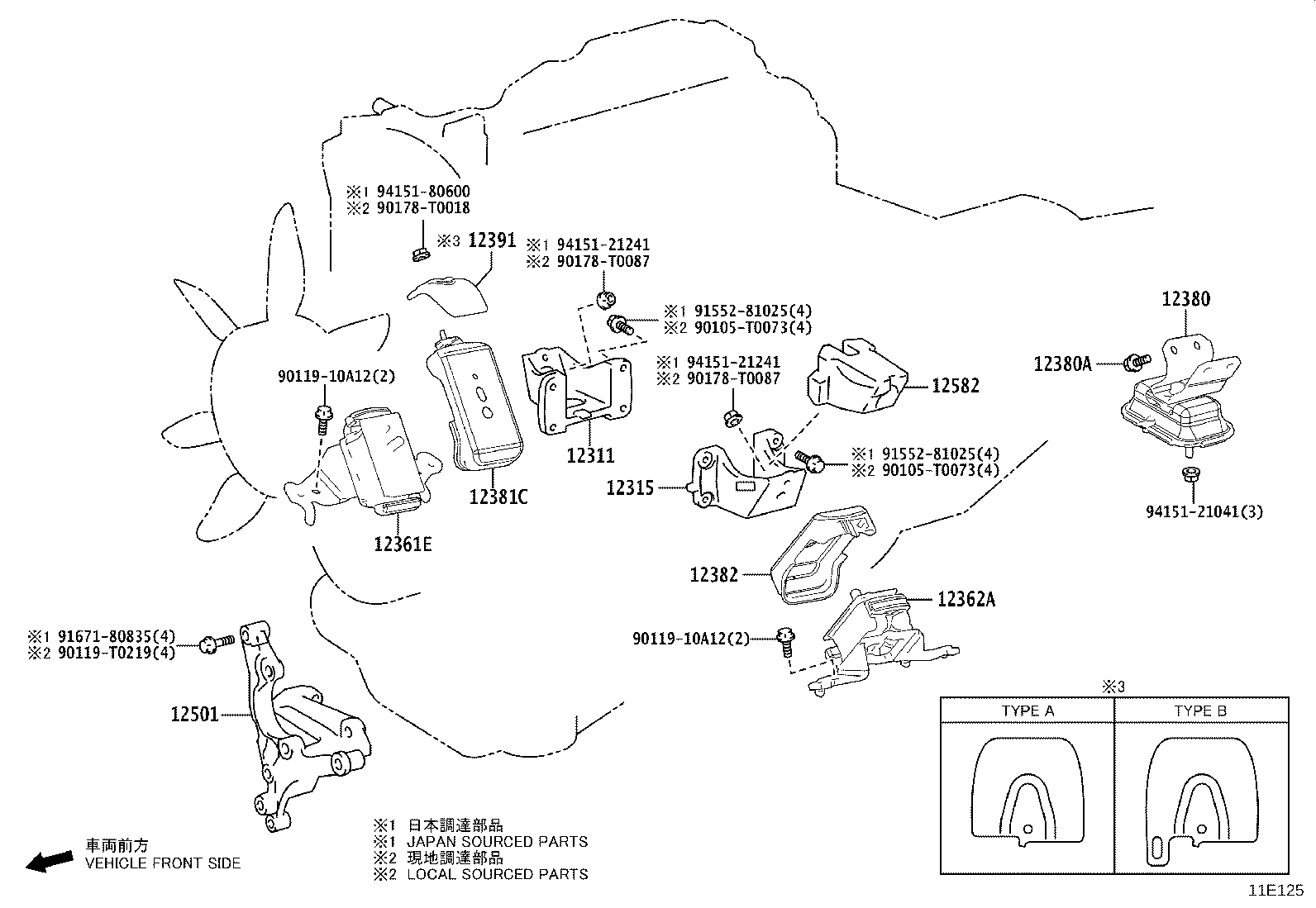

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-11140 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-11060 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 12361E - INSULATOR, ENGINE MOUNTING, FRONT RH | ||||
| 12361-11210 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12362-11310 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-11020 |
1GDFTV..GDH300..5D..6F;1GDFTV..GDH321..N..GEN;1GDFTV..GDH322..LHD..6F..(P,Q);1GDFTV..GDH320,321..6F..D..(GCC,GEN,IDN);1GDFTV..GDH300,301,322,328..4D..6F..(D,N)..(GEN,PH,TH,VN) |
1 | ||
| 12380A - BOLT(FOR ENGINE MOUNTING INSURATOR) | ||||
| 90119-10A12 |
1GDFTV..GDH300..5D;7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH303..RHD..GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV,7GRFKS..GDH301,303,304,328,GRH301,304,322;1GDFTV,7GRFKS..GDH306,321,GRH321..LHD..(G,J,N,Q);1GDFTV,7GRFKS..GDH300,322,GRH300..4D..(D,N)..(GEN,TH);1GDFTV,7GRFKS..GDH320,321,GRH320..D..(GCC,GEN,IDN,NZ) |
4 | ||
| 12381C - STABILIZER, ENGINE MOUNTING, RH | ||||
| 12381-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) |
1 | ||
| 12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH | ||||
| 12391-0L010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) TYPE A:REFER ILLUST. |
1 | ||
| 12391-11030 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..GCC,GEN;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH301,303,304,322,328..D,G,H,J,N;1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH) TYPE B:REFER ILLUST. |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-11012 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 12582 - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-11010 |
1GDFTV..GDH300..5D;1GDFTV..GDH320..6FC..ARL;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH300..4D..6FC..ARL;1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH306,321..LHD..(G,J,N);1GDFTV..GDH320,322..(D,N)..(GCC,GEN);1GDFTV..GDH300,321..4D..D..(GEN,IDN,NZ,TH);1GDFTV..GDH301,303,304,328..ARL,GCC,GEN,NZ,PH,TH (J) |
1 | ||
| 12582-11010 |
1GDFTV..GDH300..SHP..GEN HONG KONG SPEC |
1 | ||
| Common parts | ||||
| 90105-T0073 | ||||
| 90119-10A12 | ||||
| 90119-T0219 | ||||
| 90178-T0018 | ||||
| 90178-T0087 | ||||
| 91552-81025 | ||||
| 91671-80835 | ||||
| 94151-21041 | ||||
| 94151-21241 | ||||
| 94151-80600 | ||||
