GSJ15L-GKFSKA (2006)
Toyota Fj Cruiser

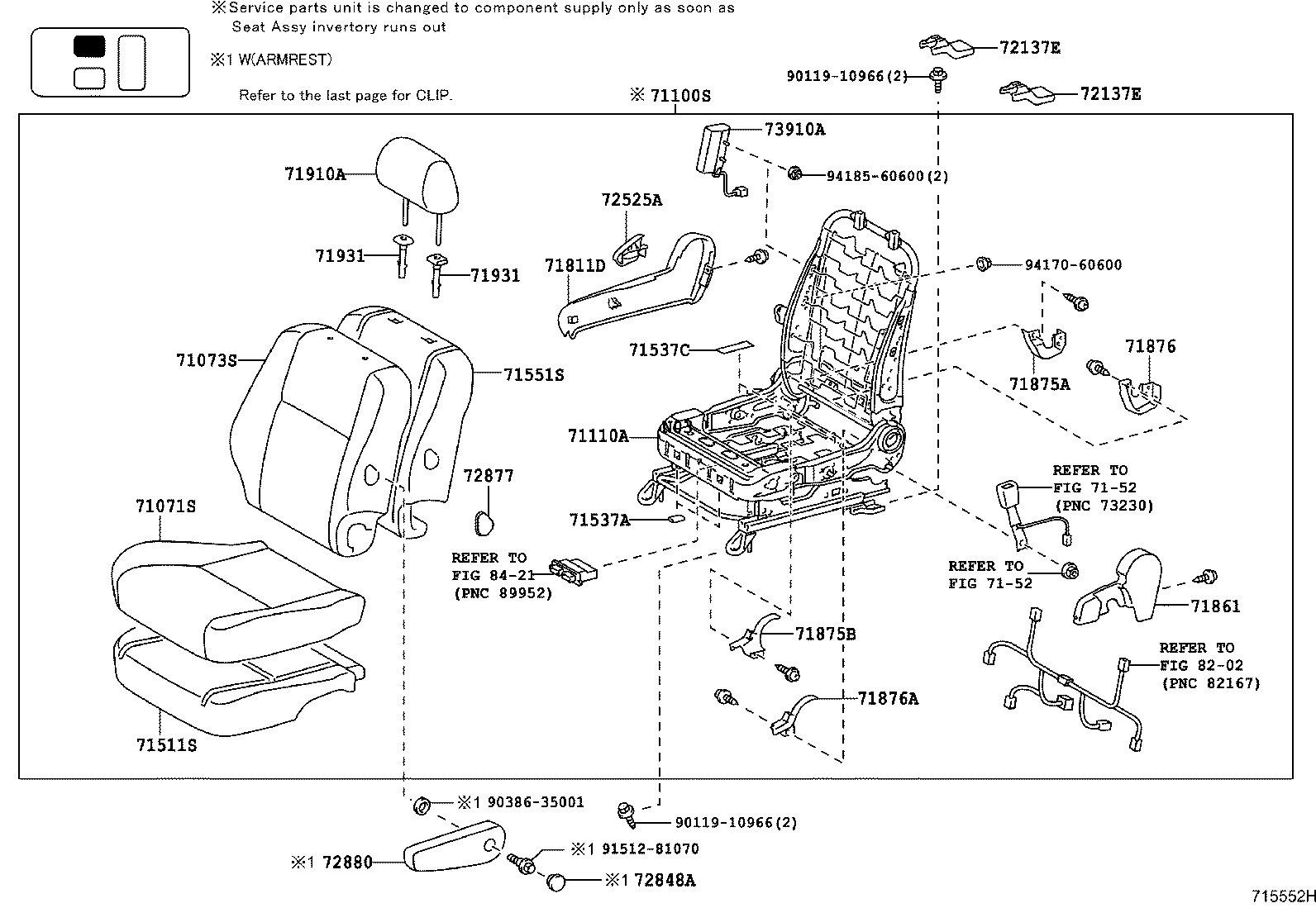

ILLUST NO. 2 OF 4(0601-0707)
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G430B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G431B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-35103B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71027-35101B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35091B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-35130 |
GSJ1# |
1 | ||
| 71110-35300 |
GSJ1# |
1 | ||
| 71110-35301 |
GSJ1# |
1 | ||
| 71110-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71110-35140 |
GSJ1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35140 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71551-35140 |
GSJ1# |
1 | ||
| 71551-35130 |
GSJ1# |
1 | ||
| 71551-35180 |
GSJ1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880-35022B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10966 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 3 OF 4(0601- )
REAR SEAT (RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-35090 |
GSJ1# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-35220 |
GSJ1# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010B6 |
GSJ1# DK.GRAY,TRIM1# |
13 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-35A30B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71075-35A33E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71075-35A33E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71075-35A31B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71075-35A33B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-35A43E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71077-35A43E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71077-35A43B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71077-35A40B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71077-35A41B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-35080 |
GSJ1# |
2 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-35090 |
GSJ1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-35030 |
GSJ1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-35090 |
GSJ1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-35080 |
GSJ1# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-35021B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35480B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35480B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-35040B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35021 |
GSJ1# |
2 | ||
| 72601-35022 |
GSJ1# |
2 | ||
| 72601-35020 |
GSJ1# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-35051 |
GSJ1# |
1 | ||
| 72630-35050 |
GSJ1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B6 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-35020B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-35040B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35041B1 |
GSJ1# DK.GRAY,TRIM1# |
3 | ||
| 72996-35040B1 |
GSJ1# DK.GRAY,TRIM1# |
3 | ||
| 79226A - STOPPER, REAR NO.1 SEAT CUSHION | ||||
| 79226-35010 |
GSJ1# |
4 | ||
| Common parts | ||||
| 72702-60080 | ||||
| 90105-08298 | ||||
| 90168-40125 | ||||
| 91553-10822 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 4 OF 4(0601- )
REAR SEAT (LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-35060 |
GSJ1# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-35130 |
GSJ1# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010B6 |
GSJ1# DK.GRAY,TRIM1# |
13 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-35551B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71076-35550B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71076-35553E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71076-35553E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71076-35553B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-35753B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71078-35753E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71078-35751B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71078-35750B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71078-35753E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-35080 |
GSJ1# |
2 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-35100 |
GSJ1# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-35030 |
GSJ1# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35070 |
GSJ1# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-35050 |
GSJ1# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-35060 |
GSJ1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71890-35021B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35480B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35480B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35021 |
GSJ1# |
2 | ||
| 72601-35022 |
GSJ1# |
2 | ||
| 72601-35020 |
GSJ1# |
2 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-35051 |
GSJ1# |
1 | ||
| 72640-35050 |
GSJ1# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B6 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-35020B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-35040B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35041B1 |
GSJ1# DK.GRAY,TRIM1# |
3 | ||
| 72996-35040B1 |
GSJ1# DK.GRAY,TRIM1# |
3 | ||
| 79226A - STOPPER, REAR NO.1 SEAT CUSHION | ||||
| 79226-35010 |
GSJ1# |
4 | ||
| Common parts | ||||
| 72702-60080 | ||||
| 90105-08298 | ||||
| 90168-40125 | ||||
| 91553-10822 | ||||

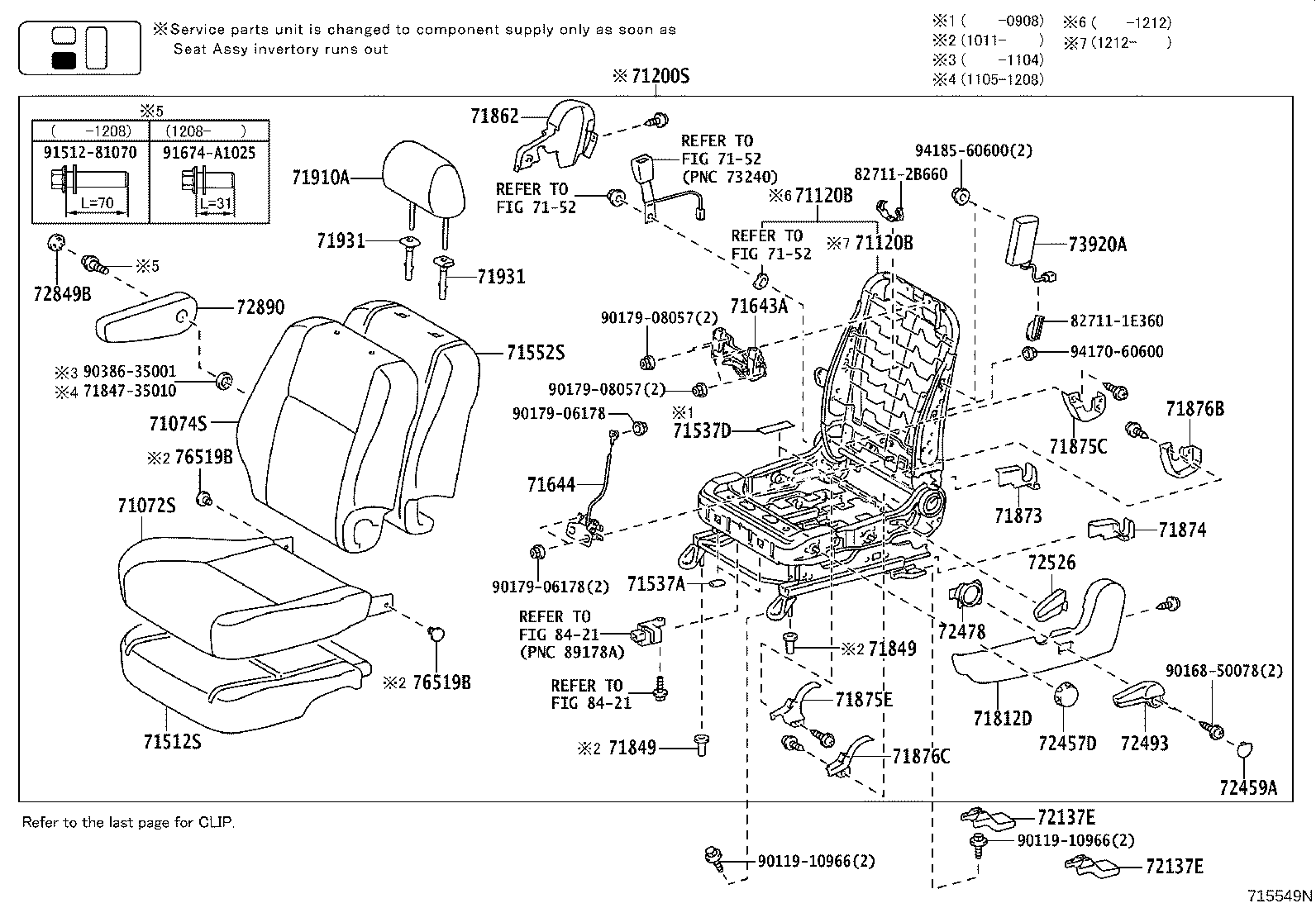

ILLUST NO. 1 OF 4(0808- )
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35241B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35240B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-35693B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35691B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35681B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074-35780B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-35100 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71120-35230 |
GSJ1# |
1 | ||
| 71120-35090 |
GSJ1# |
1 | ||
| 71120-35231 |
GSJ1# |
1 | ||
| 71120-35100 |
GSJ1# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-35100 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71120-35230 |
GSJ1# |
1 | ||
| 71120-35090 |
GSJ1# |
1 | ||
| 71120-35231 |
GSJ1# |
1 | ||
| 71120-35100 |
GSJ1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-3D030B2 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71200-35C01B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C03B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C03E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71020-3D032B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71020-3D030B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71020-3D031B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71200-35C00B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C01E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-35040 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35060 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71552-35090 |
GSJ1# |
1 | ||
| 71552-35050 |
GSJ1# |
1 | ||
| 71552-35060 |
GSJ1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
GSJ1# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
GSJ1# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35200B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
GSJ1# |
1 | ||
| 71873-53030B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
GSJ1# |
1 | ||
| 71874-53010B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GSJ1# |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890-35011B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72890-35012B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52070 |
GSJ1# |
1 | ||
| 73920-52070 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| Common parts | ||||
| 71847-35010 | ||||
| 82711-1E360 | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| 91674-A1025 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 4(0808- )
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G430B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G431B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-35103B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71027-35101B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35091B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-3D820B4 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71010-3D820B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71100-35B92E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71100-35B91B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71010-3D822B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71010-3D821B4 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71100-35B90B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71100-35B92B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71100-35B91E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-35130 |
GSJ1# |
1 | ||
| 71110-35300 |
GSJ1# |
1 | ||
| 71110-35301 |
GSJ1# |
1 | ||
| 71110-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71110-35140 |
GSJ1# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-35140 |
GSJ1# |
1 | ||
| 71110-35130 |
GSJ1# |
1 | ||
| 71110-35300 |
GSJ1# |
1 | ||
| 71110-35301 |
GSJ1# |
1 | ||
| 71110-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35140 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71551-35140 |
GSJ1# |
1 | ||
| 71551-35130 |
GSJ1# |
1 | ||
| 71551-35180 |
GSJ1# |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
GSJ1# |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
GSJ1# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880-35022B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52070 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 73910-52070 |
GSJ1# |
1 | ||
| Common parts | ||||
| 71847-35010 | ||||
| 82711-2B660 | ||||
| 90119-10966 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| 91674-A1025 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 4(0601-0808)
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35241B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35240B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-35693B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35691B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35681B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074-35780B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-35100 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71120-35230 |
GSJ1# |
1 | ||
| 71120-35090 |
GSJ1# |
1 | ||
| 71120-35231 |
GSJ1# |
1 | ||
| 71120-35100 |
GSJ1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-3D030B2 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71200-35C01B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C03B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C03E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71020-3D032B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71020-3D030B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71020-3D031B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71200-35C00B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71200-35C01E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-35040 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35060 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71552-35090 |
GSJ1# |
1 | ||
| 71552-35050 |
GSJ1# |
1 | ||
| 71552-35060 |
GSJ1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35200B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
GSJ1# |
1 | ||
| 71873-53030B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
GSJ1# |
1 | ||
| 71874-53010B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GSJ1# |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890-35011B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72890-35012B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-52070 |
GSJ1# |
1 | ||
| 73920-52070 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90119-10966 | ||||
| 90168-50078 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 4(0601-0808)
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G430B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G431B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71071-3G433E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-35103B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71027-35101B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35091B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71027-35100B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71027-35090B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71073-35B00E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-3D820B4 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71010-3D820B3 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71100-35B92E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71100-35B91B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71010-3D822B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71010-3D821B4 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71100-35B90B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71100-35B92B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71100-35B91E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-35130 |
GSJ1# |
1 | ||
| 71110-35300 |
GSJ1# |
1 | ||
| 71110-35301 |
GSJ1# |
1 | ||
| 71110-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71110-35140 |
GSJ1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35140 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35140 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71551-35140 |
GSJ1# |
1 | ||
| 71551-35130 |
GSJ1# |
1 | ||
| 71551-35180 |
GSJ1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35130B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72880-35022B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72880-35020B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-52070 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 73910-52070 |
GSJ1# |
1 | ||
| Common parts | ||||
| 90119-10966 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 4(0601-0707)
DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35241B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35240B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71072-35243E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-35693B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B0 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35691B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35681B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71074-35780B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35690B1 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
1 | ||
| 71074-35680B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71074-35780E0 |
GSJ15 SPECIAL EDITION,BEIGE,4U0 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-35100 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71120-35230 |
GSJ1# |
1 | ||
| 71120-35090 |
GSJ1# |
1 | ||
| 71120-35231 |
GSJ1# |
1 | ||
| 71120-35100 |
GSJ1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-35040 |
GSJ1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
GSJ1# |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-60050 |
GSJ1# |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35060 |
GSJ1# SRS AIR BAG-WITH(CURTAIN SHIELD) |
1 | ||
| 71552-35090 |
GSJ1# |
1 | ||
| 71552-35050 |
GSJ1# |
1 | ||
| 71552-35060 |
GSJ1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35200B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-53030 |
GSJ1# |
1 | ||
| 71873-53030B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-53010 |
GSJ1# |
1 | ||
| 71874-53010B1 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSJ1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSJ1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60160B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35761B1 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35760B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71910-35730B0 |
GSJ1# DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),SRS AIR BAG-WITH(CURTAIN SHIELD),DK.GRAY,TRIM1# |
2 | ||
| 71930-42020B4 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
GSJ1# W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 71930-52030B0 |
GSJ1# W(LOCK)&W(BUTTON),DK.GRAY,TRIM1# |
2 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-35090B0 |
GSJ1# DK.GRAY,TRIM1# |
4 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-60010 |
GSJ1# |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020B2 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-60010B3 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-35010B0 |
GSJ1# DK.GRAY,TRIM1# |
1 | ||
| 72890-35011B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| 72890-35012B1 |
GSJ1# DARK GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10966 | ||||
| 90168-50078 | ||||
| 90386-35001 | ||||
| 91512-81070 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8421 | ||||
(0601- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
