GSJ15L-GKFSKA (2006)

Toyota Fj Cruiser

Production Jan 2006 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

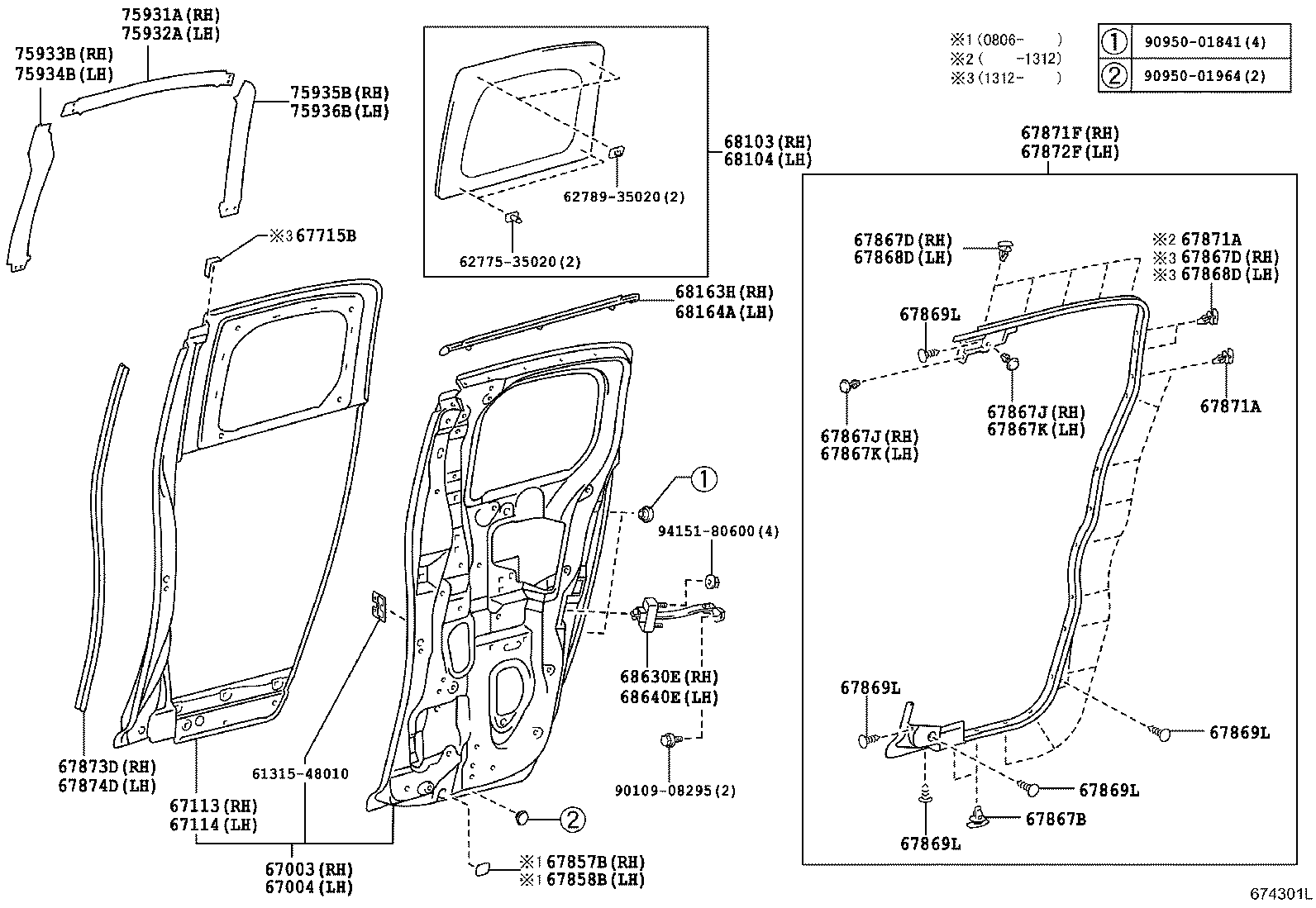

ILLUST NO. 1 OF 2(0601- )

Click highlighted areas on diagram

DOOR PANEL

diagram 6131548010 6277535020 6278935020 67003 67004 67113 67114 67715B 67857B 67858B 67867B 67867D 67867D 67867J 67867J 67867K 67867K 67868D 67868D 67869L 67869L 67869L 67869L 67869L 67871A 67871A 67871F 67872F 67873D 67874D 68103 68104 68163H 68164A 68630E 68640E 75931A 75932A 75933B 75934B 75935B 75936B 9010908295 9095001841 9095001964 9415180600
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-35220

GSJ1#

 1
67003-35221

GSJ15

CANADA SPEC

 1
67003-35221

GSJ1#

 1
67003-35220

GSJ15

CANADA SPEC

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-35220

GSJ15

CANADA SPEC

 1
67004-35221

GSJ15

CANADA SPEC

 1
67004-35221

GSJ1#

 1
67004-35220

GSJ1#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-35070

GSJ1#

 1
67113-35071

GSJ1#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-35071

GSJ1#

 1
67114-35070

GSJ1#

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-35040

GSJ1#

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67857-35040

GSJ1#

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-04034

GSJ1#

 4
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-52040

GSJ1#

 5
67867-52040

GSJ1#

 6
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-52040

GSJ1#

 5
67867-52040

GSJ1#

 6
67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
90467-06084

GSJ1#

 2
67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
90467-06084

GSJ1#

 2
67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
90467-06084

GSJ1#

 2
67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
90467-06084

GSJ1#

 2
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-52030

GSJ1#

 6
67867-52030

GSJ1#

 5
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-52030

GSJ1#

 6
67867-52030

GSJ1#

 5
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

GSJ1#

 10
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

GSJ1#

 10
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

GSJ1#

 10
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

GSJ1#

 10
67869L - CLIP, REAR DOOR WEATHERSTRIP
67869-20030

GSJ1#

 10
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-12150

GSJ1#

 24
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-12150

GSJ1#

 24
67871F - WEATHERSTRIP, ACCESS PANEL, RH
67871-35070

GSJ1#

 1
67871-35071

GSJ1#

 1
67872F - WEATHERSTRIP, ACCESS PANEL, LH
67872-35070

GSJ1#

 1
67872-35071

GSJ1#

 1
67873D - WEATHERSTRIP, ACCESS PANEL, REAR RH
67873-35010

GSJ1#

 1
67874D - WEATHERSTRIP, ACCESS PANEL, REAR LH
67874-35010

GSJ1#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-35080

GSJ1#

*TT,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68103-35081

GSJ1#

*TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68103-35082

GSJ1#

*TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68103-35092

GSJ1#

*UVCT,T=3.1,GREEN

 1
68103-35090

GSJ1#

*UVCTT,T=3.1,GREEN

 1
68103-35091

GSJ1#

*UVCT,T=3.1,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-35081

GSJ1#

*TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68104-35091

GSJ1#

*UVCT,T=3.1,GREEN

 1
68104-35080

GSJ1#

*TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68104-35090

GSJ1#

*UVCTT,T=3.1,GREEN

 1
68104-35082

GSJ1#

*TEM,T=3.1,PRIVACY,BACK GLASS-PRIVACY

 1
68104-35092

GSJ1#

*UVCT,T=3.1,GREEN

 1
68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68163-35040

GSJ1#

 1
68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68164-35040

GSJ1#

 1
68630E - CHECK ASSY, ACCESS PANEL, RH
68640-35030

GSJ1#

 1
68640E - CHECK ASSY, ACCESS PANEL, LH
68640-35030

GSJ1#

 1
75931A - TAPE, BLACK OUT, OUTER UPPER RH
75931-35010

GSJ1#

 1
75932A - TAPE, BLACK OUT, OUTER UPPER LH
75932-35010

GSJ1#

 1
75933B - TAPE, BLACK OUT, OUTER FRONT RH
75933-35010

GSJ1#

 1
75934B - TAPE, BLACK OUT, OUTER FRONT LH
75934-35010

GSJ1#

 1
75935B - TAPE, BLACK OUT, OUTER REAR RH
75935-35010

GSJ1#

 1
75936B - TAPE, BLACK OUT, OUTER REAR LH
75936-35010

GSJ1#

 1
Common parts
61315-48010
62775-35020
62789-35020
90109-08295
90950-01841
90950-01964
94151-80600

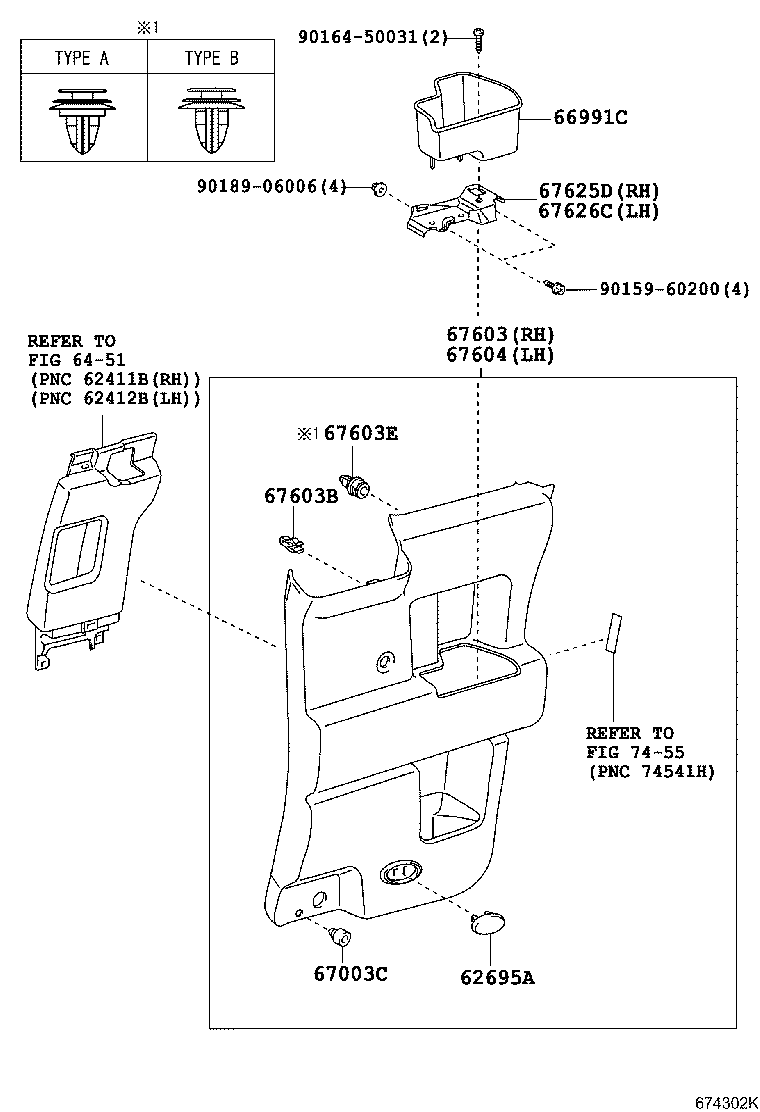

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

DOOR TRIM

diagram 62695A 6451 66991C 67003C 67603 67603B 67603E 67604 67625D 67626C 7455 9015960200 9016450031 9018906006
Part # Description Qty Price
62695A - STOPPER, SIDE TRIM COVER
62695-34010B5

GSJ1#

DK.GRAY,TRIM1#

 2
66991C - HOLDER, CUP, NO.1
66991-35010B0

GSJ1#

DK.GRAY,TRIM1#,RH

 1
66992-35010B0

GSJ1#

DK.GRAY,TRIM1#,LH

 1
67003C - CUSHION, REAR DOOR PANEL
73168-35010

GSJ1#

 2
73168-35010

GSJ1#

IMAGE PACKAGE-WITH

 2
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-35A80B3

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BORDEAUX MC.,TRIM11&2JT

 1
67630-35A80B1

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & SILVER ME.,TRIM11&2JR

 1
67630-35A80B2

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),DK.GRAY & BLACK MC.,TRIM1#

 1
67630-35B70B5

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),DK.GRAY/WHITE,TRIM11&058

 1
67630-35B70B3

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/YELLOW,TRIM11&2JU ,5A3

 1
67630-35A80B4

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & YELLOW,TRIM11&2JU

 1
67630-35B70B7

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
67630-35A80B5

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BLUE,TRIM11&2JV

 1
67630-35B70B1

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BLACK MC.,TRIM11&211 ,2JW ,2KC

 1
67630-35A80B2

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BLACK MC.,TRIM11&2JW

 1
67630-35B70B0

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY,TRIM11&1D4 ,2JR

 1
67630-35B70B6

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BRICK RED ME.,TRIM11&2JX ,3R8

 1
67630-35B70B7

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BEIGE,TRIM11&2JY ,4U0

 1
67630-35A70B1

GSJ1#

DK.GRAY,TRIM1#

 1
67630-35B70B7

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BEIGE,TRIM11&2JY

 1
67630-35B70B3

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/YELLOW,TRIM11&2JU

 1
67630-35B70B4

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY,TRIM11&2JV ,8T6

 1
67630-35B70B8

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/GRAY ME.,TRIM11&2KB

 1
67630-35B70B5

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/WHITE,TRIM11&058

 1
67630-35B70P0

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/DK.GREEN,TRIM11&2KD

 1
67630-35B70B7

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
67630-35B60B0

GSJ1#

DK.GRAY,TRIM1#

 1
67630-35B70B1

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BLACK MC.,TRIM11&2KC

 1
67630-35B70B6

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BRICK RED ME.,TRIM11&2JX

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-12080

GSJ1#

 2
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-10161

GSJ1#

TYPE B:REFER ILLUST.

 10
90467-09206

GSJ1#

TYPE A:REFER ILLUST.

 6
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-35A80B2

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),DK.GRAY & BLACK MC.,TRIM1#

 1
67640-35A70B1

GSJ1#

DK.GRAY,TRIM1#

 1
67640-35A80B4

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & YELLOW,TRIM11&2JU

 1
67640-35A80B3

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BORDEAUX MC.,TRIM11&2JT

 1
67640-35B70B1

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),DK.GRAY/WHITE,TRIM11&058

 1
67640-35B70B9

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY,TRIM11&2JV

 1
67640-35A80B1

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & SILVER ME.,TRIM11&2JR

 1
67640-35B70B7

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
67640-35B70B7

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
67640-35A80B5

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BLUE,TRIM11&2JV

 1
67640-35B70B6

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BRICK RED ME.,TRIM11&2JX

 1
67640-35B70B8

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/YELLOW,TRIM11&2JU

 1
67640-35B60B0

GSJ1#

DK.GRAY,TRIM1#

 1
67640-35B70B1

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/WHITE,TRIM11&058

 1
67640-35A80B2

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY & BLACK MC.,TRIM11&2JW

 1
67640-35B70B7

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BEIGE,TRIM11&2JY

 1
67640-35B70P0

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/DK.GREEN,TRIM11&2KD

 1
67640-35B70B3

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/GRAY ME.,TRIM11&2KB

 1
67640-35B70B5

GSJ1#

IMAGE PACKAGE-WITH,DK.GRAY/BLACK MC.,TRIM11&2KC

 1
67625D - BRACKET, REAR DOOR TRIM
67625-35030

GSJ1#

 1
67626C - BRACKET, REAR DOOR TRIM, NO.2
67626-35010

GSJ1#

 1
Common parts
90159-60200
90164-50031
90189-06006
Linked diagrams
6451
7455
