GSJ15L-GKFSKA (2006)

Toyota Fj Cruiser

Production Jan 2006 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

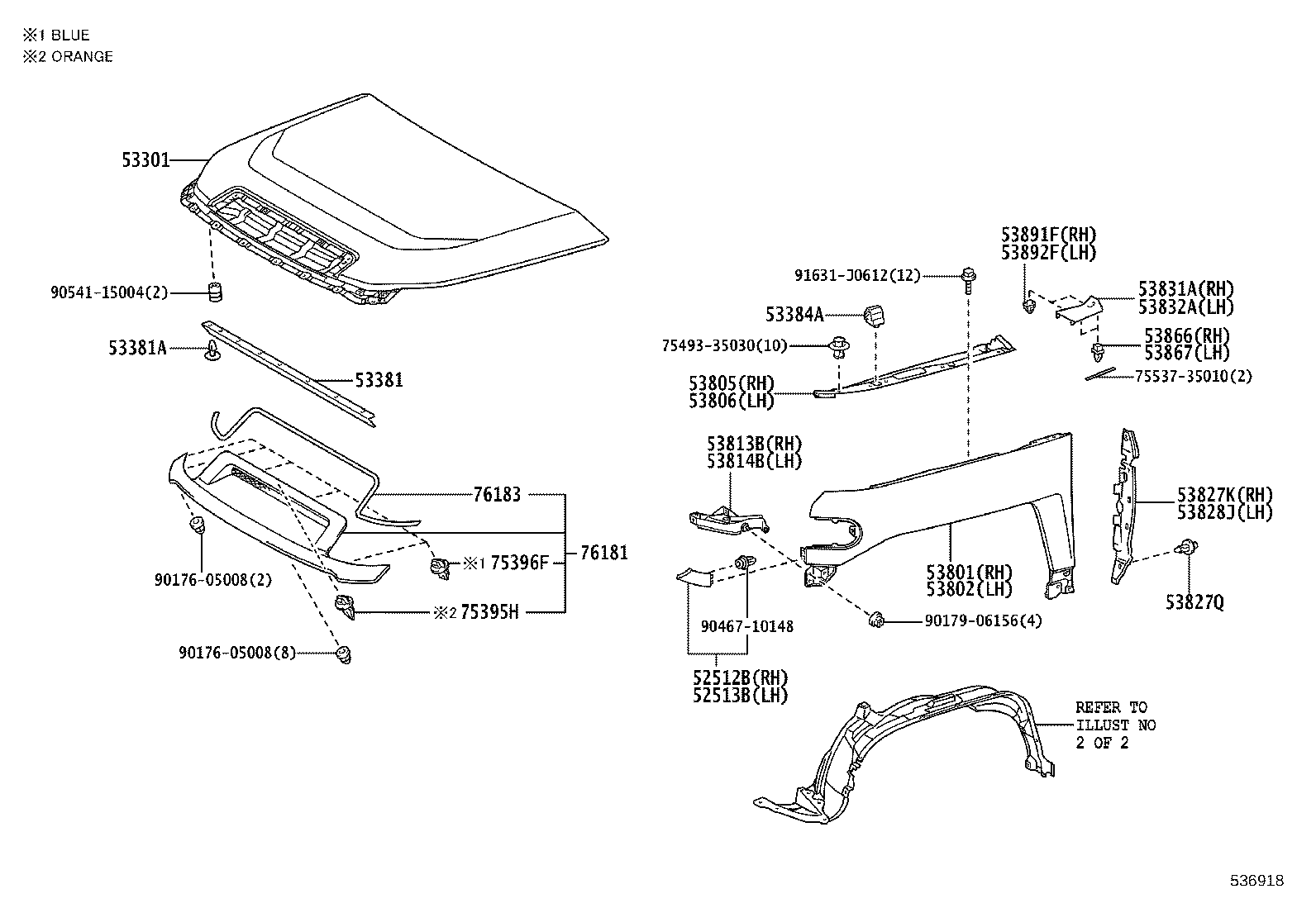

ILLUST NO. 1 OF 2(0601- )

Click highlighted areas on diagram

diagram 52512B 52513B 53301 53381 53381A 53384A 53801 53802 53805 53806 53813B 53814B 53827K 53827Q 53828J 53831A 53832A 53866 53867 53891F 53892F 75395H 75396F 7549335030 7553735010 76181 76183 9017605008 9017605008 9017906156 9046710148 9054115004 91631J0612
Part # Description Qty Price
52512B - FILLER, FRONT BUMPER, RH
52512-35100D0

GSJ1#

BORDEAUX MC.,2JT

 1
52512-35100F0

GSJ1#

YELLOW,2JU ,5A3

 1
52512-35100J0

GSJ1#

BLUE,2JV ,8T6

 1
52512-35100A0

GSJ1#

WHITE,058

 1
52512-35100C0

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),BLACK MC.,211

 1
52512-35100C0

GSJ1#

BLACK MC.,211 ,2JW

 1
52512-35100B0

GSJ1#

SILVER ME.,1D4 ,2JR

 1
52512-35100E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
52512-35100C1

GSJ1#

BLACK,2KC

 1
52512-35100E0

GSJ1#

BEIGE,2JY ,4U0

 1
52512-35100E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
52512-35100G0

GSJ1#

DK.GREEN,2KD

 1
52512-35100B1

GSJ1#

GRAY ME.,2KB

 1
52512-35100D1

GSJ1#

BRICK RED ME.,2JX ,3R8

 1
52513B - FILLER, FRONT BUMPER, LH
52513-35100E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
52513-35100J0

GSJ1#

BLUE,2JV ,8T6

 1
52513-35100B0

GSJ1#

SILVER ME.,1D4 ,2JR

 1
52513-35100D0

GSJ1#

BORDEAUX MC.,2JT

 1
52513-35100C1

GSJ1#

BLACK,2KC

 1
52513-35100F0

GSJ1#

YELLOW,2JU ,5A3

 1
52513-35100B1

GSJ1#

GRAY ME.,2KB

 1
52513-35100C0

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),BLACK MC.,211

 1
52513-35100E0

GSJ1#

BEIGE,2JY ,4U0

 1
52513-35100C0

GSJ1#

BLACK MC.,211 ,2JW

 1
52513-35100D1

GSJ1#

BRICK RED ME.,2JX ,3R8

 1
52513-35100G0

GSJ1#

DK.GREEN,2KD

 1
52513-35100A0

GSJ1#

WHITE,058

 1
52513-35100E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
53301 - HOOD SUB-ASSY
53301-35190

GSJ1#

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-35070

GSJ1#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GSJ1#

 8
53384A - BUMPER, FENDER TO HOOD
53384-35020

GSJ1#

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-35600

GSJ1#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-35690

GSJ1#

 1
53802-35750

GSJ1#

 1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-35010

GSJ1#

 1
53805-35011

GSJ1#

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-35010

GSJ1#

 1
53813B - EXTENSION, FRONT FENDER, RH
53813-35090

GSJ1#

 1
53814B - EXTENSION, FRONT FENDER, LH
53814-35070

GSJ1#

 1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-35041

GSJ1#

 1
53827-35040

GSJ1#

 1
53827Q - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
90467-07076C0

GSJ1#

BLACK

 10
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-35061

GSJ1#

 1
53828-35060

GSJ1#

 1
53831A - PANEL, FRONT FENDER SIDE, UPPER RH
61101-35170

GSJ1#

 1
61101-35171

GSJ1#

 1
53832A - PANEL, FRONT FENDER SIDE, UPPER LH
61102-35130

GSJ1#

 1
61102-35131

GSJ1#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
61118-35010

GSJ1#

 2
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
61118-35010

GSJ1#

 2
53891F - PROTECTOR, FRONT FENDER LINER, RH
61992-35010

GSJ1#

REAR

 1
61991-35010

GSJ1#

FRONT

 1
53892F - PROTECTOR, FRONT FENDER LINER, LH
61992-35010

GSJ1#

REAR

 1
61991-35010

GSJ1#

FRONT

 1
75395H - CLIP, OUTSIDE MOULDING, NO.1
75395-35070

GSJ1#

 1
75396F - CLIP, OUTSIDE MOULDING, NO.2
75396-35020

GSJ1#

 6
76181 - BULGE, HOOD
76180-35030J0

GSJ1#

BLUE,2JV ,8T6

 1
76180-35030E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
76180-35030C0

GSJ15

SPECIAL EDITION(USA/HAWAII/P.RICO),BLACK MC.,211

 1
76180-35030F0

GSJ1#

YELLOW,2JU ,5A3

 1
76180-35030B0

GSJ1#

SILVER ME.,1D4 ,2JR

 1
76180-35030D0

GSJ1#

BORDEAUX MC.,2JT

 1
76180-35030D1

GSJ1#

BRICK RED ME.,2JX ,3R8

 1
76180-35030C0

GSJ1#

BLACK MC.,211 ,2JW

 1
76180-35030E0

GSJ1#

BEIGE,2JY ,4U0

 1
76180-35031G0

GSJ1#

DK.GREEN,2KD

 1
76180-35030C1

GSJ1#

BLACK,2KC

 1
76180-35030A0

GSJ1#

WHITE,058

 1
76180-35031E0

GSJ15

SPECIAL EDITION,BEIGE,4U0

 1
76180-35031C1

GSJ1#

BLACK,2KC

 1
76180-35031B1

GSJ1#

GRAY ME.,2KB

 1
76180-35031E0

GSJ1#

BEIGE,2JY

 1
76180-35031D1

GSJ1#

BRICK RED ME.,2JX

 1
76180-35030G0

GSJ1#

DK.GREEN,2KD

 1
76180-35031A0

GSJ1#

WHITE,058

 1
76180-35030B1

GSJ1#

GRAY ME.,2KB

 1
76180-35031F0

GSJ1#

YELLOW,2JU

 1
76183 - PROTECTOR, HOOD BULGE, NO.1
76183-35020

GSJ1#

 1
Common parts
75493-35030
75537-35010
90176-05008
90179-06156
90467-10148
90541-15004
91631-J0612

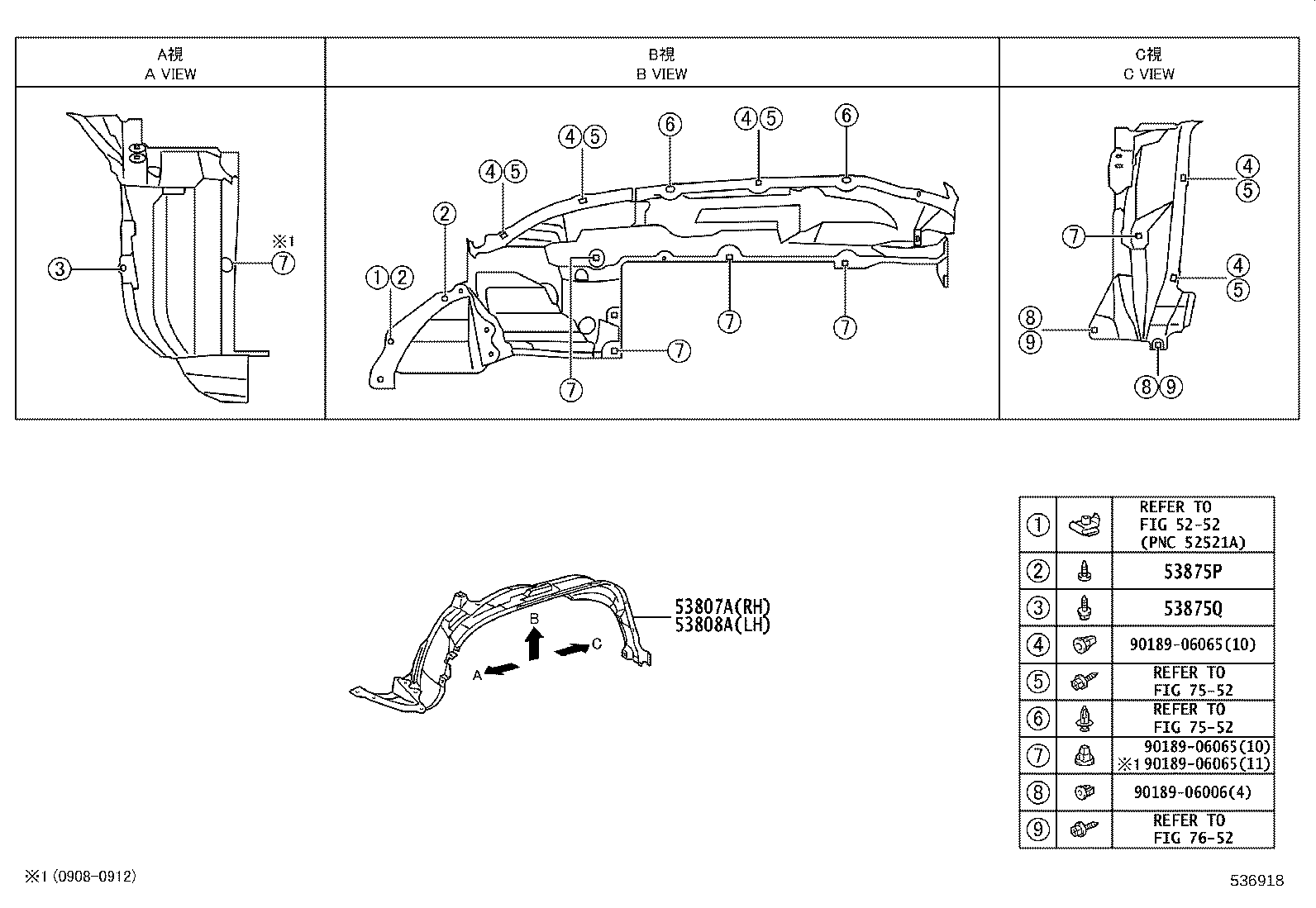

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

FENDER LINER

diagram 5252 53807A 53808A 53875P 53875Q 7552 7552 7652 9018906006 9018906065 9018906065 9018906065
Part # Description Qty Price
53807A - SHIELD SUB-ASSY, FENDER SPLASH, REAR RH
53807-35110

GSJ1#

 1
53807-35111

GSJ1#

 1
53807-35130

GSJ1#

 1
53808A - SHIELD SUB-ASSY, FENDER SPLASH, REAR LH
53808-35110

GSJ1#

 1
53808-35111

GSJ1#

 1
53875P - SCREW, NO.1
90159-60215

GSJ1#

 4
53875Q - SCREW, NO.2
90159-60603

GSJ1#

 2
Common parts
90189-06006
90189-06065
Linked diagrams
5252
7552
7652
