GSJ15L-GKASKA (2006)

Toyota Fj Cruiser

Production Jan 2006 - Nov 2010
Engine 1GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0908)

Click highlighted areas on diagram

W/O(REAR WINDOW WIPER)

diagram 827112C060 8281732840 85031B 85035 85035 85310 85317 85330 85330A 85332 85336D 85348 85348E 85348F 85348G 85348M 85355 85371 8537135030 85371T 85372 85372B 85372H 85372J 85372Y 85373 85373 9011906767 9046706084
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85375-12520

GSJ1#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

GSJ1#

 1
85317 - WIRING ASSY, WASHER
85317-35320

GSJ1#

 1
85317-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35330

GSJ15

CANADA SPEC

 1
85317-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC

 1
85317-35360

GSJ1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35330

GSJ15

CANADA SPEC

 1
85315-35380

GSJ15

CANADA SPEC

 1
85315-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85315-35360

GSJ1#

 1
85315-35320

GSJ1#

 1
85315-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

GSJ1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

GSJ1#

 1
85316-12290

GSJ1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

GSJ1#

 1
85336-20340

GSJ1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

GSJ1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GSJ1#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85375-33070

GSJ1#

 1
85355-20200

GSJ1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85348-12250

GSJ1#

 1
85348-12250

GSJ1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85336-12230

GSJ15

L=15,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=160,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=160

 1
85336-12230

GSJ15

L=15,CANADA SPEC&CONVENIENCE PACKAGE

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-33080

GSJ15

*H,L=920,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=920,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=920

 1
90099-33080

GSJ15

*H,L=920,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GSJ1#

*H,L=250

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=250,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=310

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSJ15

*H,L=930,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=930

 1
90099-33080

GSJ1#

*H,L=430

 1
90099-33080

GSJ1#

*H,L=930,CONVENIENCE PACKAGE

 1
90099-33080

GSJ15

*H,L=930,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSJ1#

*H,L=310

 1
90099-33080

GSJ1#

*H,L=240

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSJ1#

*H,L=610

 1
90099-33080

GSJ1#

*H,L=430

 1
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
90446-07001

GSJ1#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
Common parts
82711-2C060
82817-32840
85371-35030
90119-06767
90467-06084

(0611-0908)

Click highlighted areas on diagram

W(REAR WINDOW WIPER)

diagram 827112C060 8281732840 85035 85035 8504 8504 8504 85310 85317 85330 85330A 85332 85336D 85348 85348E 85348F 85348G 85348M 85355 85371 8537135030 85371T 85372 85372B 85372H 85372J 85373 85373 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

GSJ1#

 1
85317 - WIRING ASSY, WASHER
85317-35320

GSJ1#

 1
85317-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35330

GSJ15

CANADA SPEC

 1
85317-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC

 1
85317-35360

GSJ1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35330

GSJ15

CANADA SPEC

 1
85315-35380

GSJ15

CANADA SPEC

 1
85315-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85315-35360

GSJ1#

 1
85315-35320

GSJ1#

 1
85315-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

GSJ1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

GSJ1#

 1
85316-12290

GSJ1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

GSJ1#

 1
85336-20340

GSJ1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

GSJ1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GSJ1#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85375-33070

GSJ1#

 1
85355-20200

GSJ1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85348-12250

GSJ1#

 1
85348-12250

GSJ1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85336-12230

GSJ15

L=15,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=160,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=160

 1
85336-12230

GSJ15

L=15,CANADA SPEC&CONVENIENCE PACKAGE

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-33080

GSJ15

*H,L=920,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=920,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=920

 1
90099-33080

GSJ15

*H,L=920,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GSJ1#

*H,L=250

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=250,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=310

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSJ15

*H,L=930,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=930

 1
90099-33080

GSJ1#

*H,L=430

 1
90099-33080

GSJ1#

*H,L=930,CONVENIENCE PACKAGE

 1
90099-33080

GSJ15

*H,L=930,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSJ1#

*H,L=310

 1
90099-33080

GSJ1#

*H,L=240

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSJ1#

*H,L=610

 1
90099-33080

GSJ1#

*H,L=430

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
Common parts
82711-2C060
82817-32840
85371-35030
90119-06767
Linked diagrams
8504

(0908- )

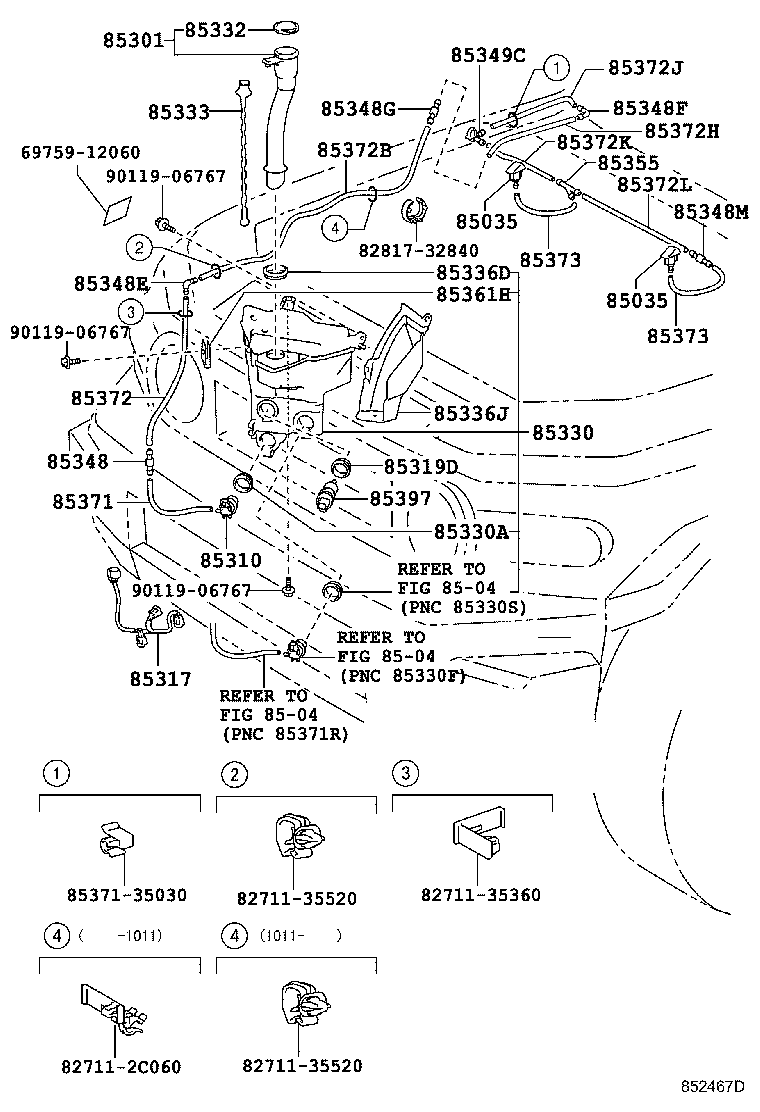

Click highlighted areas on diagram

W(REAR WINDOW WIPER)

diagram 6975912060 827112C060 8271135360 8271135520 8271135520 8281732840 85035 85035 8504 8504 8504 85301 85310 85317 85319D 85330 85330A 85332 85333 85336D 85336J 85348 85348E 85348F 85348G 85348M 85349C 85355 85361H 85371 8537135030 85372 85372B 85372H 85372J 85372K 85372L 85373 85373 85397 9011906767 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85301 - INLET SUB-ASSY, WASHER
85301-35070

GSJ1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

GSJ1#

 1
85317 - WIRING ASSY, WASHER
85317-35320

GSJ1#

 1
85317-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35330

GSJ15

CANADA SPEC

 1
85317-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC

 1
85317-35360

GSJ1#

 1
85319D - PACKING, FRONT WASHER
85319-33230

GSJ1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35330

GSJ15

CANADA SPEC

 1
85315-35380

GSJ15

CANADA SPEC

 1
85315-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85315-35360

GSJ1#

 1
85315-35320

GSJ1#

 1
85315-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

GSJ1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

GSJ1#

 1
85316-12290

GSJ1#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-48010

GSJ1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

GSJ1#

 1
85336-20340

GSJ1#

 1
85336J - PROTECTOR, WASHER JAR
85336-35380

GSJ1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

GSJ1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GSJ1#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85375-33070

GSJ1#

 1
85355-20200

GSJ1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85375-33070

GSJ1#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85348-12250

GSJ1#

 1
85348-12250

GSJ1#

 1
85361H - BRACKET, WASHER
85362-37050

GSJ1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85336-12230

GSJ15

L=15,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=160,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=160

 1
85336-12230

GSJ15

L=15,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GSJ1#

*H,L=250

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=250,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=310

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSJ15

*H,L=930,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=930

 1
90099-33080

GSJ1#

*H,L=430

 1
90099-33080

GSJ1#

*H,L=930,CONVENIENCE PACKAGE

 1
90099-33080

GSJ15

*H,L=930,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSJ1#

*H,L=310

 1
90099-33080

GSJ1#

*H,L=240

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSJ1#

*H,L=610

 1
90099-33080

GSJ1#

*H,L=430

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GSJ1#

*H,L=240

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSJ1#

*H,L=610

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
85397 - SWITCH ASSY,LEVEL WARNING
85397-52100

GSJ1#

 1
Common parts
69759-12060
82711-2C060
82711-35360
82711-35520
82817-32840
85371-35030
90119-06767
Linked diagrams
8504

(0908- )

Click highlighted areas on diagram

W/O(REAR WINDOW WIPER)

diagram 6975912060 827112C060 8271135360 8271135520 8271135520 8281732840 85031B 85035 85035 85301 85310 85317 85330 85330A 85332 85333 85336D 85336J 85348 85348E 85348F 85348G 85348M 85349C 85355 85361H 85371 8537135030 85372 85372B 85372H 85372J 85372K 85372L 85372Y 85373 85373 9011906767 9011906767 9011906767 9046706084
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85375-12520

GSJ1#

 1
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-34030

GSJ1#

 2
85301 - INLET SUB-ASSY, WASHER
85301-35070

GSJ1#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60190

GSJ1#

 1
85317 - WIRING ASSY, WASHER
85317-35320

GSJ1#

 1
85317-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35330

GSJ15

CANADA SPEC

 1
85317-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85317-35380

GSJ15

CANADA SPEC

 1
85317-35360

GSJ1#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-35330

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35370

GSJ1#

CONVENIENCE PACKAGE

 1
85315-35330

GSJ15

CANADA SPEC

 1
85315-35380

GSJ15

CANADA SPEC

 1
85315-35330

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85315-35360

GSJ1#

 1
85315-35320

GSJ1#

 1
85315-35380

GSJ15

CANADA SPEC&CONVENIENCE PACKAGE

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

GSJ1#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85386-60050

GSJ1#

 1
85316-12290

GSJ1#

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-48010

GSJ1#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

GSJ1#

 1
85336-20340

GSJ1#

 1
85336J - PROTECTOR, WASHER JAR
85336-35380

GSJ1#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-10260

GSJ1#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

GSJ1#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85375-33070

GSJ1#

 1
85355-20200

GSJ1#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

GSJ1#

 1
85375-10260

GSJ1#

 1
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85375-33070

GSJ1#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85348-12250

GSJ1#

 1
85348-12250

GSJ1#

 1
85361H - BRACKET, WASHER
85362-37050

GSJ1#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85336-12230

GSJ15

L=15,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=160,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15,CONVENIENCE PACKAGE

 1
85336-12230

GSJ1#

L=15

 1
90099-33080

GSJ15

*H,L=160,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=160

 1
85336-12230

GSJ15

L=15,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GSJ1#

*H,L=250

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC

 1
90099-33080

GSJ15

*H,L=250,CANADA SPEC&CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=250,CONVENIENCE PACKAGE

 1
90099-33080

GSJ1#

*H,L=310

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GSJ15

*H,L=930,CANADA SPEC

 1
90099-33080

GSJ1#

*H,L=930

 1
90099-33080

GSJ1#

*H,L=430

 1
90099-33080

GSJ1#

*H,L=930,CONVENIENCE PACKAGE

 1
90099-33080

GSJ15

*H,L=930,CANADA SPEC&CONVENIENCE PACKAGE

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GSJ1#

*H,L=310

 1
90099-33080

GSJ1#

*H,L=240

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GSJ1#

*H,L=610

 1
90099-33080

GSJ1#

*H,L=430

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

GSJ1#

*H,L=240

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GSJ1#

*H,L=610

 1
85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
90446-07001

GSJ1#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

GSJ1#

*H,L=210

 2
Common parts
69759-12060
82711-2C060
82711-35360
82711-35520
82817-32840
85371-35030
90119-06767
90467-06084
