NCP13L-AHPRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

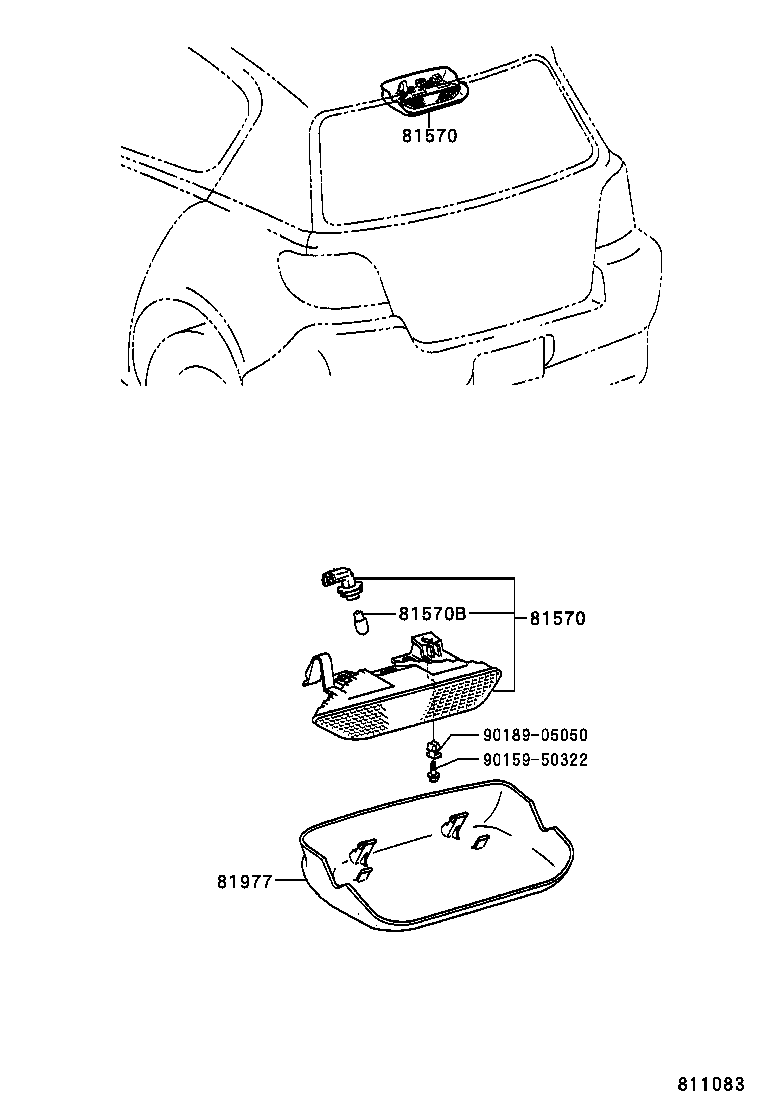

Click highlighted areas on diagram

diagram 81570 81570 81570B 81977 9015950322 9018905050
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-52010

NCP13

 1
81570 - LAMP ASSY, CENTER STOP
81570-52010

NCP13

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

NCP13

12V 16W

 1
81977 - COVER, CENTER STOP LAMP
81977-52010B1

NCP13

DK.GRAY,TRIM9#

 1
Common parts
90159-50322
90189-05050
