NCP13L-AHMRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

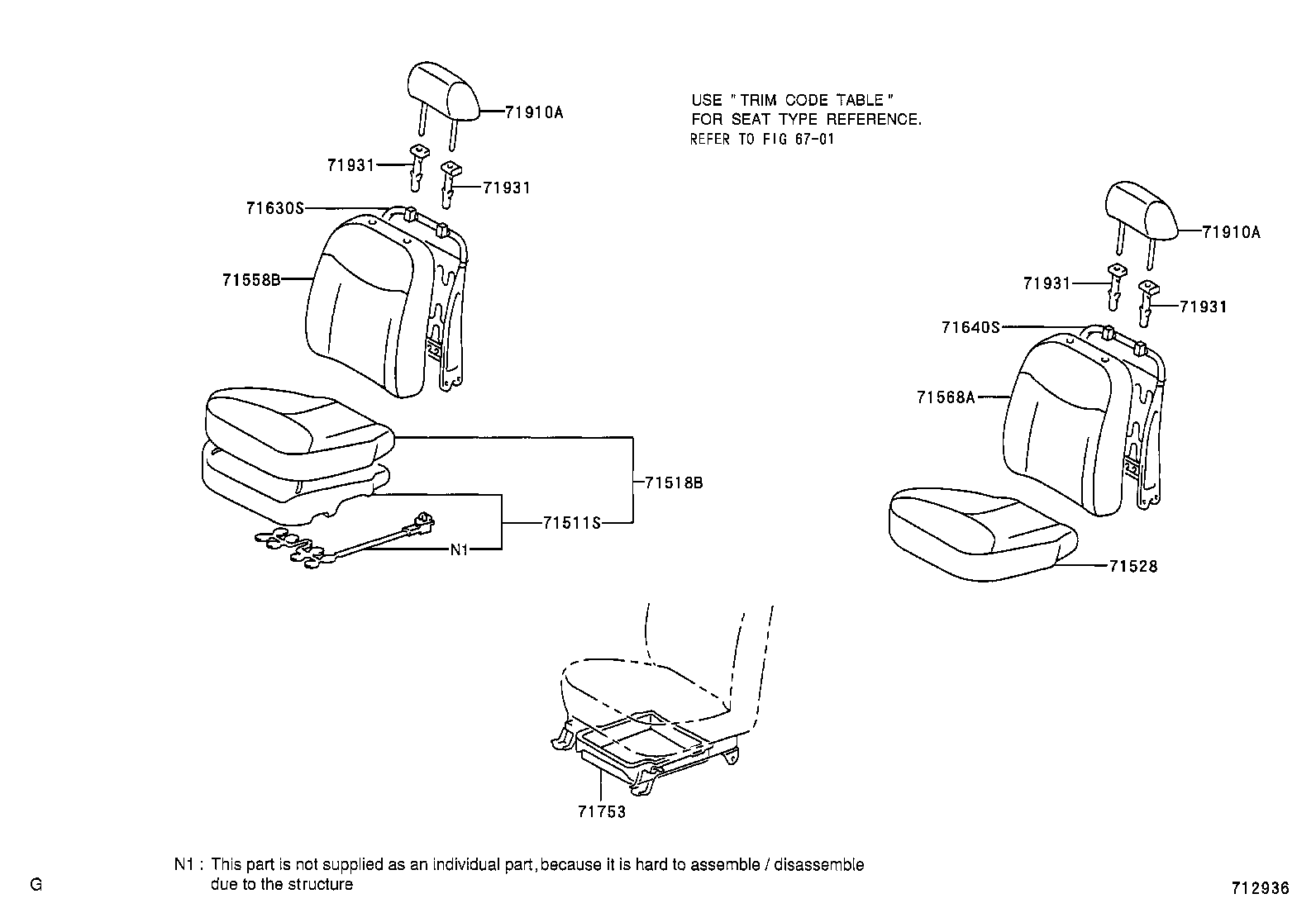

ILLUST NO. 1 OF 2(0306- )

Click highlighted areas on diagram

SEAT = TYPE A-*104

diagram 6701 71511S 71518B 71528 71558B 71568A 71630S 71640S 71753 71910A 71910A 71931 71931 71931 71931
Part # Description Qty Price
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-52020

NCP13

SEAT = TYPE A-*104

 1
71502-52020

NCP13..5D

SEAT = TYPE B-*104

 1
71518B - PAD, FRONT SEAT CUSHION W/COVER, RH
71518-5C300B0

NCP13

DK.GRAY,TRIM9#

 1
71528 - PAD, FRONT SEAT CUSHION W/COVER, LH
71528-5D360B0

NCP13

DK. GRAY,TRIM9#

 1
71558B - PAD, FRONT SEAT BACK W/COVER, RH
71558-52A50B0

NCP13

DK.GRAY,TRIM9#

 1
71568A - PAD, FRONT SEAT BACK W/COVER, LH
71558-52A50B0

NCP13

DK.GRAY,TRIM9#

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-52280

NCP13

SEAT = TYPE A-*104

 1
71630-52270

NCP13..5D

SEAT = TYPE B-*104

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-52280

NCP13

SEAT = TYPE A-*104

 1
71640-52040

NCP13..5D

SEAT = TYPE B-*104

 1
71753 - TRAY, FRONT SEAT UNDER
71753-52010

NCP13

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52340B0

NCP13

SEAT = TYPE A-*104,MD. GRAY,TRIM9#

 2
71910-52130C0

NCP13..5D

SEAT = TYPE B-*104,BLACK,TRIM9#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-52340B0

NCP13

SEAT = TYPE A-*104,MD. GRAY,TRIM9#

 2
71910-52130C0

NCP13..5D

SEAT = TYPE B-*104,BLACK,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
Linked diagrams
6701

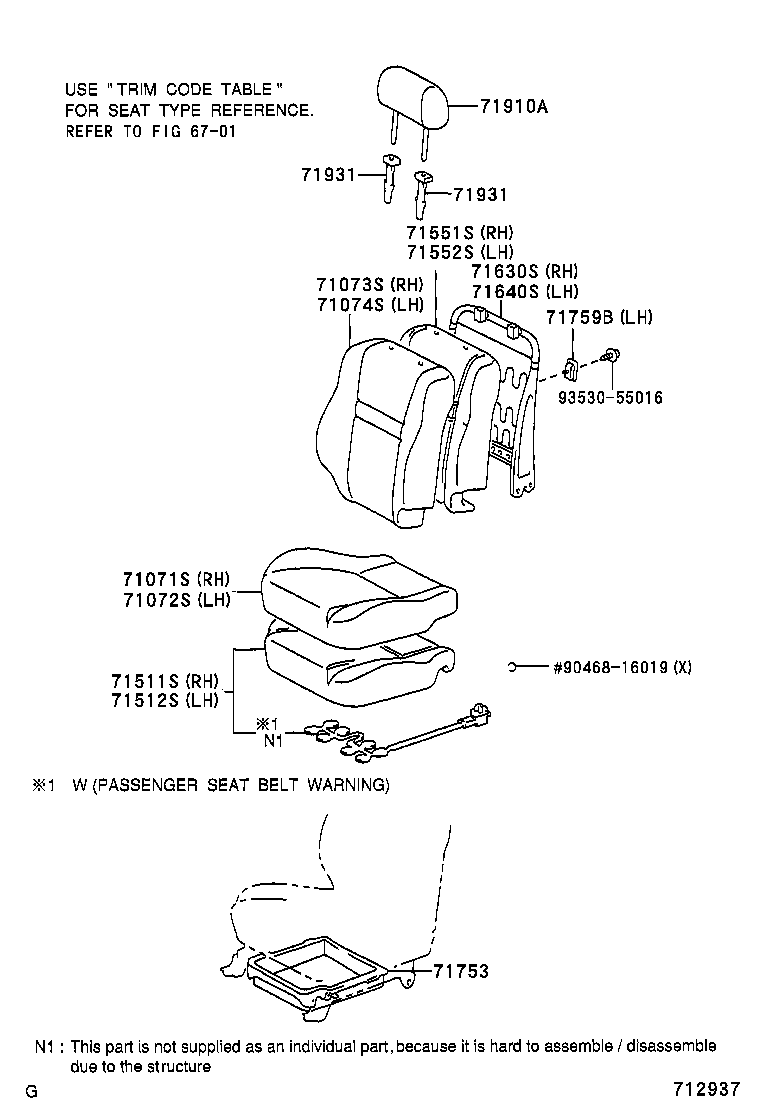

ILLUST NO. 1 OF 2(0306- )5D

Click highlighted areas on diagram

SEAT = TYPE B-*104

diagram 6701 71071S 71072S 71073S 71074S 71511S 71512S 71551S 71552S 71630S 71640S 71753 71759B 71910A 71931 71931 9046816019 9353055016
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-5C140C1

NCP13..5D

BLACK,TRIM9#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-5C110C1

NCP13..5D

BLACK,TRIM9#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-52A30C1

NCP13..5D

BLACK,TRIM9#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52630C1

NCP13..5D

BLACK,TRIM9#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-52020

NCP13

SEAT = TYPE A-*104

 1
71502-52020

NCP13..5D

SEAT = TYPE B-*104

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-63020

NCP13..5D

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-63031

NCP13..5D

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-13160

NCP13..5D

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-52280

NCP13

SEAT = TYPE A-*104

 1
71630-52270

NCP13..5D

SEAT = TYPE B-*104

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-52280

NCP13

SEAT = TYPE A-*104

 1
71640-52040

NCP13..5D

SEAT = TYPE B-*104

 1
71753 - TRAY, FRONT SEAT UNDER
71753-52010

NCP13

 1
71759B - HOOK, FRONT SEAT BACK
71759-13020B0

NCP13..5D

DK.GRAY,TRIM9#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-52340B0

NCP13

SEAT = TYPE A-*104,MD. GRAY,TRIM9#

 2
71910-52130C0

NCP13..5D

SEAT = TYPE B-*104,BLACK,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010B2

NCP13

W/O(LOCK),DK.GRAY,TRIM9#

 2
71930-47010B2

NCP13

W(LOCK),DK.GRAY,TRIM9#

 2
Common parts
90468-16019
93530-55016
Linked diagrams
6701

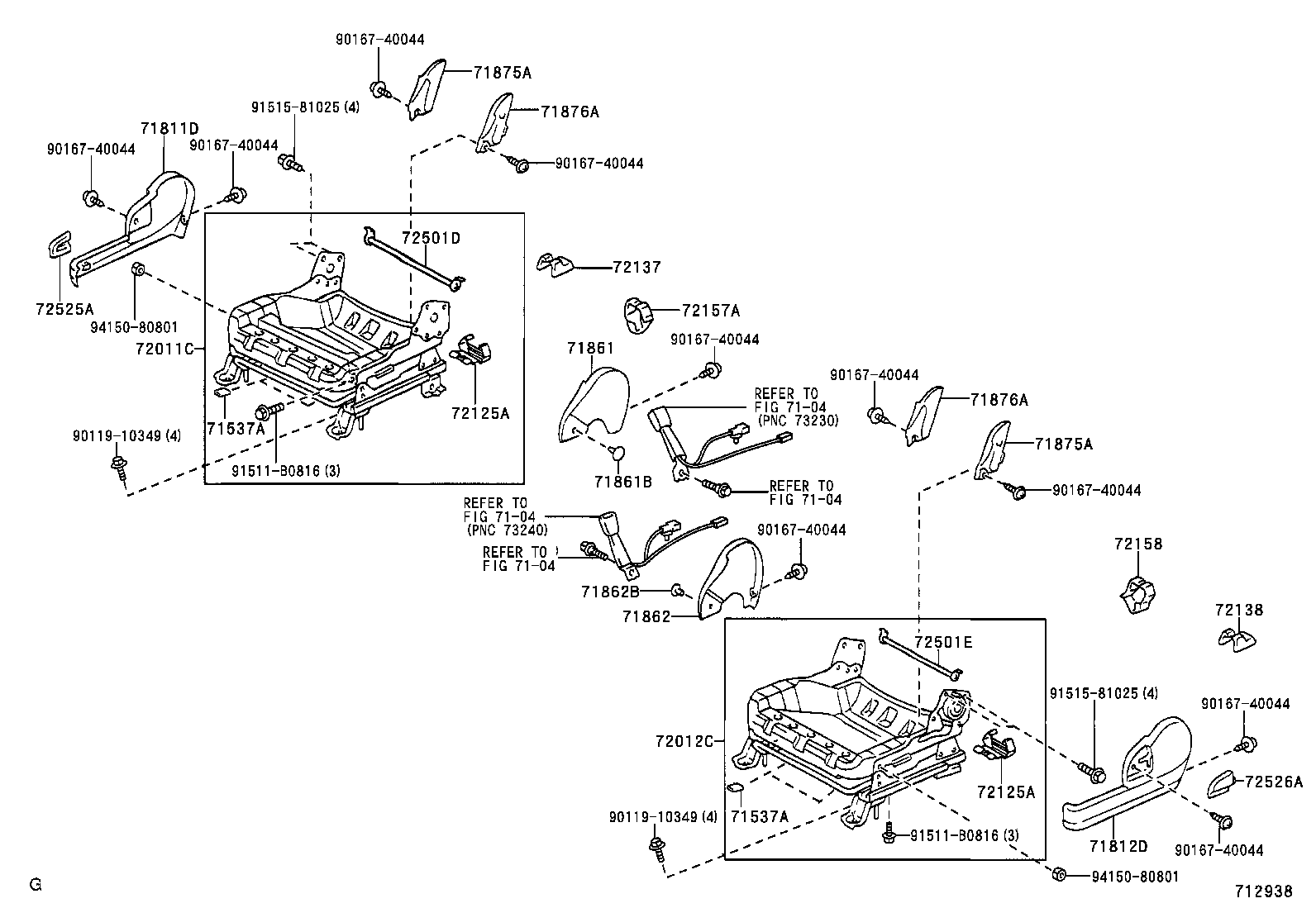

ILLUST NO. 2 OF 2(0306- )

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 71537A 71537A 71811D 71812D 71861 71861B 71862 71862B 71875A 71875A 71876A 71876A 72011C 72012C 72125A 72125A 72137 72138 72157A 72158 72501D 72501E 72525A 72526A 9011910349 9011910349 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 91511B0816 91511B0816 9151581025 9151581025 9415080801 9415080801
Part # Description Qty Price
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP13

 4
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

NCP13

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52010B2

NCP13..5D

DK.GRAY,TRIM9#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52010B3

NCP13

DK.GRAY,TRIM9#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52010B2

NCP13

DK.GRAY,TRIM9#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-06085B2

NCP13

DK.GRAY,TRIM9#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52010B3

NCP13

DK.GRAY,TRIM9#

 1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-06085B2

NCP13

DK.GRAY,TRIM9#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-52010B2

NCP13

DK.GRAY,TRIM9#

 2
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-52010B2

NCP13

DK.GRAY,TRIM9#

 2
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-52010B2

NCP13

DK.GRAY,TRIM9#

 2
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-52010B2

NCP13

DK.GRAY,TRIM9#

 2
72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH
72010-52141

NCP13..5D

 1
72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH
72020-52151

NCP13

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-28030

NCP13

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-28030

NCP13

 4
72137 - COVER, SEAT TRACK, OUTER RH
72137-52010

NCP13

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-52010

NCP13

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-52010

NCP13

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-52010

NCP13

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72345-47010

NCP13

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72345-47010

NCP13

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010S1

NCP13

DK.GRAY,TRIM9#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010S1

NCP13

DK.GRAY,TRIM9#

 1
Common parts
90119-10349
90167-40044
91511-B0816
91515-81025
94150-80801
Linked diagrams
7104
