NCP13L-AHMRKK (2003)

Toyota Echo

Production Jun 2003 - Aug 2005
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0306- )

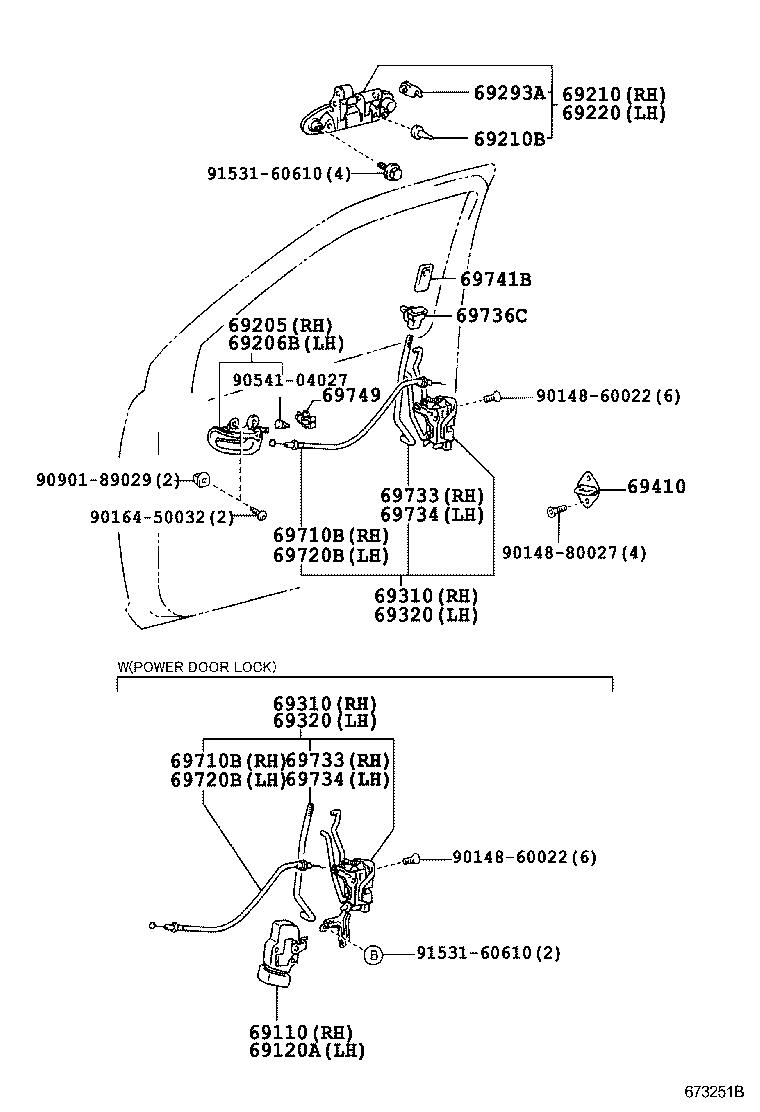

Click highlighted areas on diagram

diagram 69110 69120A 69205 69206B 69210 69210B 69220 69293A 69310 69310 69320 69320 69410 69710B 69710B 69720B 69720B 69733 69733 69734 69734 69736C 69741B 69749 9014860022 9014860022 9014880027 9016450032 9054104027 9090189029 9153160610 9153160610
Part # Description Qty Price
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-52010

NCP13..5D

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-52030

NCP13..5D

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-52090B0

NCP13..5D

CHROME PLATED HANDLE,DK.GRAY,TRIM9#

 1
69205-52010B3

NCP13

DK.GRAY,TRIM9#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-52010B3

NCP13

DK.GRAY,TRIM9#

 1
69206-52080B0

NCP13..5D

CHROME PLATED HANDLE,DK.GRAY,TRIM9#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-52020A1

NCP13

WHITE,068

 1
69210-52020C0

NCP13

BLACK MC.,209

 1
69210-52020B3

NCP13

SILVER M.M.,1E7

 1
69210-52020D2

NCP13

SUPER RED 5,3P0

 1
69210-52020J5

NCP13

BLUE ME.,8P1

 1
69210-52020F0

NCP13

YELLOW M.M.,580

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

NCP13

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-52020B3

NCP13

SILVER M.M.,1E7

 1
69220-52020D2

NCP13

SUPER RED 5,3P0

 1
69220-52020C0

NCP13

BLACK MC.,209

 1
69220-52020F0

NCP13

YELLOW M.M.,580

 1
69220-52020J5

NCP13

BLUE ME.,8P1

 1
69220-52020A1

NCP13

WHITE,068

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

NCP13

RH

 1
69293-12030

NCP13

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-52310

NCP13..5D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-52310

NCP13..5D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-52290

NCP13..5D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-52290

NCP13..5D

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-47010

NCP13

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-52020

NCP13..5D

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-52020

NCP13..5D

 2
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-52020

NCP13..5D

 2
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-52020

NCP13..5D

 2
69733 - LINK, FRONT DOOR INSIDE LOCKING, RH
69733-52020

NCP13..5D

 1
69733 - LINK, FRONT DOOR INSIDE LOCKING, RH
69733-52020

NCP13..5D

 1
69734 - LINK, FRONT DOOR INSIDE LOCKING, LH
69734-52020

NCP13..5D

 1
69734 - LINK, FRONT DOOR INSIDE LOCKING, LH
69734-52020

NCP13..5D

 1
69736C - GUIDE, FRONT DOOR LOCKING LINK
69736-12130

NCP13

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-87003B8

NCP13

DK.GRAY,TRIM9#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-52010

NCP13..5D

 2
Common parts
90148-60022
90148-80027
90164-50032
90541-04027
90901-89029
91531-60610
